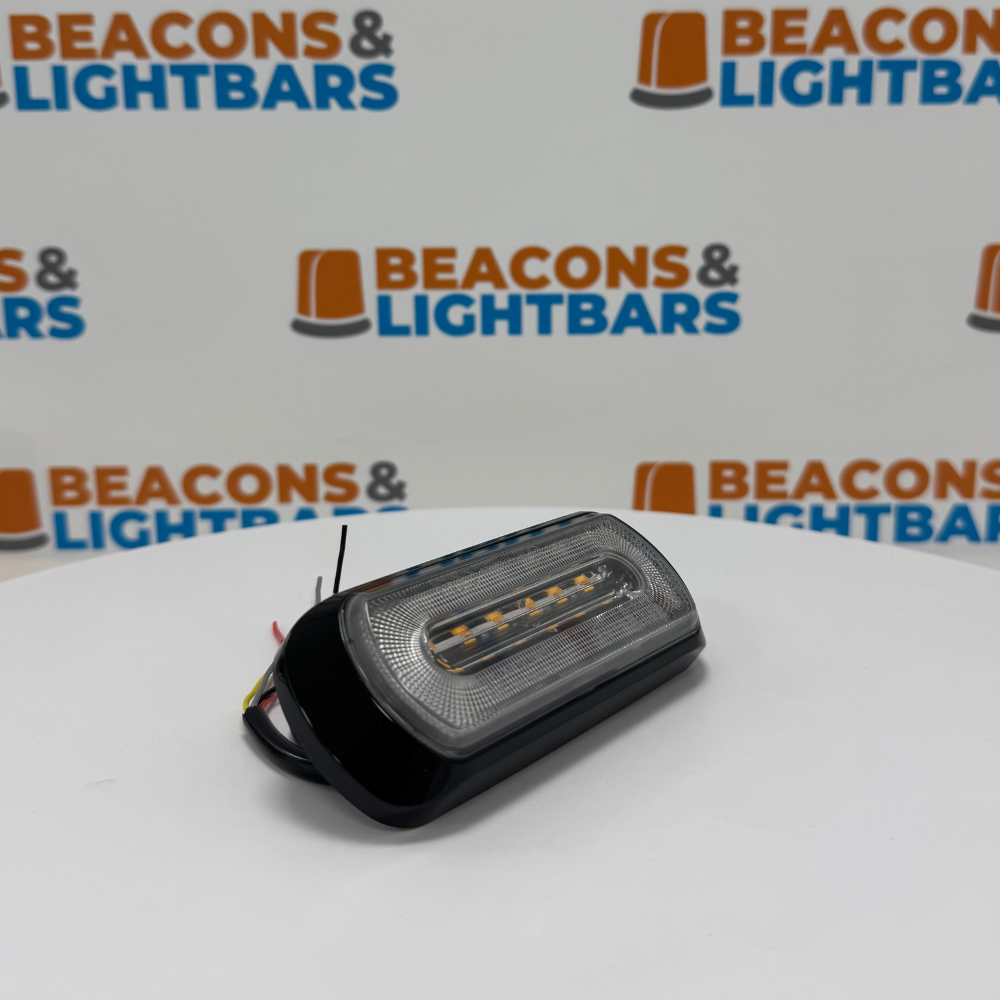

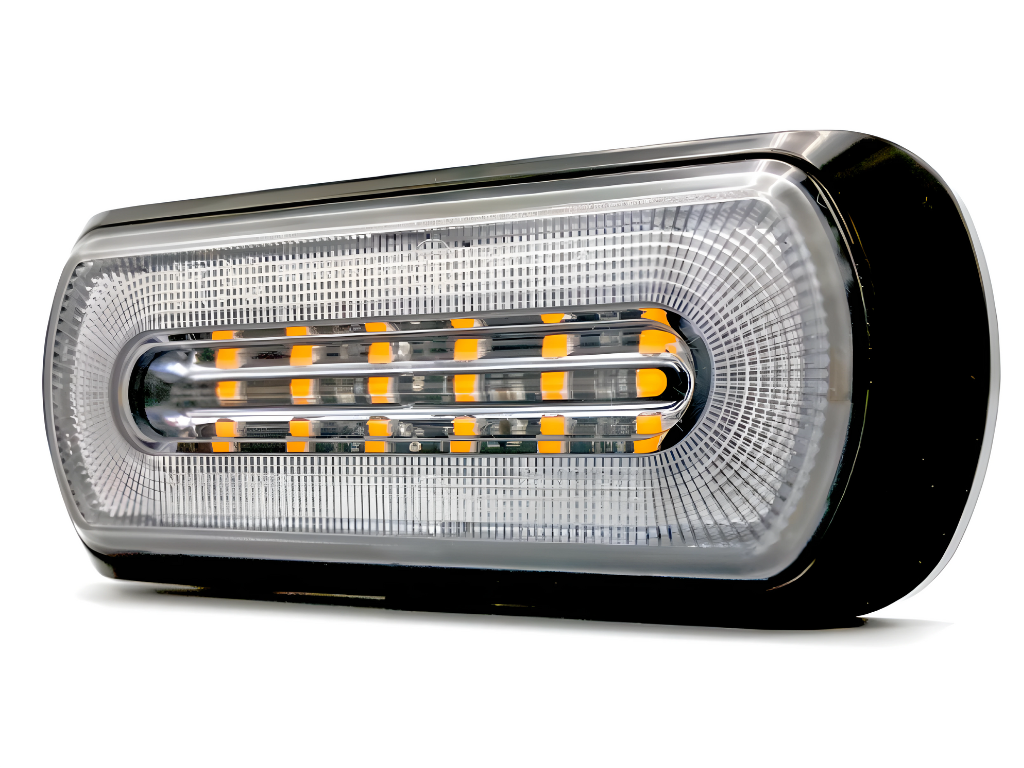

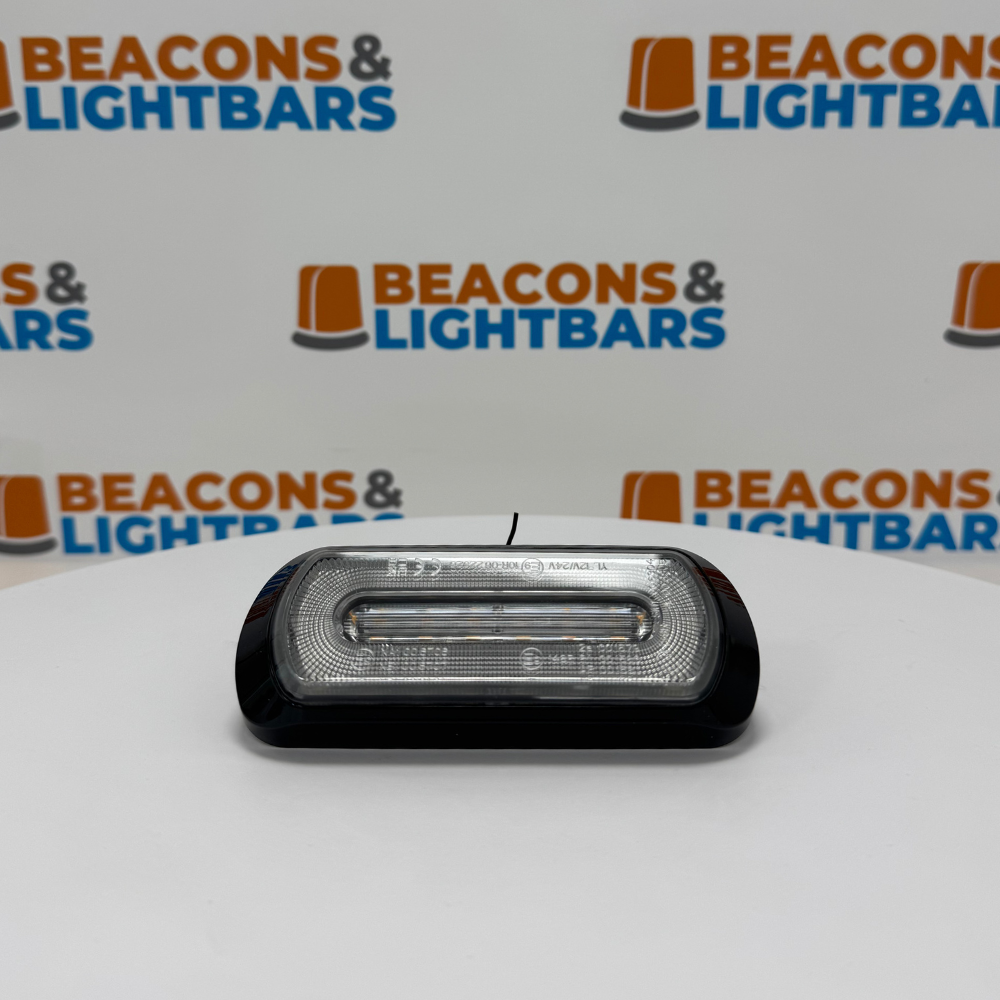

Van Master Amber R65 LED Strobe With Halo Trailer Function PN: VMG-HALO
Our range of Van Master marker lights include the latest long life LEDs which provide bright and reliable, maintenance-free operation.
*THE NEW COLOURS ON BACK ORDER SHOULD BE AVAILABLE MID APRIL*
(incl. VAT £29.99)
SPECIFICATION:
Multi Voltage input 12-24VDC.
Lens colour: Clear.
Housing colour: Black.
Fuse rating: 2A.

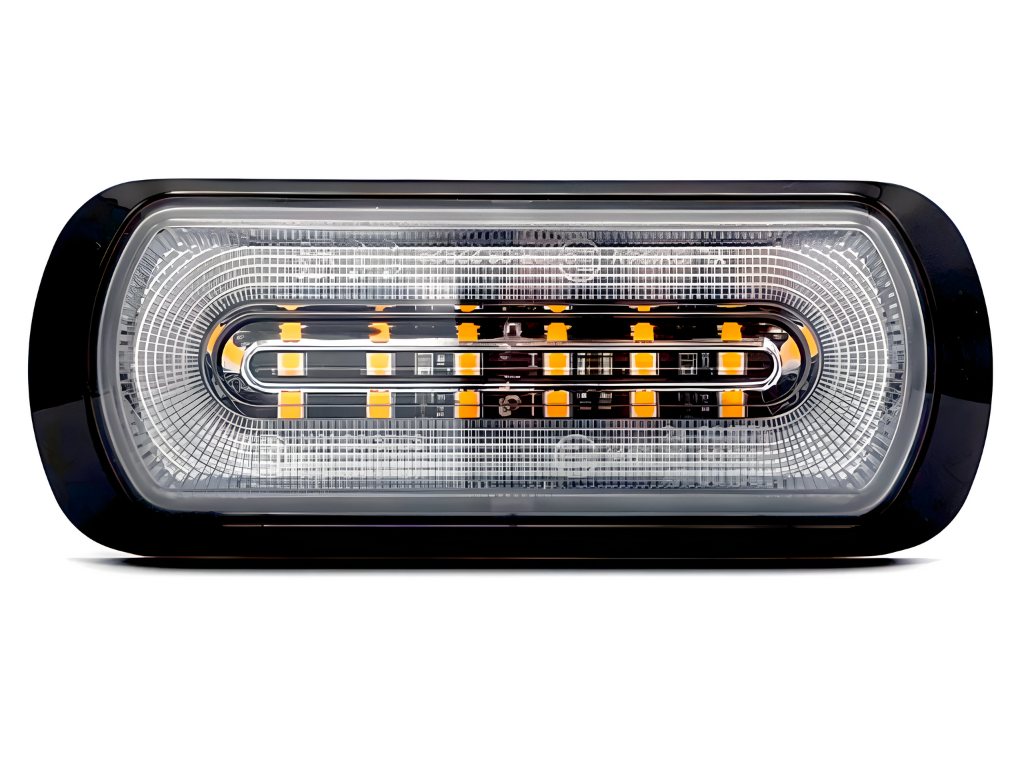

LED: 6x Centre Strobe Warning LED's, 18x Halo Ring Marker LED's.
Max Current: 1.35A@12VDC / 0.75A@24VDC.
Max Wattage: 18W.
Mount: Horizontal.
21 Flash Patterns.
Sync up to 14 lights in 2 separate groups.

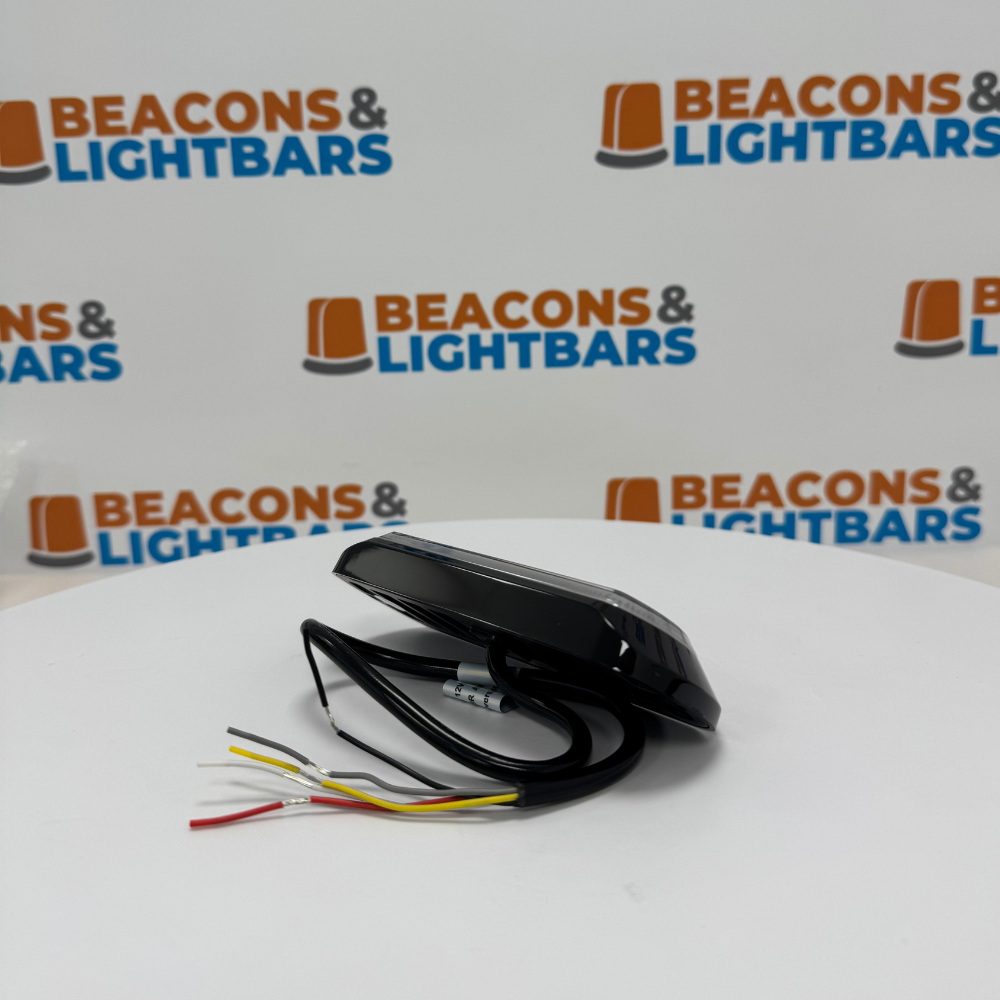

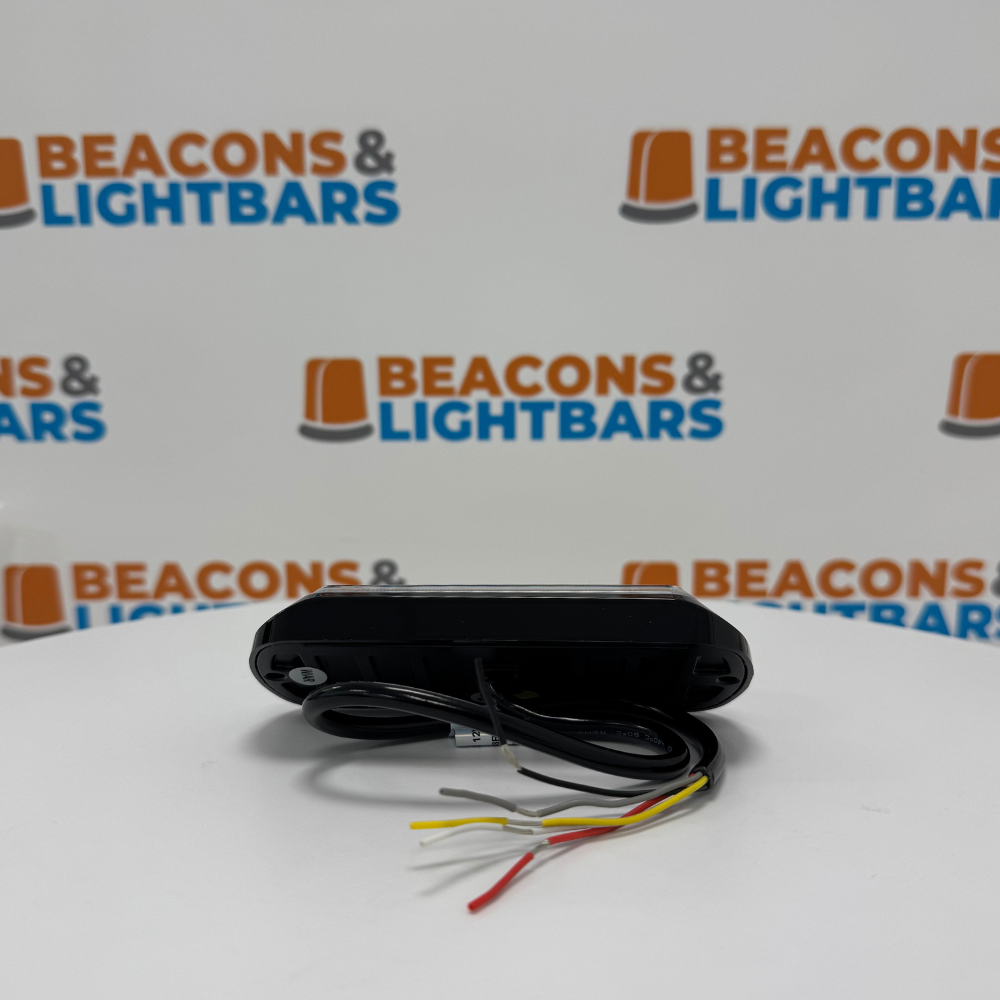

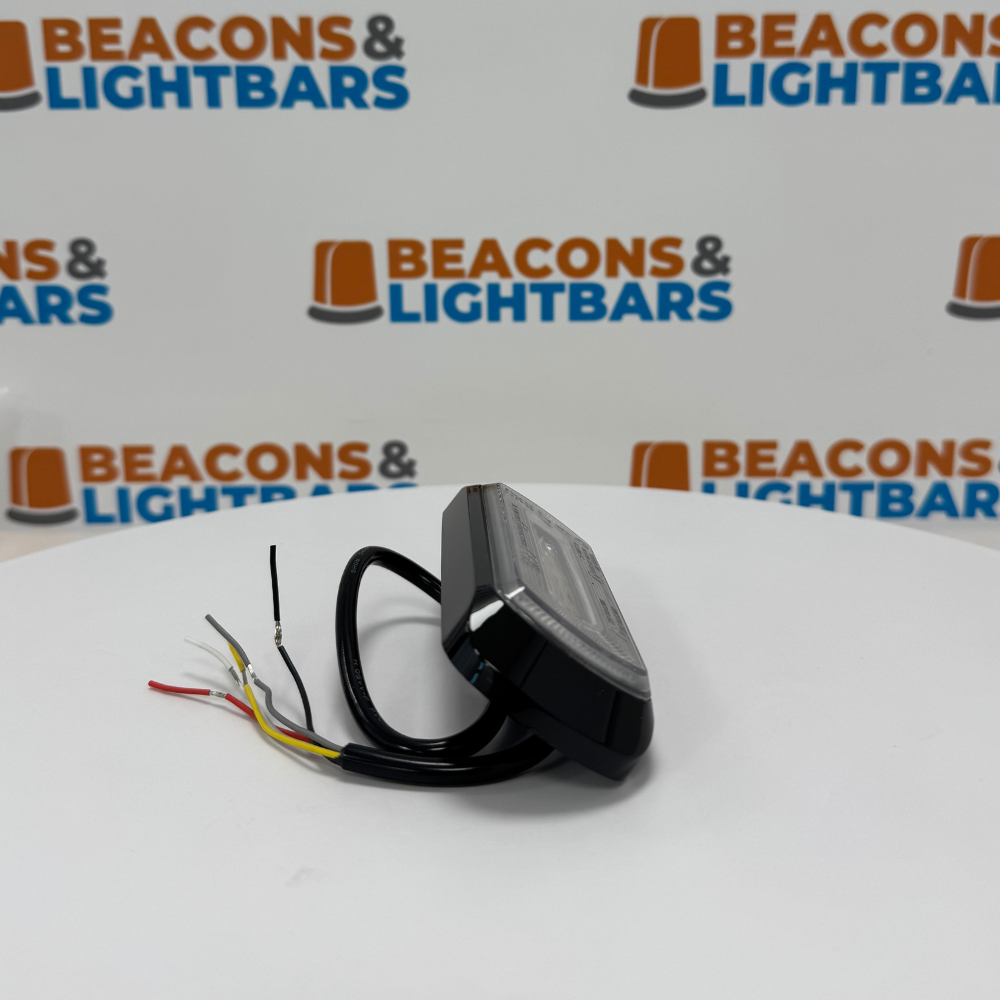

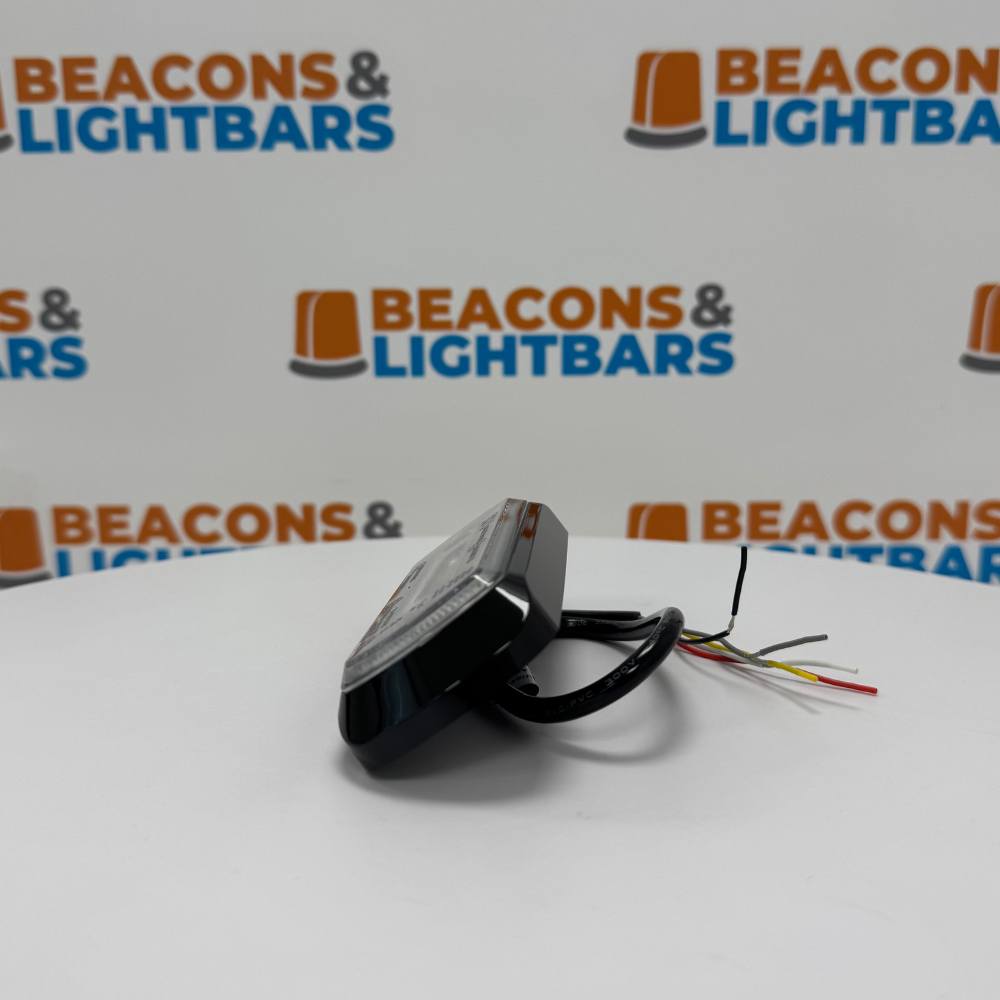

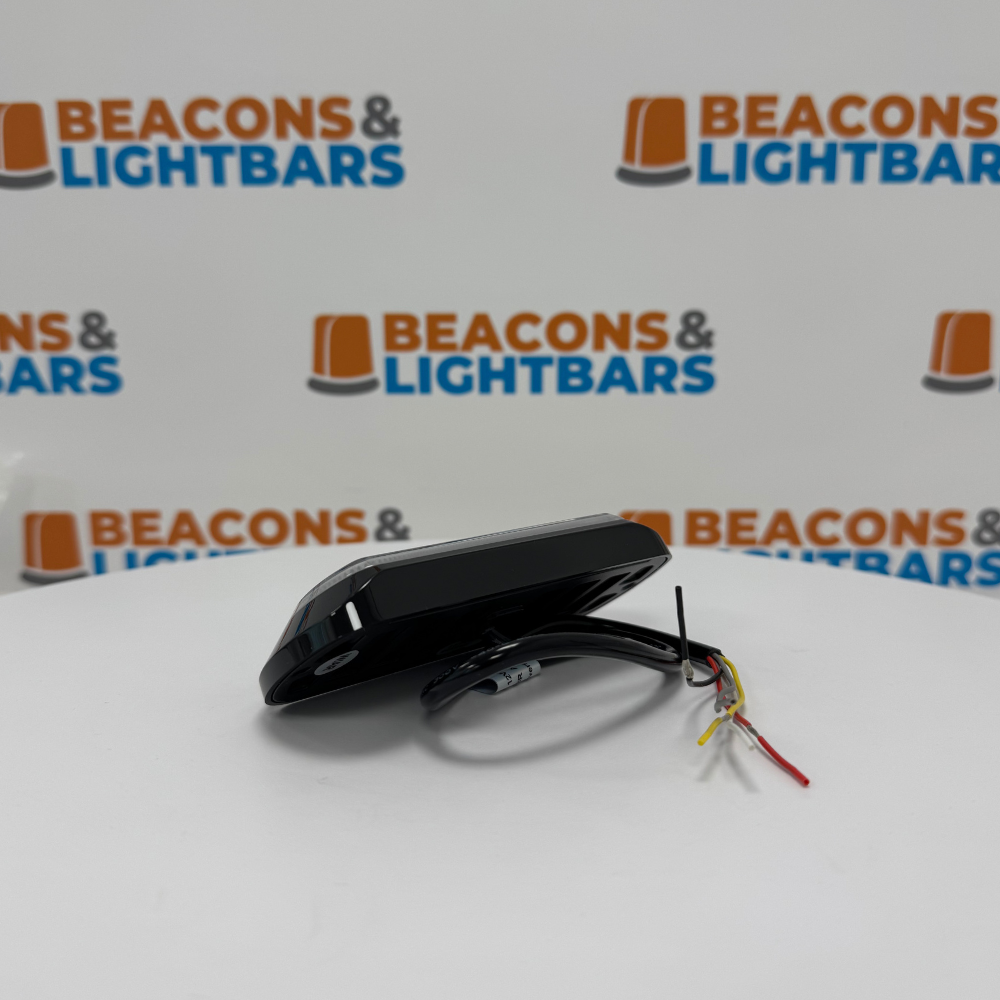

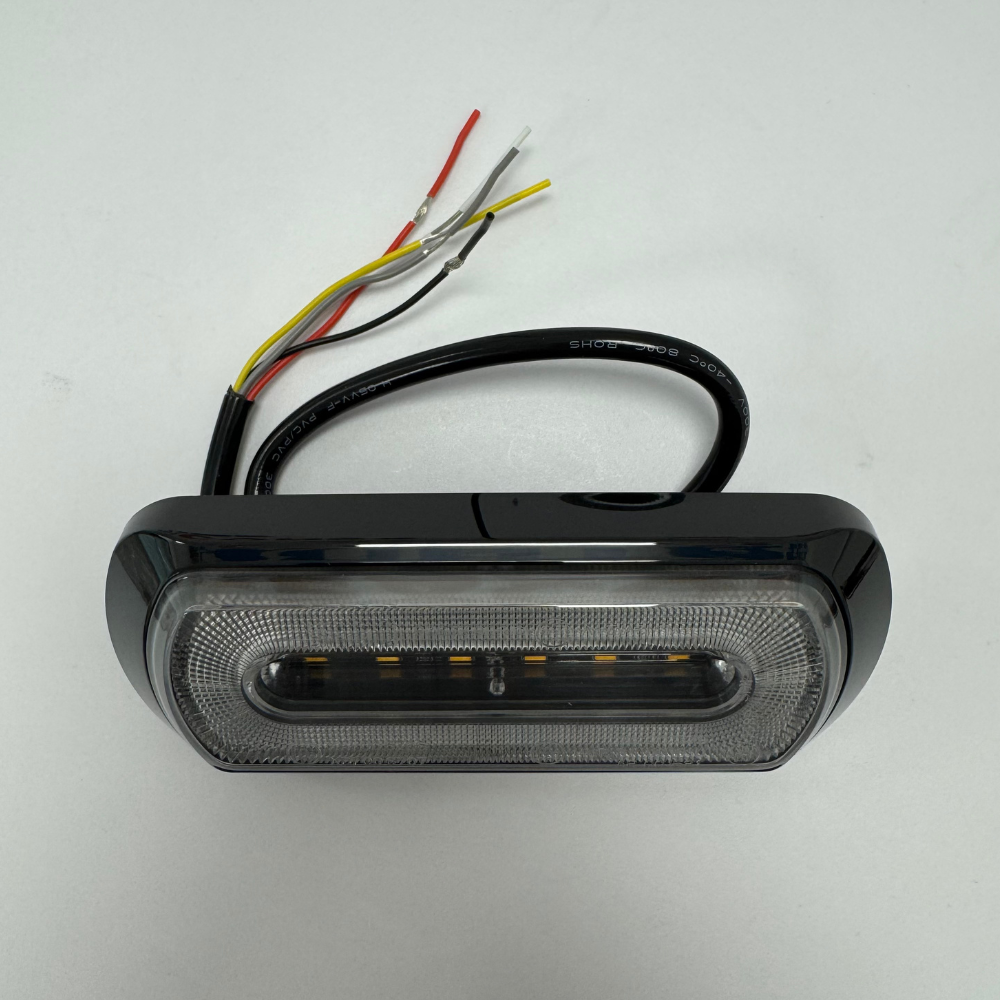

Wire: Red - Positive (High intensity strobe light).
Black - Negative.
Yellow - Flash pattern selection & sync (apply to black for next flash pattern).
Grey - Positive (Marker Halo Ring)
White - Low intensity strobe light.
Strobe Colour: Amber.
Marker Ring Colour: Amber (ECE R6), Red (ECE R7) or White (ECE R23).
FEATURES:
Up to 100,000 hours rated Long-Life LED.
Independent control for strobe and marker light (separate power cables).
Built in selectable flash patterns.
Memory recall for last flash pattern used at power up.
Weatherproof and vibration resistant.
Aluminium base for excellent heat dissipation.
Reverse polarity protection.
UV resistant lens.
Warranty: 3 Year.
APPROVALS:
ECE EMC R10, ECE R65 Class 1, ECE R148 (R6/R7/R23), E-Marked, CE, UKCA, IP67 / IP69K, CISPR 25 Class 3, SAE J595 Class 1.

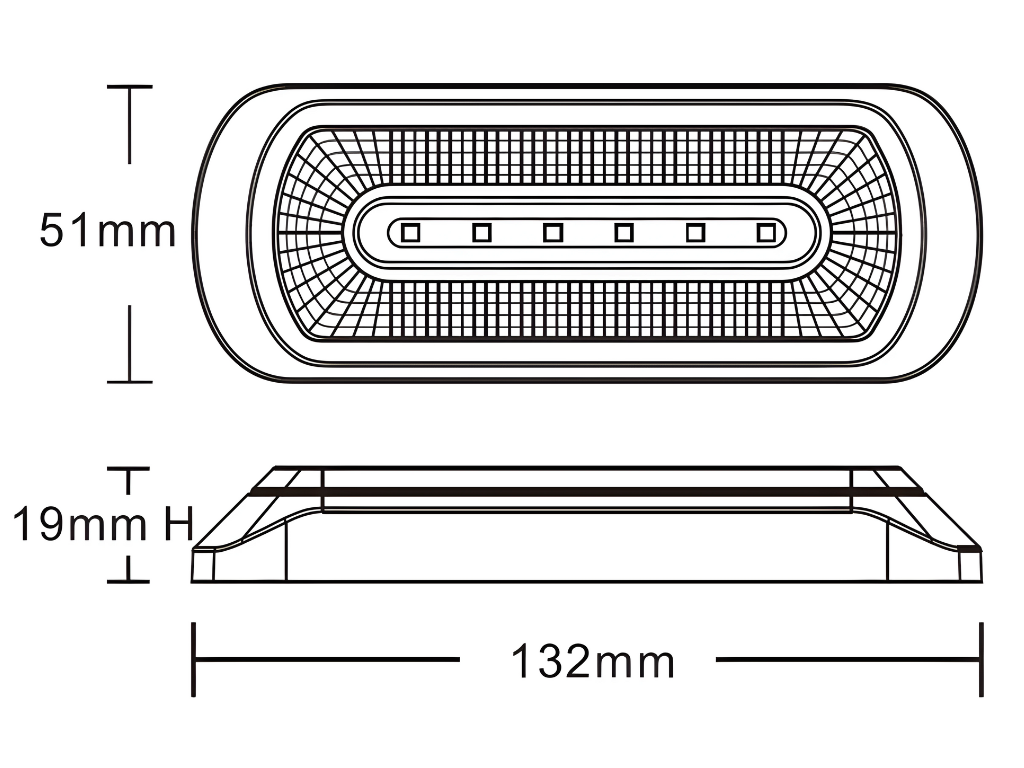

DIMENSIONS:
W:132mm x H:51mm x D:19mm.

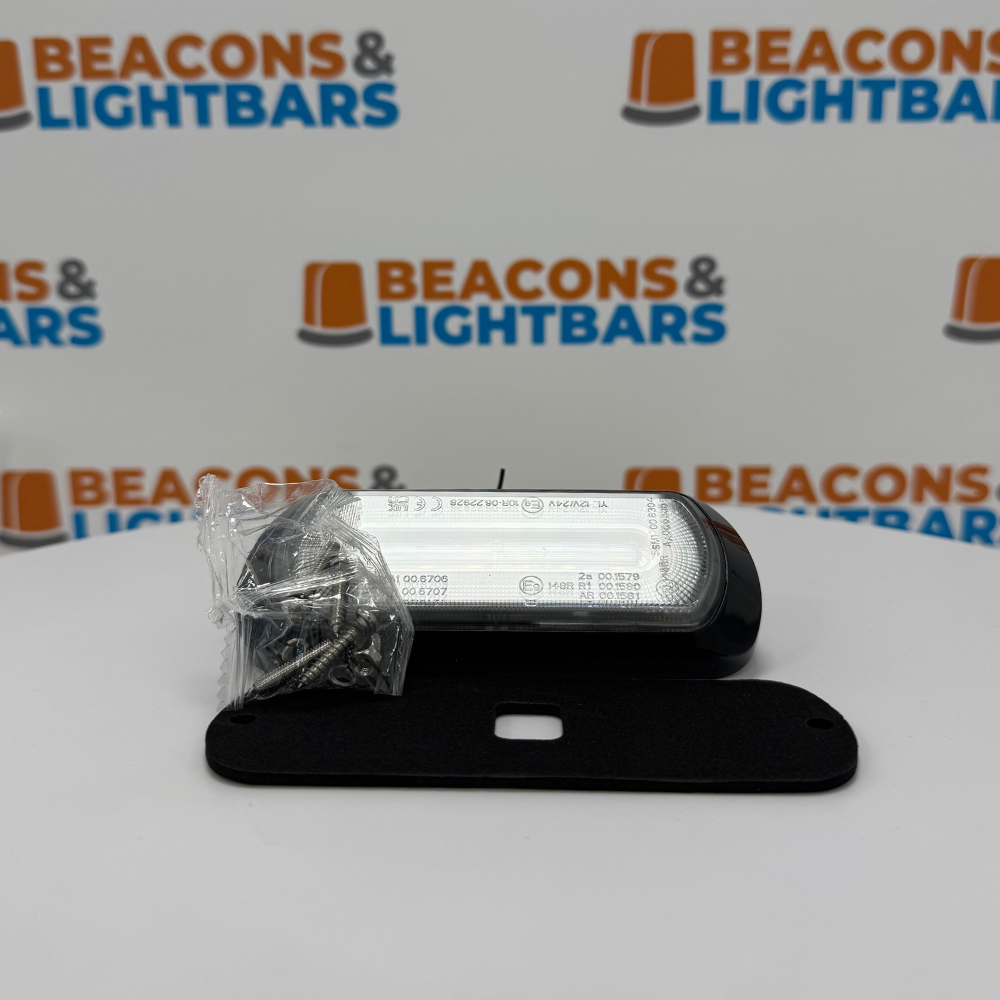

Mounting hole centres: 120mm

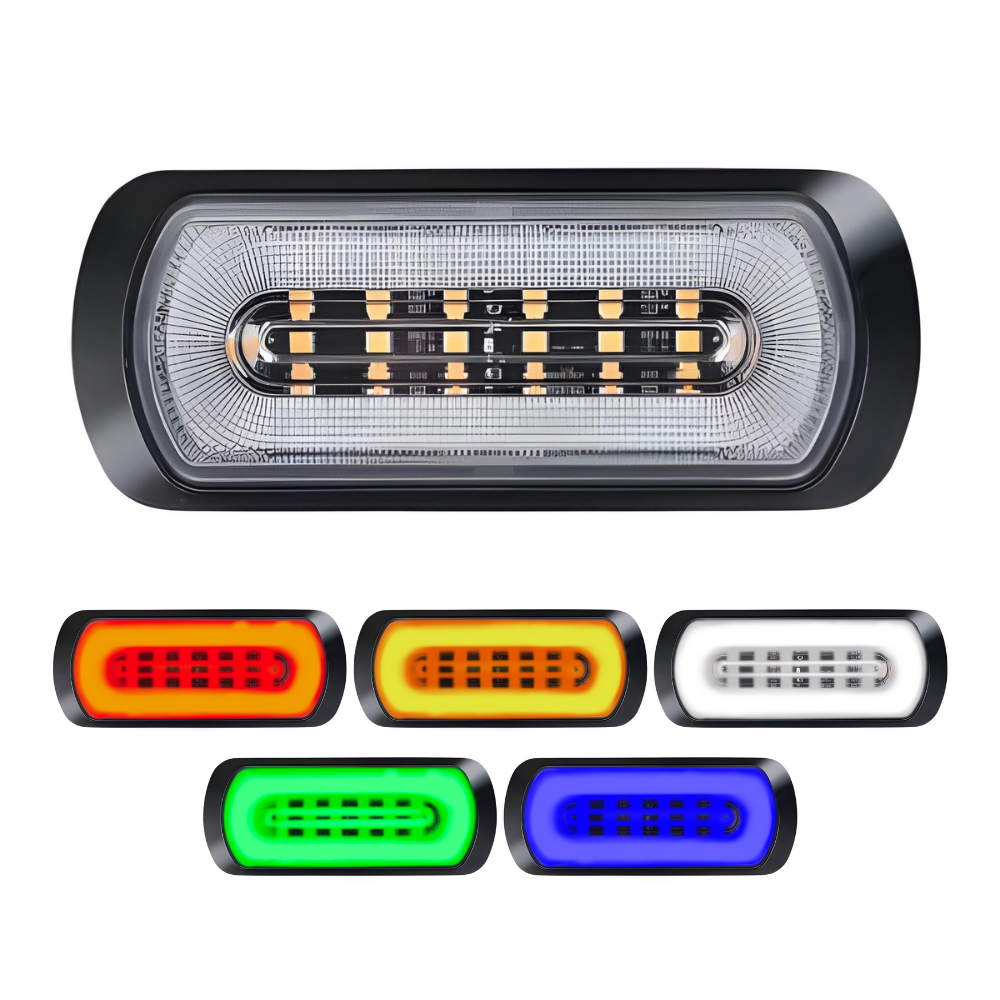

PART NUMBERS:

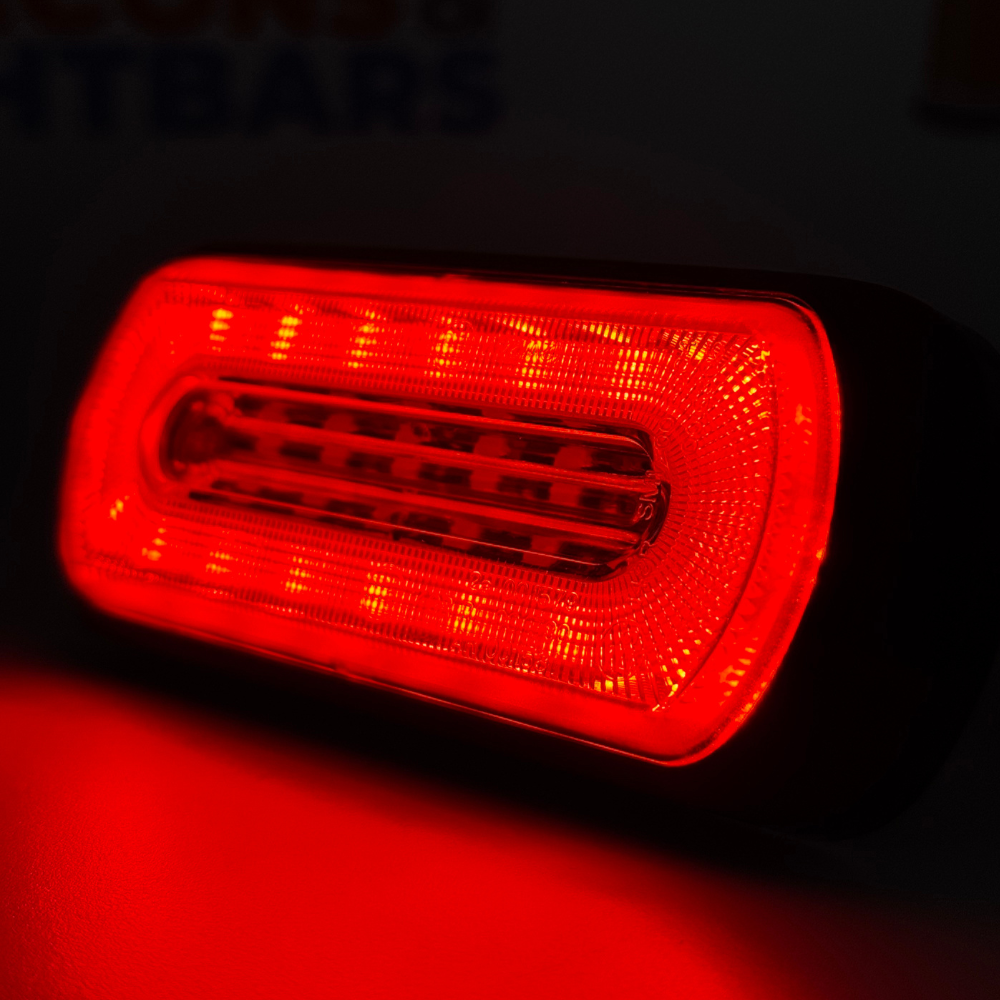

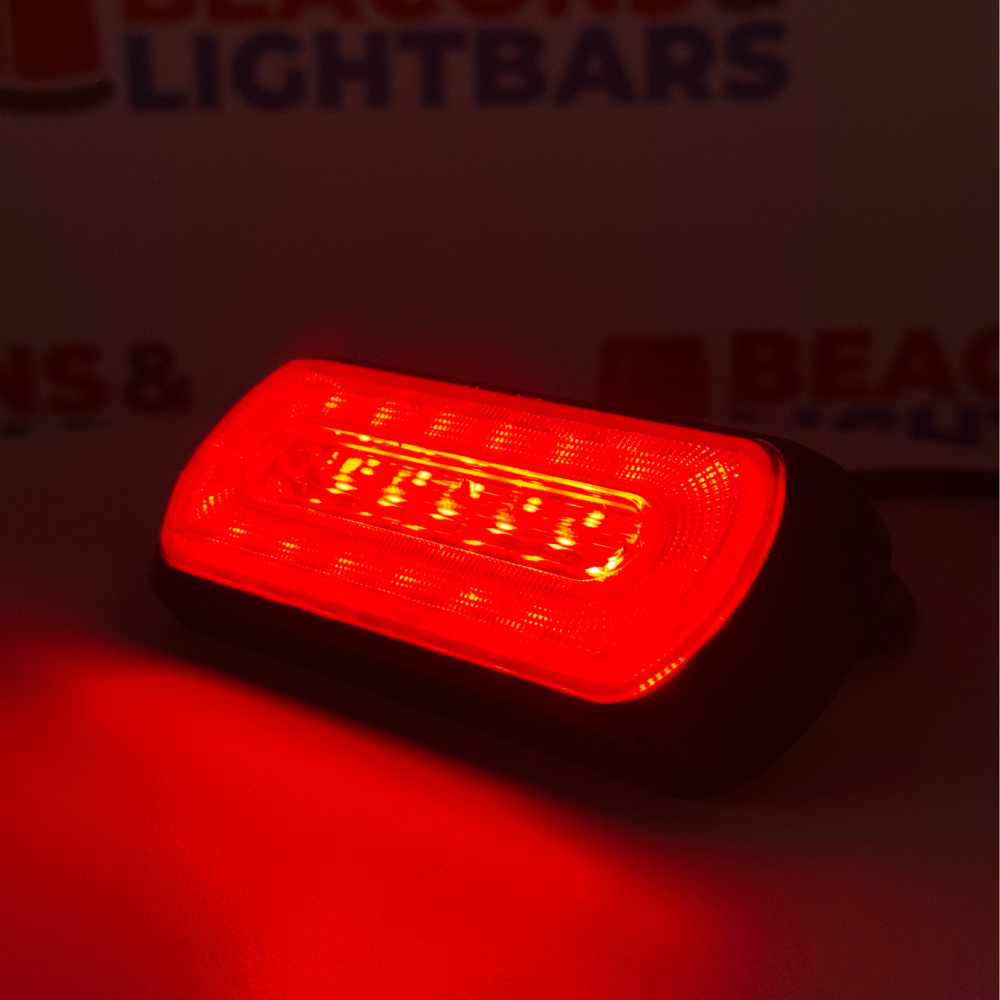

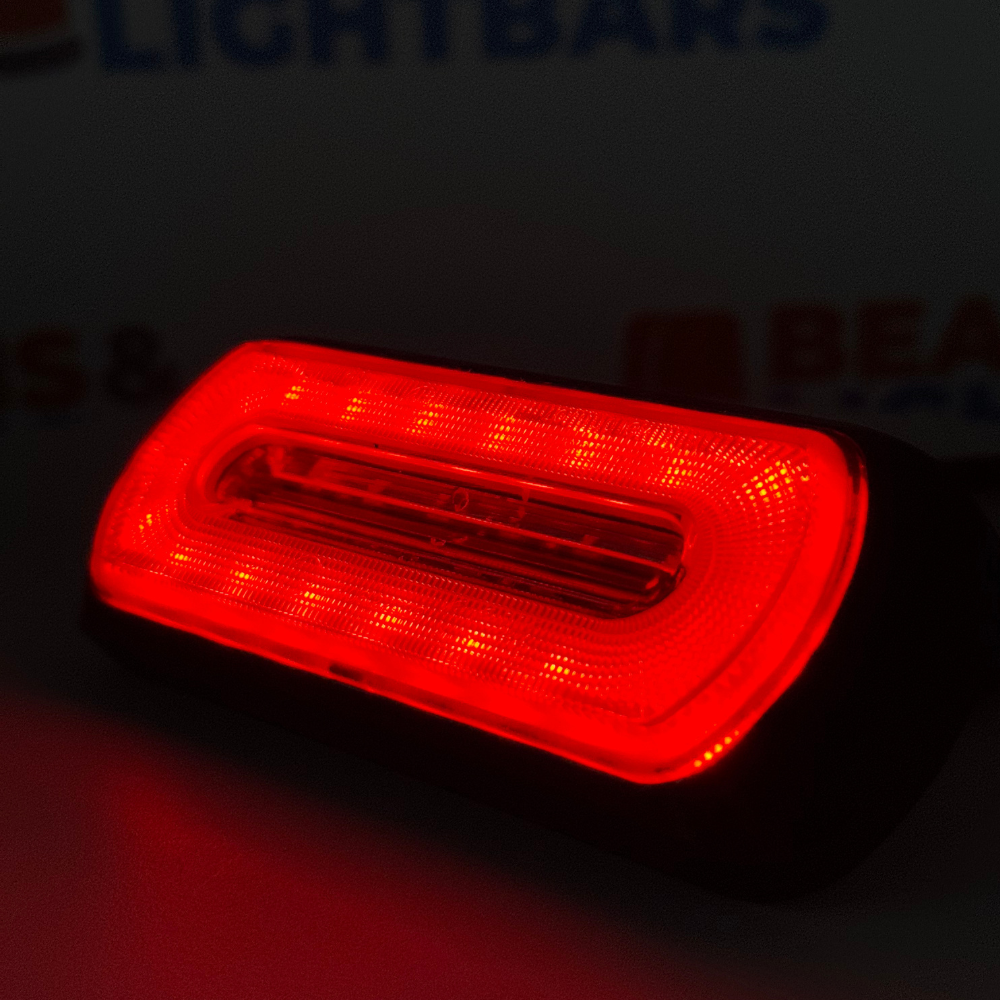

VMG-HALO-R - 6 LED Amber Warning/ 18 LED Red Tail

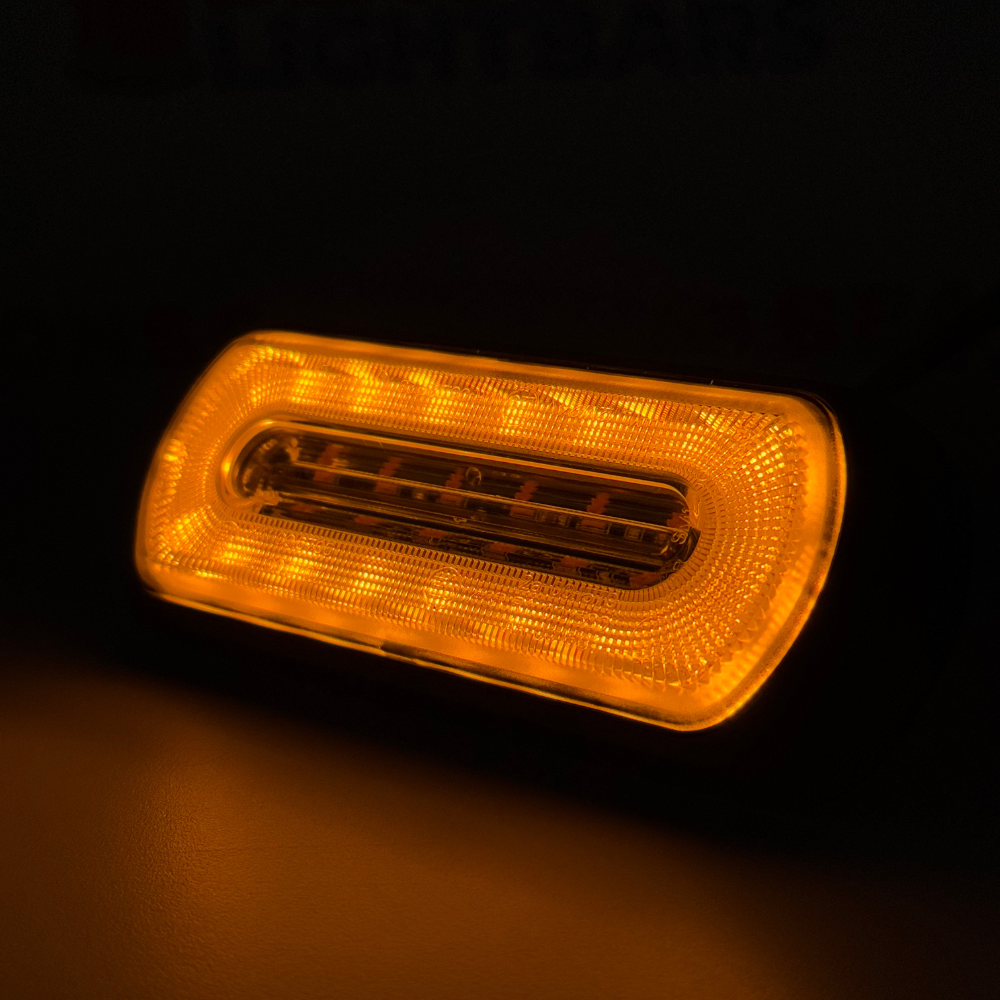

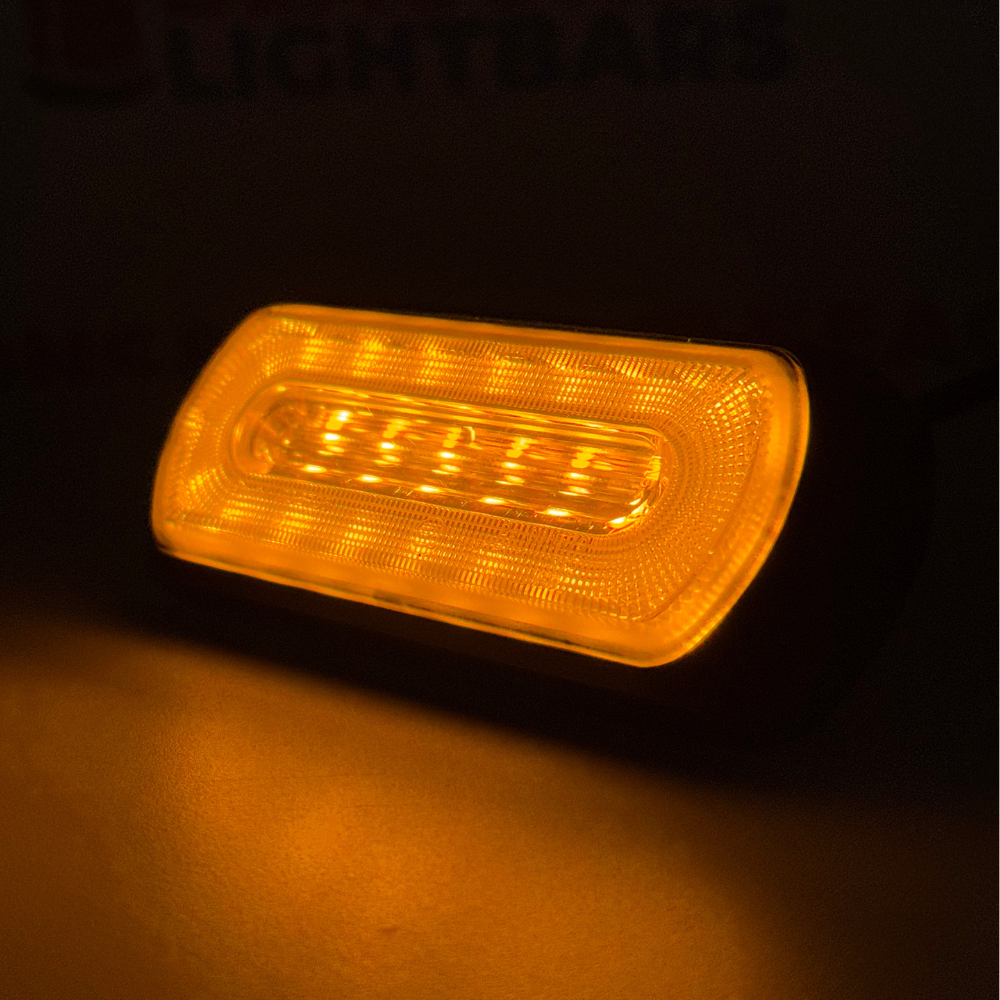

VMG-HALO-A - 6 LED Amber Warning/18 LED Amber Directional Indicator

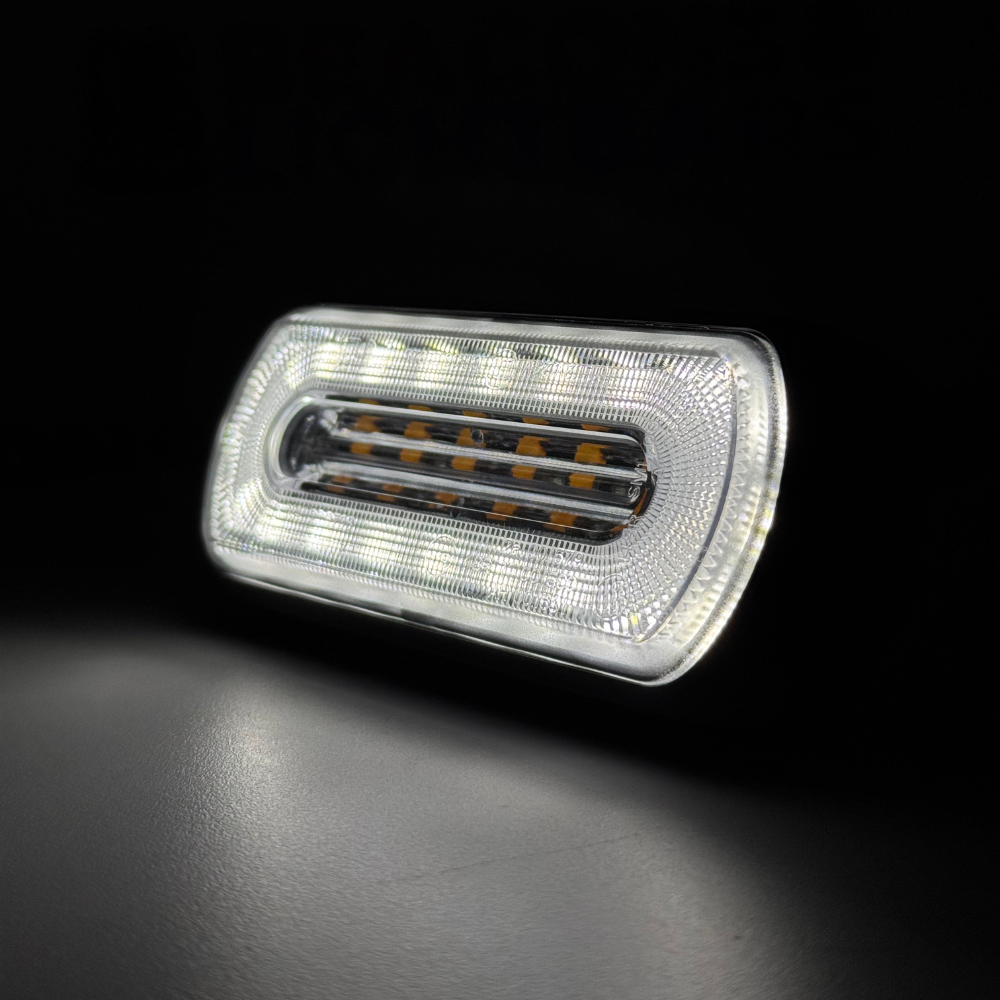

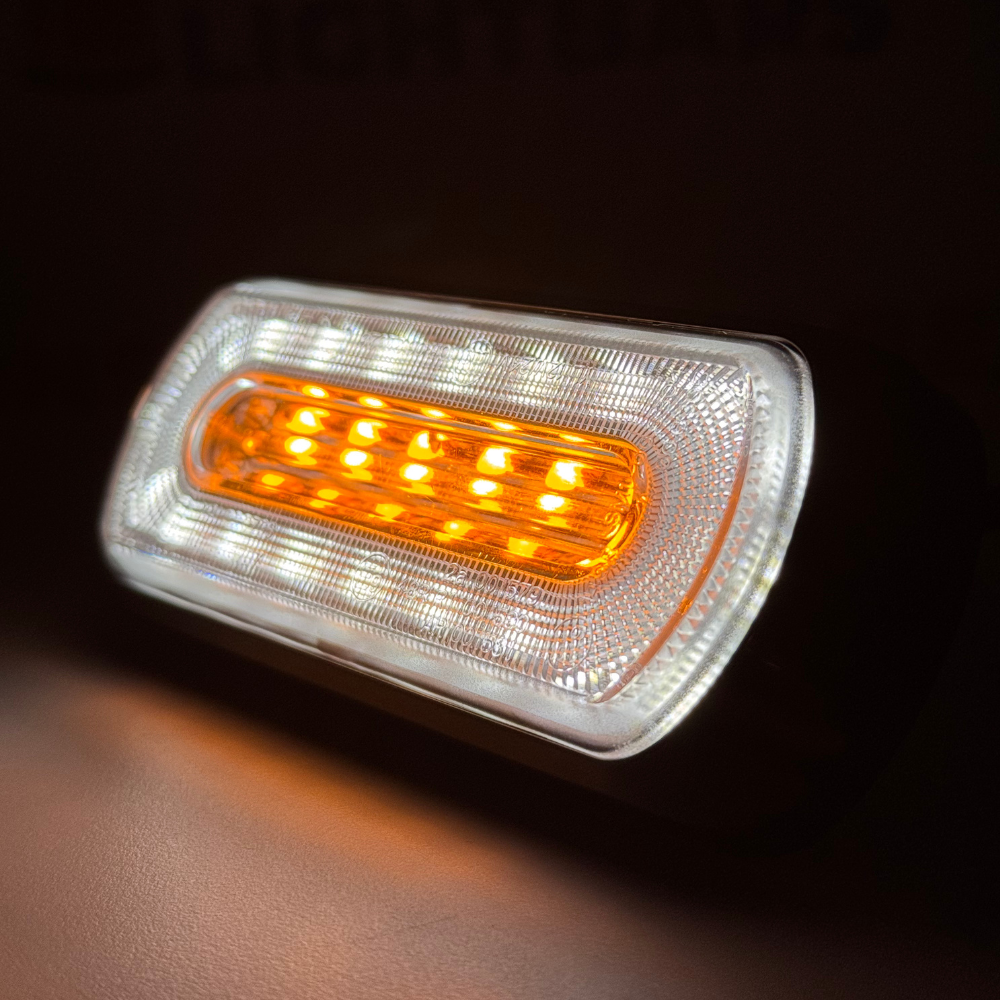

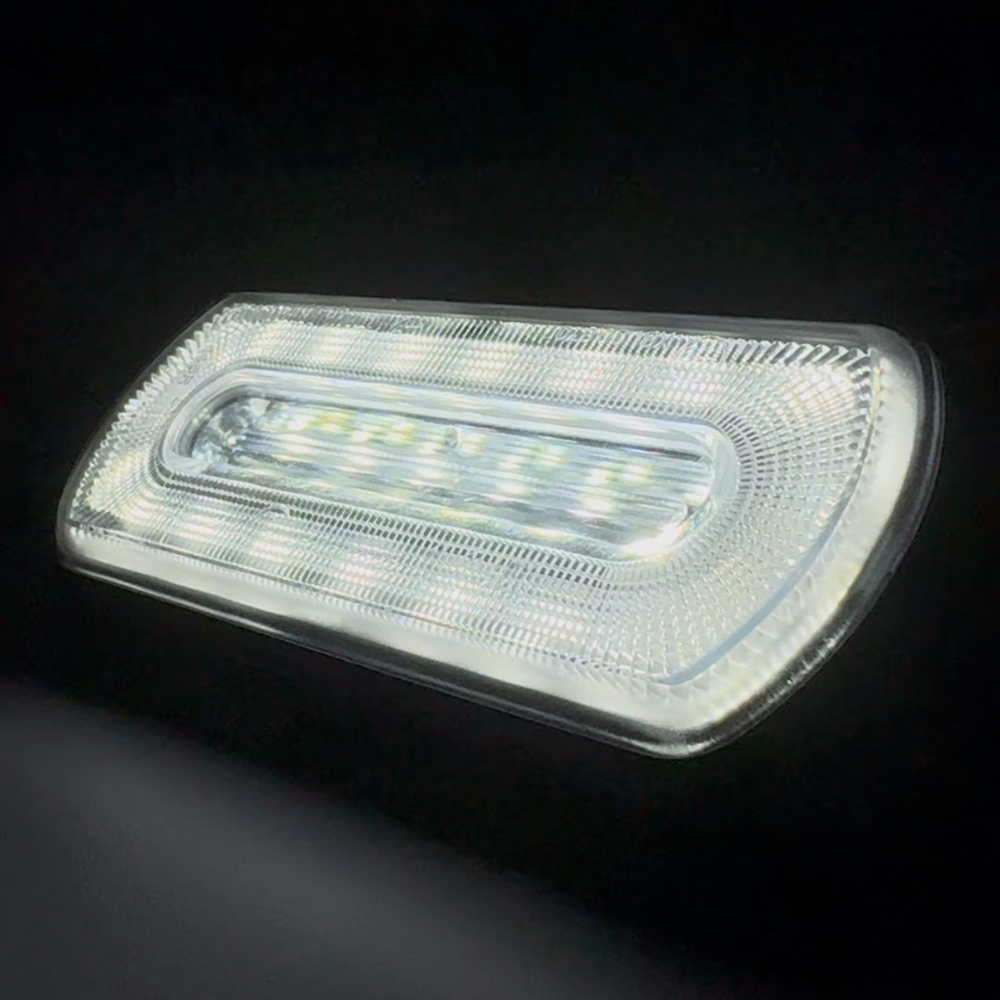

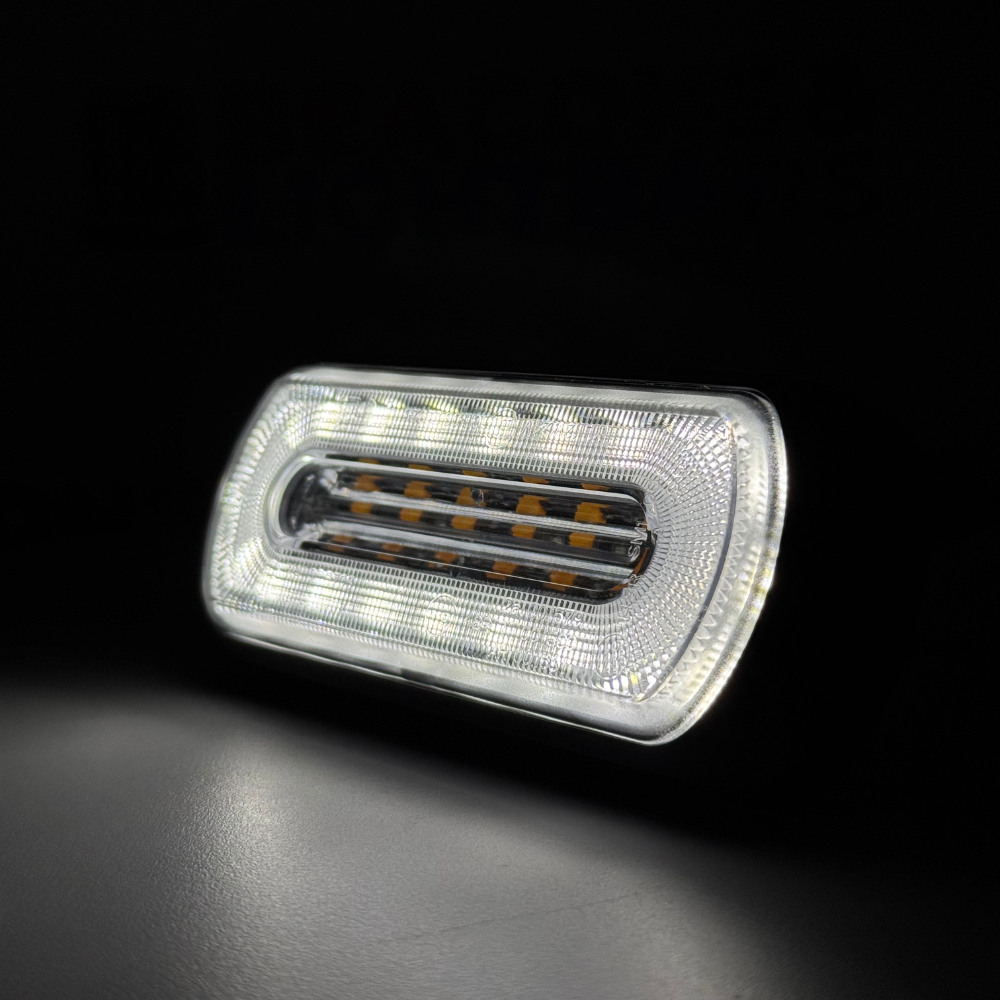

VMG-HALO-W - 6 LED Amber Warning/18 LED White Reverse
VMG-HALO-R-R - 6 LED Red Warning/ 18 LED Red Tail

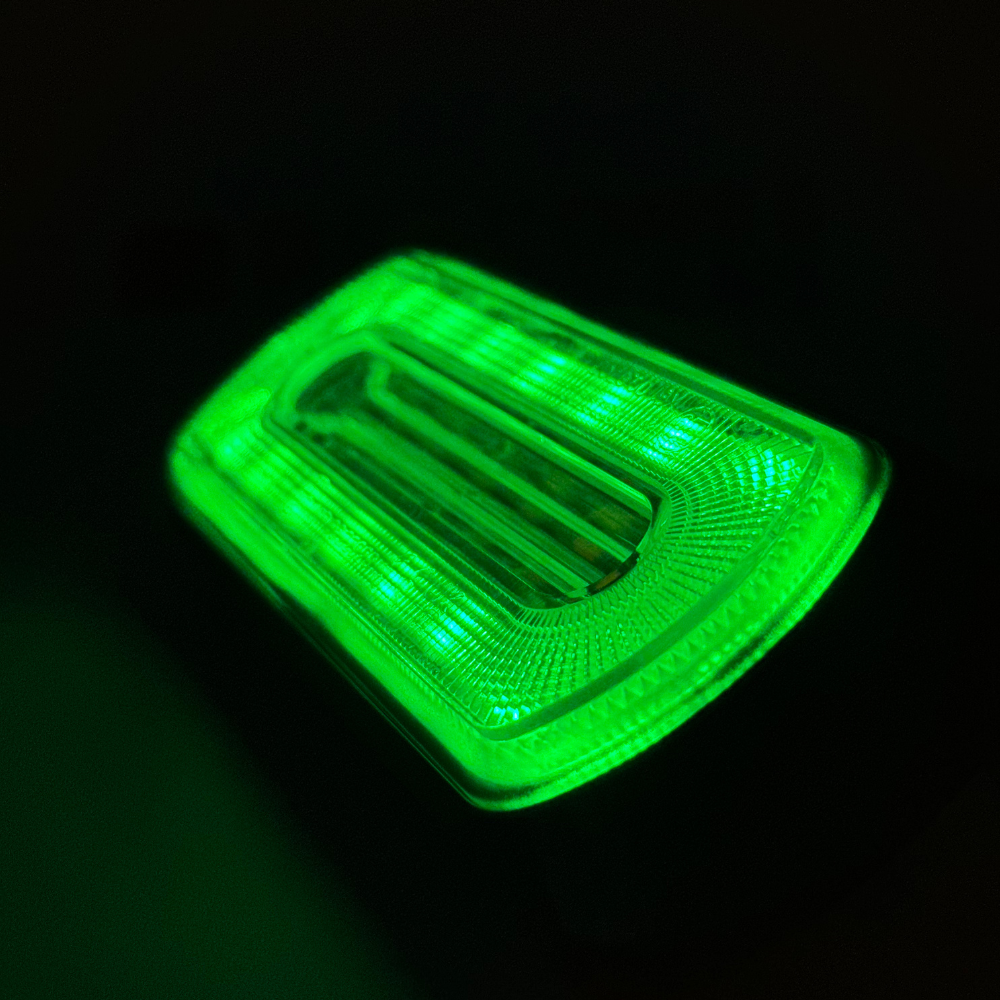

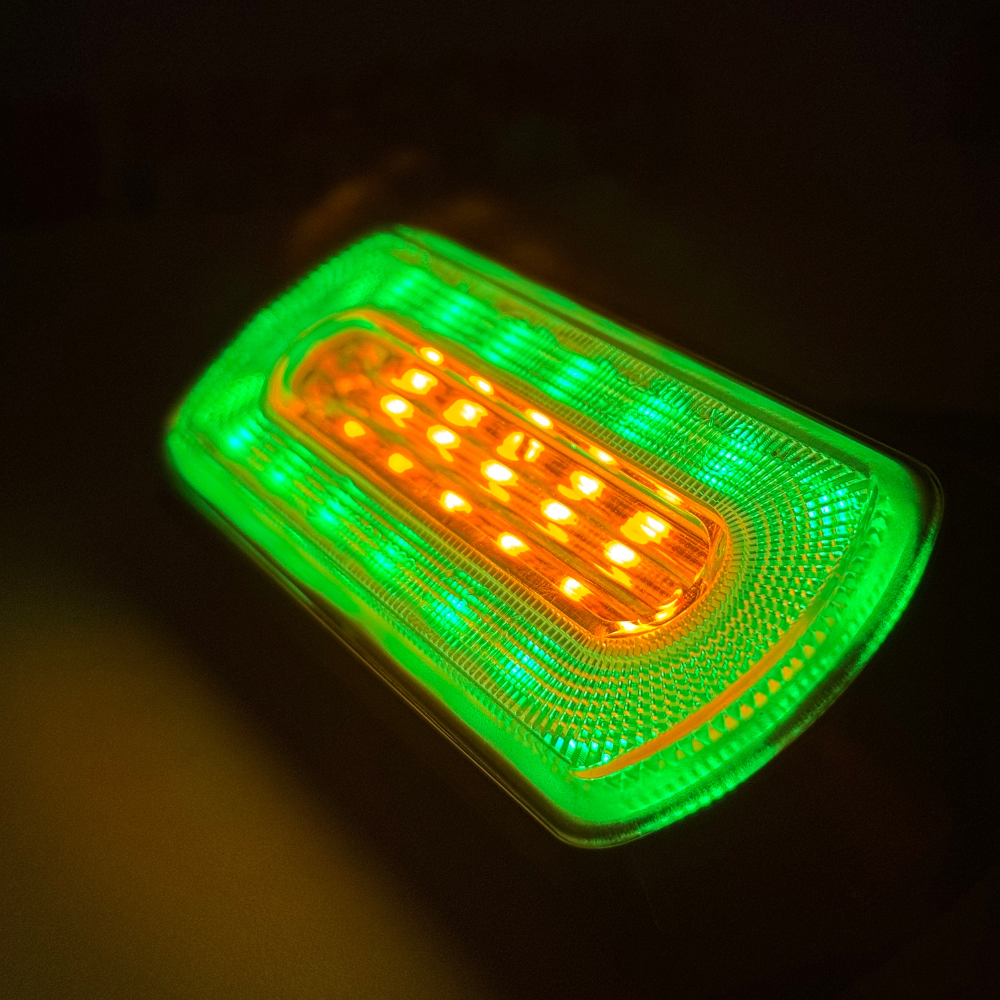

VMG-HALO-G 6 LED Amber Warning/ 18 LED Green Halo

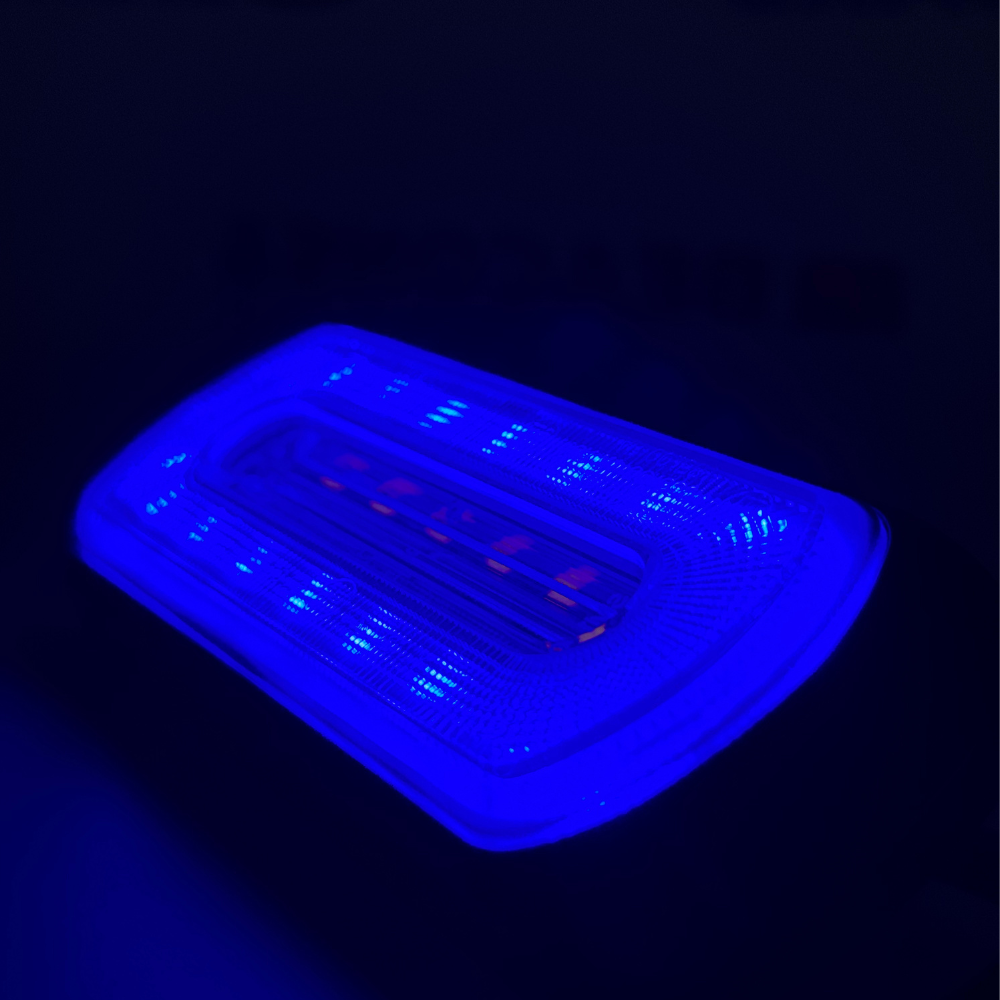

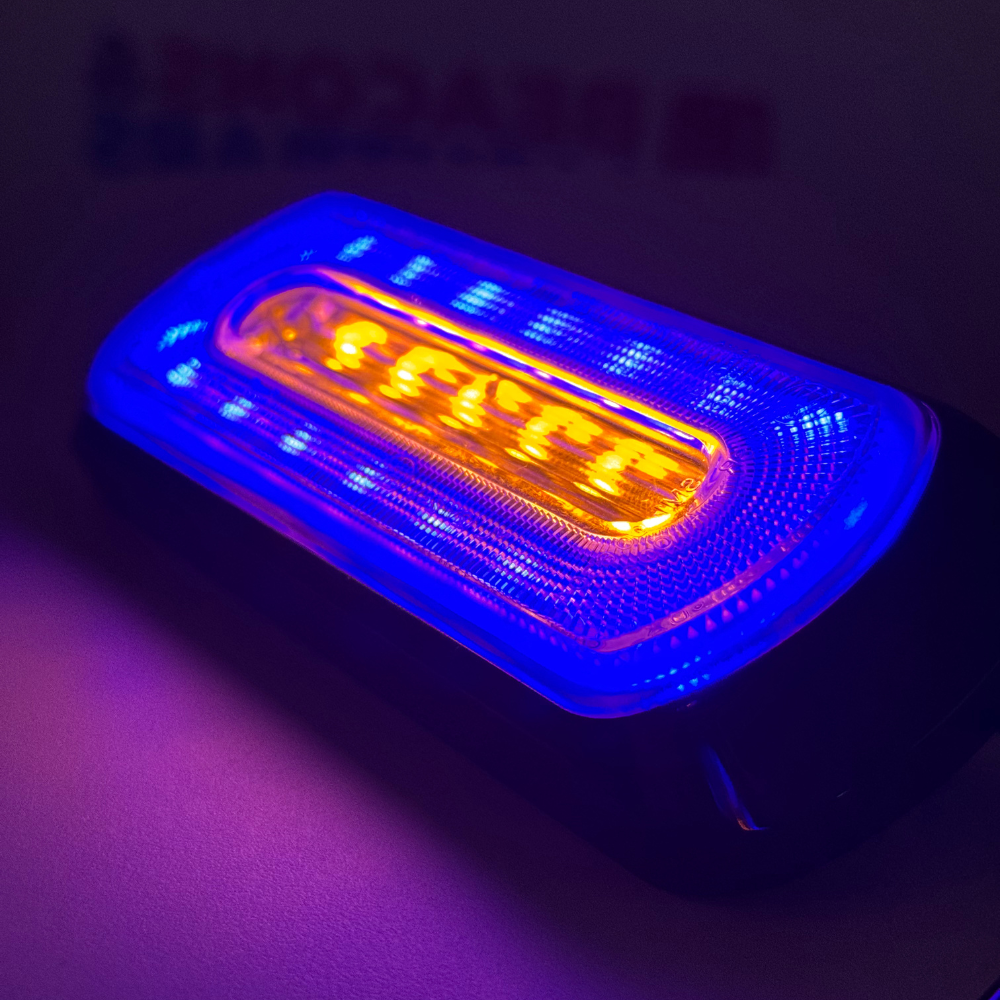

VMG-HALO-B 6 LED Amber Warning/ 18 LED Blue Halo
VMG-HALO-W-W 6 LED Amber Warning/ 18 LED White Halo
