Van Master 12/24v Multi Purpose 4 Way Switch Panel PN: VMGSW4
VMGSW4

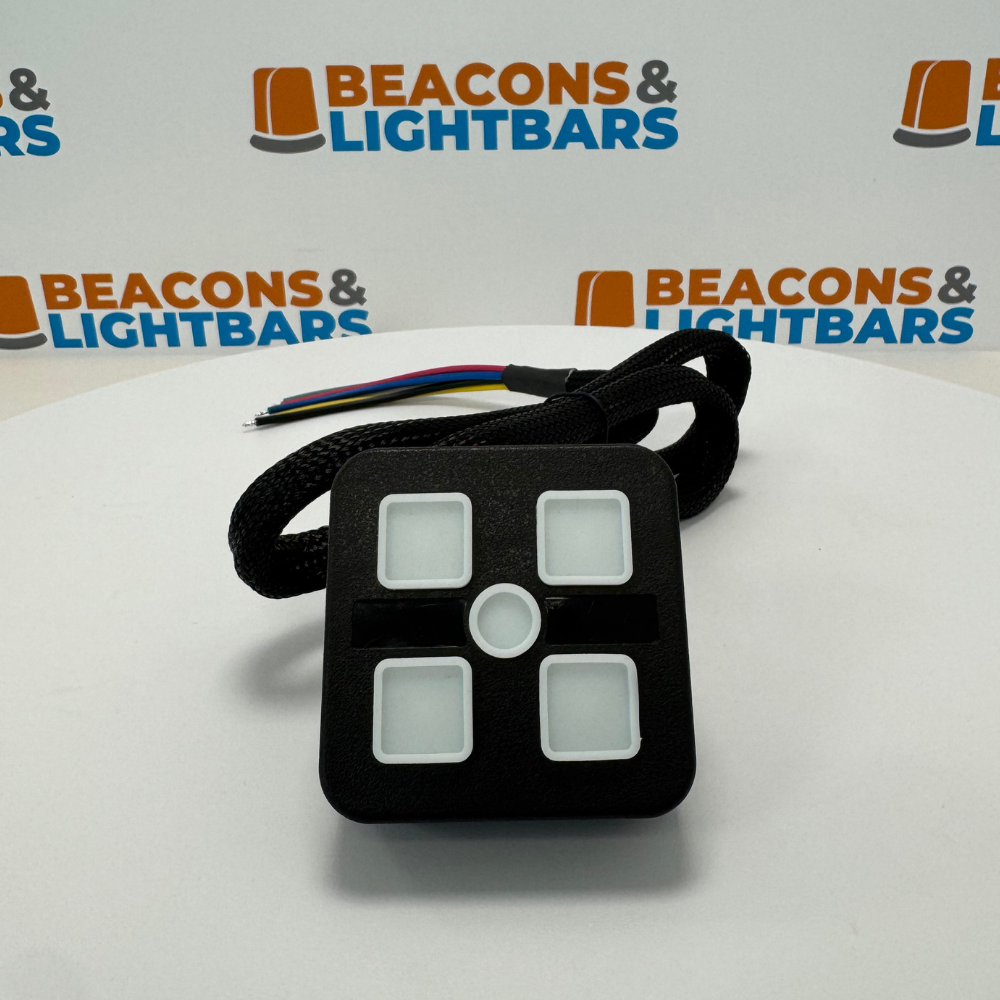

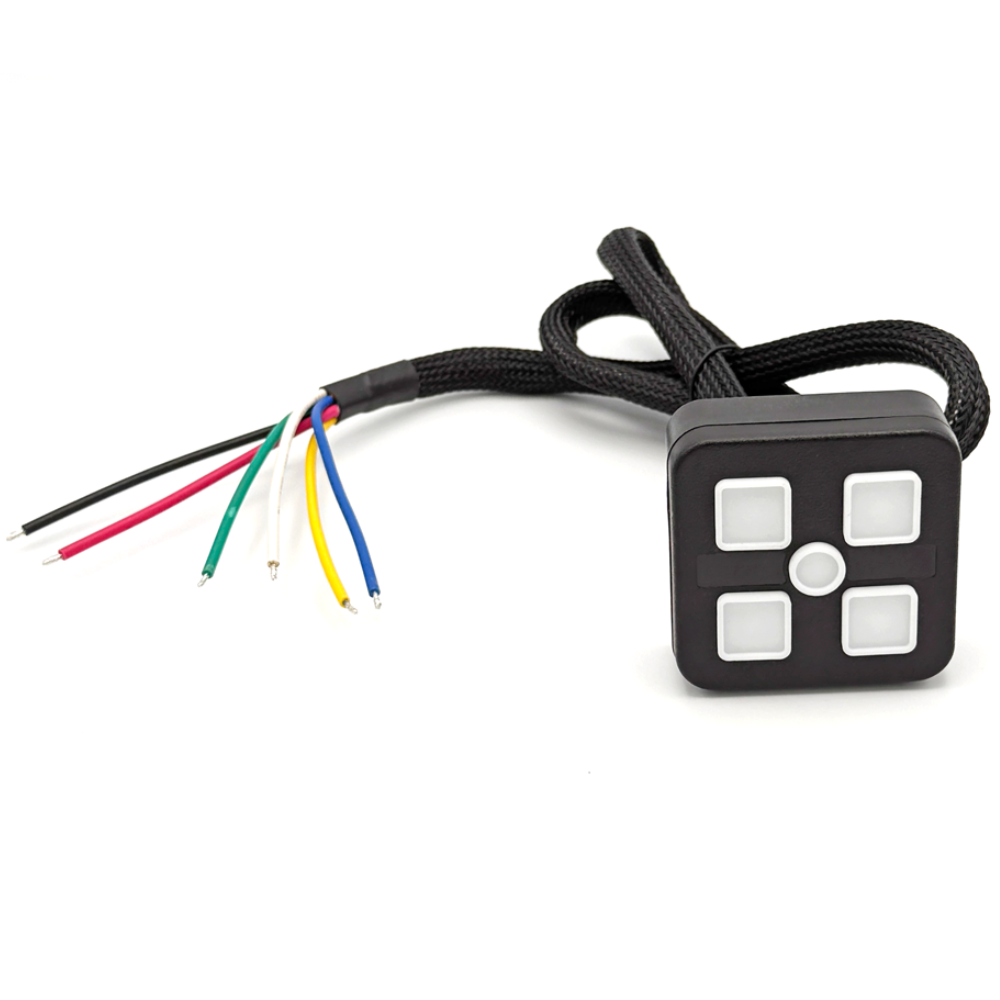

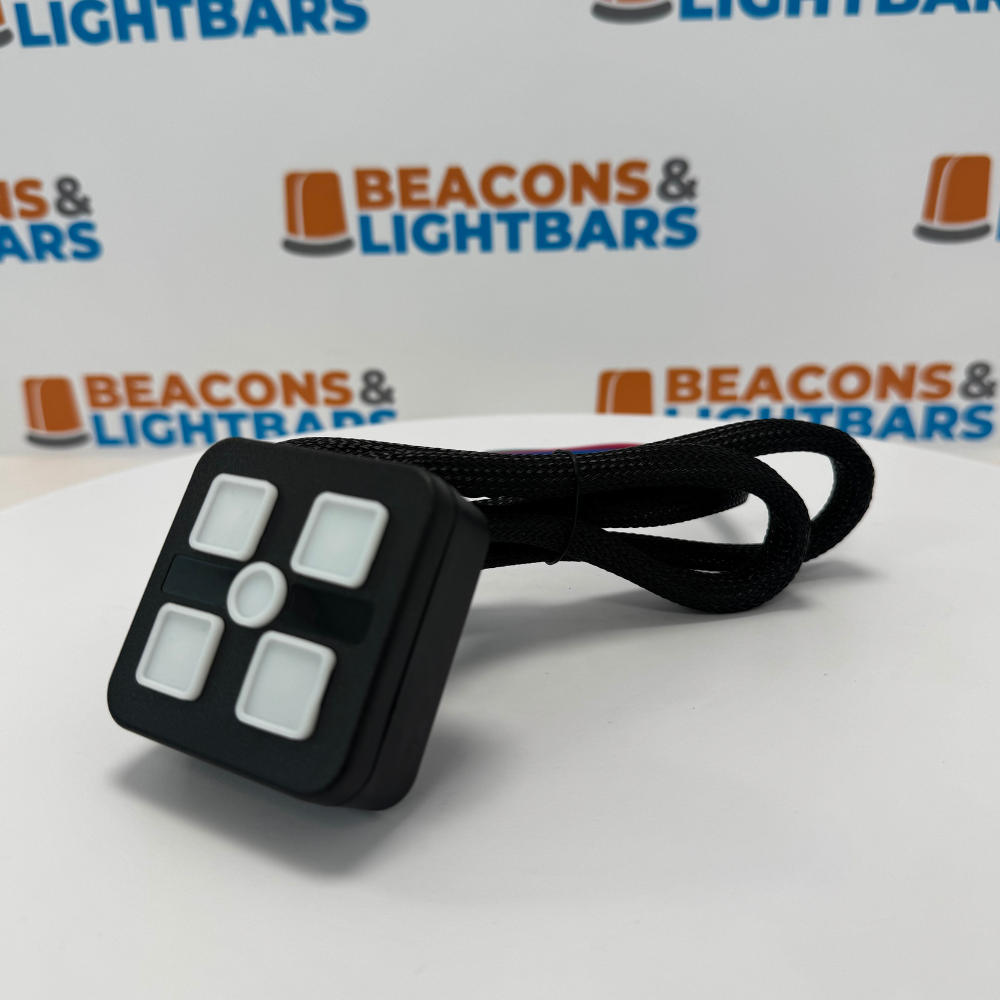

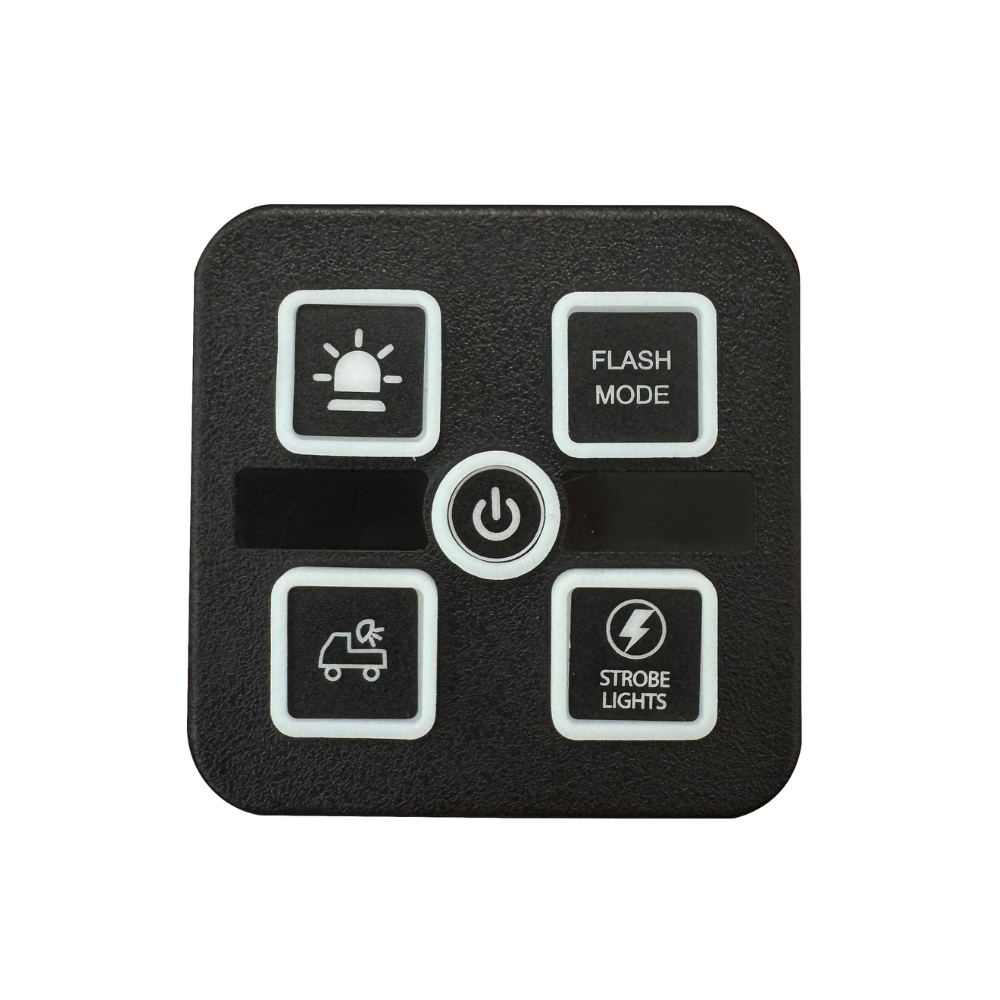

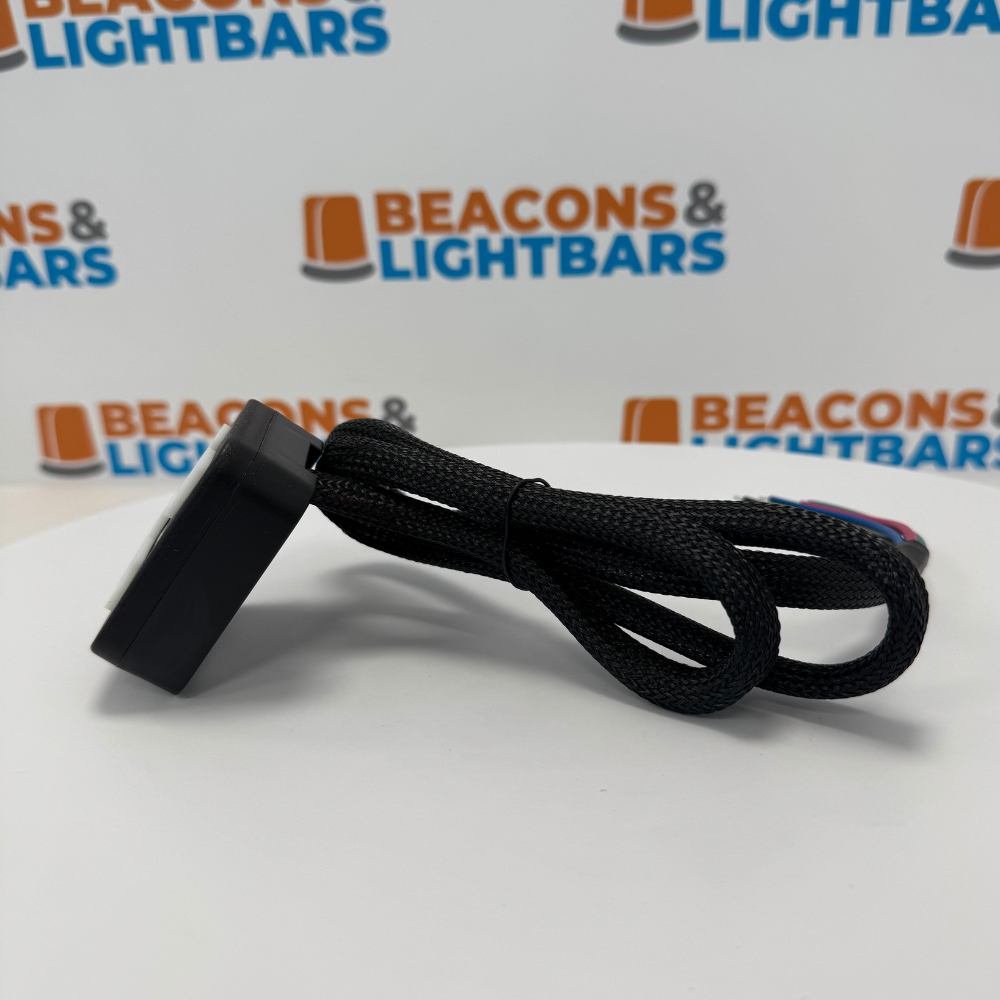

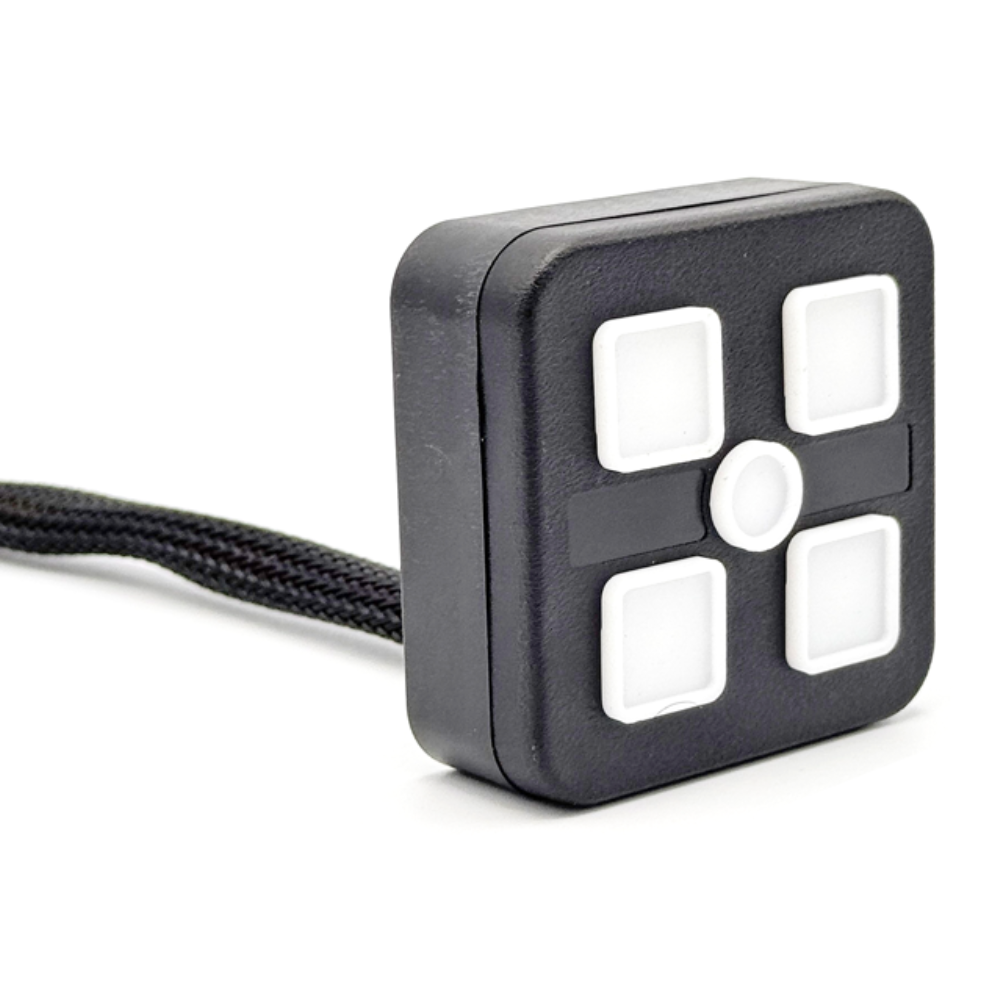

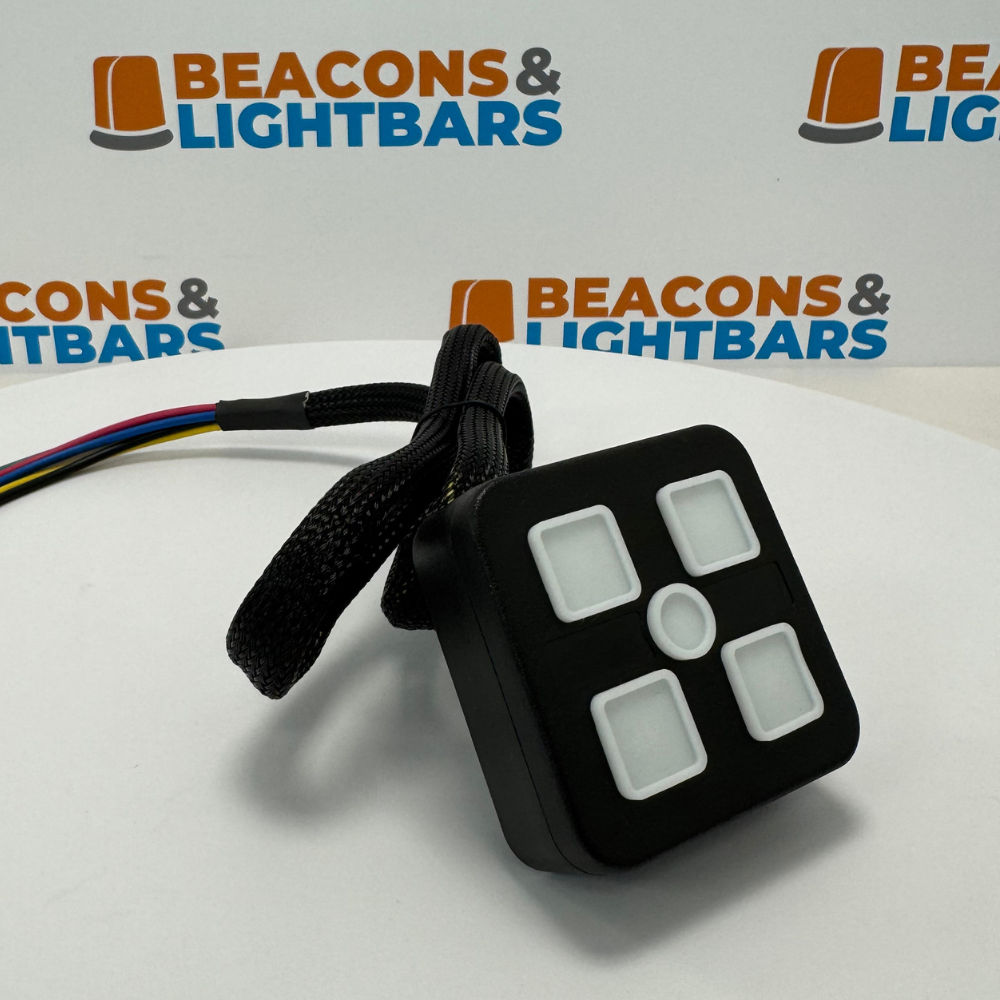

The VMGSW4 Mini Controller Switch Pad is a compact and versatile control panel designed for 12V and 24V systems. It features four programmable switches that can be configured for both on/off and momentary functions, providing flexible control over various vehicle accessories. The switch pad comes with over 140 sticker legends, allowing users to label each switch according to its function for easy identification. Its sleek design ensures seamless integration into vehicle interiors, making it an ideal choice for managing lighting and other electronic devices.
excl. VAT £33.33
(incl. VAT £39.99)
(incl. VAT £39.99)
The VMGSW4 Mini Controller Switch Pad is a compact and versatile control panel designed for 12V and 24V systems. It features four programmable switches that can be configured for both on/off and momentary functions, providing flexible control over various vehicle accessories. The switch pad comes with over 140 sticker legends, allowing users to label each switch according to its function for easy identification. Its sleek design ensures seamless integration into vehicle interiors, making it an ideal choice for managing lighting and other electronic devices.
- All-in-one controller featuring 4 programmable switches (on/off or momentary) with integrated relays with a rating of 5amp per switch.
- The switches can be programmed to be latching or non-latching, so they can also be used to change flash patterns or siren tone/horn.

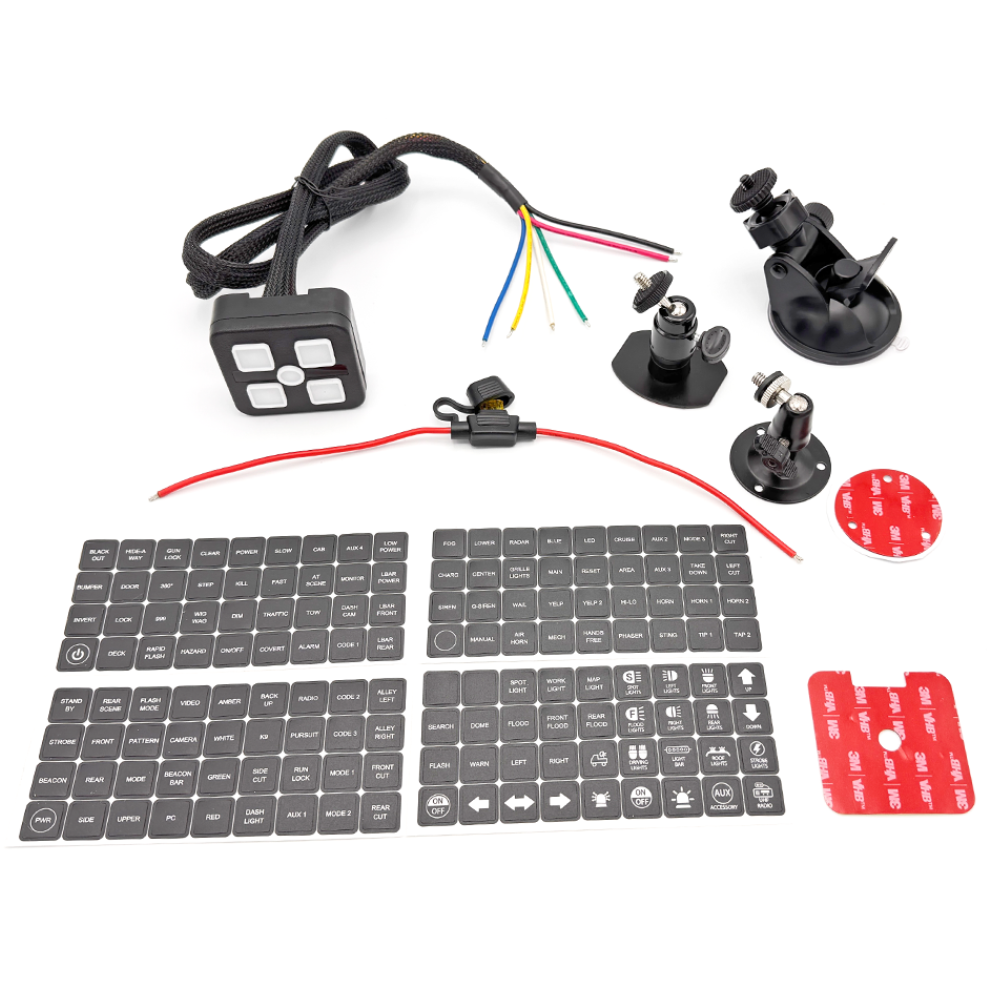

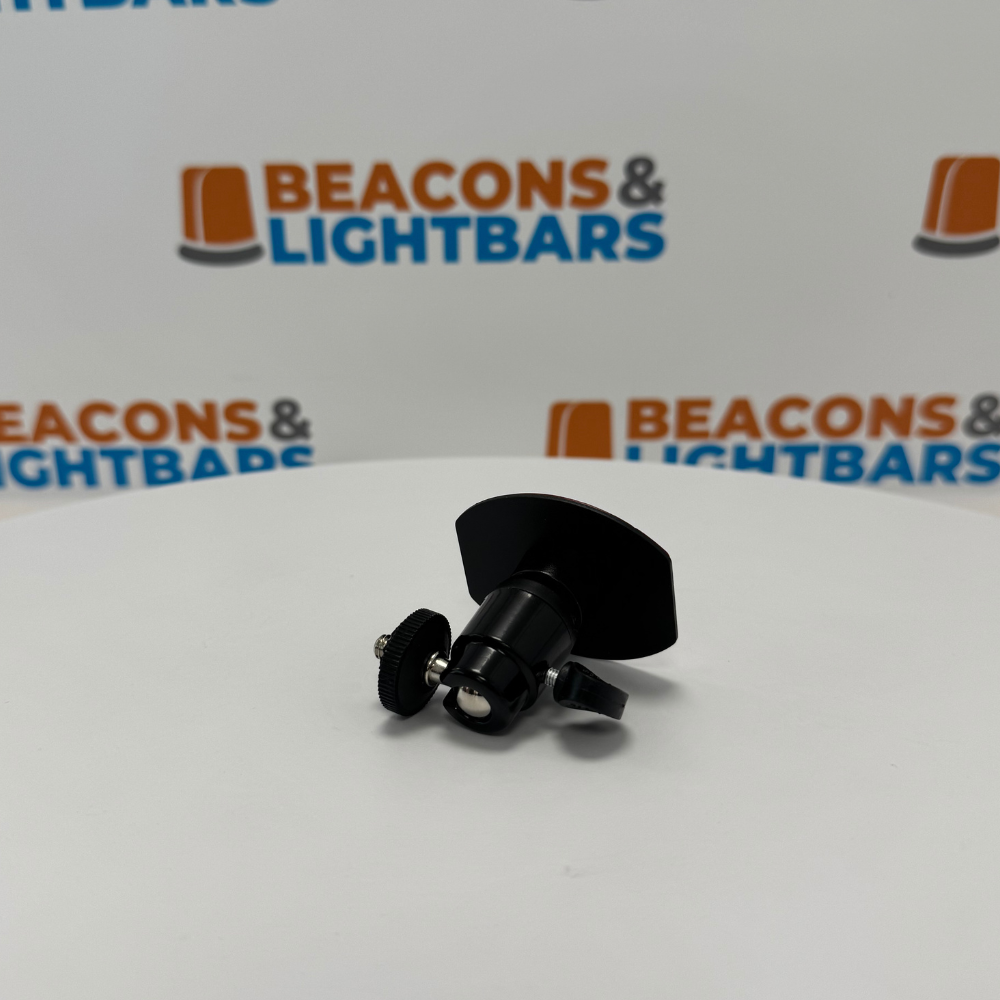

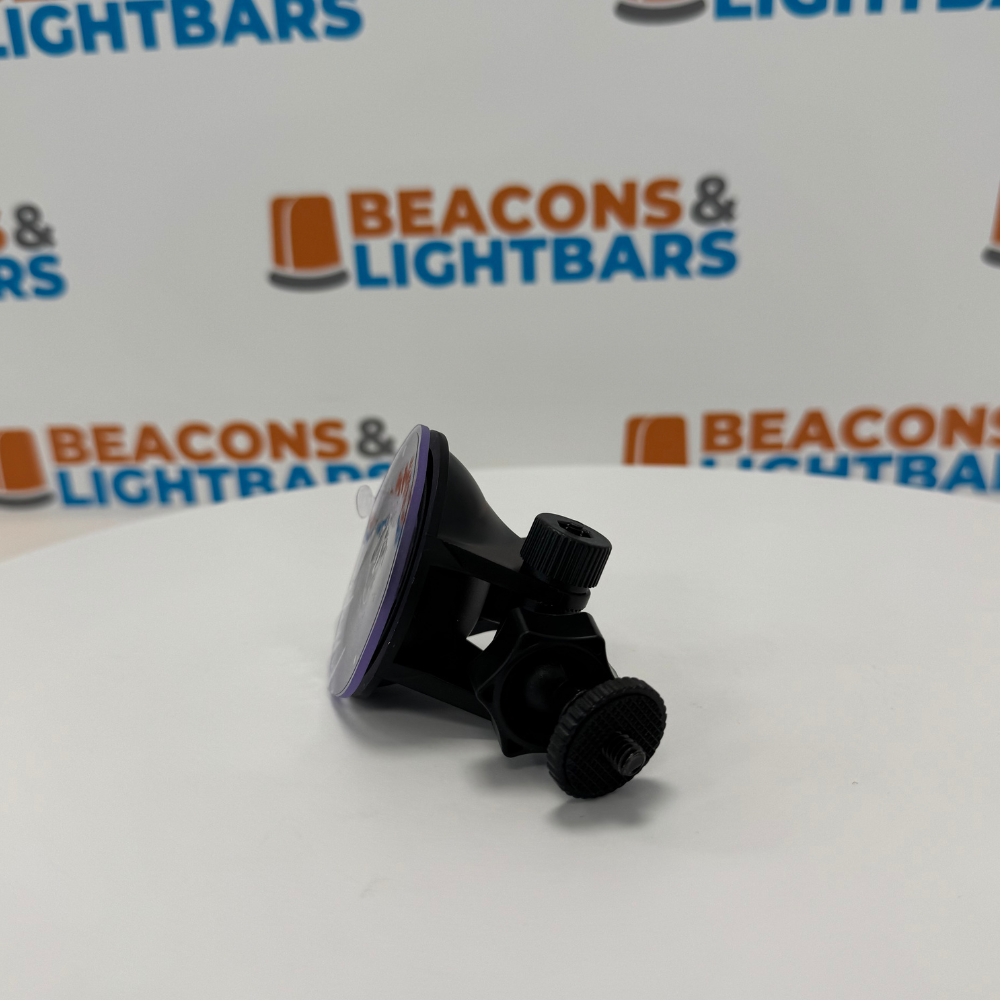

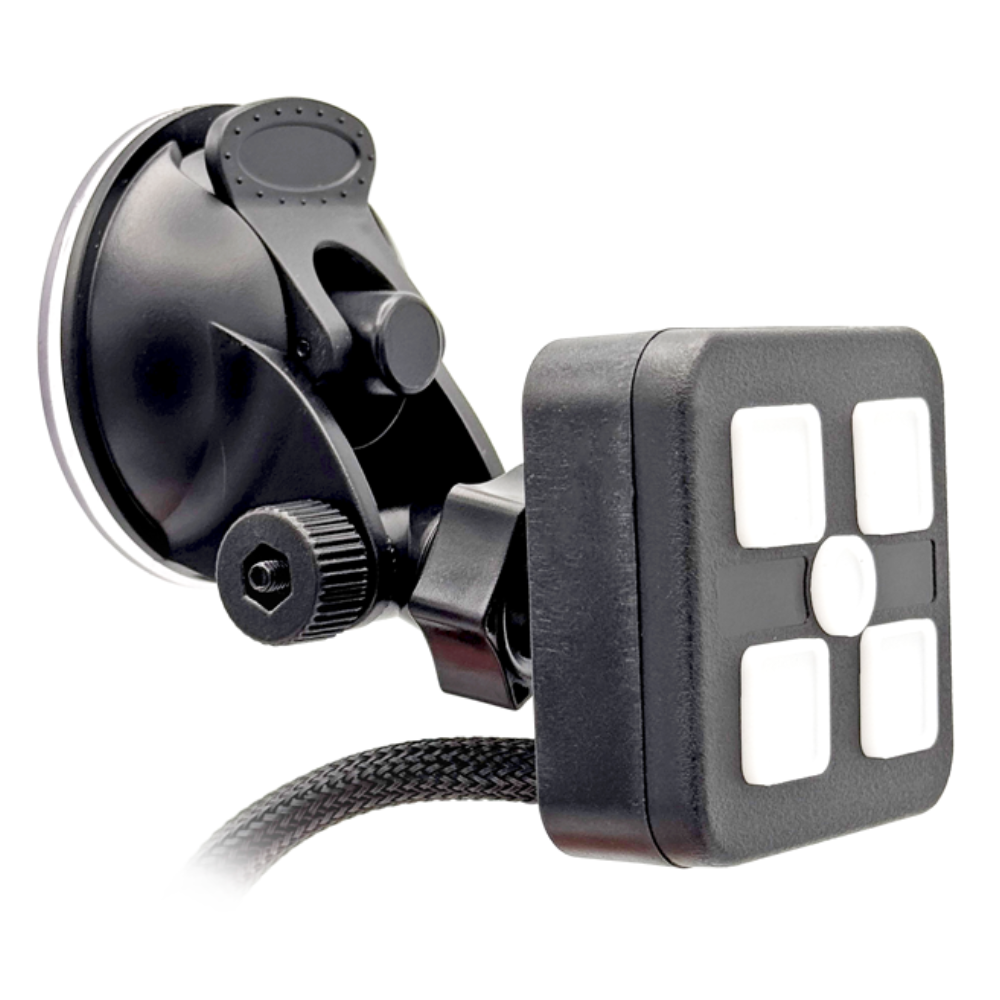

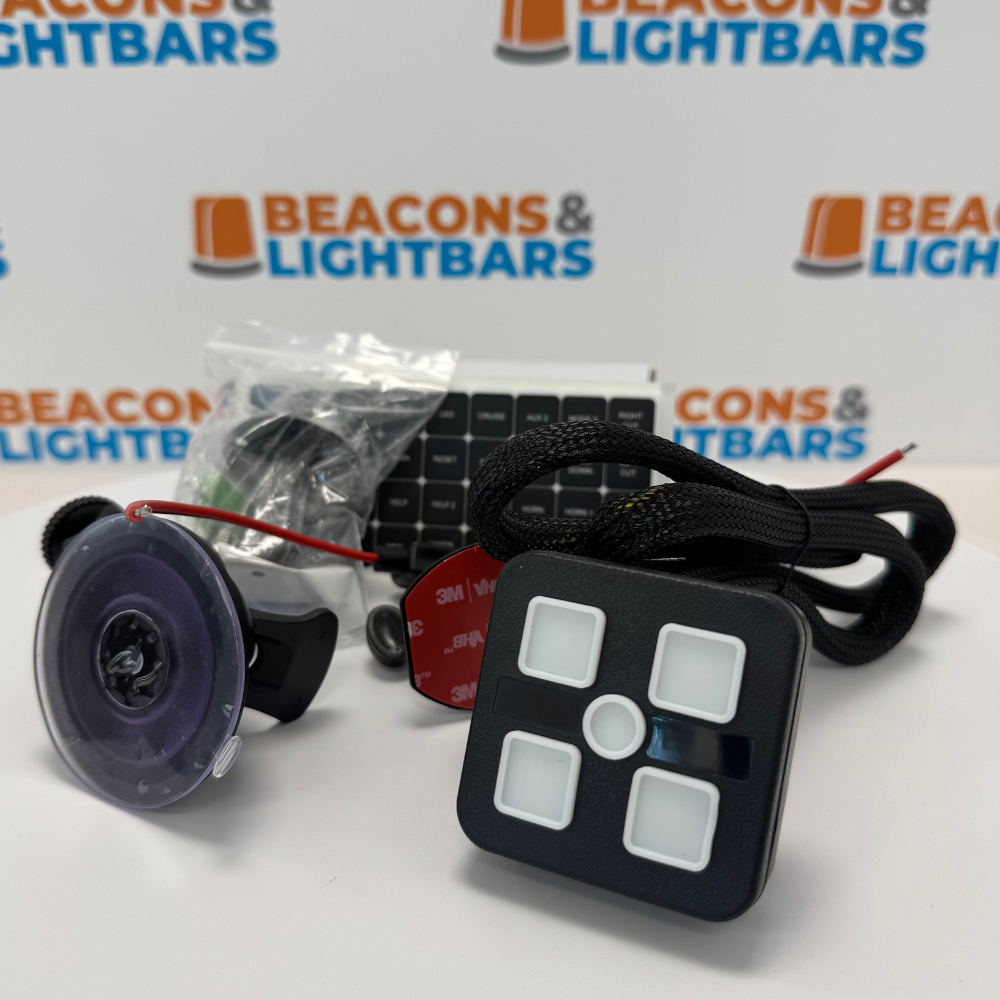

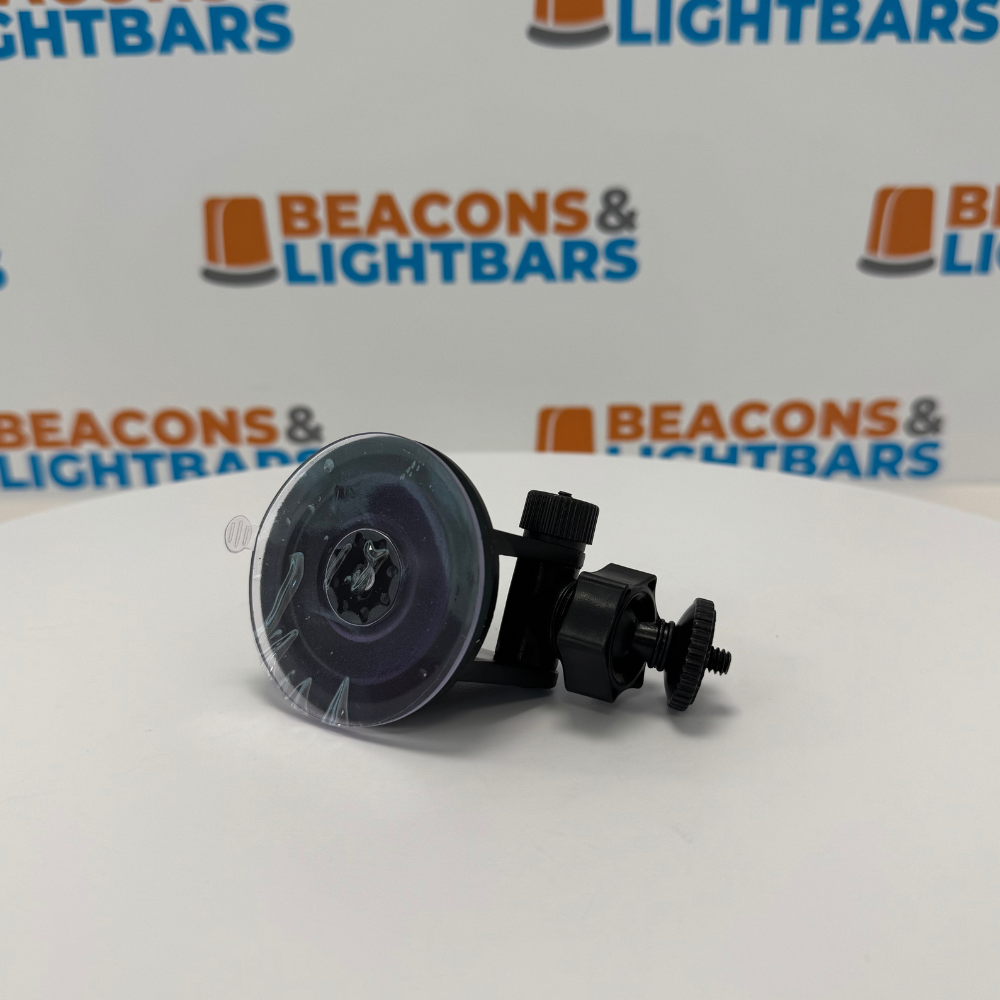

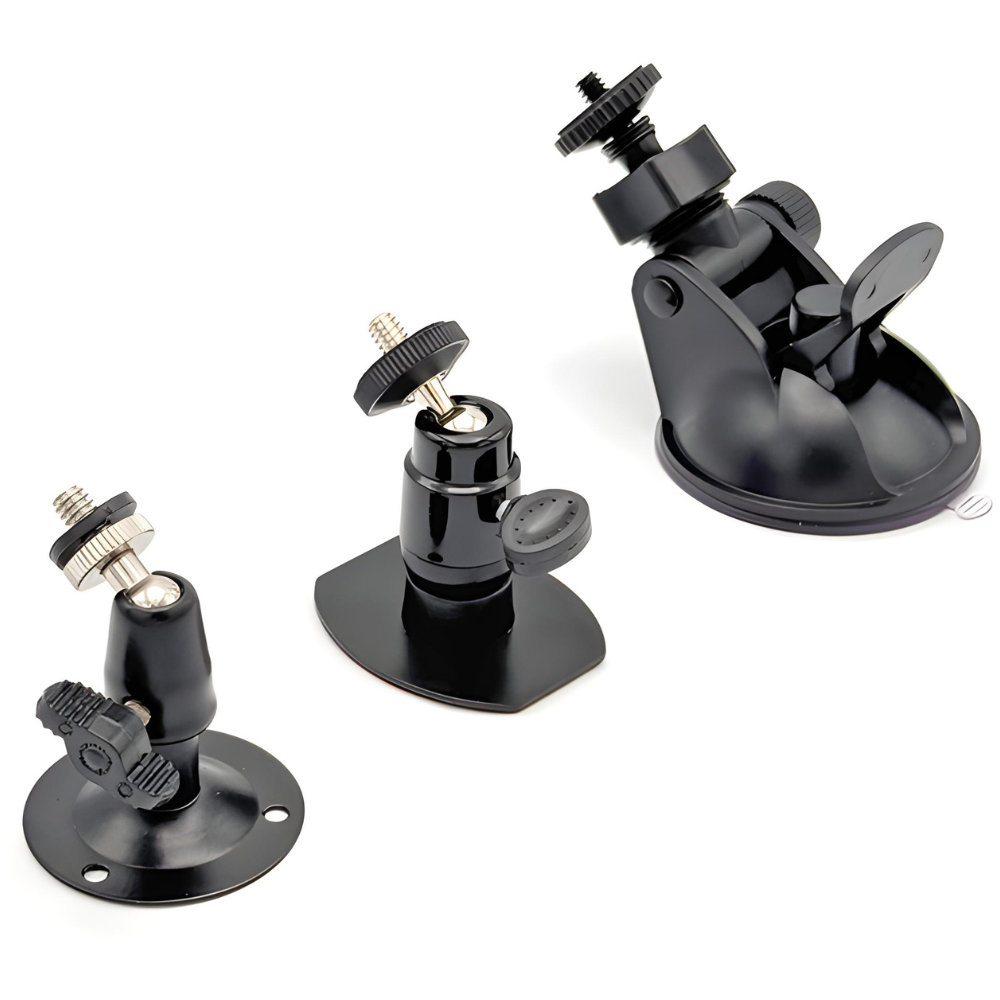

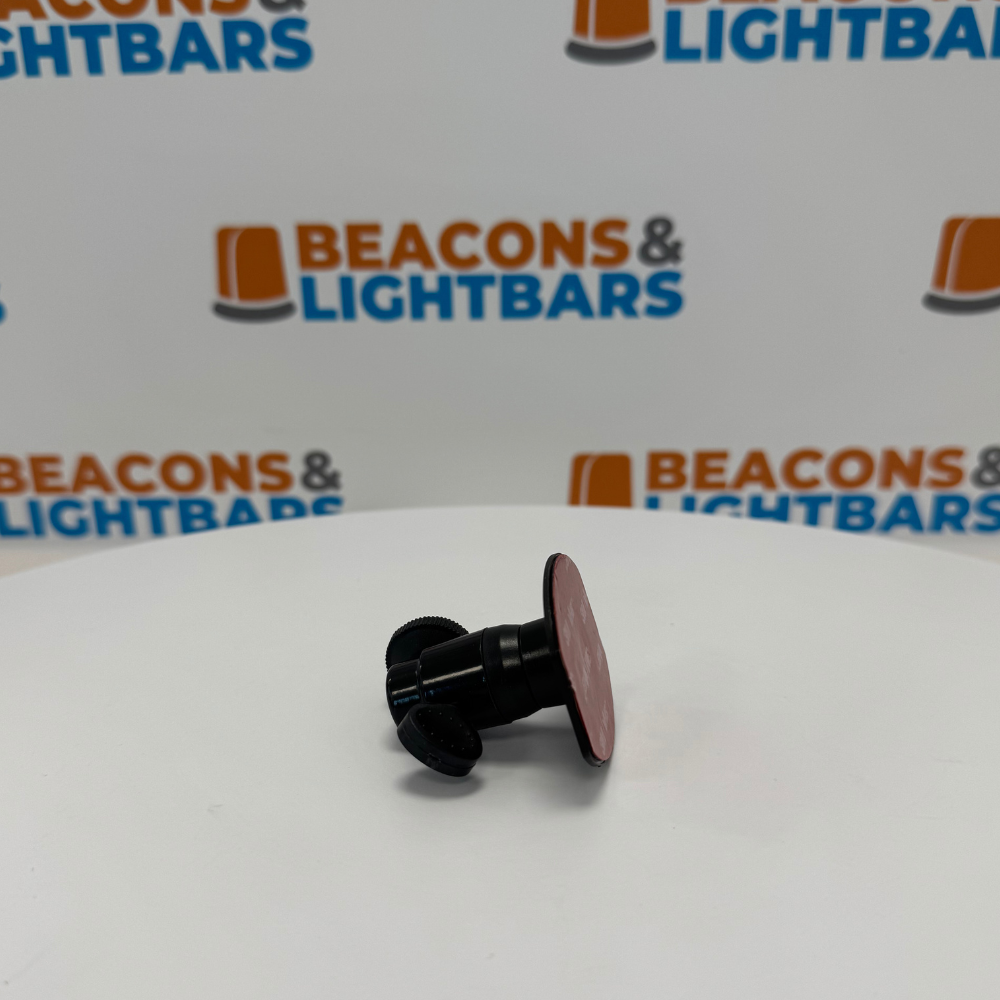

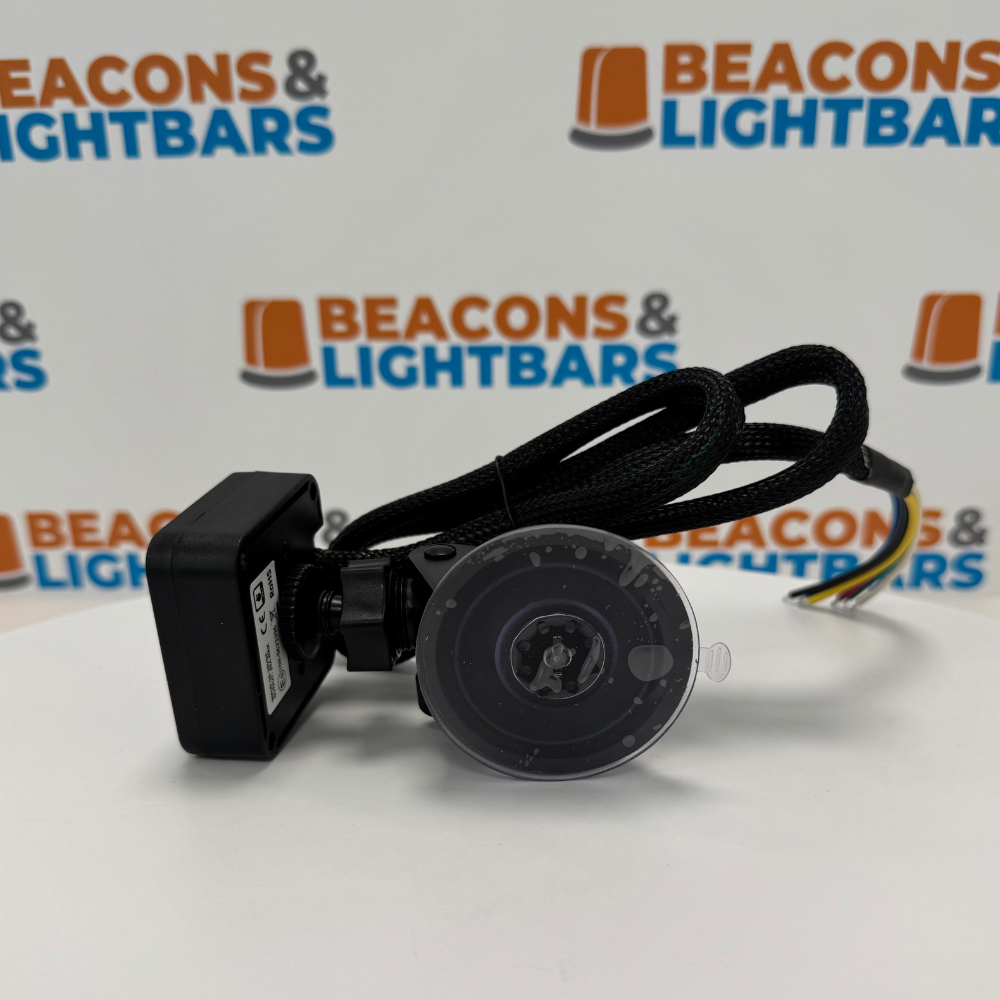

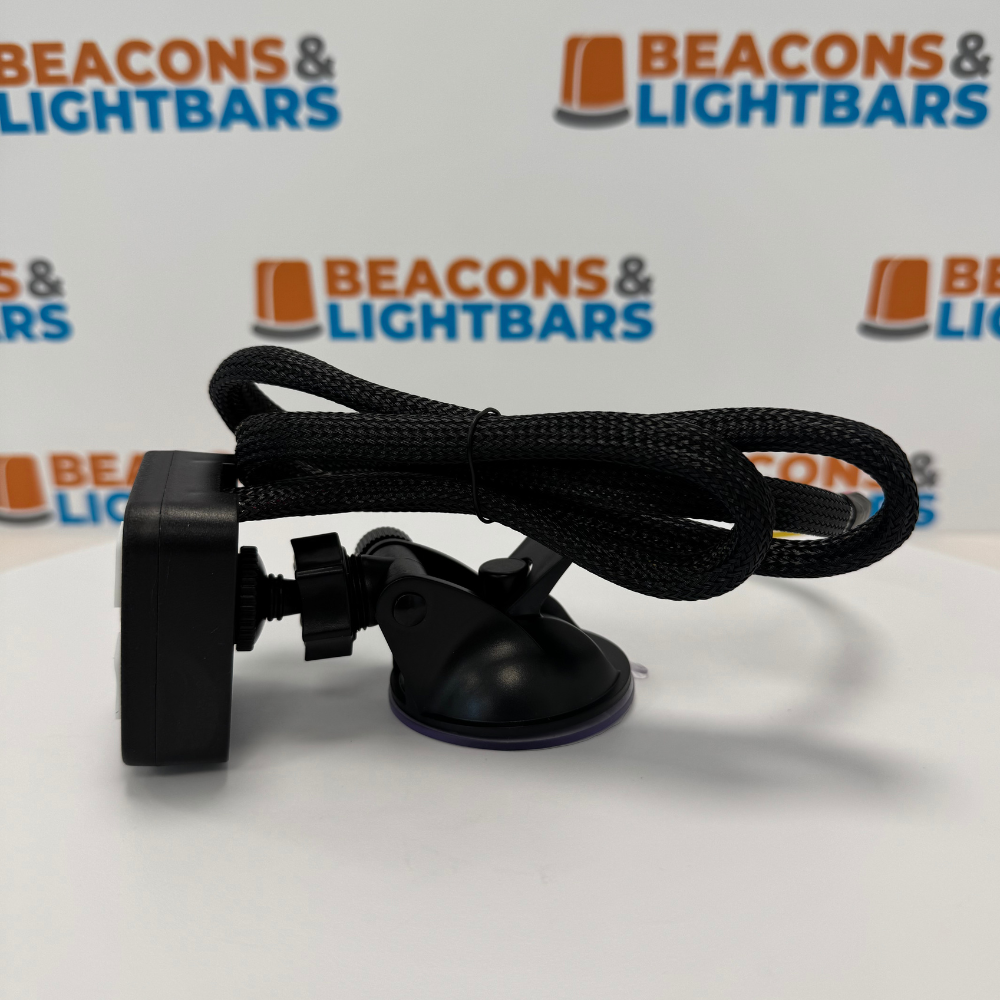

- Supplied with 3 mounting options: self-adhesive backing, self-adhesive bracket or suction cup bracket
- Soft touch with Red backlight, which changes to White when the switches are activated.
- Built-in relays, there is usually no need to run additional relays for most LED lighting and equipment

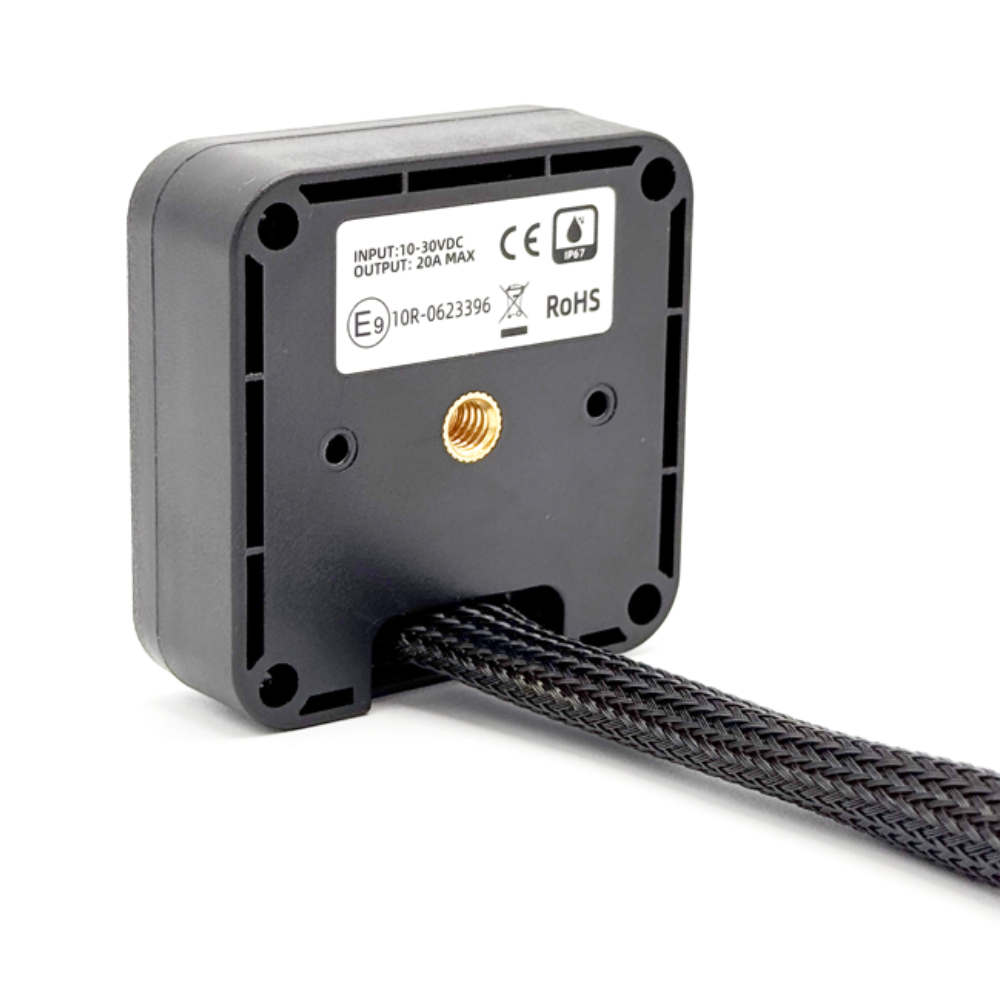

- 20 Amp Maximum Shared Load output Capacity
- Example: 1 x 10A + 3 x 3.3A
- Example: 4 x 5A
- Example: 1 x 20A
- Example: 2 x 10A

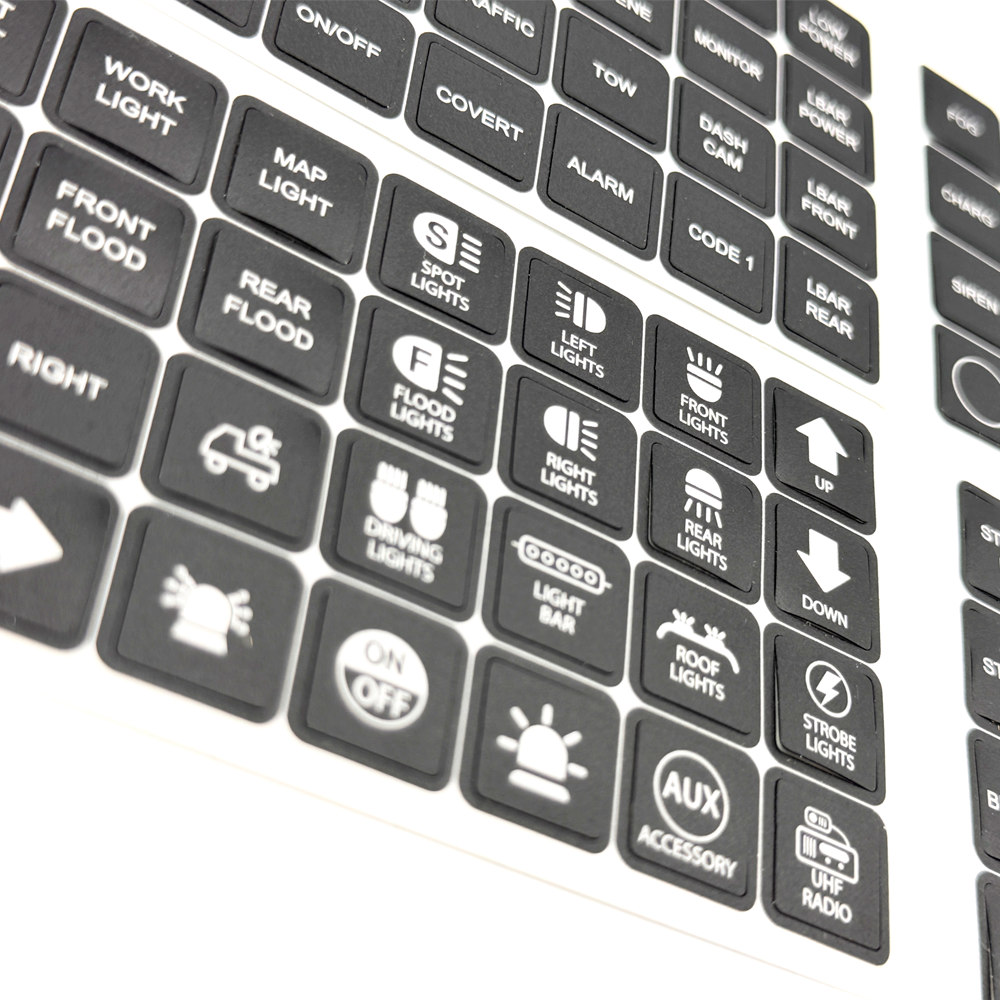

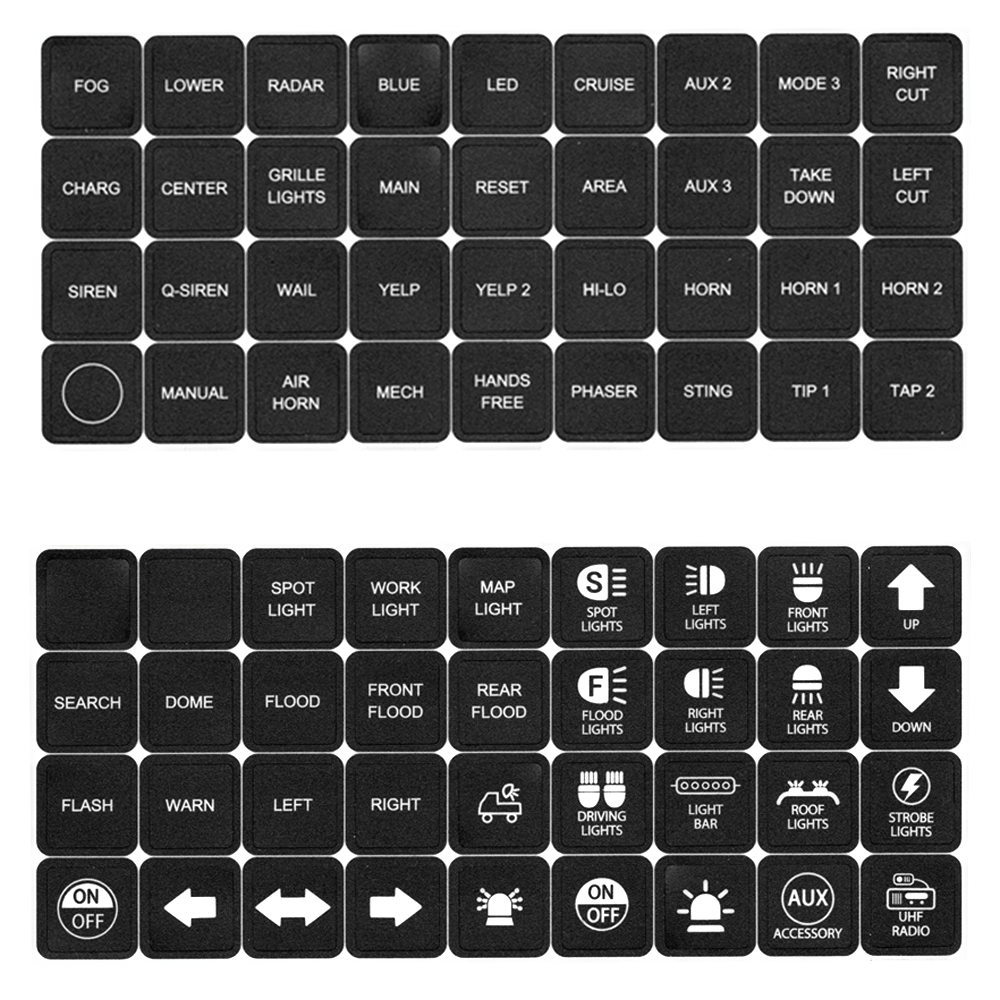

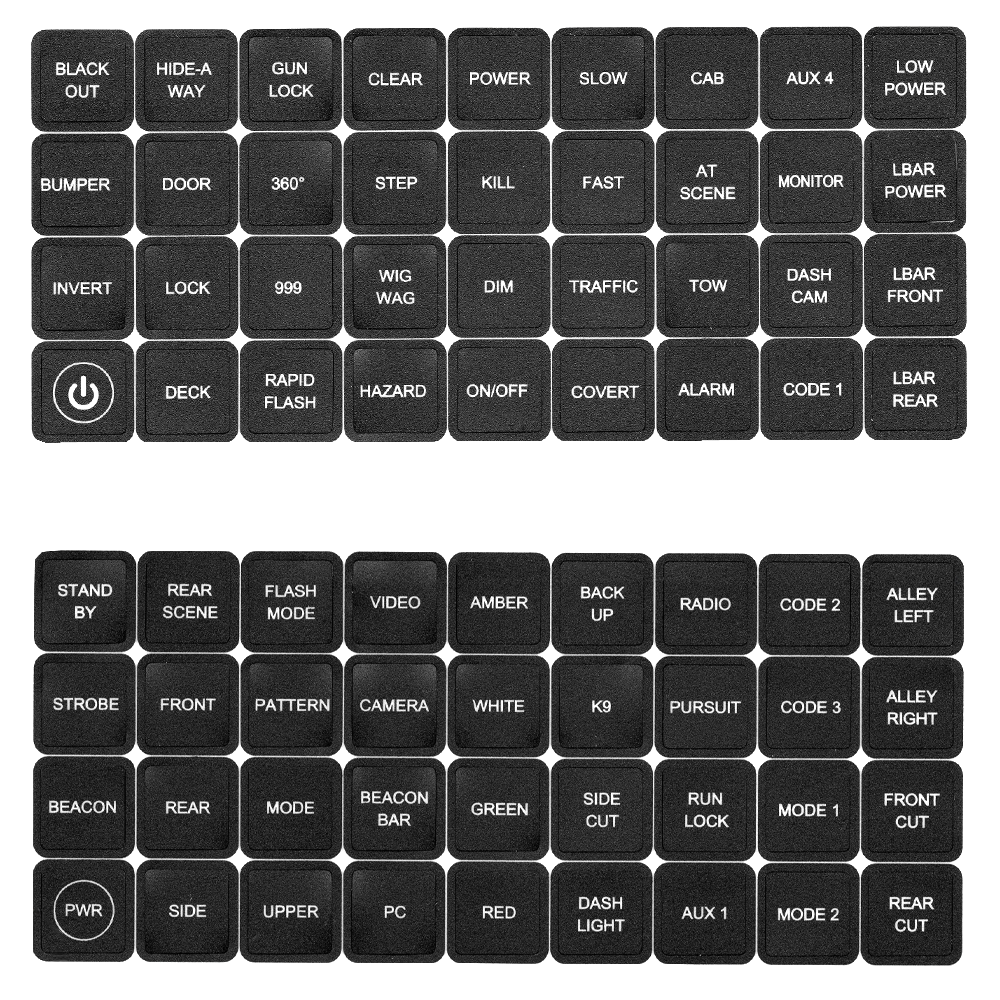

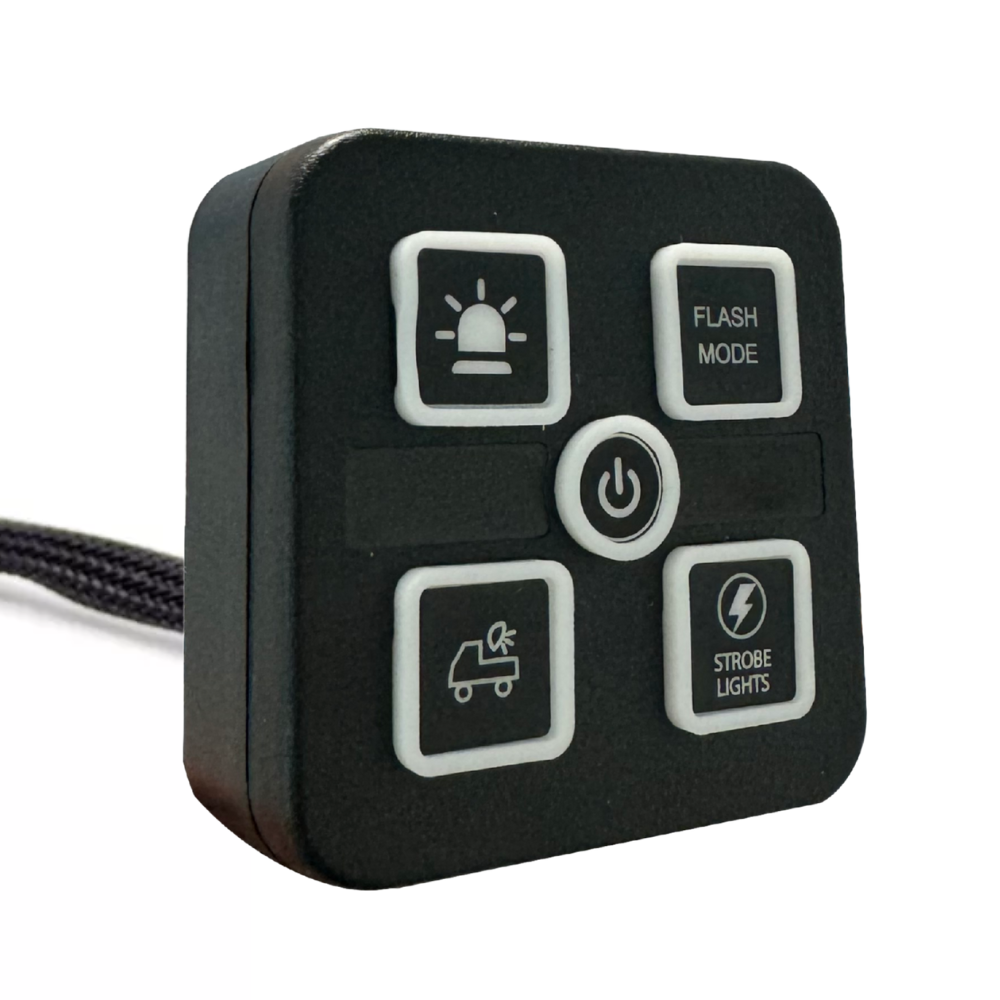

- We provide over 140 common title legends for the switches.
