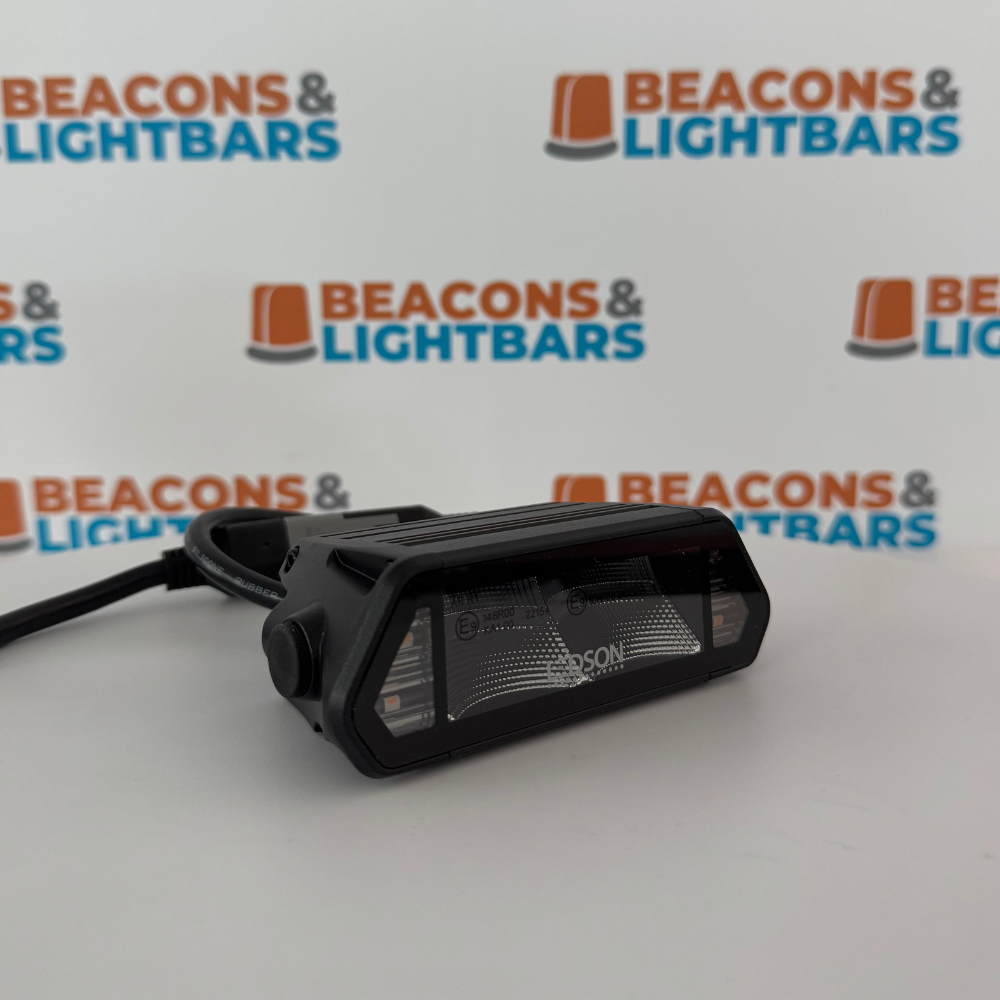

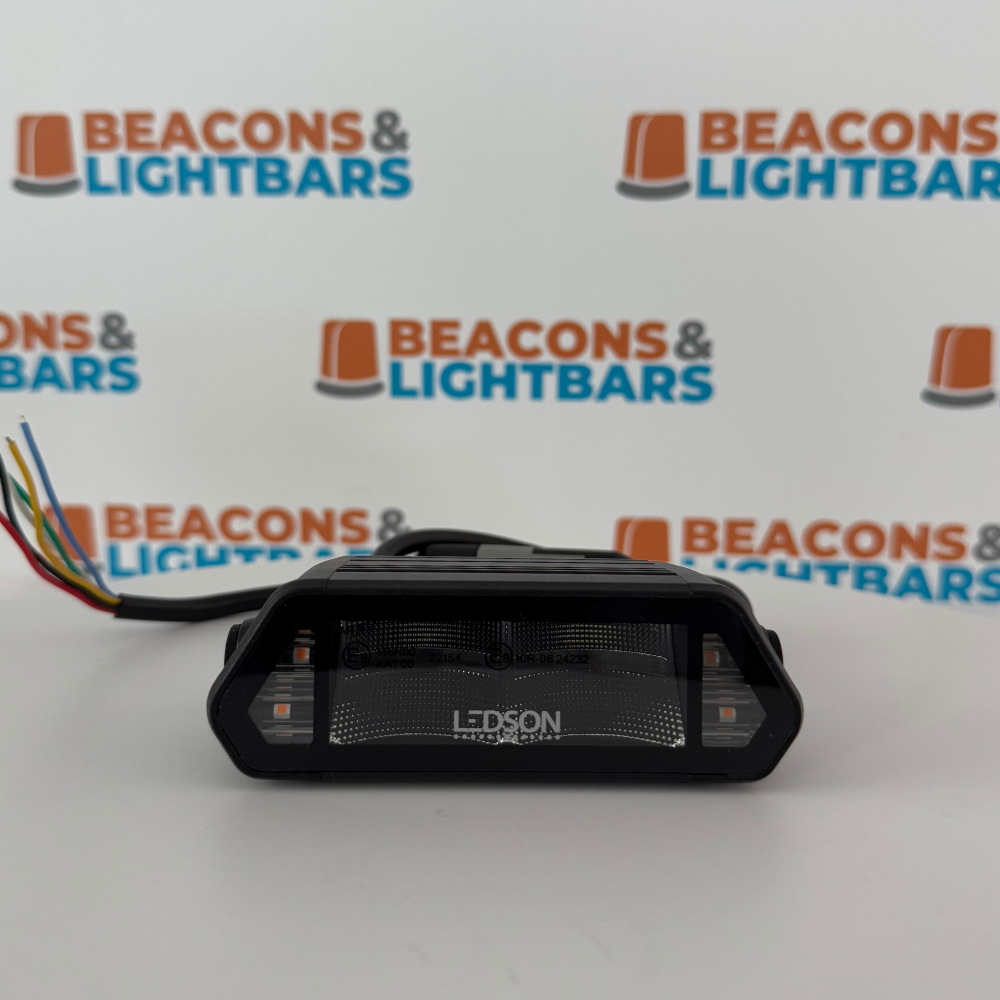

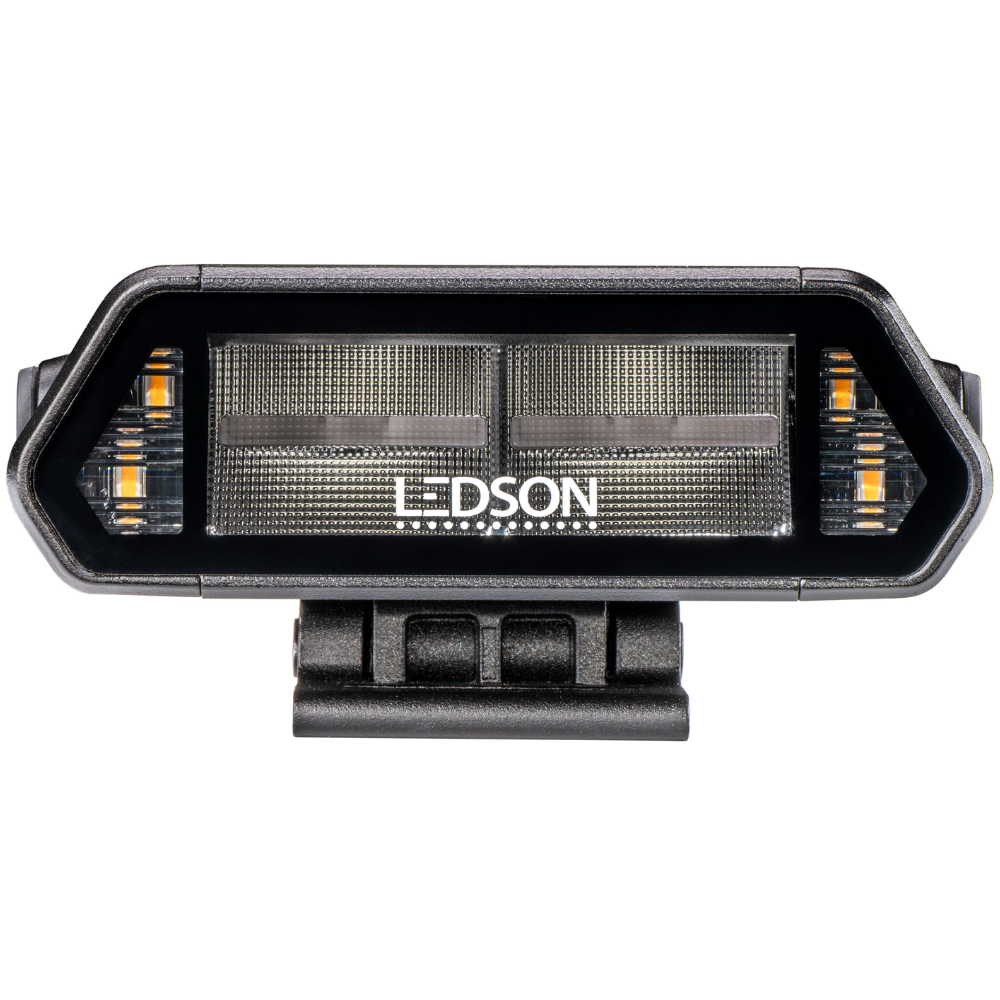

Ledson EPIX5+ 5" LED Work Lightbar With Strobe & Position Light PN: 334915024
334915024
✓ Incredibly wide 120 degrees light spread
✓ Choosable red or yellow-orange position light
✓ 10 strobe patterns, one R65-approved
✓ Choosable red or yellow-orange position light
✓ 10 strobe patterns, one R65-approved
excl. VAT £94.95
(incl. VAT £113.94)
(incl. VAT £113.94)
Treat yourself to the best. The Epix+ series stands out from the crowd with a uniquely designed, sporty aesthetic, developed with today's modern vehicles in mind. EPIX5+ Work strobe is a work bar with approved R65 strobe lights that ensure your visibility. Choose between red or yellow-orange position light. Approved as reverse light and tail light (ECE R23, R148).
EPIX5+ Work Strobe is the work light bar that offers a modern look and has the performance to meet all conditions. With its 30W, this bar provides a work light with a range of 59m at 1 lux and a wide 120° wide light pattern, giving you maximum light coverage over a large area. With 1,700 actual lumens and a color temperature of 5000K, it provides strong and natural illumination that facilitates work in all conditions. Ledsons smart brackets ensure mounting practically anywhere and however you want on the vehicle.

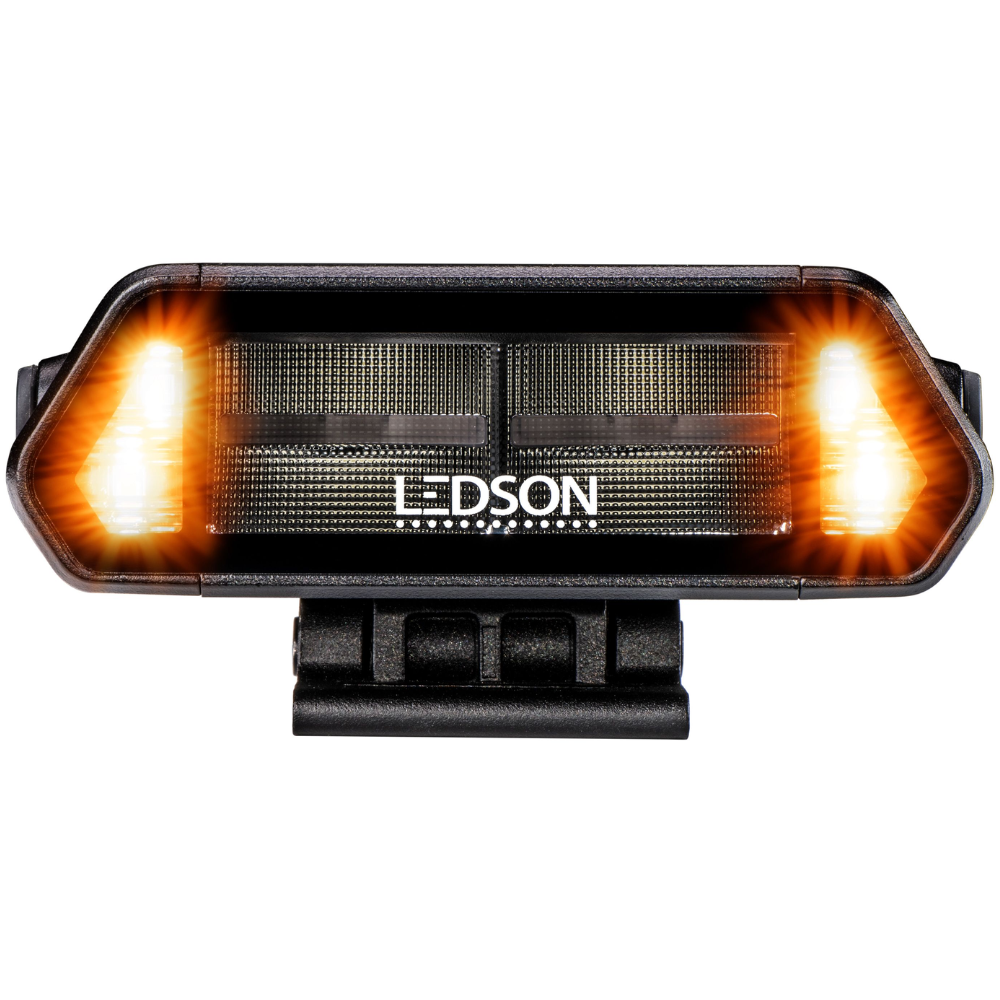

Position Lights

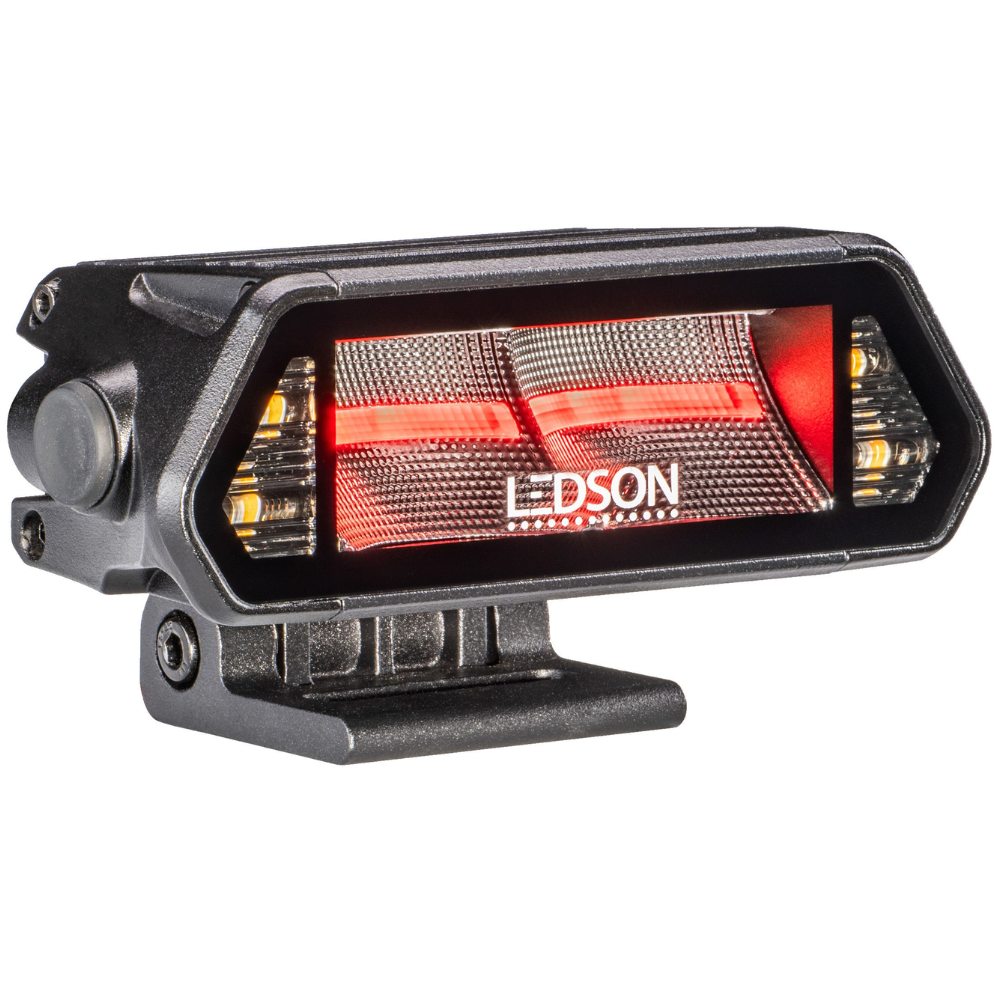

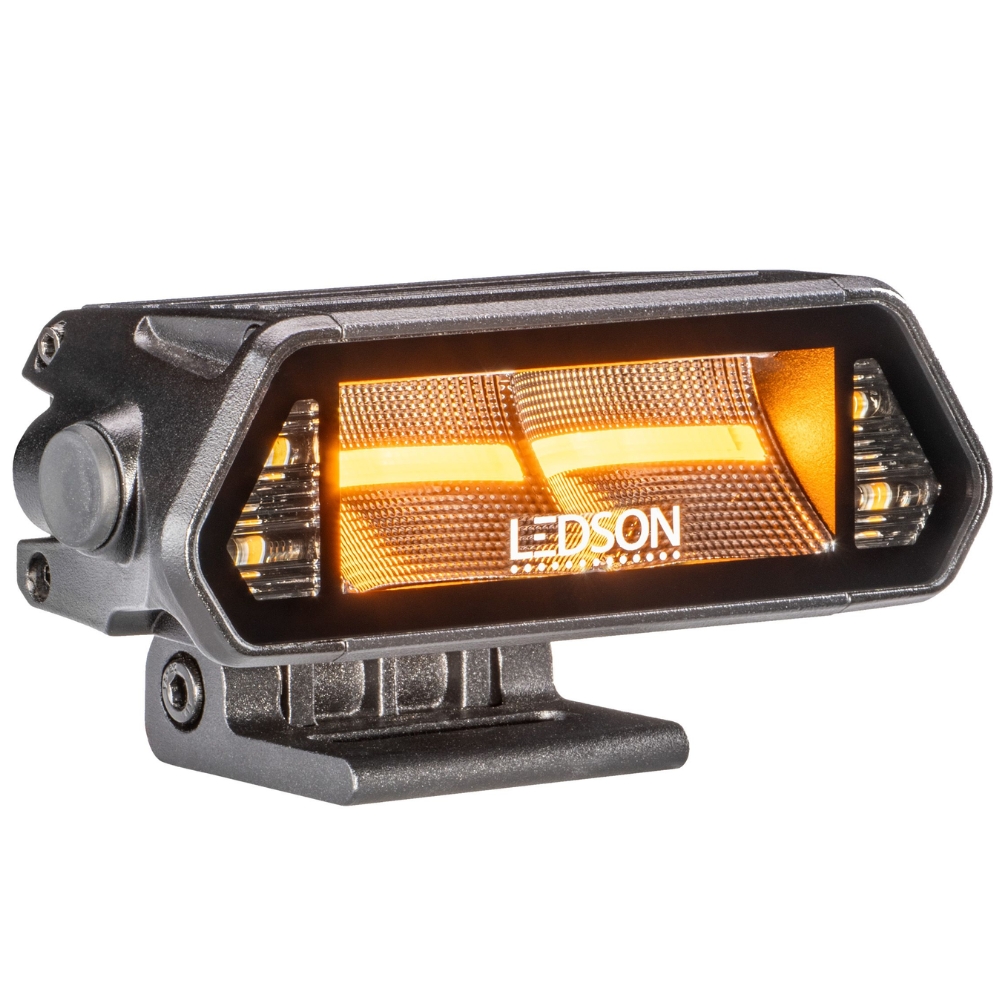

The bar features Epix series specially designed reflectors. The color of the position lights is also selectable between yellow/orange and red, which is also approved for road use.
Strobe Lights
The Epix5+ Work Strobe is equipped with 10 different strobe patterns, one of which is ECE R65-approved. By easily connecting two units together, you can achieve both synchronous and asynchronous flash patterns between them. Use your Epix5+ Work Strobe LED light bar as a work light or reverse light; the strobe turns off when activated and then resumes your previously selected flashing pattern immediately when you turn off the work light again.
Features and technical data:
Supplied:
Dimensions (excl mounting):
Flash patterns:
EPIX5+ Work Strobe is the work light bar that offers a modern look and has the performance to meet all conditions. With its 30W, this bar provides a work light with a range of 59m at 1 lux and a wide 120° wide light pattern, giving you maximum light coverage over a large area. With 1,700 actual lumens and a color temperature of 5000K, it provides strong and natural illumination that facilitates work in all conditions. Ledsons smart brackets ensure mounting practically anywhere and however you want on the vehicle.
Position Lights
The bar features Epix series specially designed reflectors. The color of the position lights is also selectable between yellow/orange and red, which is also approved for road use.
Strobe Lights
The Epix5+ Work Strobe is equipped with 10 different strobe patterns, one of which is ECE R65-approved. By easily connecting two units together, you can achieve both synchronous and asynchronous flash patterns between them. Use your Epix5+ Work Strobe LED light bar as a work light or reverse light; the strobe turns off when activated and then resumes your previously selected flashing pattern immediately when you turn off the work light again.
Features and technical data:
- ECE approved as tail light and reverse light with approved strobe light
- E-marked ECE R148 (R1, SM1), R65, R23 and R10 (EMC rated)
- Position lights, integrated in the reflector
- Selectable position light in red or yellow/orange
- 120° wide light pattern
- Range: 59 m (1 lux)
- 2,450 lumens (theoretical), 1,700 lumens (actual)
- Colour temperature 5000K (Neutral White)
- 30 W (8 x 15 W LEDs)
- Voltage: 9-36V
- IP69K (water/dustproof)
- Aluminum housing and polycarbonate lens
- Side reflective optics
- Pressure equalization membrane
- Electronic heat management

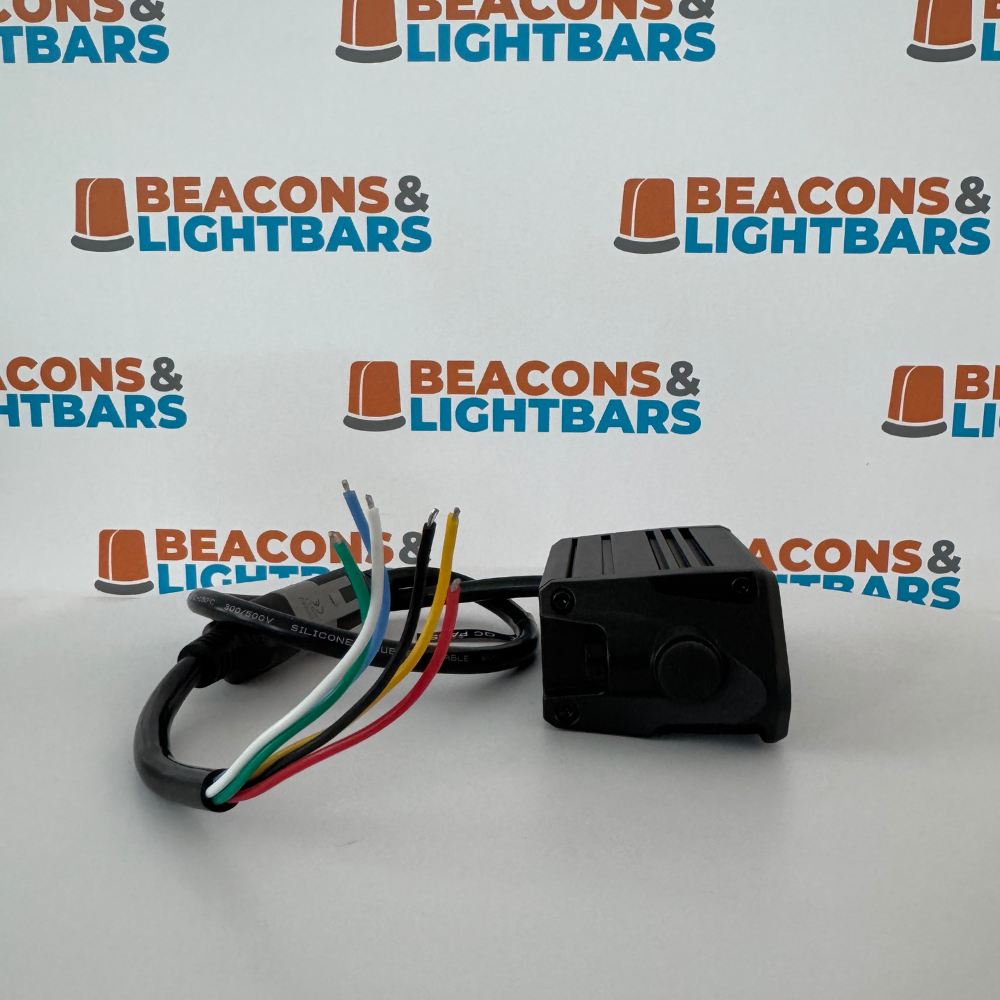

- DT connector (supplied)
- 1,8A at 12V and 0,9A at 24V

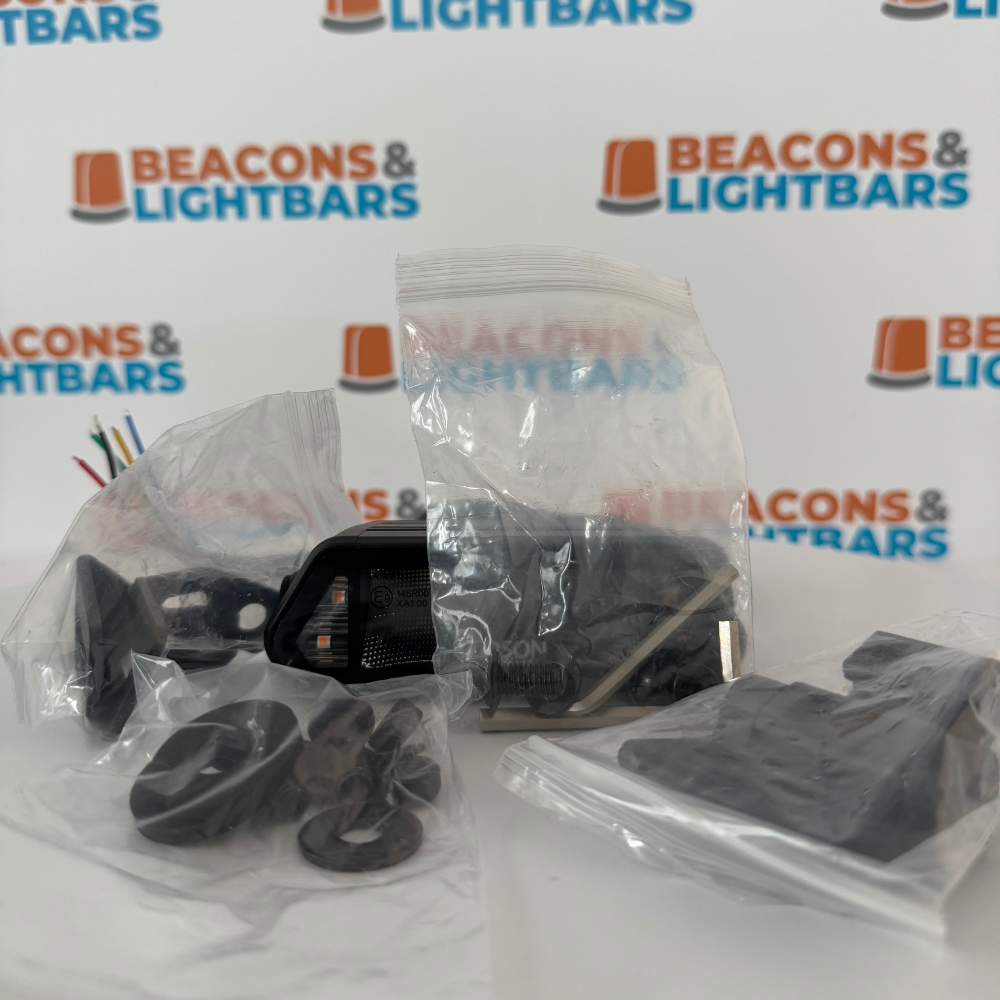

Supplied:
- Epix5+ Work Strobe LED bar
- Bolts and screws to attach the bar to appropriate surface
- Smart mounting details

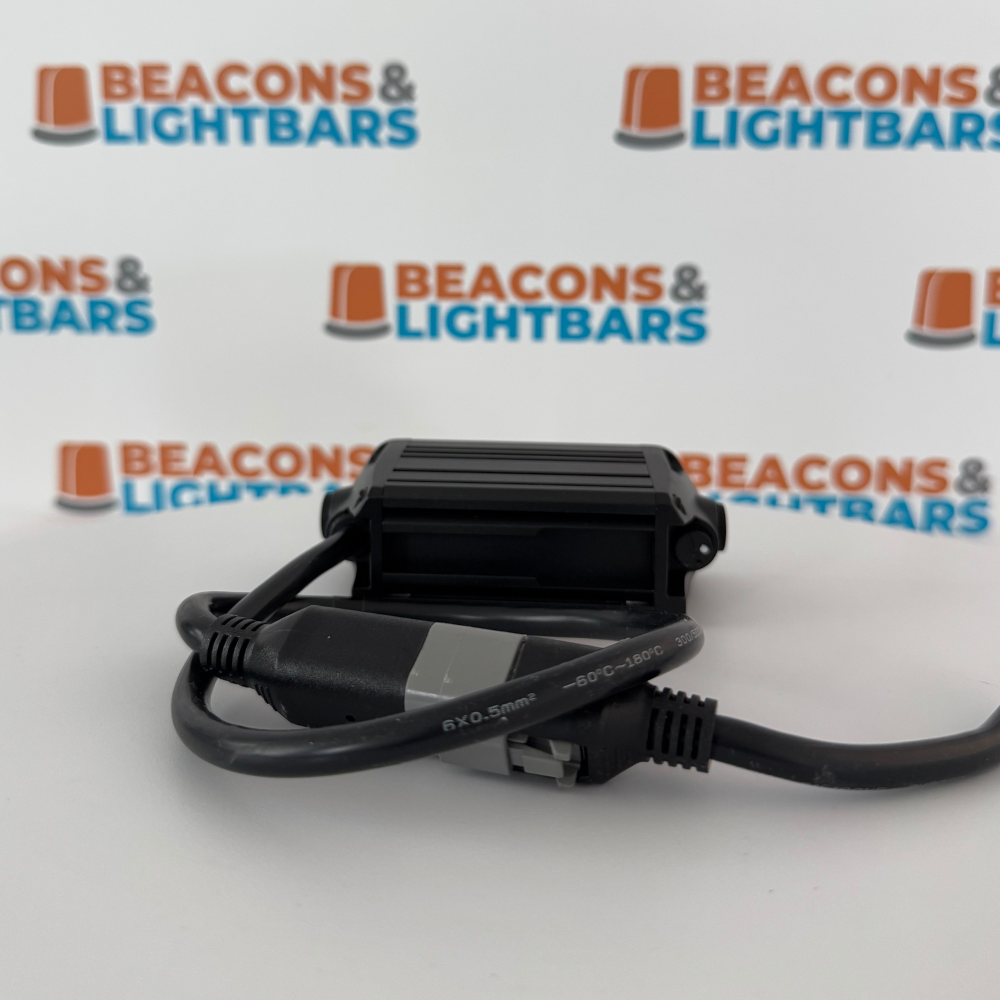

- DT cable 6-pin
- Installation instructions
Dimensions (excl mounting):
- Width: 128 mm
- Height: 43 mm
- Depth: 61 mm
Flash patterns:
- Single flash synchronization: 2.2HZ
- Single flash asynchronous: 2.2HZ (when using 2 LED bars)
- Triple flash synchronization: 1.1HZ
- Triple flash asynchronous: 1.1HZ (when using 2 LED bars)
- Quadruple flash synchronization: 1.25HZ
- Quadruple flash asynchronous: 1.25HZ (when using 2 LED bars)
- Combination of one long and five short synchronization: 0.83HZ
- Combination of one long and five short asynchronous: 0.83HZ (when using 2 LED bars)
- Burst flash synchronization: 10HZ
- Burst flash asynchronous: 10HZ (when using 2 LED bars)
