Lazer Lamps Sentinel 9" Highline (White) Gen2 LED Driving Light With Position Light & Beacon (NEW MODEL) PN: 0S9-HLE-WHT-PL2-BCN

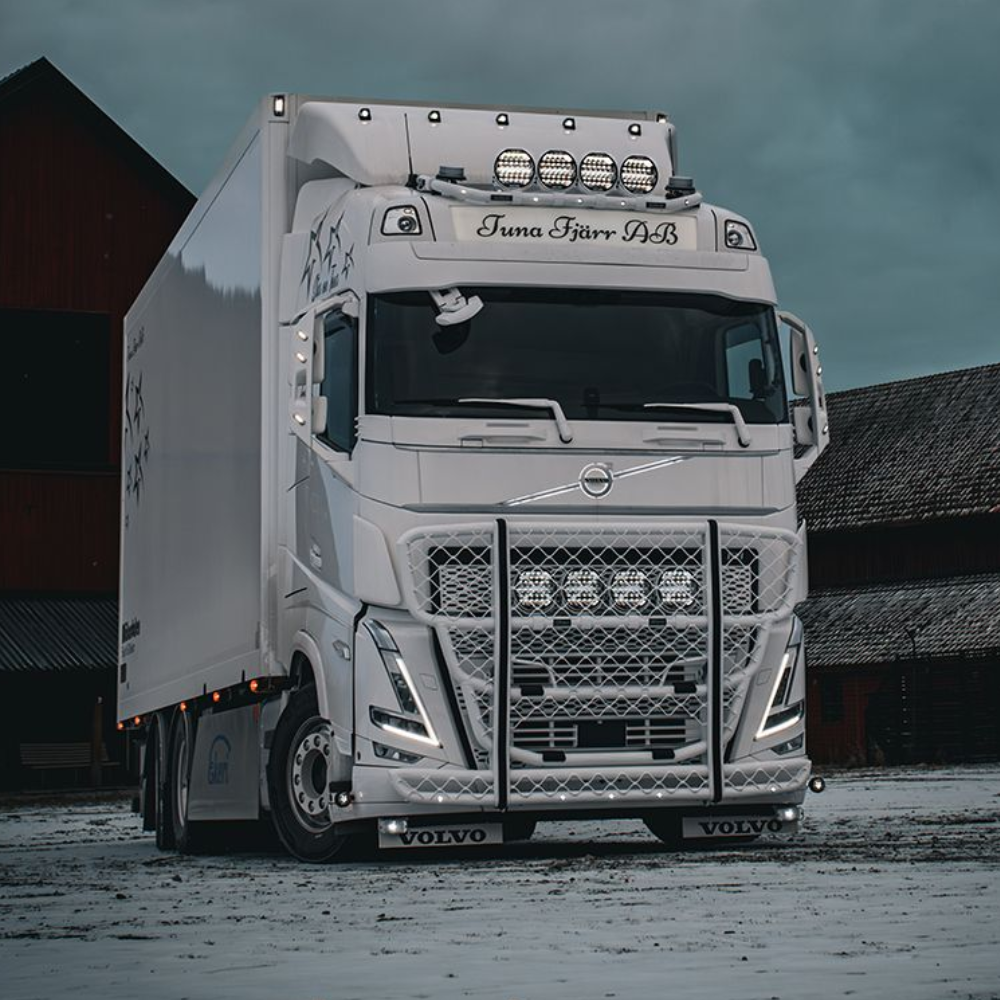

The latest addition to the Sentinel range of 9” round lamps, the Highline 'Gen2' product range comprises lamps primarily aimed at the heavy truck sector. Distinctive high-end product design with a sleek black internal appearance, and the combination of 20 high power LEDs delivers exceptional lighting performance optimised for commercial applications. The appeal of the lamps is enhanced courtesy of an updated position light / backlight feature for 2025, and integrated Beacon function, along with the possibility to activate a dynamic welcome mode, and choice of lamp finish in satin black or gloss white, ensures Sentinel Highline are products that stand out for all the right reasons.

Emitting 17,020 raw lumens, the lamps deliver 1 lux to 583m, with a comfortable 52 degree horizontal spread of light, and 18 degree vertical spread of light, tailored to everyday road use, particularly when mounted higher on a truck cab for example. Like all Lazer products, the colour temperature at a pleasant 5000K is easy on the eye, while maximising sharpness and definition of objects ahead. The lamp is UNECE approved to Regulation 149 as a high beam driving light, through adoption of Lazer’s dual output Boost technology; controlled via quickly flashing the light off/on, the light can be quickly dimmed for avoiding glare when passing road-signs for example (flash-to-dim), or at any time programmed to always work in the high or low output modes, with the low output mode complying to the UNECE Reg149 as an on-road high beam driving light.

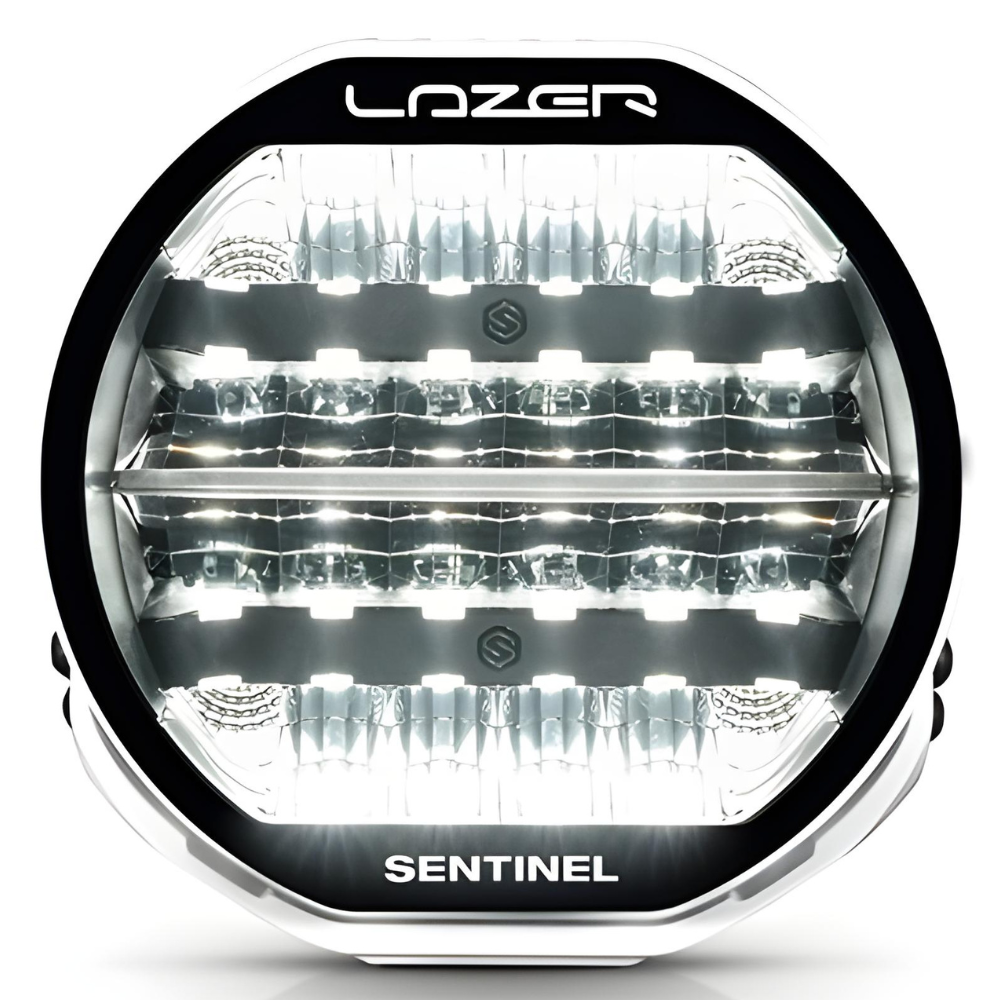

The stealth design of the Sentinel lamp is achieved through the adoption of black printed circuit boards, and black bezel feature with intricate design detail for a unique, contemporary appearance. The aesthetic appeal of the lamp is furthered through the ‘slim’ diecast aluminium mounting bracket, with Sentinel stamp, which like the lamps themselves has an automotive-grade pre-treatment before being powder coated satin black. The result is a premium finish on the product that is fully protected against aesthetic deterioration or corrosion. A range of: lens covers, stay bar kit, and anti-theft fasteners, are available as optional accessories.

For customers looking for a dynamic start-up or welcome mode, when starting your vehicle or turning on your side/position lights, the Sentinel ‘Gen2’ products can be activated to either gradually brighten at start-up, or gradually brighten while cycling between the white and amber colours (or vice versa).

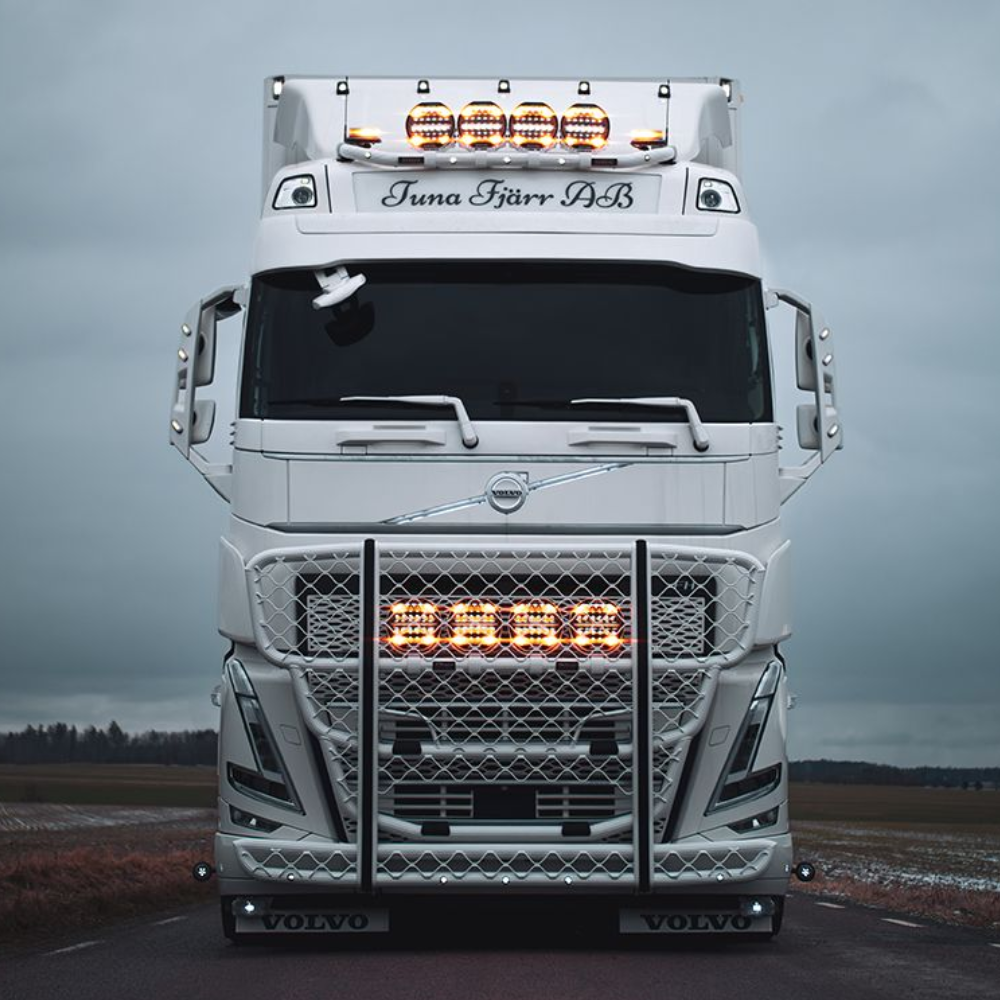

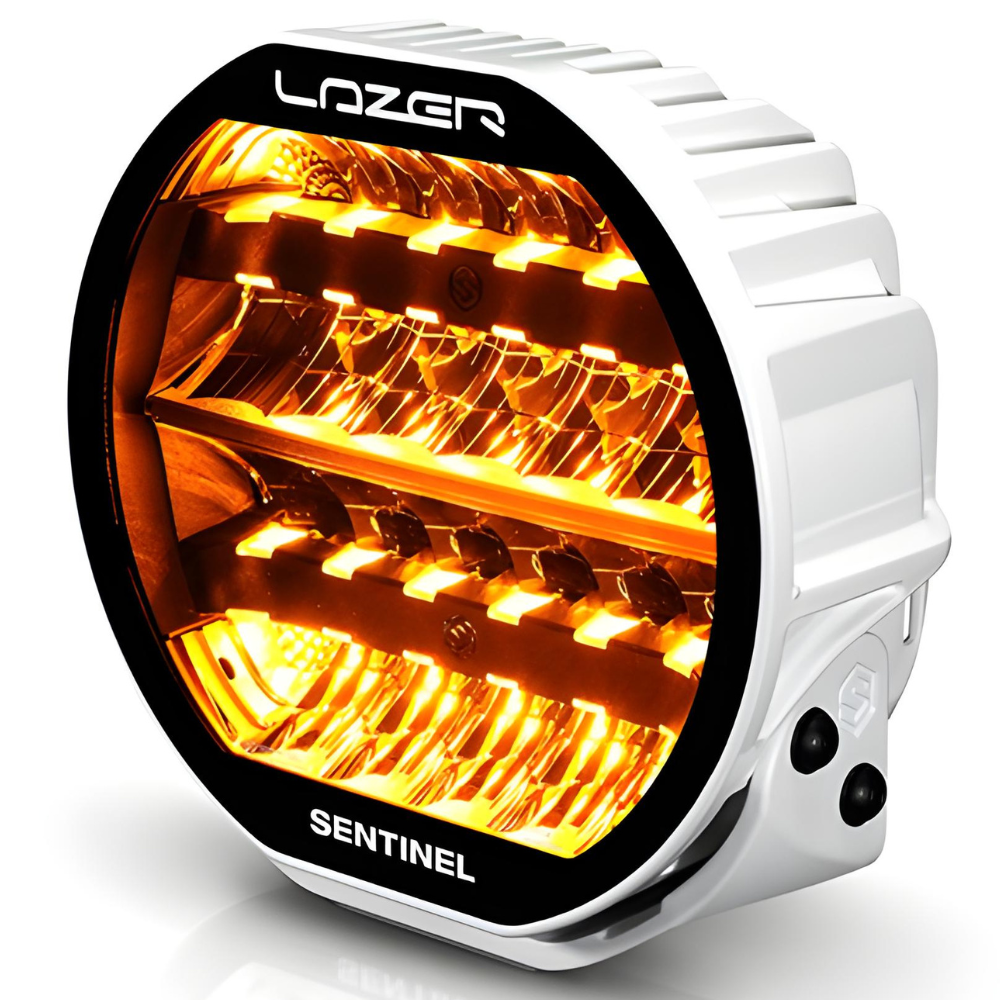

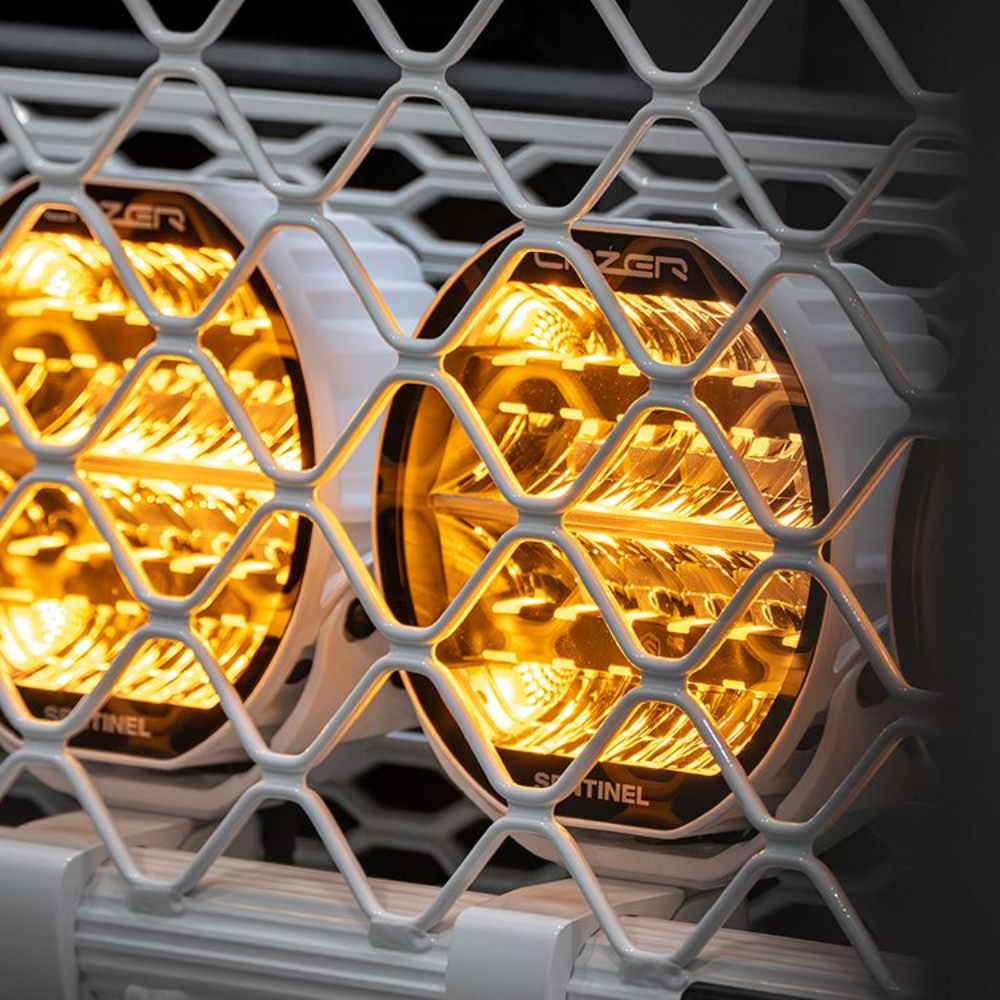

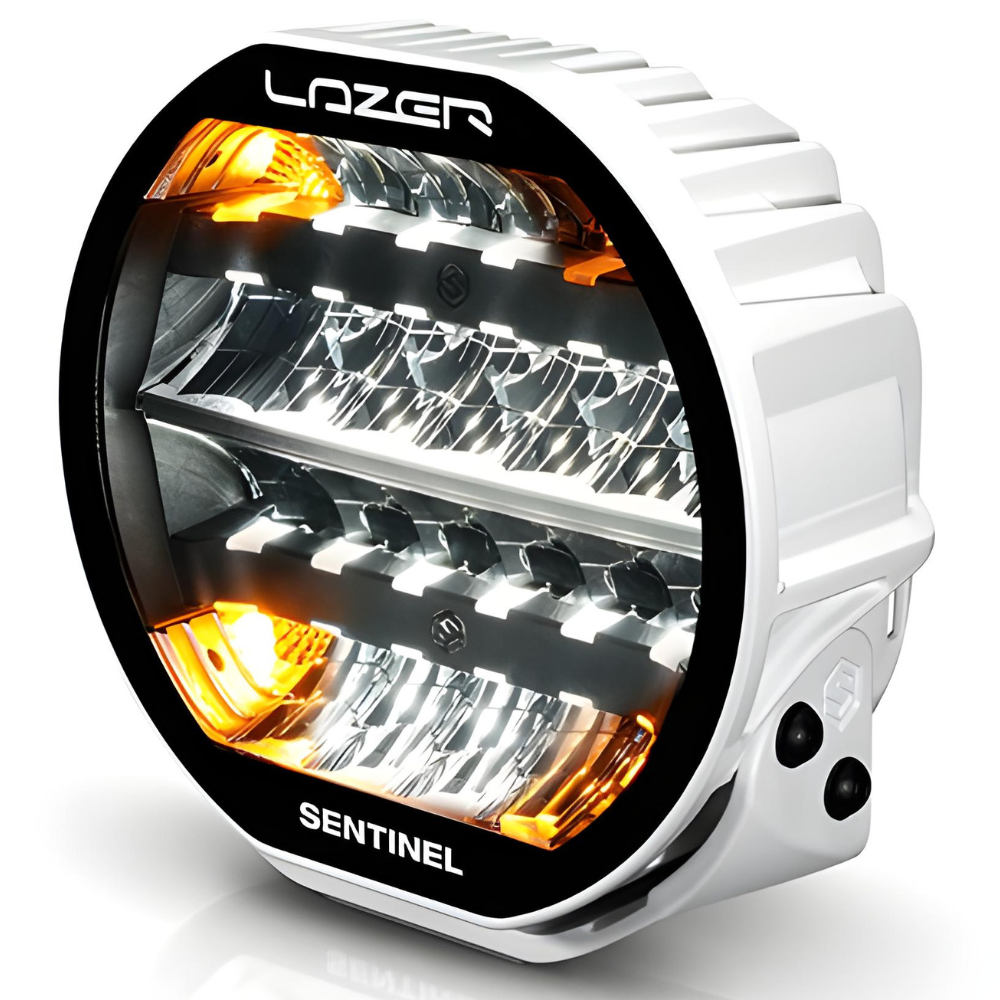

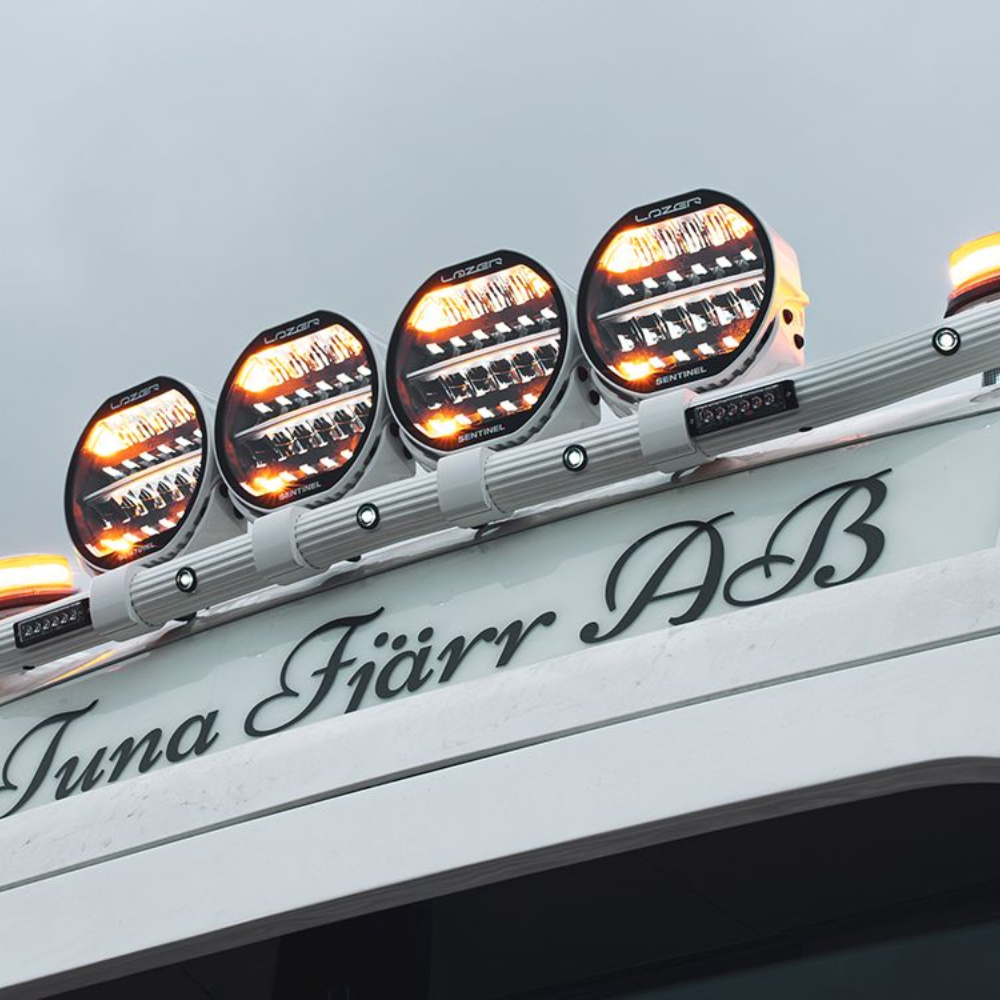

The innovative Beacon function illuminates the lamp's corners in amber, serving as a Regulation 65-approved narrow-field special warning light. Offering two distinct amber warning patterns, the function allows for seamless selection and synchronization across multiple lamps—either during installation or via a momentary switch, enabling on-demand flash pattern changes to suit varying operational needs.

As with all Lazer products, the Sentinel lamps have been designed, engineered, and are manufactured in-house, in the UK. There is no compromise in regards component parts, or build processes to achieve a superior product, while simultaneously ensuring that more than ever, environmental stewardship and an ambitious carbon-reduction program have also featured heavily in the Sentinel products design and build.

Features:

• Combination of 20 premium ‘bin’ LEDs
• Black PCB and bezel detail result in stealth black internal appearance
• 5000K LED colour temperature and 80CRI maximises sharpness and definition
• Ultra-reflective vacuum-metallised spot and wide optics
• Integrated Beacon function (UNECE Reg65 approved)
• Flash-to-dim functionality for avoiding glare from road signs (for example)
• Dual-output functionality – High and Low output modes
• UNECE Reg 149 Class B Driving Light, approved for on-road high beam (Low Output mode only) and Reg 148 position/side light function (white only).
• Dynamic start-up / Welcome Mode – two options activated as/if required.
• Contemporary lamp design
• Supplied with ‘slim’ diecast aluminium mounting bracket featuring Sentinel stamp
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

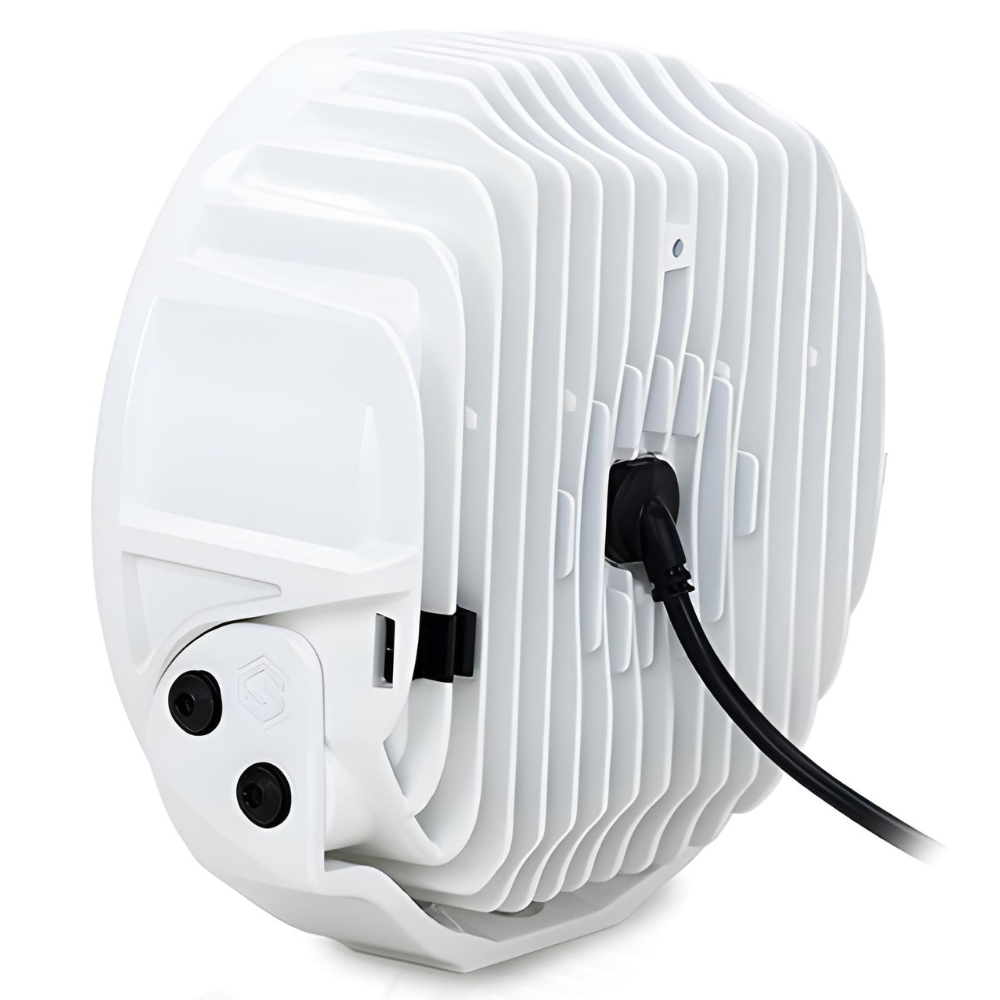

• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• A2 stainless steel fasteners with automotive grade black coating
• UNECE approved Reg 10
• IP68 watertight – 1.5m submersion (30mins)
• 5-year warranty
• Supplied with pre-wired male/female 3-pin Superseal connectors
• Designed & manufactured in UK

What's Included:

x1 Sentinel 9'' Highline with Position Light - Gen2 (Black)
x1 'Slim' Mount Kit (1141k)
x1 Installation Instructions

1x SENTINEL 9'' HIGHLINE	BOOST MODE	LOW OUTPUT/ E-MARK MODE
Voltage Range (DC)	10-32V
LED Life	50,000 hours
Weight	2.5 kg
HIGH BEAM FUNCTION
Total Luminous Flux	17,020 Lm	3,404 Lm
Total Driver 'FOV' Flux †	9,752 Lm	1,950 Lm
Colour Temperature	5000K
Power Consumption	130 Watts	26 Watts
Peak Current Draw	12 Amps	2.4 Amps
Current Draw (14.4V)	9.3 Amps	1.8 Amp
Connector	6-Pin Superseal (+25cm Cable)
DIMENSIONS
Width	225mm
Depth	90mm
Height	230mm
CERTIFICATION
IP Rating #	IP68
High Beam (E9 approval)	ECE R149 - Ref: 12.5 (in Low Output Mode only)

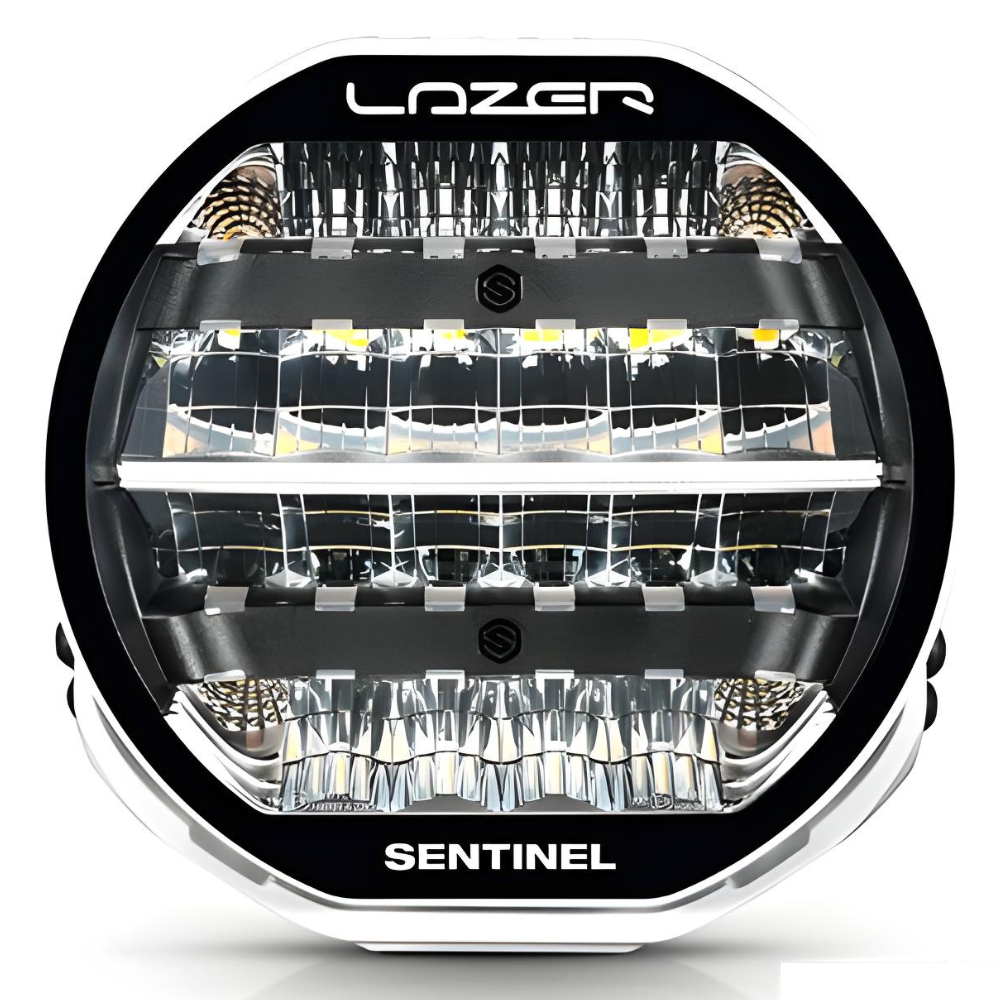

Position Light (white only)	ECE R148
Beacon Function	ECE R65
EMC Certification	ECE R10
Salt Spray Test	ISO 9227
Dump Load Protection	ISO 7637-2
PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle	52° / 18°
0.25 lx Line	1166m	522m
0.5 lx Line	825m	369m
1 lx Line	583m	261m
3 lx Line	337m	151m

† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
