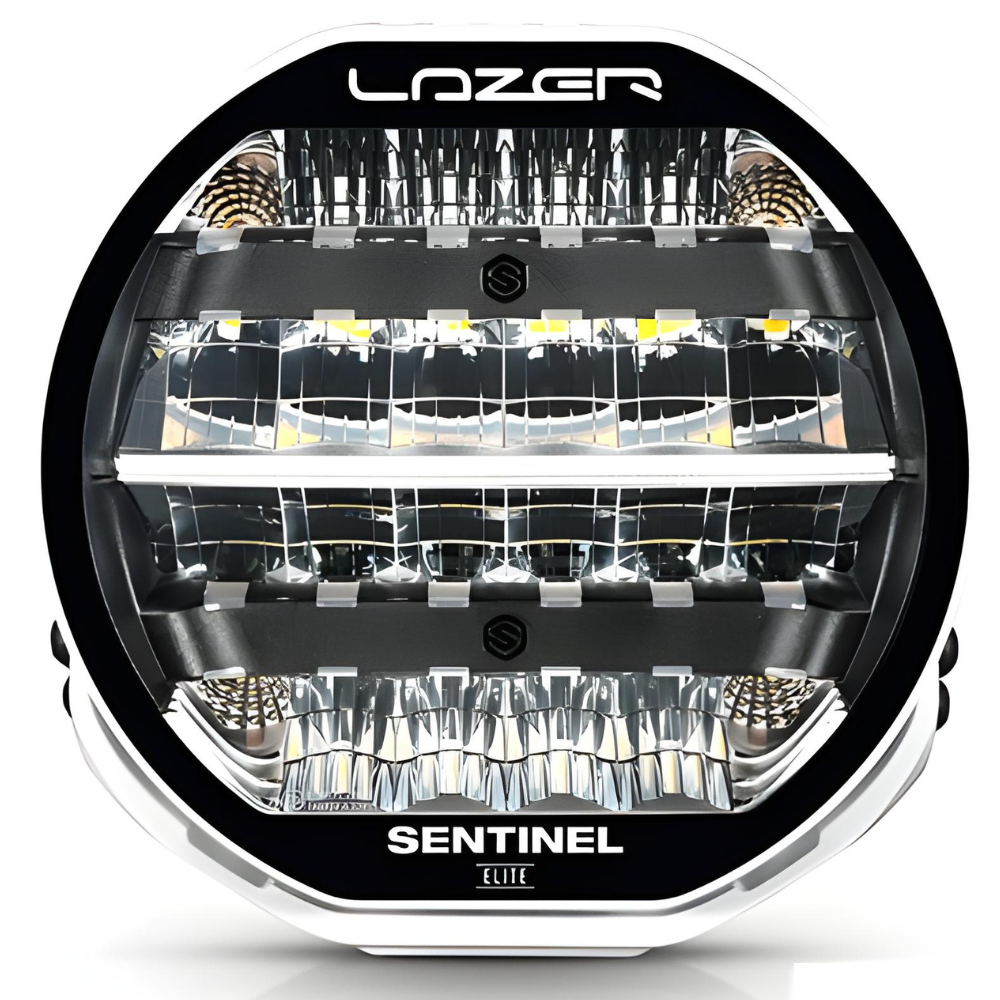

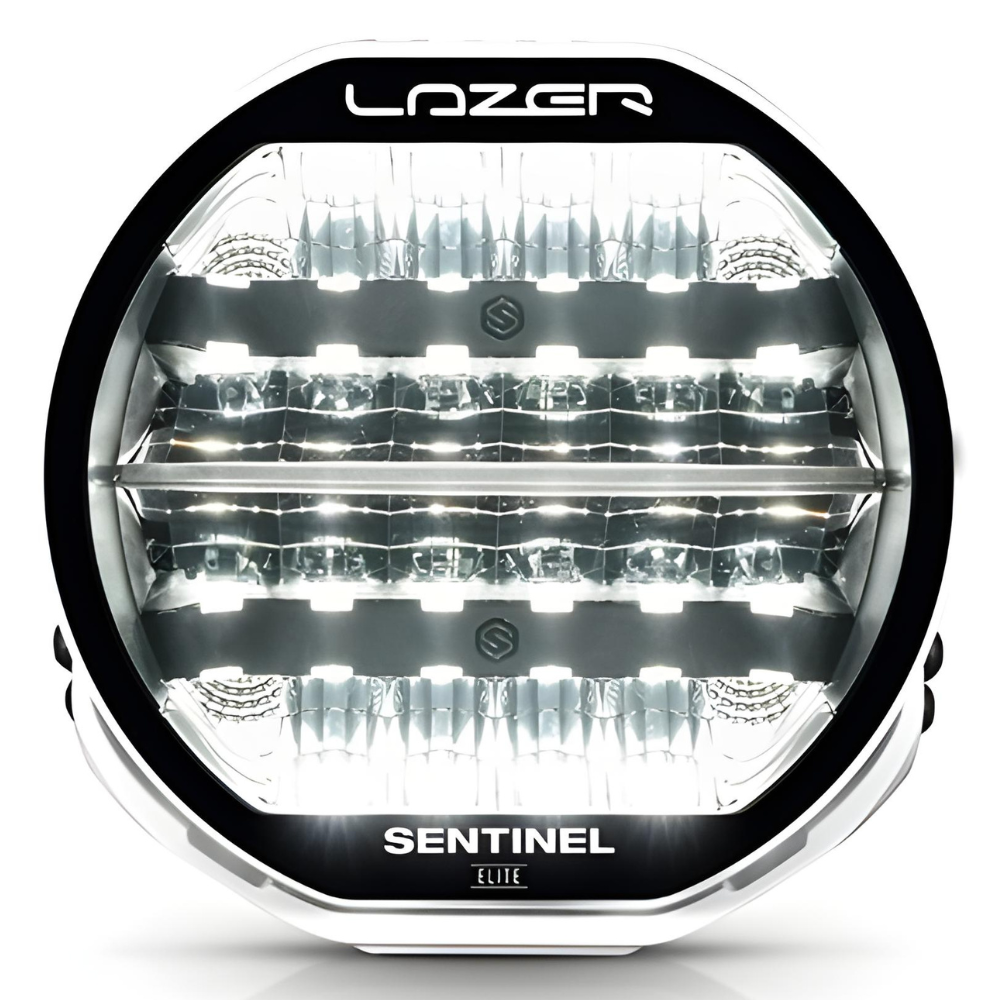

Lazer Lamps Sentinel 9" Elite (White) Gen2 LED Driving Light With Position Light (NEW MODEL) PN: 0S9-ELITE-PL2-WHT

The Sentinel range are 9” round lamps that combine distinctive high-end product design, with superior lighting performance and build quality symbolic of the Lazer Lamps name. The Sentinel Elite ‘Gen2’ product comes available with a sleek black internal appearance, and a combination of 32 high power LEDs, representing the very best lighting performance as expected from a product bearing the ‘Elite’ tag. Lighting performance aside, meticulous product styling with an updated position light / backlight feature for 2025, and optional dynamic welcome mode, ensures this is a product that stands out for all the right reasons.

Emitting 15,232 raw lumens, the lamps deliver 1 lux to 742m, but it is in the 52 degree horizontal spread of light, and visibility at the sides of the road or track in the mid to long-range that the Sentinel Elite really comes into its own. For a demonstration of the lighting performance, please click the videos section below. Like all Lazer products, the colour temperature at a pleasant 5000K is easy on the eye, while maximising sharpness and definition of objects ahead. The lamp is UNECE approved to Regulation 112 as a high beam driving light, through adoption of Lazer’s dual output E-Boost technology; controlled via quickly flashing the light off/on, the light can be quickly dimmed for avoiding glare when passing road-signs for example (flash-to-dim), or at any time programmed to always work in the high or low output modes, with the low output mode complying to the UNECE Reg112 as an on-road high beam driving light.

The stealth design of the Sentinel lamp is achieved through the adoption of black printed circuit boards, and black bezel feature with intricate design detail for a unique, contemporary appearance. The aesthetic appeal of the lamp is furthered through the ‘slim’ diecast aluminium mounting bracket, with Sentinel stamp, which like the lamps themselves has an automotive-grade pre-treatment before being powder coated satin black. The result is a premium finish on the product that is fully protected against aesthetic deterioration or corrosion. A range of: lens covers, stay bar kit, and anti-theft fasteners, are available as optional accessories.

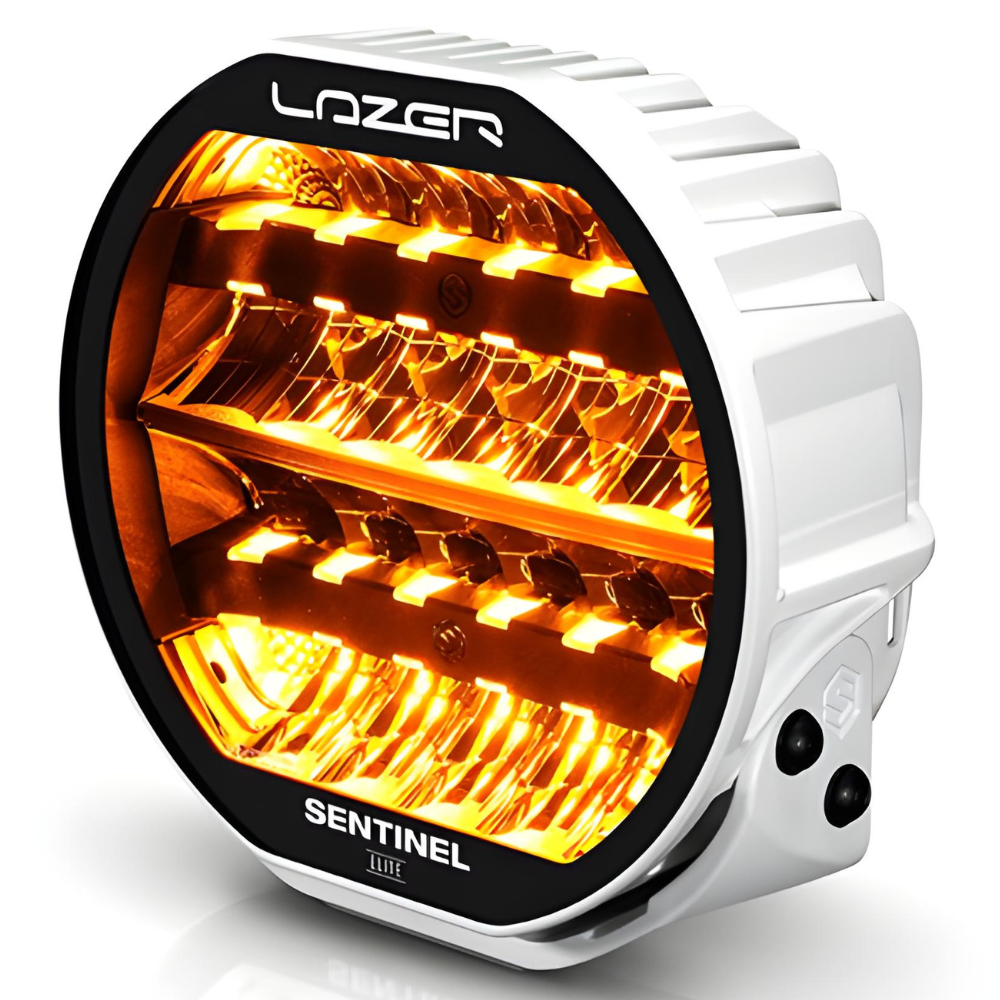

For customers looking for a dynamic start-up or welcome mode, when starting your vehicle or turning on your side/position lights, the Sentinel ‘Gen2’ products can be activated to either gradually brighten at start-up, or gradually brighten while cycling between the white and amber colours (or vice versa).

As with all Lazer products, the Sentinel lamps have been designed, engineered, and are manufactured in-house, in the UK. There is no compromise in regards component parts, or build processes to achieve a superior product, while simultaneously ensuring that more than ever, environmental stewardship and an ambitious carbon-reduction program have also featured heavily in the Sentinel products design and build.

Product Features:

• Combination of 32 premium ‘bin’ LEDs
• Black PCB and bezel detail result in stealth black internal appearance
• 5000K LED colour temperature and 80CRI maximises sharpness and definition
• Ultra-reflective vacuum-metallised spot and wide optics
• Flash-to-dim functionality for avoiding glare from road signs (for example)
• Dual-output functionality – High and Low output modes
• UNECE Reg 112 Class B Driving Light, approved for on-road high beam (Low Output mode only) and Reg 148 position/side light function (white only).
• Dynamic start-up / Welcome Mode – two options activated as/if required.
• Contemporary lamp design
• Supplied with ‘slim’ diecast aluminium mounting bracket featuring Sentinel stamp
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

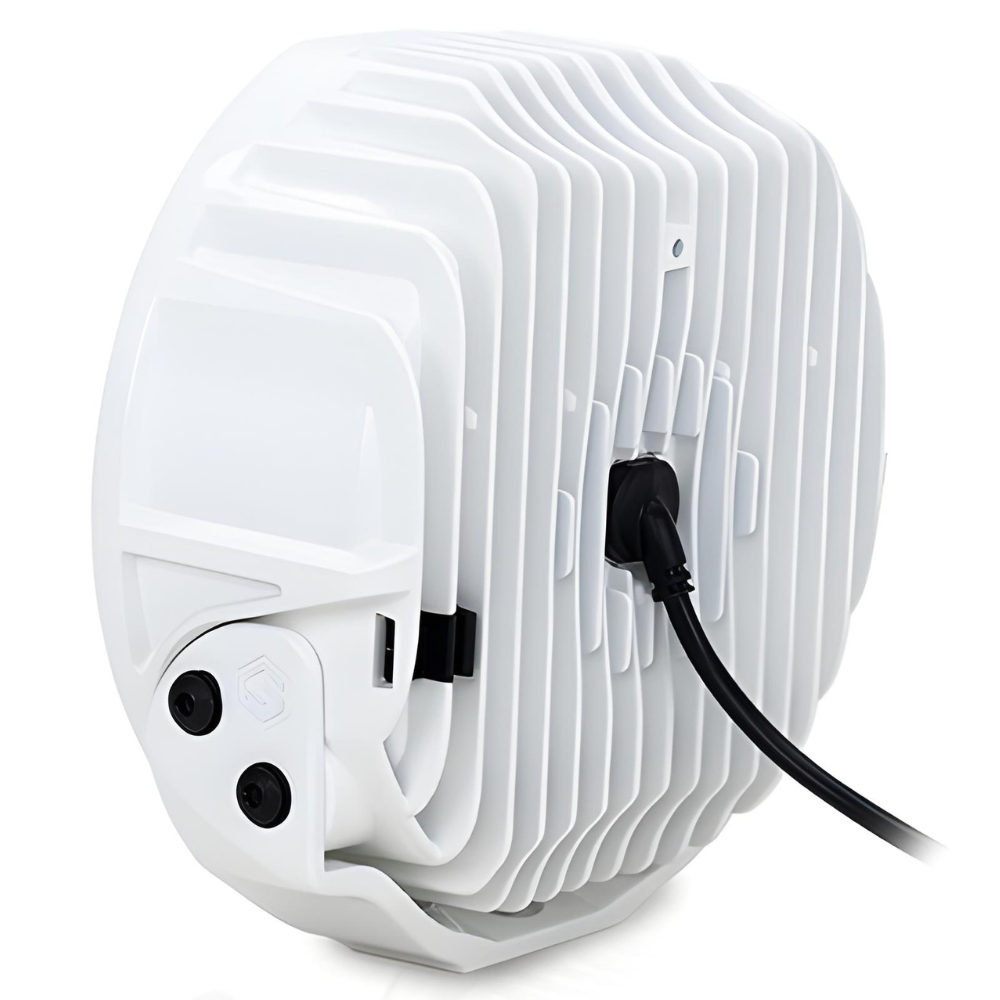

• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• A2 stainless steel fasteners with automotive grade black coating
• Supplied with Lazer branded black lens cover
• UNECE approved Reg 10
• IP68 watertight – 1.5m submersion (30mins)
• 5-year warranty
• Supplied with pre-wired male/female 3-pin Superseal connectors
• Designed & manufactured in UK

What's Included:

x1 Sentinel 9'' Elite with Position Light - Gen2 (Black)
x1 'Slim' Mount Kit (1141k)
x1 'Lazer' Black Lens Cover (LC-BLK-0S9)
x1 Installation Instructions


Technical Specifications

1x SENTINEL 9'' ELITE BOOST MODE LOW OUTPUT/ E-MARK MODE Voltage Range (DC) 10-32V LED Life 50,000 hours Weight 2.5 kg HIGH BEAM FUNCTION Total Luminous Flux 15,232 Lm 3,046 Lm Total Driver 'FOV' Flux † 9,048 Lm 1,809 Lm Colour Temperature 5000K Power Consumption 145 Watts 29 Watts Peak Current Draw 15.1 Amps 3 Amps Current Draw (14.4V) 10.1 Amps 2 Amp Connector 3-Pin Superseal (+25cm Cable) DIMENSIONS Width 225mm Depth 90mm Height 230mm CERTIFICATION IP Rating # IP68 High Beam (E9 approval) ECE R112 - Ref: 20 (in Low Output Mode only) Position Light (white only) ECE R148 EMC Certification ECE R10 Salt Spray Test ISO 9227 Dump Load Protection ISO 7637-2 PHOTOMETRIC DATA Horizontal / Vertical Beam Angle 52° / 14° 0.25 lx Line 1483m 663m 0.5 lx Line 1049m 469m 1 lx Line 742m 332m 3 lx Line 428m 191m † - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here. # - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
