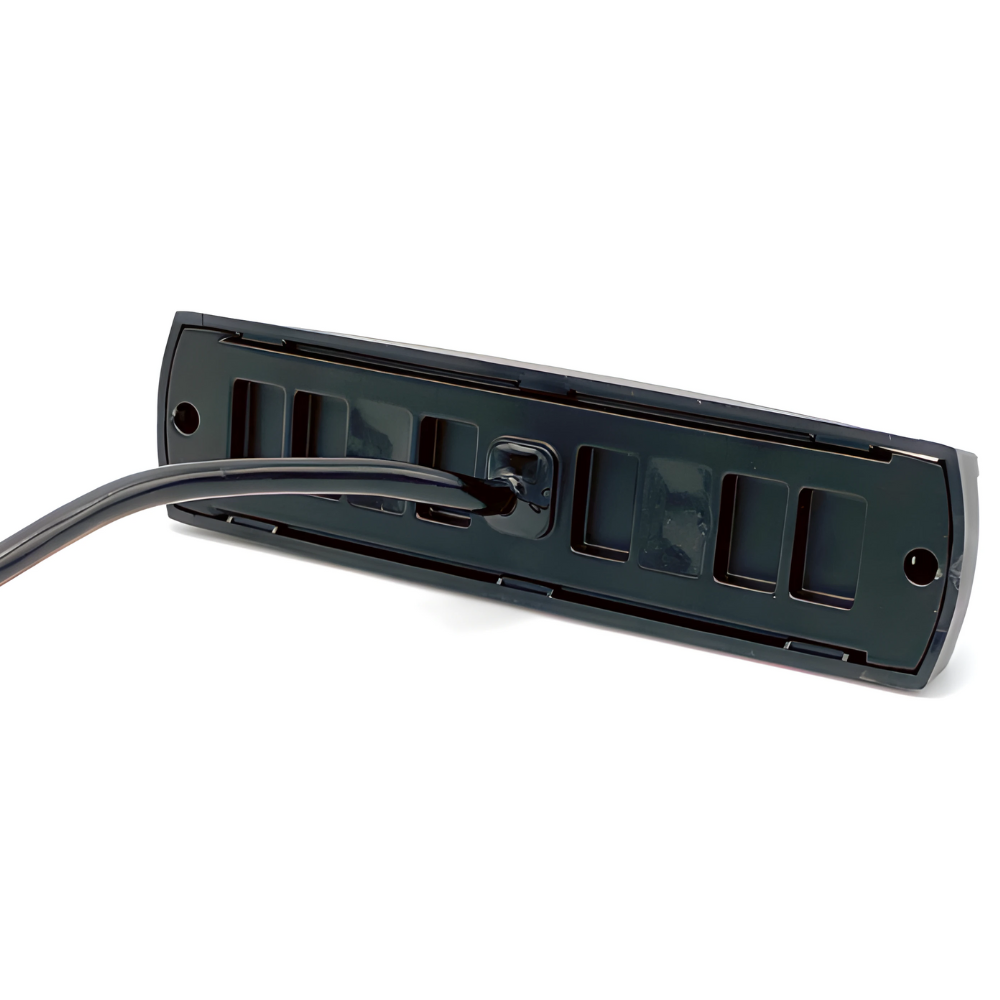

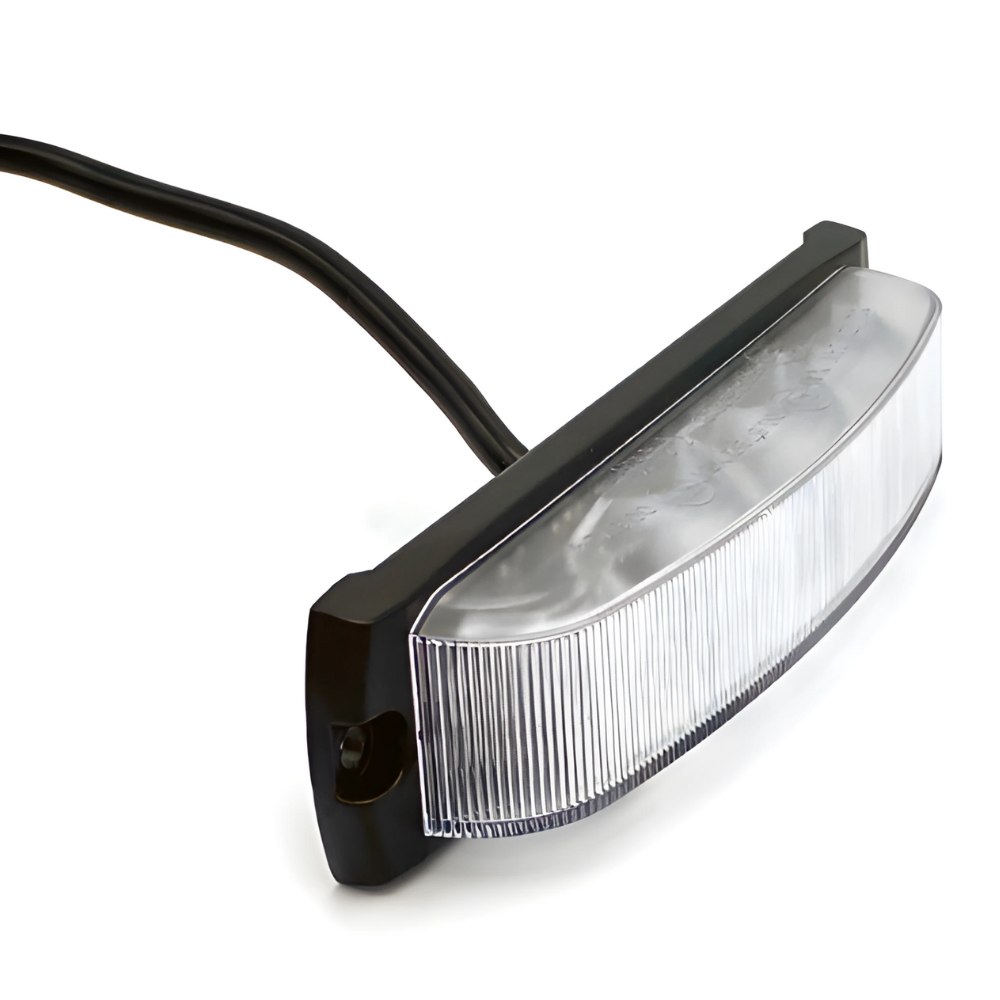

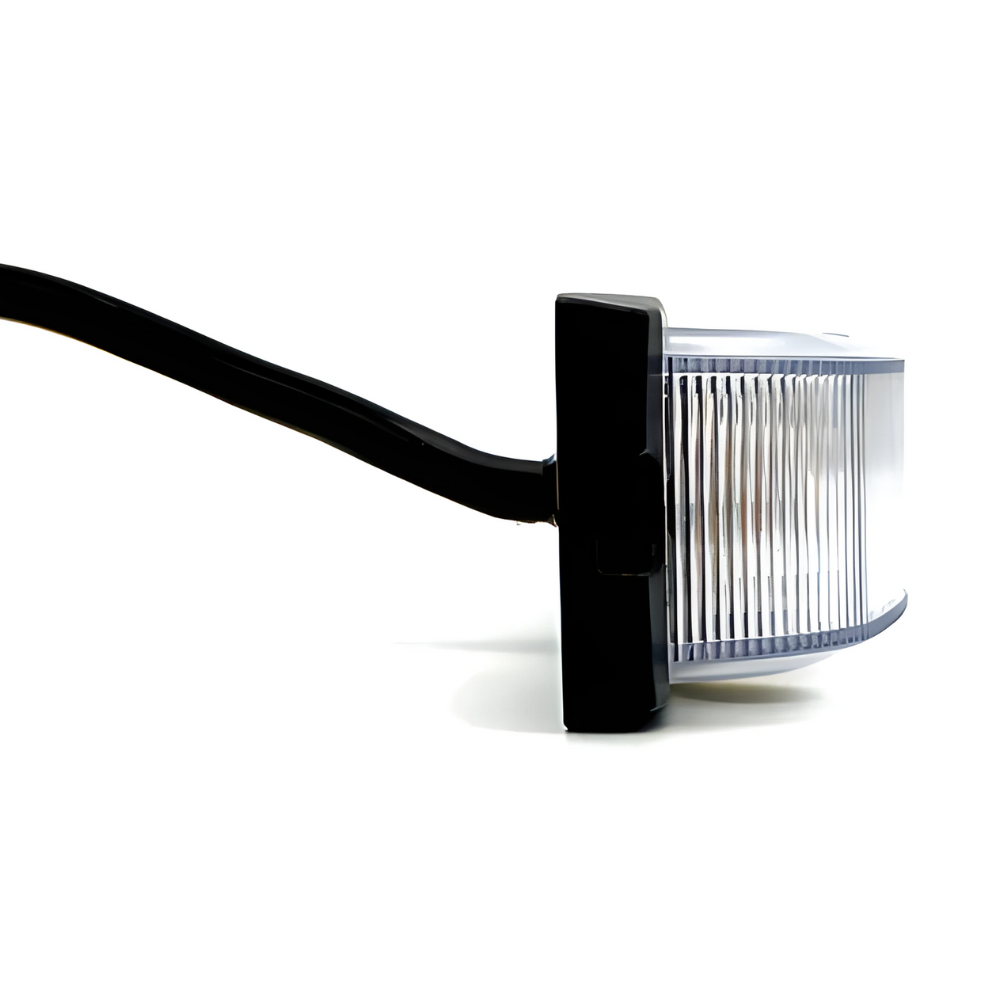

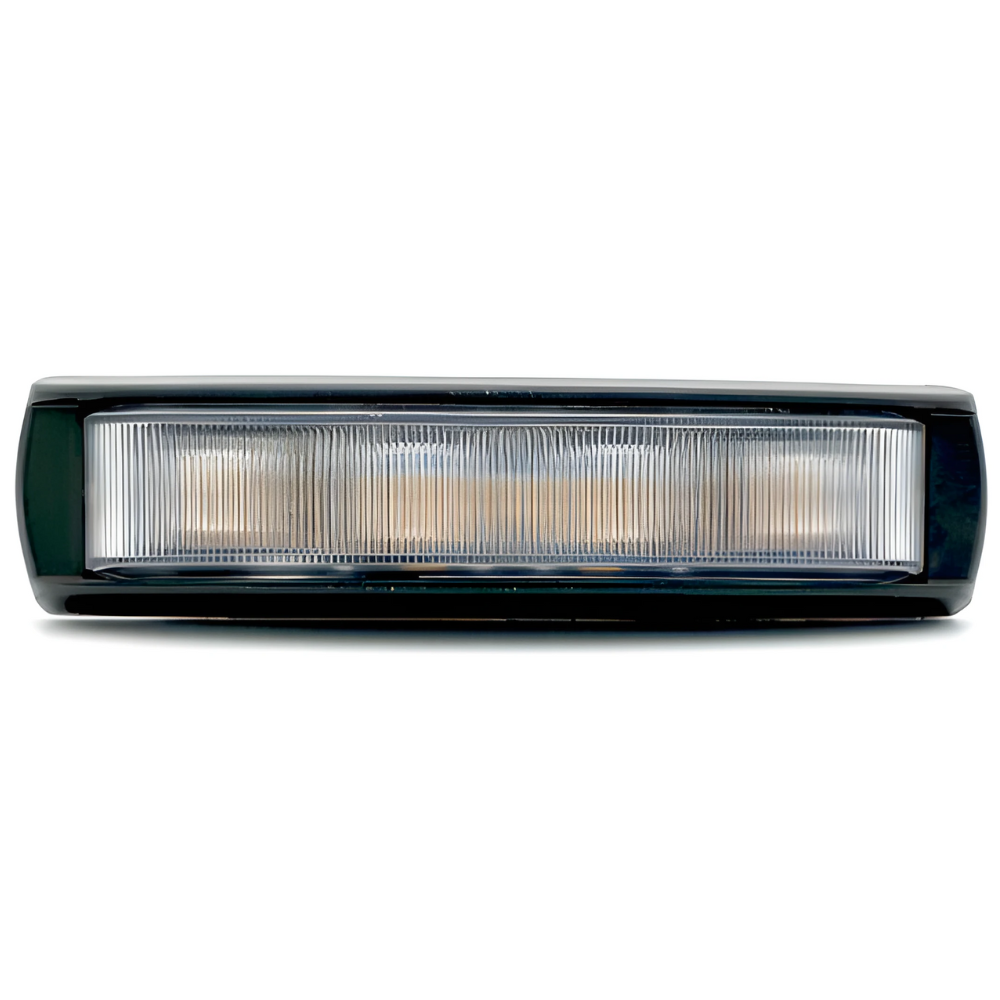

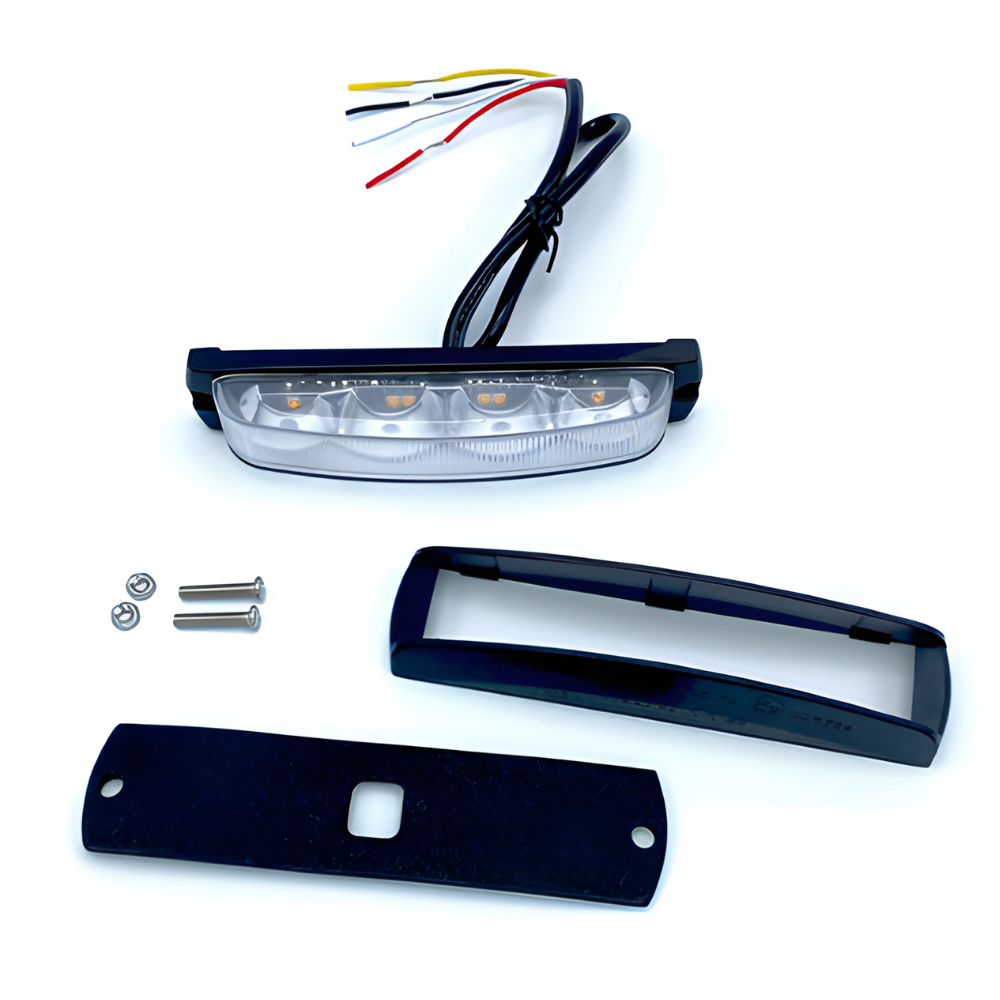

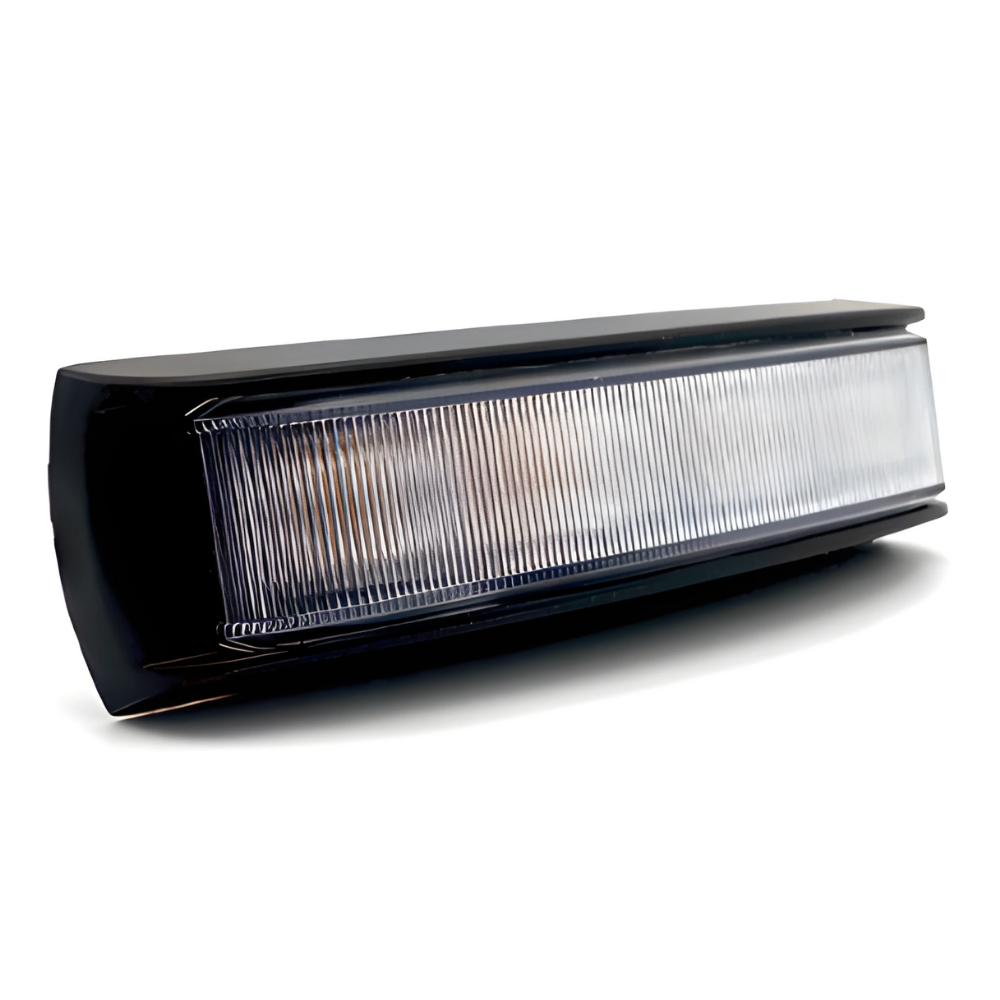

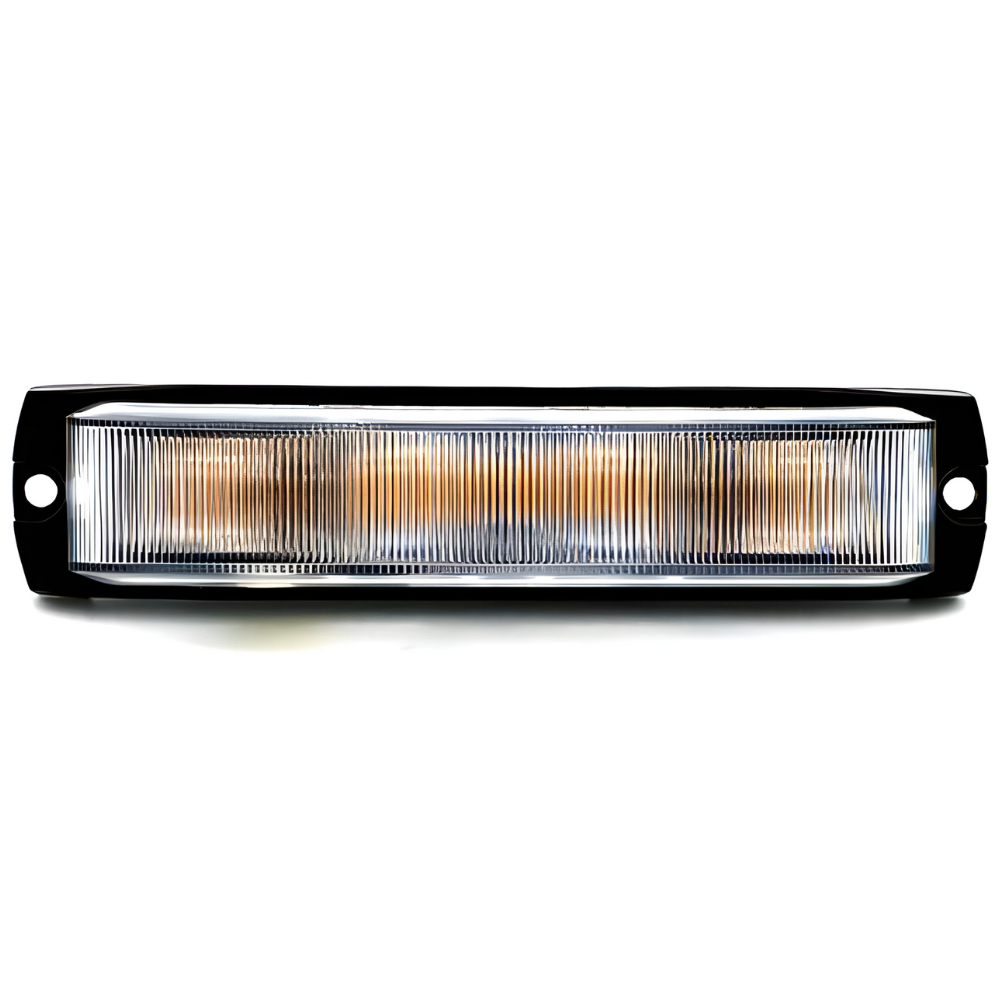

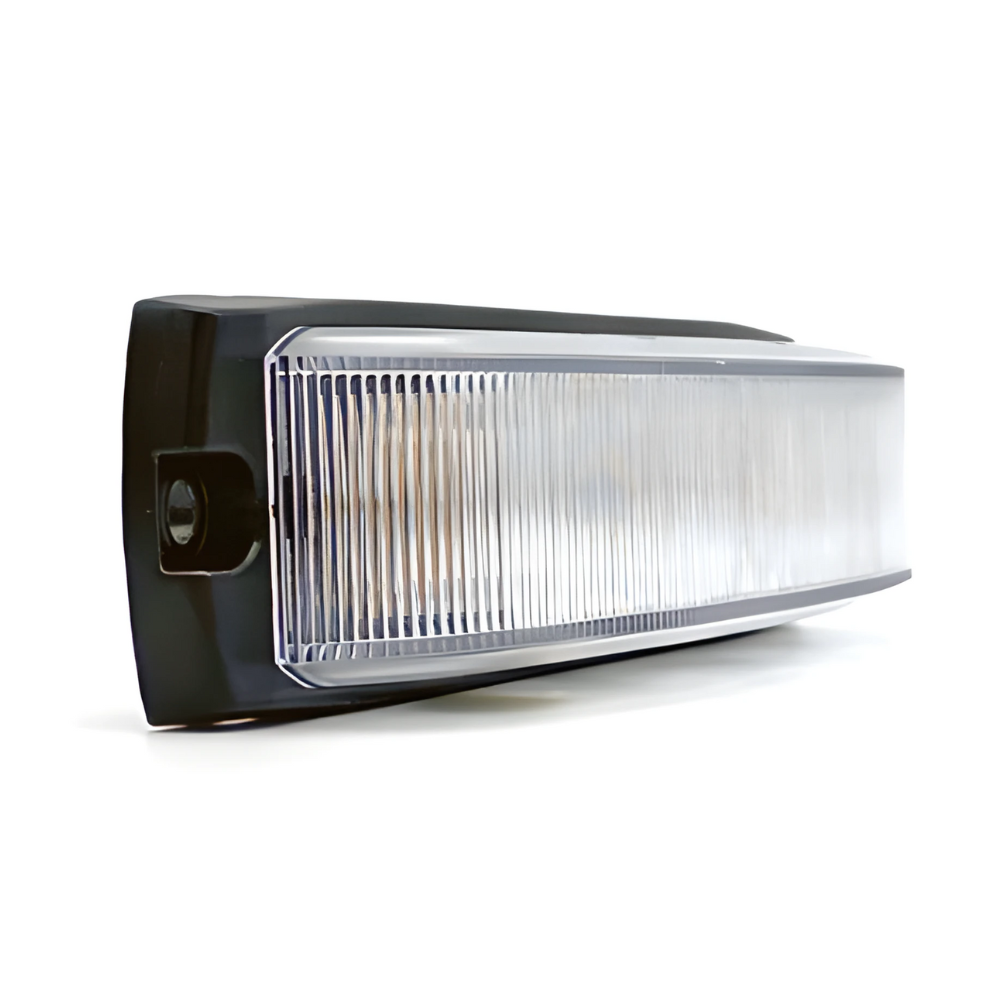

Van Master VMGLED6WA 12/24V IP69K 180° Wide Angle R65 Strobe PN: VMGLED6WA
VMGLED6WA
The Van Master VMGLED6WA warning light features 6 x 2W LEDs with R65 approval and IP69K waterproof rating, making this lighthead super bright and durable! The wide angle optics enable this light to be seen 180°. A mounting bracket can be purchased to create a corner module and if placed on all 4 corners creates a 360° warning.

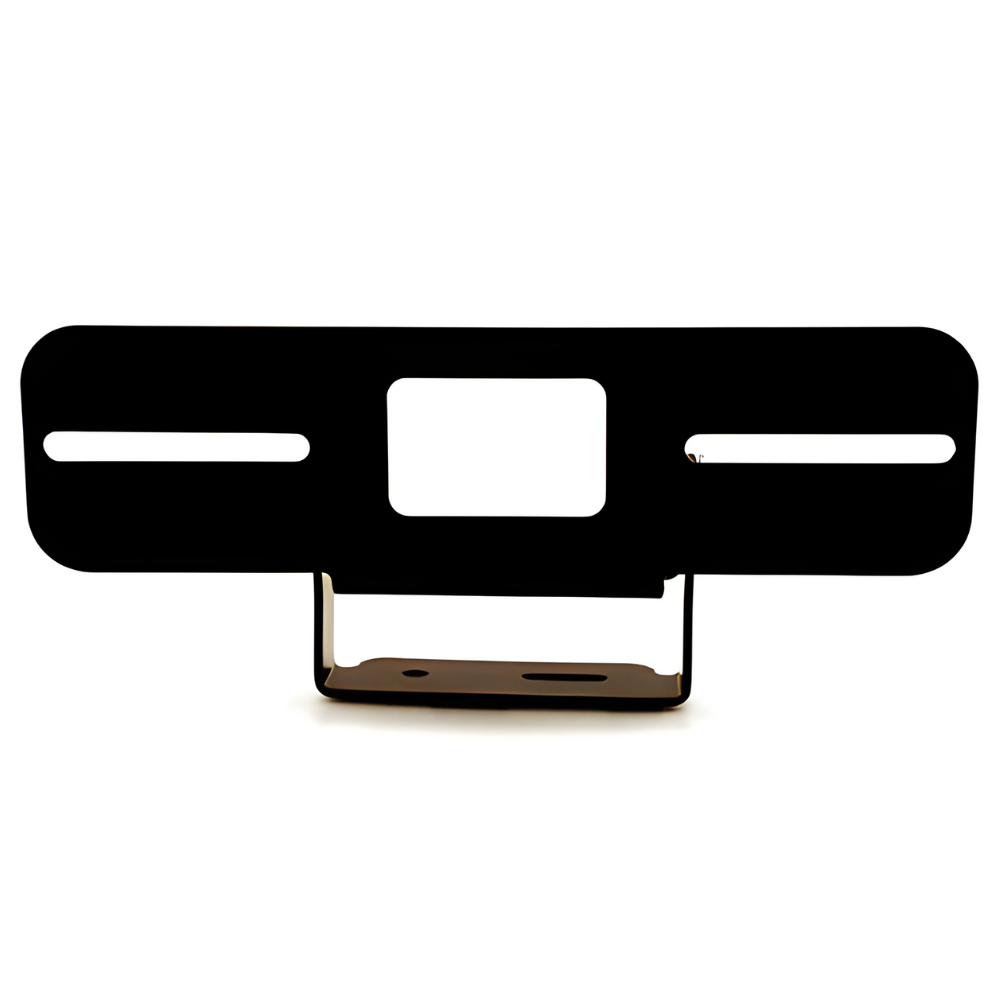

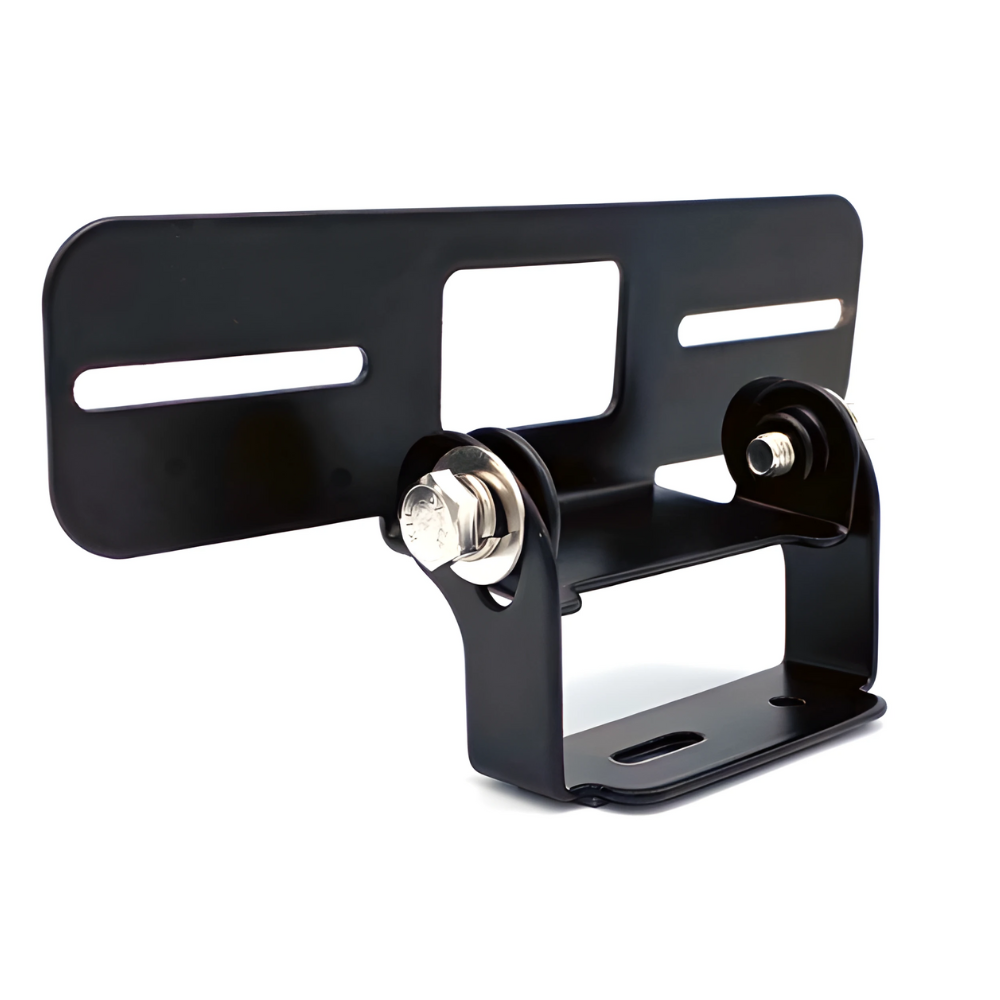

Add Mounting Bracket?
From excl. VAT £21.66
(incl. VAT £25.99)
(incl. VAT £25.99)
Specification:
Multi Voltage input 9-30VDC.
Wide angle optics.
Lens colour: Clear.
Housing colour: Black.
Fuse rating: 2A
LED: 6 x LED
Max Current: 1A@12VDC / 0.5A@24VDC
Max Wattage: 12W

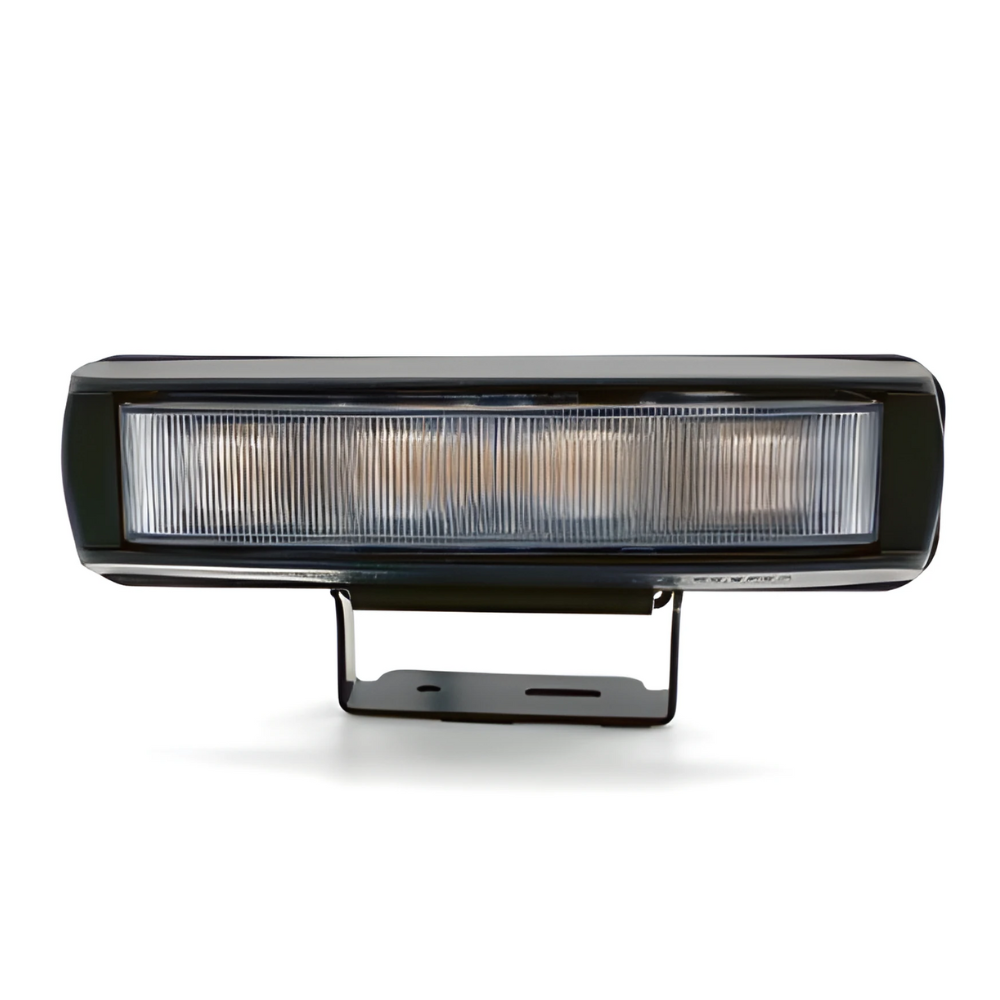

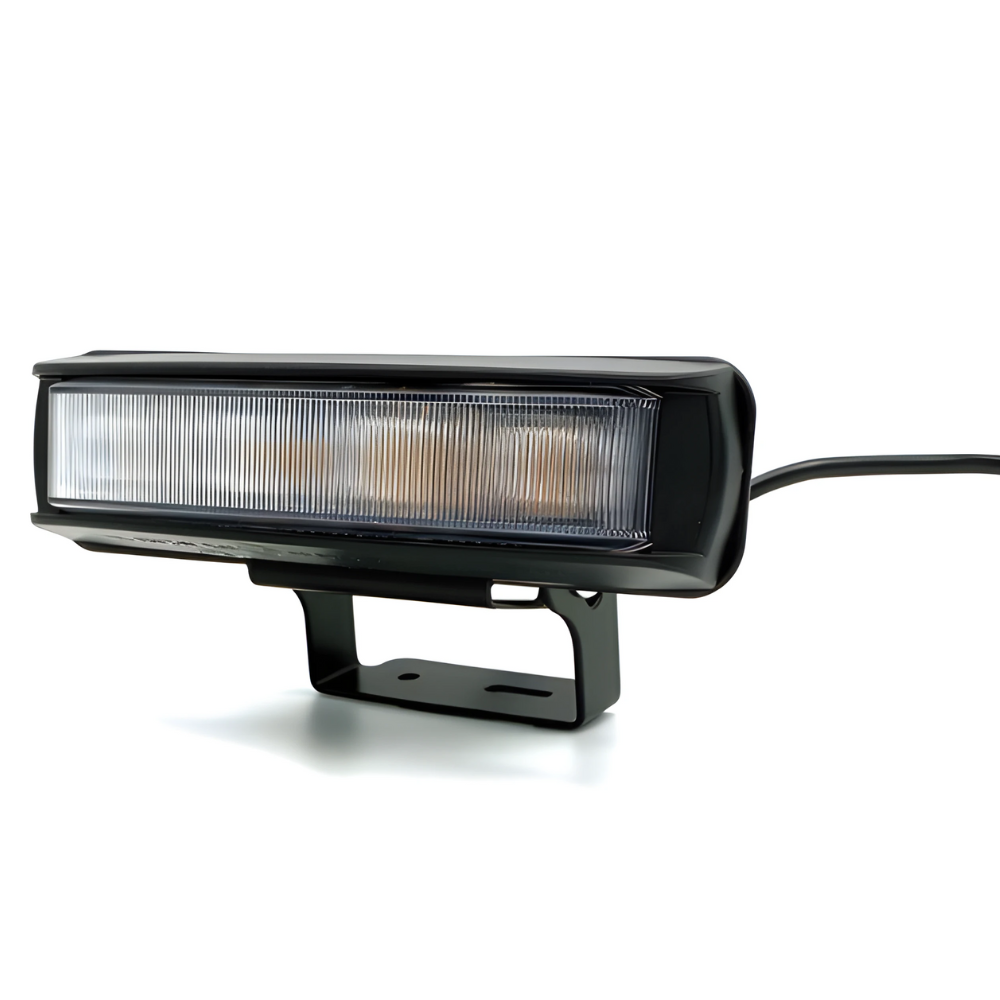

Mount: Horizontal (optional brackets are sold separately).
21 Flash Patterns.
Sync up to 14 lights in 2 separate groups.
Wire: Red - Positive (high intensity).
Black - Negative.
Yellow - Flash Pattern selection & Sync (apply to black for next flash pattern).
White - Low intensity mode.
Features:
Up to 100,000 hours rated Long-Life LED.
Built in selectable flash patterns.
Memory recall for last flash pattern used at power up.
Weatherproof and vibration resistant.
Aluminium base for excellent heat dissipation.
Reverse polarity protection.
UV resistant lens.
Warranty: 3 Year.
Approvals:
ECE EMC R10, ECE R65 Class 1, E-Marked, CE, UKCA, IP67 / IP69K, CISPR 25 Class 3, SAE J595 Class 1.

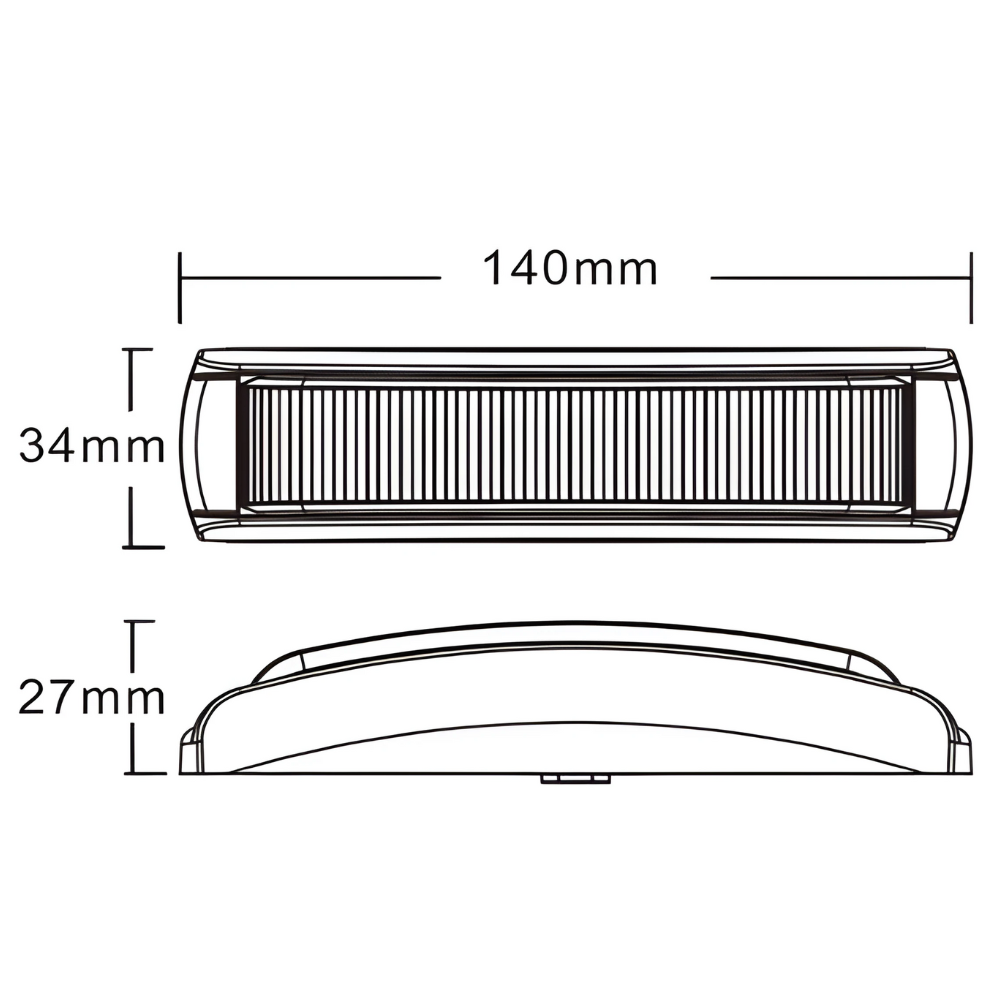

Dimensions:
W:140mm x H:34mm x D:27mm.
Mounting hole centres: 123mm
Multi Voltage input 9-30VDC.
Wide angle optics.
Lens colour: Clear.
Housing colour: Black.
Fuse rating: 2A
LED: 6 x LED
Max Current: 1A@12VDC / 0.5A@24VDC
Max Wattage: 12W
Mount: Horizontal (optional brackets are sold separately).
21 Flash Patterns.
Sync up to 14 lights in 2 separate groups.
Wire: Red - Positive (high intensity).
Black - Negative.
Yellow - Flash Pattern selection & Sync (apply to black for next flash pattern).
White - Low intensity mode.
Features:
Up to 100,000 hours rated Long-Life LED.
Built in selectable flash patterns.
Memory recall for last flash pattern used at power up.
Weatherproof and vibration resistant.
Aluminium base for excellent heat dissipation.
Reverse polarity protection.
UV resistant lens.
Warranty: 3 Year.
Approvals:
ECE EMC R10, ECE R65 Class 1, E-Marked, CE, UKCA, IP67 / IP69K, CISPR 25 Class 3, SAE J595 Class 1.
Dimensions:
W:140mm x H:34mm x D:27mm.
Mounting hole centres: 123mm
