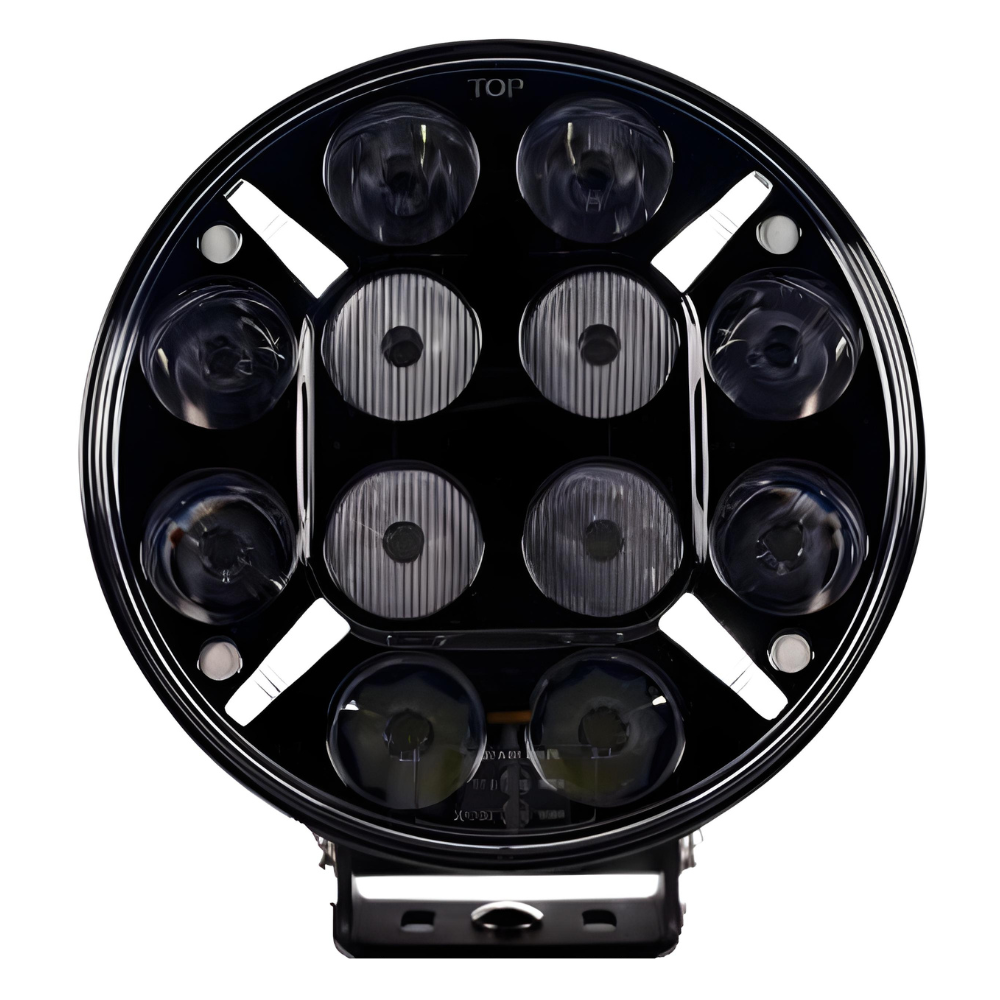

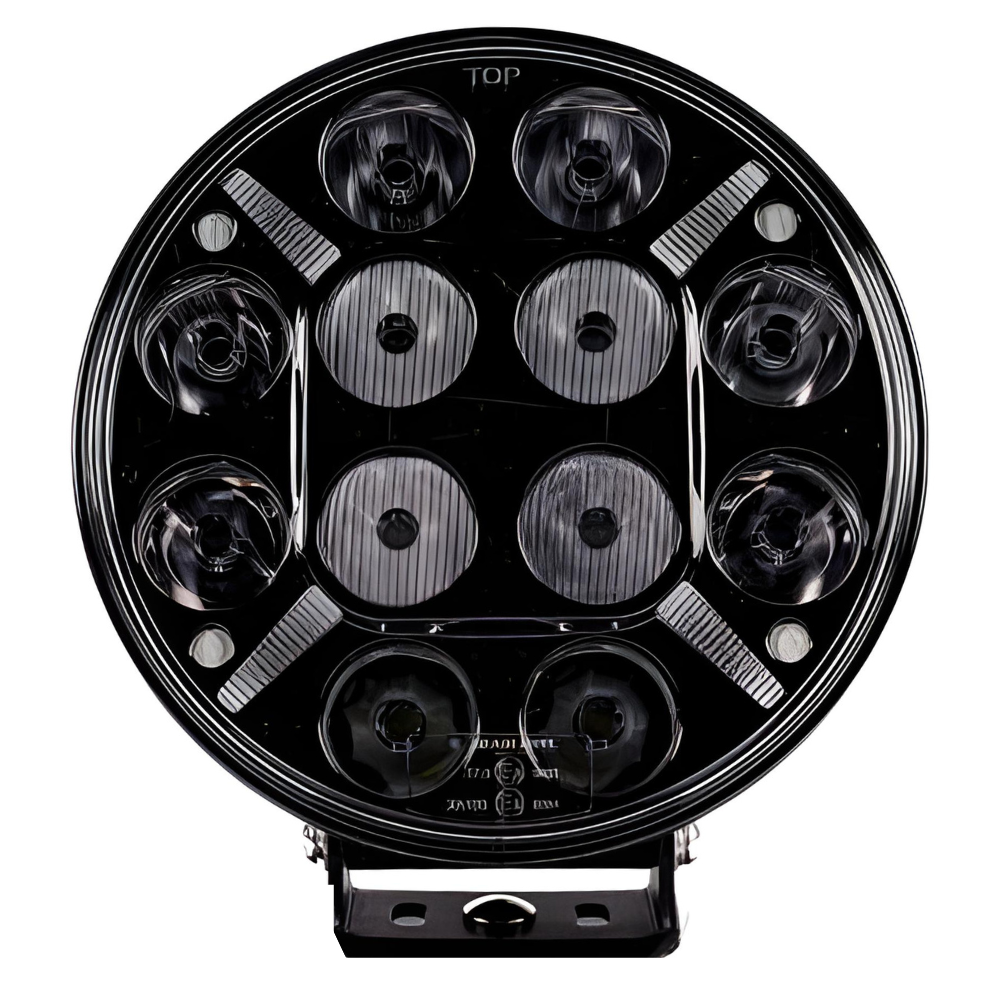

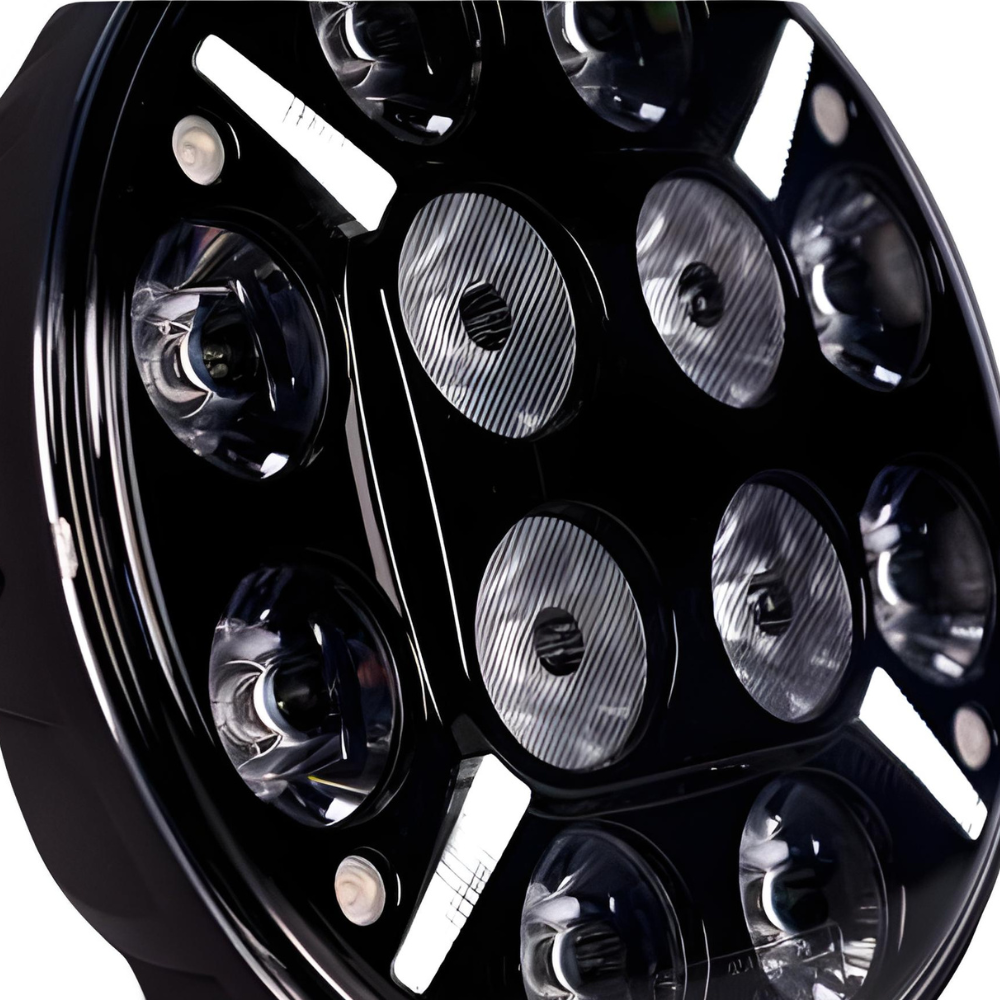

Van Master VMG877 Round Driving Lamp with Dual Colour Position Light and Strobe PN: VMG877
VMG877
The Van Master VMG877 offers a modern alternative to the round-driving light market. With 12,000 Lumens of light output, the choice of an amber or white position light, and a built-in strobe, this lamp has it all!
excl. VAT £162.49
(incl. VAT £194.99)
(incl. VAT £194.99)
In addition to a wide and long light pattern with the Driving beam from the TIR reflectors with 480 meters at 1 Lux, it also has selectable position light (white or orange), stable attachment and electronic temperature optimization.
The built in Warning Strobes also have an ECE R65 approved strobe light. This warning light consists of four powerful LEDs that can be set in five different flash patterns.
Specifications:
Technical data:
Measurement & weight:
Installation instructions for cables (detailed instructions included with the product):
The built in Warning Strobes also have an ECE R65 approved strobe light. This warning light consists of four powerful LEDs that can be set in five different flash patterns.
Specifications:
- Five different warning light patterns, one that is ECE R65 approved. Synchronize with each other.
- E marked (E8, ref. 37,5), ECE R112 / R10 / R7 (white position light)
- EMC secured (does not disturb the radio)

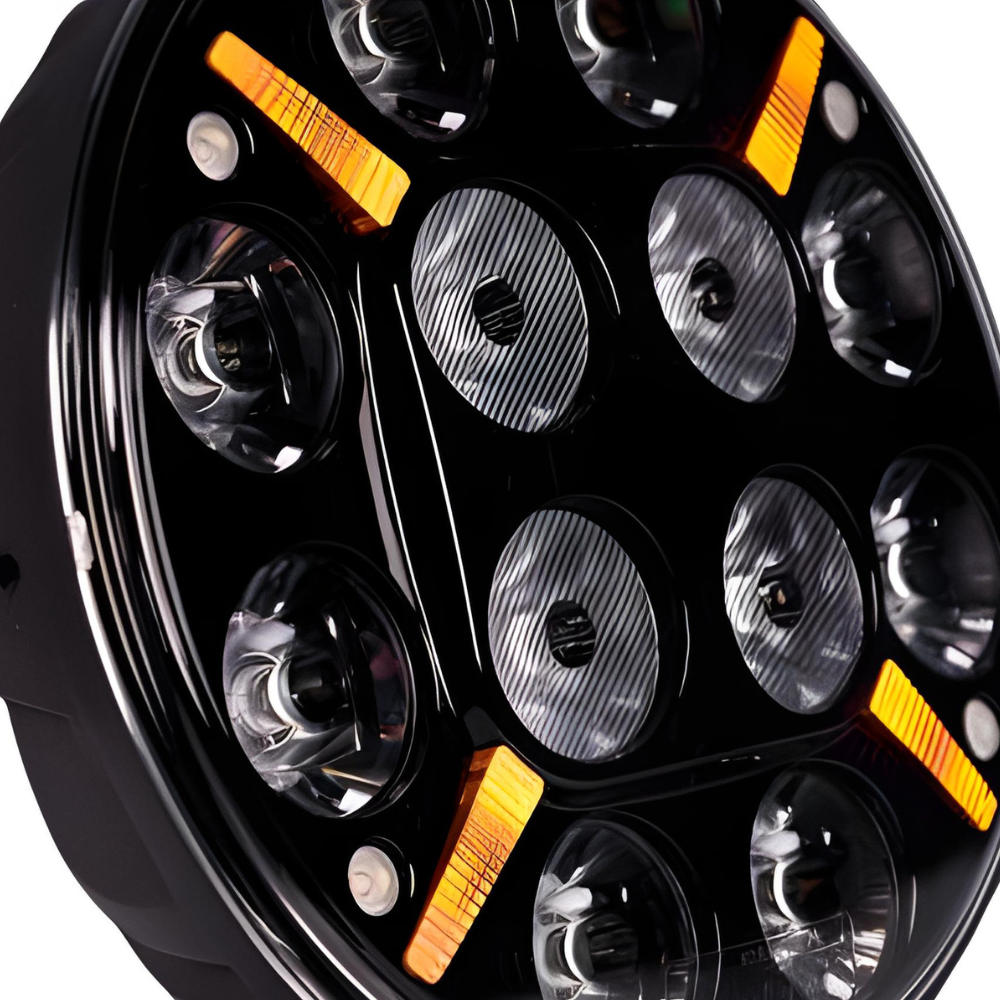

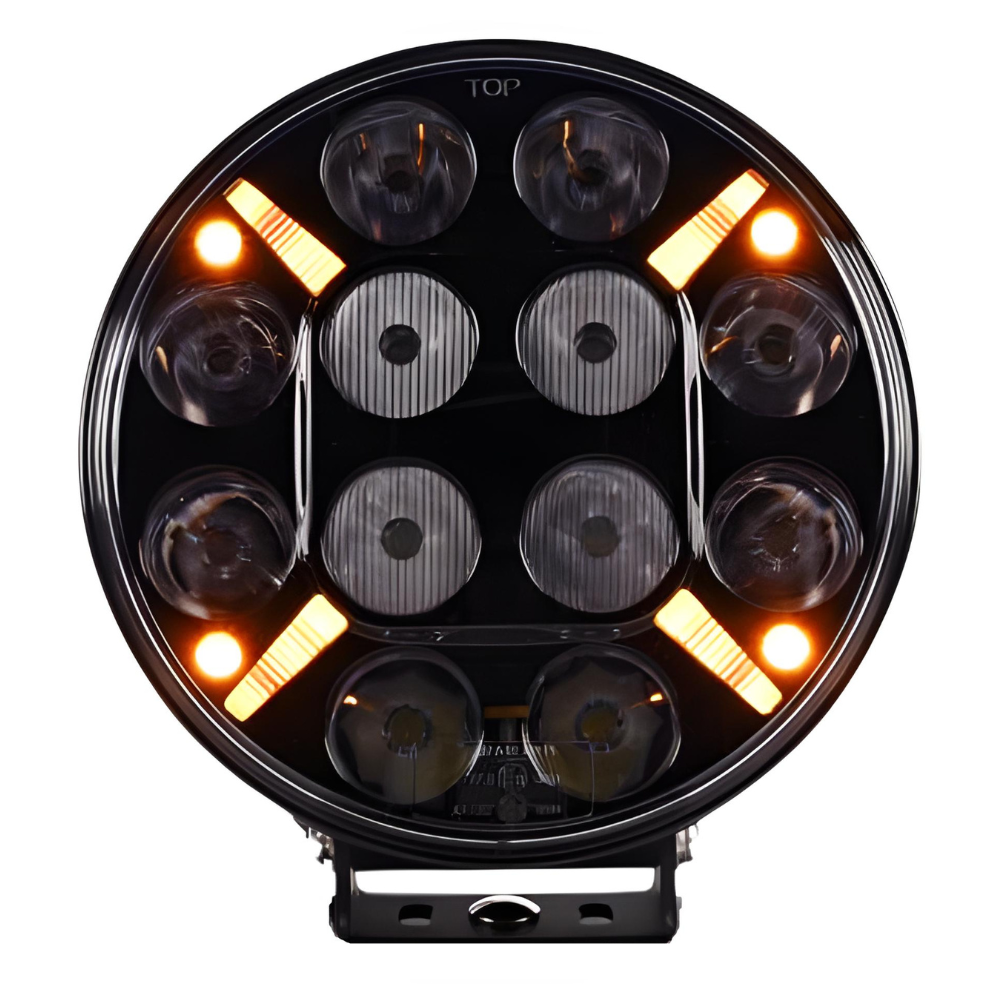

- With position light (4 LEDs), yellow-orange or xenon white (connect the colour you want)
- Driving beam light pattern with range: 960 m (0.25 lux), 480 m (1 lux)
- Spot beam light pattern with range: 1148 m (0,25 lux), 574 m (1 lux)
- 12000 lumens (theoretical), 9600 lumens (actual)
- Cold White Light (6500 K)
- TIR optical system (Total Inner Reflection)
- Pressure equalization membrane
- 36 month warranty
Technical data:
- 120 W (12 x 10 W Cree XM-L2 LED)
- 4 pcs LED for strobe light
- Nominal power 92,4 W
- IP68 (water/dust proof)
- 6 pole DT connector (2-pin adapter included)
- Electronic heat management
- Voltage 9-36 V
- Load 7,7 A @ 12 V and 3,6 A @ 24 V
Measurement & weight:
- Width: 218 mm
- Height: 234,5 mm (incl bracket)
- Depth: 68,5 mm
- Weight: 1,9 kg
- Cable length: 650 mm
Installation instructions for cables (detailed instructions included with the product):
- Red: Auxiliary light (+)
- Black: Auxiliary light/ Position light (- ground)
- Grey: Position light (+) white light
- Yellow: Position light (+) orange light
- Green: Strobe light (+)
- Blue: Strobe light switch of pattern / synchronization
- Strobe pattern synchronization: Connect the blue wires of two or more auxiliary lights, then momentarily connect these to the positive terminal for 3 seconds to reset the strobe frequency on all connected lights, then all flash patterns are shifted.
