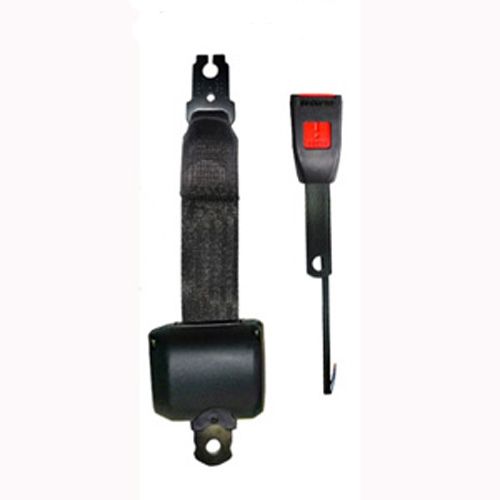

Lap Belt SEC-LAP2220 15EL12/24v WITH ELECTRIC CONNECTION PN: SEC-LAP2220
Lap Belts are widely used on construction equipment to indicate that the operator is wearing the seat-belt. It comprises an retractable lap belt. The buckle has a switch which is activated by the belt when fastened. When connected it will cause a green beacon on the roof of the vehicle to flash, showing that the operator is wearing the seat-belt.
(incl. VAT £34.24)
RIGID TWIN RELEASE BUCKLE ELECTRICALLY WIRED WIRE LENGTH Free wire outside Buckle Housing = 270mm ± 15mm
SWITCH TYPE: IP67 Rated
Voltage(V) Resistive Load 12VDC 2A 24VDC 1A 42VDC 0.5A
WIRE ENDS The wire ends are barred over approximately 6mm
WIRE COLOUR The wire colours are Blue/Black/Red
OPERATION - Tongue disengaged from Buckle = Open Circuit } Blue/Black Connected - Tongue engaged in Buckle = Closed Circuit } Blue/Black Connected - Tongue disengaged from Buckle = Closed Circuit } Black/Red Connected - Tongue engaged in Buckle = Open Circuit } Black/Red Connected
