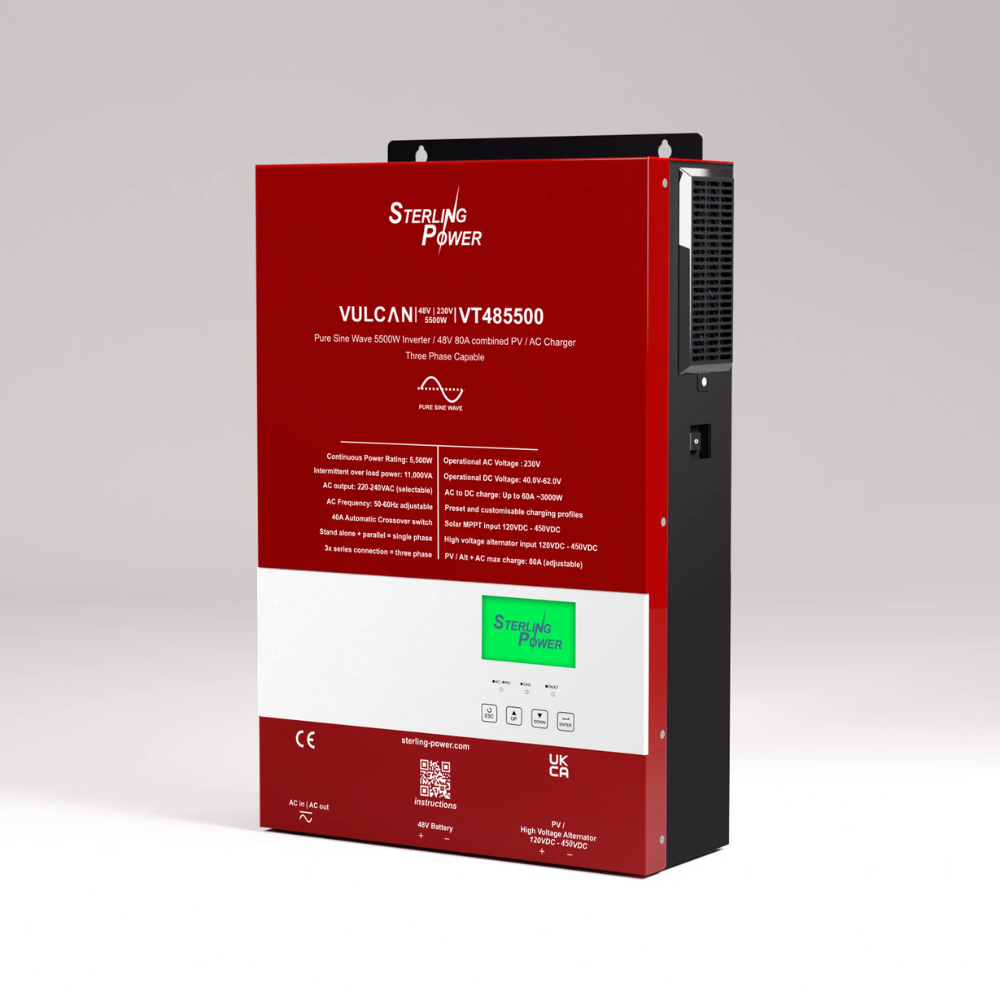

Sterling Power VULCAN 48V 5500W Hybrid Inverter/Charger PN: V485500
VT485500
This is a 48v multi-function inverter/charger, combining functions of the inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
excl. VAT £1,125.40
(incl. VAT £1,350.48)
(incl. VAT £1,350.48)
This is a multi-function inverter/charger, combining functions of the inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
If you require the 3 phase model - VT485500 - you shall require 3x to be linked together. This shall give you a total of 16.5kW at 415VAC. If you do NOT require 3 phase then the V485500 has all the other features.
Dims: 503x302x120mm
- With an efficiency of 93%, there is no better way of harnessing 240VAC from a DC battery bank.
- Remote activation for Generator start / stop via NO / NC connectors. DC voltage Adjustable
- The wave form output is pure sine, ensuring your AC appliances will run exactly as you expect it should.
- Continuously rated at 5500W (KW rather than KVA. KVA rated to 7KVA), overload capabilities of 11KVA
- The DC charging current is up to 80A at 48V or 120A at 24V from the AC input lines or the PV input lines. The maximum cumulative charge current (with both PV and AC running) is 100A at 48V and 120A at 24V.
- GRID PRIORITY - When grid/mains is applied, Vulcan uses grid to run appliances alongside solar
- SOLAR PRIORITY - Solar is the primary provider to power loads, battery is secondary, mains tertiary.
- BATTERY PRIORITY - Battery provides power as primary source, with mains assisting when battery is low
- GRID+SOLAR PRIORITY - Only solar and grid provide power to loads. Battery unused.
- Battery Profile AGM, GEL, FLOODED and Lithium presets, with CUSTOM capabilities.
- Charge current adjustment - Adjust your charge limit from 80A down to 10A, in 10A increments.
- Specific AC output selection - AC output range of 220-240VAC, 50 or 60HZ.
- Discharge current limit - If your battery, typical on lithium systems, has a maximum amount that can be drawn out of the battery bank (discharge C limit), this can be set on the Vulcan inverter itself.
- High + Low lithium battery State of Charge disconnect
- Low voltage alarms + Shutdowns
- Multiple Vulcans can be paralleled to combine their capabilities. For example, two Vulcans would give you the capability of 120A AC/DC charge and 11KW DC/AC inverted output.
- USB l RS232 l RS485 l WiFi l CAN
If you require the 3 phase model - VT485500 - you shall require 3x to be linked together. This shall give you a total of 16.5kW at 415VAC. If you do NOT require 3 phase then the V485500 has all the other features.
Dims: 503x302x120mm
