Sterling Power LPCUR Pro Charge Ultra LITE 12V | 30A Remote Control PN: LPCUR
Sterling Power Pro Charge Ultra LITE 12V | 30A
Remote Control
PN: LPCUR
(incl. VAT £84.66)
Pro Charge Ultra Lite
Multi stage | Fully Active PFC | Custom Charge Selection | 12V 30A | 2 outputs
Global Voltage 80-270VAC 40-70Hz (minor power reduction when AC voltage drops below 100VAC)
This new Pro charge Ultra Lite is aimed at the budget sensitive market. A common question shall be, what are the key differences between the Ultra and the Ultra Lite?:
1) The Ultra is larger due to it meeting the ABYC 40 Deg C+ high ambient temperature performance standards.
2) The Lite has an operational range in the 20 Deg C+ (a more common standard for non ABYC), thus, in a smaller body.
3) The Lite displays less information on the front panel but still a lot more than its competitors.
4) Although built to UL standards, including fire resistant plastics etc, the Lite is NOT UL certified.
5) The Lite is not CEC certified, the Ultra is.
6) The Lite has temperature compensation, however, unlike the Ultra, the sensor is optional.
7) Cost, the Lite is lower cost
8) Outputs: The Lite has a max of 2 outputs suitable for most operations the Ultra has 3.
9) PCU Lite has 2 years warranty the Ultra has 5 years.
| 230VAC performance is 30A DC | 20A DC 110VAC performance is 27A DC | 20A DC unit temperature dependent.
|
Truly Global Application and perfect for generators. The Pro Charge Ultra Lite shall work at AC voltages (80-270VAC and 40-70Hz) and DC voltages (130-320V).
|
|
Comprehensive 18 LED front panel. The dual function nature of the LED panel shall also provide voltage information, charging profile statuses and warning statuses.
|
One of the world’s most efficient chargers. This is courtesy of active power factor correction (PFC 0.99-1). and synchronised rectification The Pro Charge Ultra Lite is rated at over 90% efficient. PFC is an extremely important feature. Non-active PFC chargers are approximately 65% efficient. |
|
Battery daisy chain multiple battery high temperature system shutdown ( optional ) .
|
8 pre-programmed charging profiles for AGM, Gel, sealed / flooded, calcium and lithium (LiFePO4) batteries. We also include a fully customizable option to allow the user to programme their own profile via the front panel.
|
|
Night time setting allows the unit to run at ½ power for a fixed time frame so the fan noise is reduced to a minimum.
|
Float Modes and Energy Saving Modes.
|
|
Larger voltage / current requirements? |
Float Modes and Energy Saving Modes. |
| Battery temperature sensing compensation and remote control (optional). Unlike our competitors this unit has battery temperature sensing and remote control port. The sensor and remote are optional extras. Temp sensor below (TSAY). |
1/2 current mode. Reduce the charger’s current by 50%.
|
| Perfect for generator use. Due to its active PFC tolerance of AC input it shall run from crude sine wave forms - typical from generators. Power Reduction you can set the charger to run at lower power outputs to complement a wider range of generators and low shore power connections. |
Standards Tested to CE standards EN61000-3-2 EN61000-3-3 EN55014-1 EN 55014-2 EN60335-2-29 EN ISO 13297 EN 6100-3-2 Class |

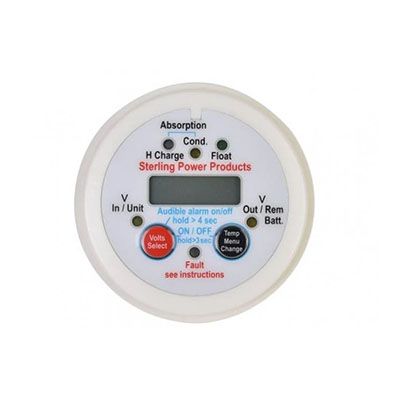

| Remote Control (Optional) LPCUR Displays: Voltage / Warnings / Temperatures Can be used as an independent voltmeter measuring input battery voltage and output battery voltage. - Force the unit to 1/2 current limit. - Reset both remote and charger. - 54mm diameter. |
Automatic Desulphation mode: 7-10 days cycle with anti-stratification program to keep batteries rejuvenated. Power Pack / Power Supply. This charger works effortlessly as a power supply to DC loads to prevent depletion of your battery capacity. |
| Outputs | DC (V) | Rating (A) | Weight (Kg) | L x W x D mm | Code |
| 2 | 12V | 30A | 2.5 | 198 x 158 x 70 | LPCU1230 |
Input voltage range 80-270V 40-70 Hz
Power Factor at 230V 0.976
Efficiency 94.4%
Total Harmonic Distortion 2.4% voltage
Total Harmonic Distortion 2.4% current
Ripple noise (rms) 14mV
Ground leakage 0.5 mA
Generator / mains power (watts)
12V 30A approx 500W
voltmeter accuracy +/- 1%
