Redtronic BTN150 Tornado B150 Series R65 & CAP168 LED Beacon PN: BTN150
BTN150

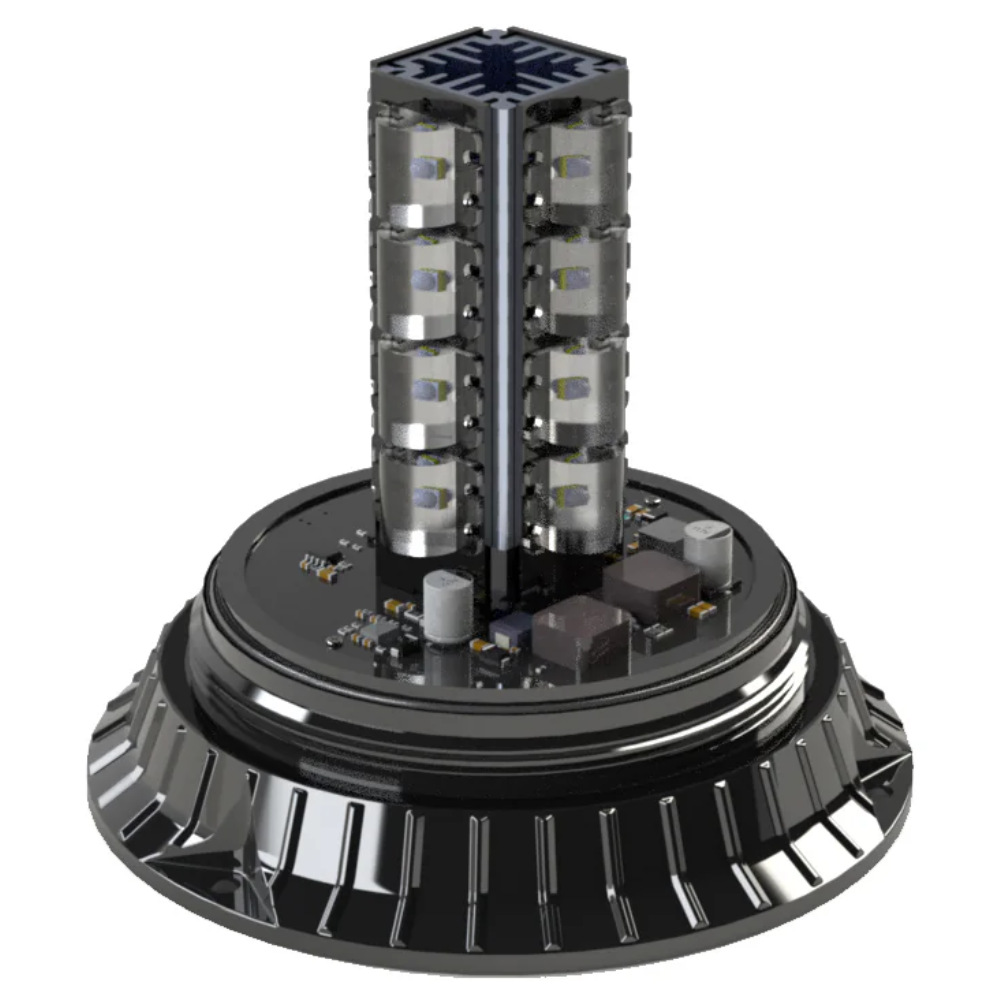

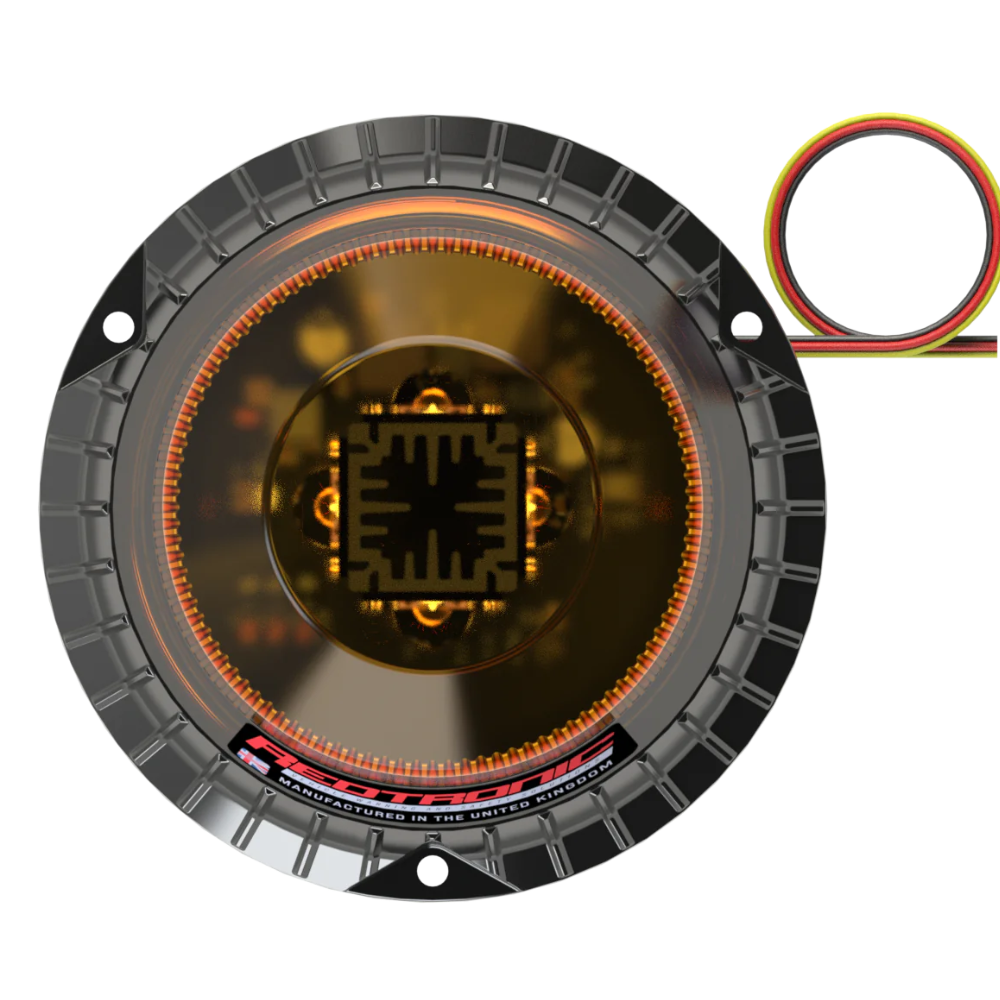

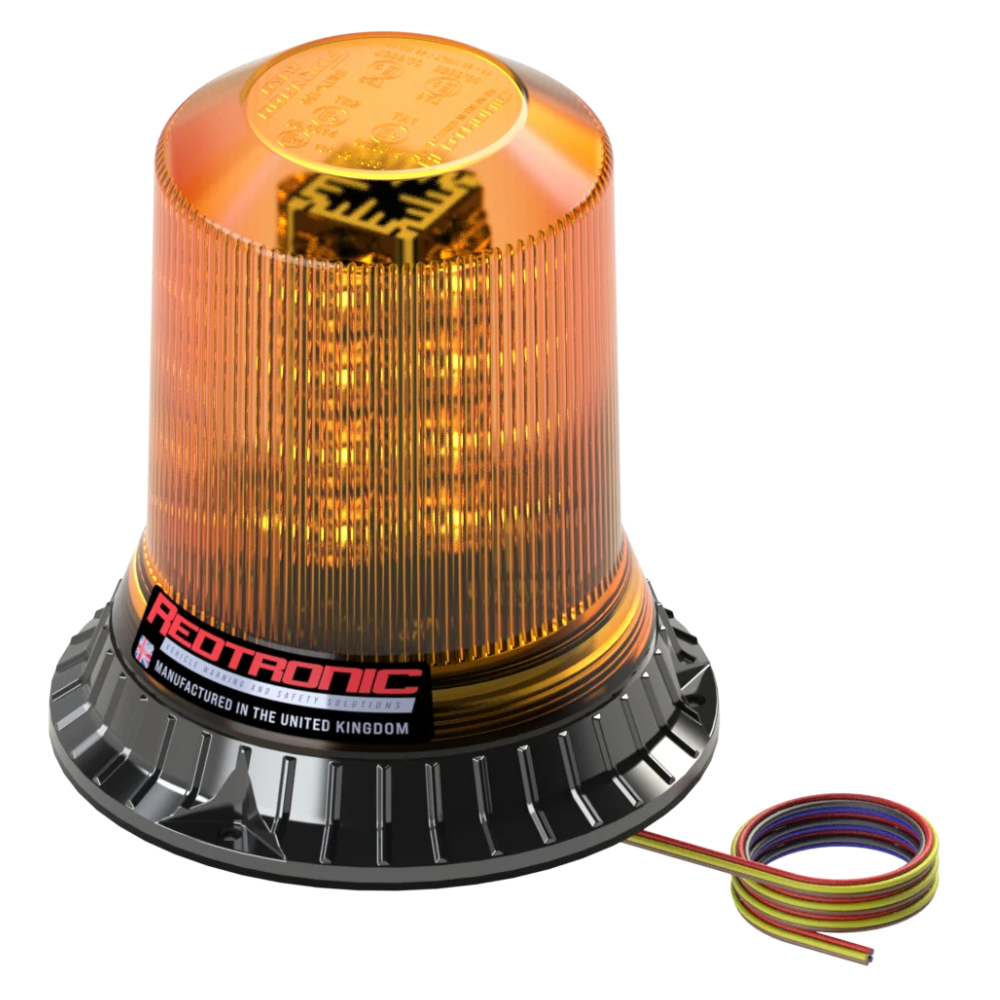

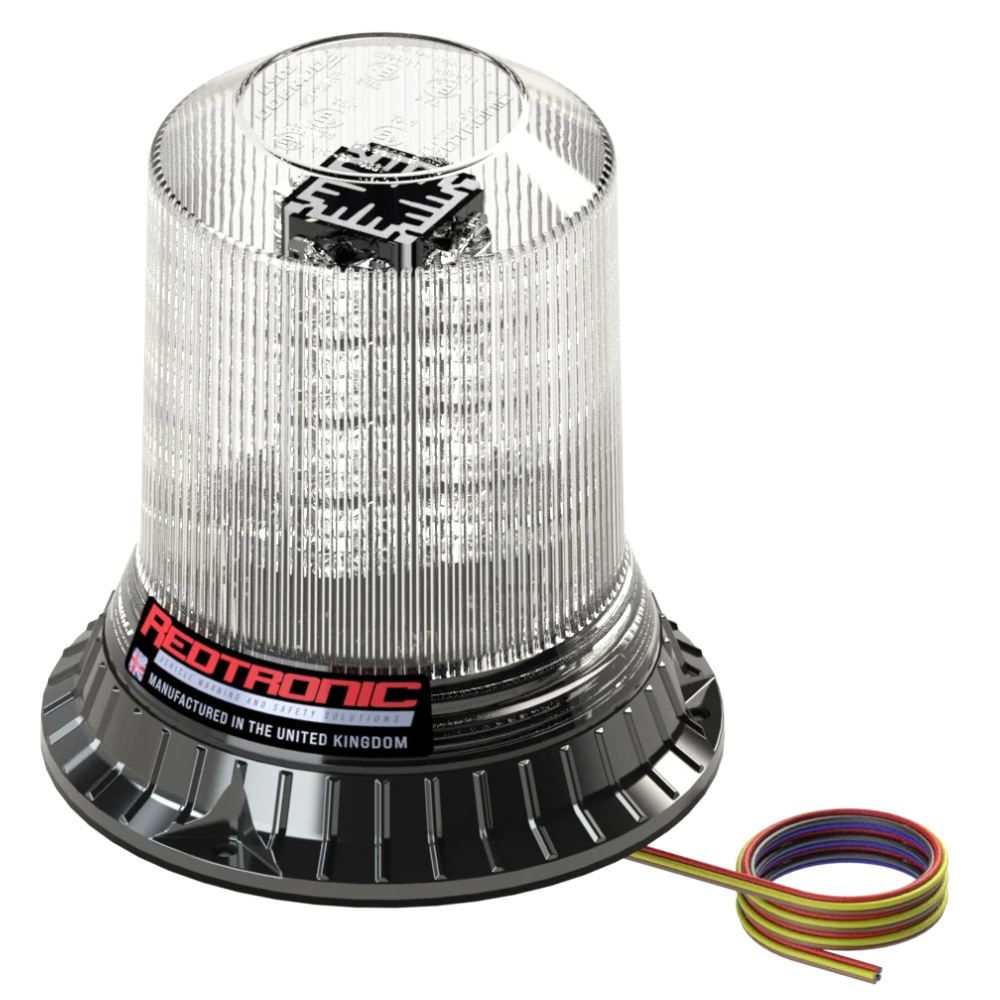

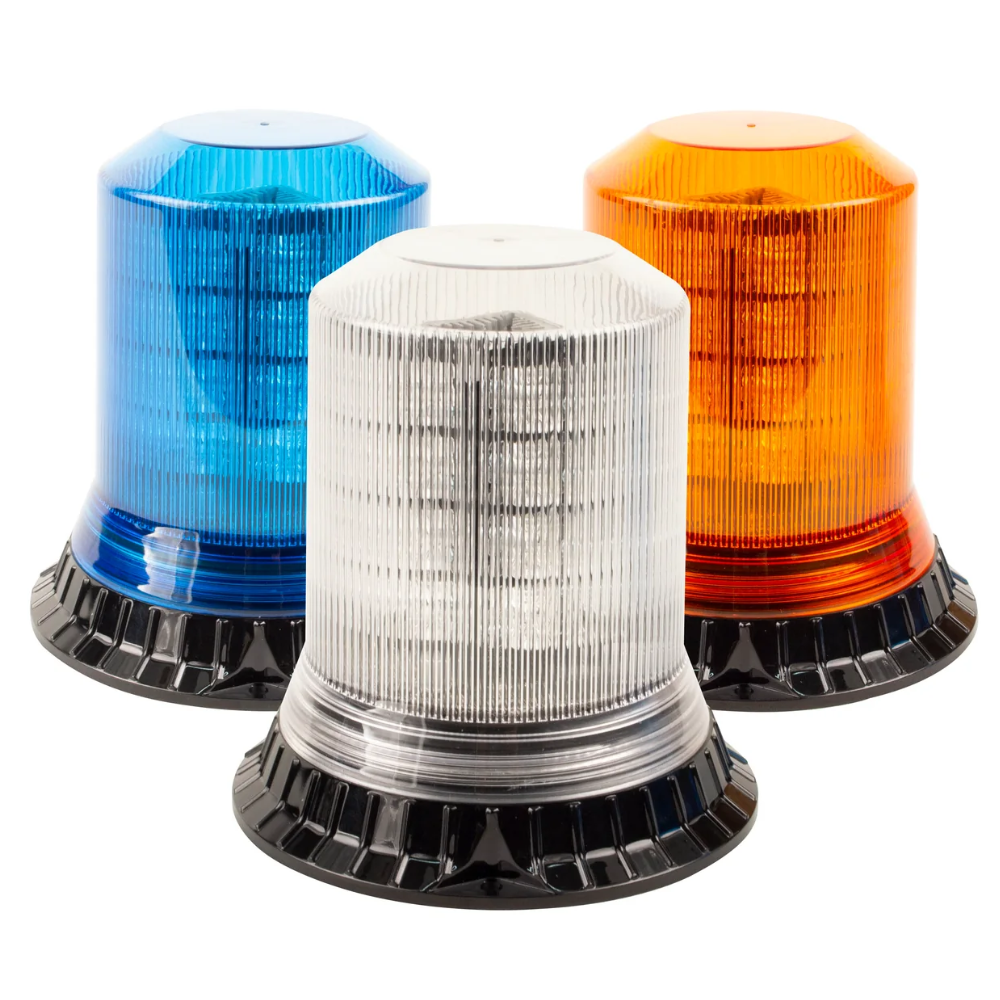

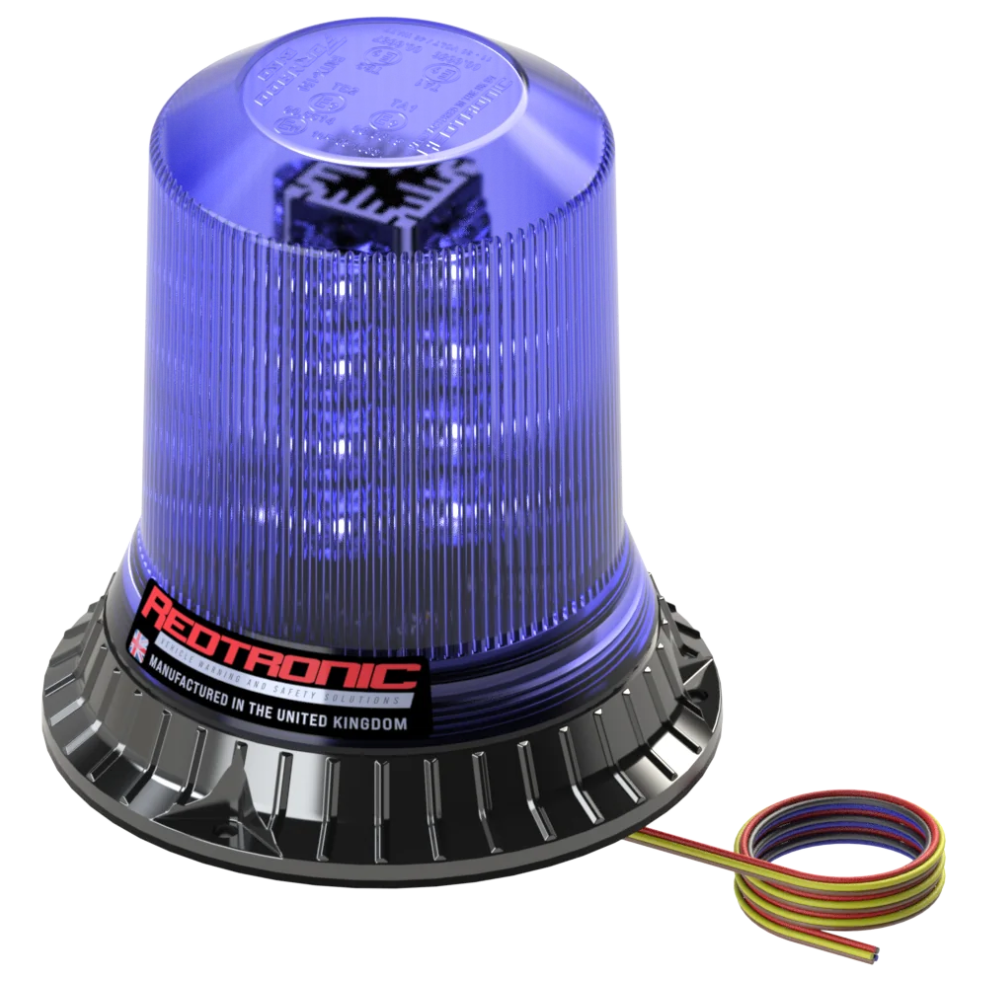

Redtronic’s Tornado B150 beacon is designed to incorporate a sleek design in the tallest profile of the Tornado beacon range whilst providing the ultimate light output to meet ECE R65 Class I Amber & Class II Blue. The Tornado B150 beacon meets IP69K to protect against water and dust and offers the best of features compared to those in a Lightbars such as CAP168/ICAO approval and cruise mode, multiple flash patterns and a variety of mounting options that include 3 Bolt, 1 Bolt, Magnetic and Flexi DIN Mount to meet most vehicle fitting needs. Contributing to the vast features and approvals of the Tornado B150 beacon include CISPR25 Level 3 and as standard built in Auto dim sensor whilst also featuring intense and wide-angle optics which feature ultra-bright latest generation LEDs under an ultra-strong UV stabilised polycarbonate lens offering multiple lens colour options and LED colours. The Tornado B150 beacon is tough enough for any job and that is why it has been designed for a fit-and-forget purpose and is endorsed with a 3 Year Warranty.
excl. VAT £94.99
(incl. VAT £113.99)
(incl. VAT £113.99)
Redtronic’s Tornado B150 beacon is designed to incorporate a sleek design in the tallest profile of the Tornado beacon range whilst providing the ultimate light output to meet ECE R65 Class I Amber & Class II Blue. The Tornado B150 beacon meets IP69K to protect against water and dust and offers the best of features compared to those in a Lightbars such as CAP168/ICAO approval and cruise mode, multiple flash patterns and a variety of mounting options that include 3 Bolt, 1 Bolt, Magnetic and Flexi DIN Mount to meet most vehicle fitting needs. Contributing to the vast features and approvals of the Tornado B150 beacon include CISPR25 Level 3 and as standard built in Auto dim sensor whilst also featuring intense and wide-angle optics which feature ultra-bright latest generation LEDs under an ultra-strong UV stabilised polycarbonate lens offering multiple lens colour options and LED colours. The Tornado B150 beacon is tough enough for any job and that is why it has been designed for a fit-and-forget purpose and is endorsed with a 3 Year Warranty.
Specifications:
Mounting
Dimensions & Tech Spec
Specifications:
- Directional Type: Intense and Wide-angle Optic with Ultra-bright latest generation LED's
- Material Type: Ultra-strong UV stabilised polycarbonate lens (Makrolon 2407 PC)
- Shape: Modern Style Beacon
- R65: R65 Class II (Blue), Class I (Amber)
- EMC: EMC/R10 Compliant
- CISPR 25: Level 3
- IP Rating: Expected IP69K
- Dekra Speed Rating: Expected 236km/h
- CAP168/ICAO: CAP168/ICAO Airport Flash
- Dim Mode: Night & Day (Dim mode) (50% Brightness)
- AutoDIM Mobule: Activation Night Mode - 100[lx] (-50/+100) Provided Activated as Standard
- Cruise: Yes
- Voltage Spec: 8.5-32v DC
- Operating Temperature: -40°C / +105°C
- Flash Patterns: 9 Flash Patterns
- Flash Patterns: Quad, Triple, Double, Single, Quad/Single, Quad/Triple/Double/Single, Rotate Slow, Rotate Fast + CAP168
- Sync: Synchronisation with other Redtronic products
- Warranty: 3 Year Warranty
Mounting

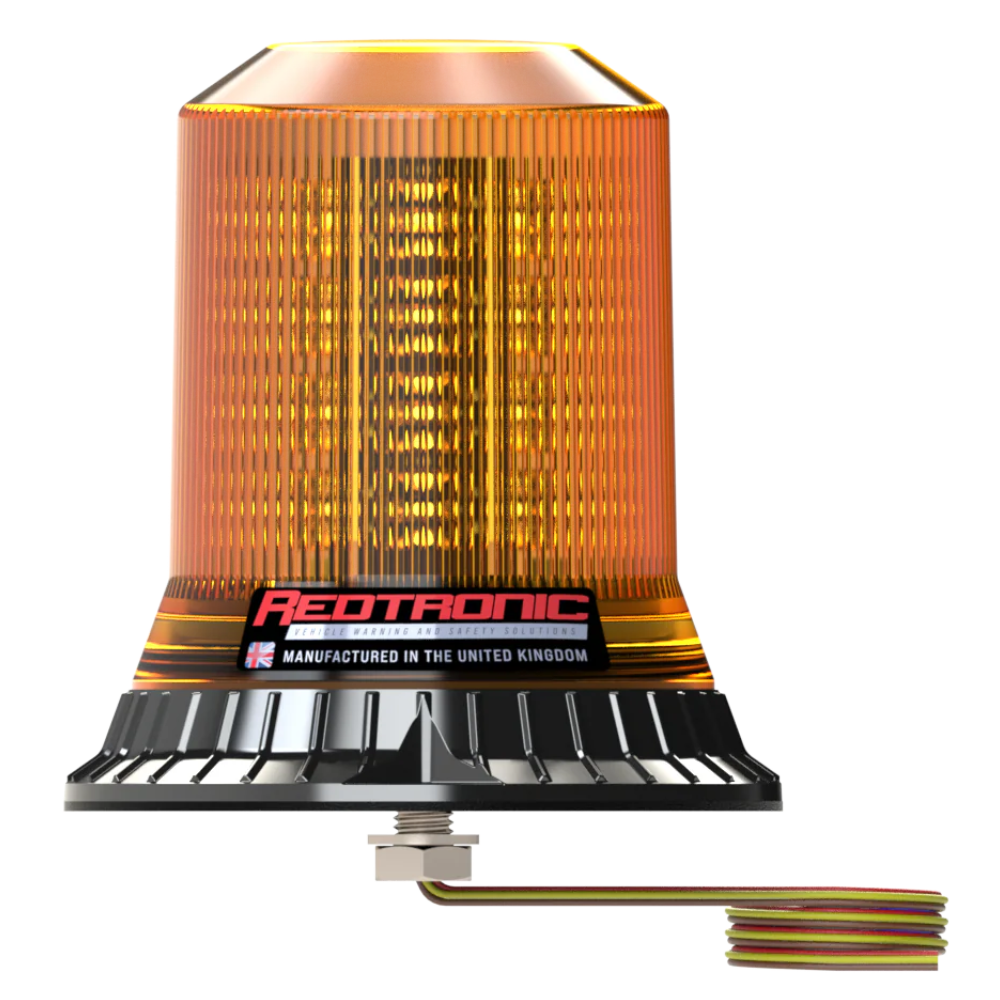

- Mount Option 1: 3 Bolt
- Mount Option 2: 1 Bolt
- Mount Option 3: Magnetic
- Mount Option 4: Flexi DIN
Dimensions & Tech Spec
- Dimensions (3 Bolt): 98.35mm x 150mm
- Dimensions (1 Bolt): 98.35mm x 150mm
- Dimensions (Magnetic): 98.35mm x 158mm
- Dimensions (Flexi DIN): 158mm x 264mm
- LED Power (Watts): 48watt
- Light Output (Lumens): Amber 2746lm / Blue 1905lm
- Weight: 650g (3 Bolt) , 670g (Single Bolt), 970g (Mag), 910g (Flexi DIN)
- Current Draw (12V): 2.0A @12V / 1.0A @24V
