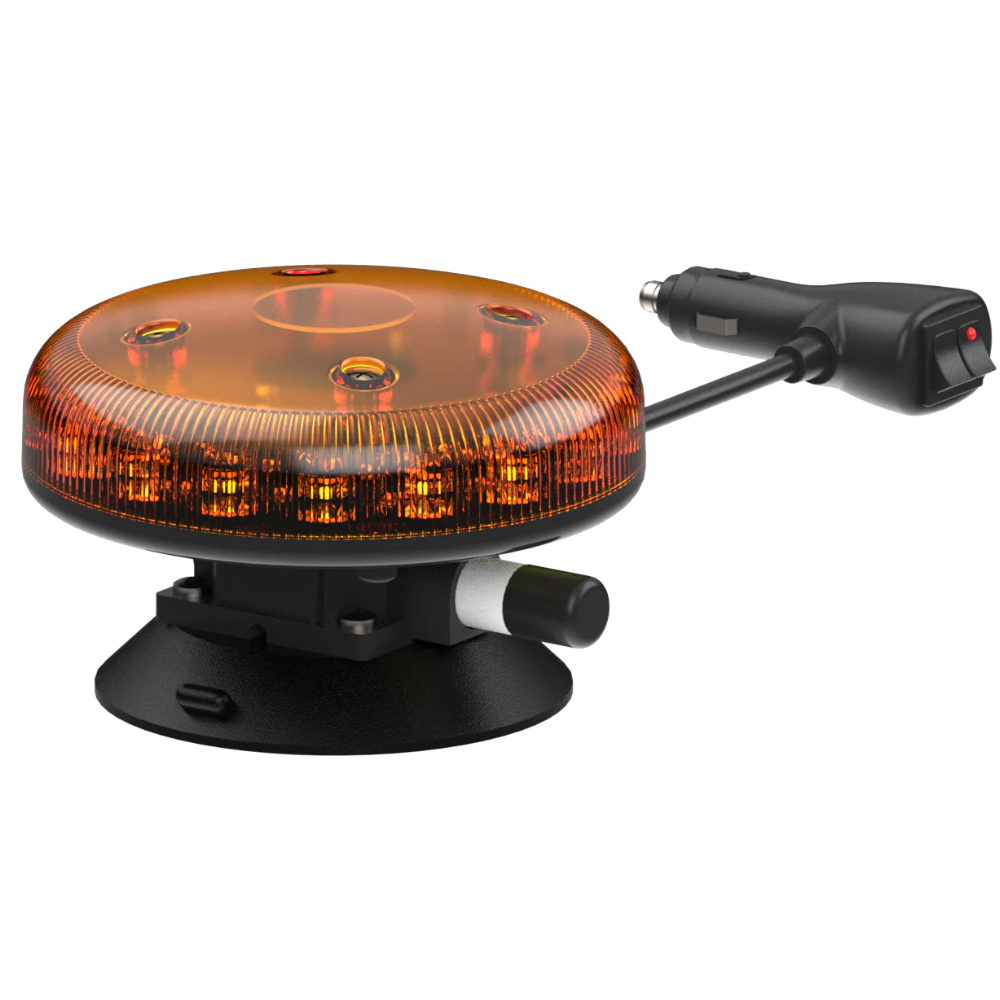

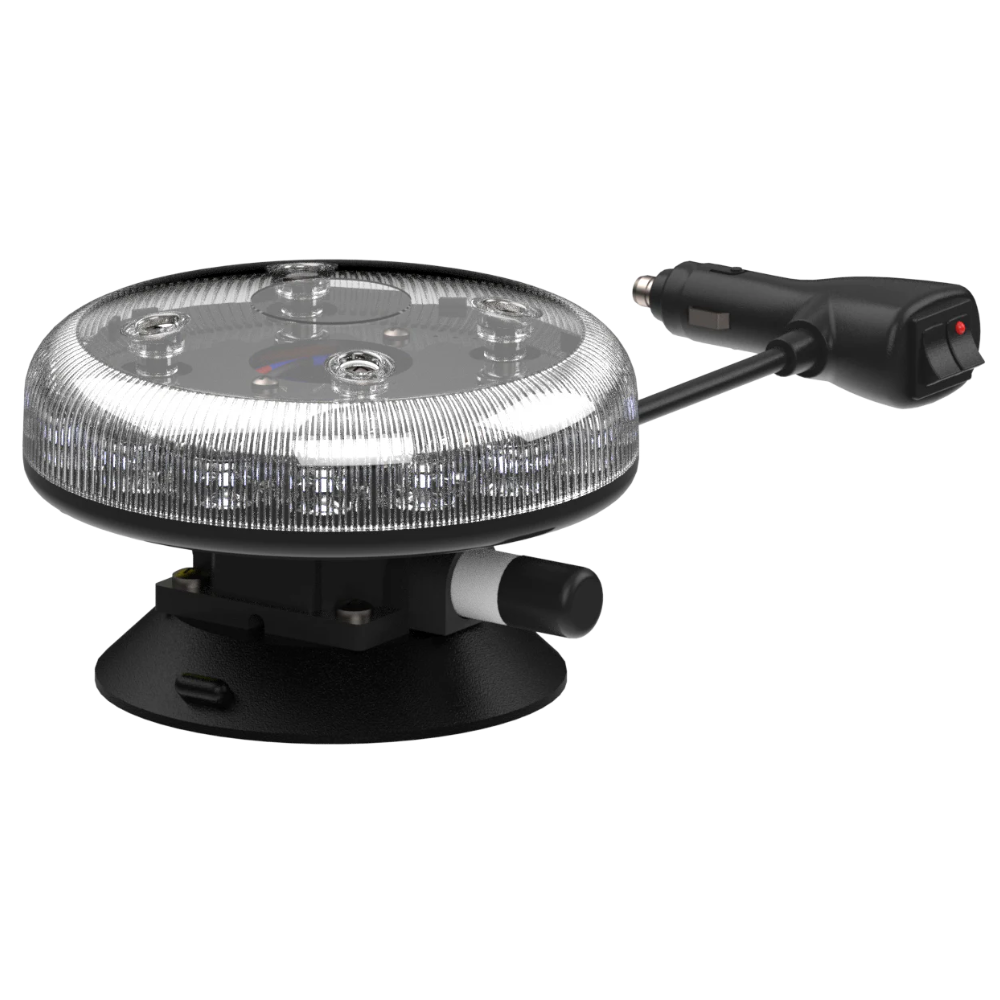

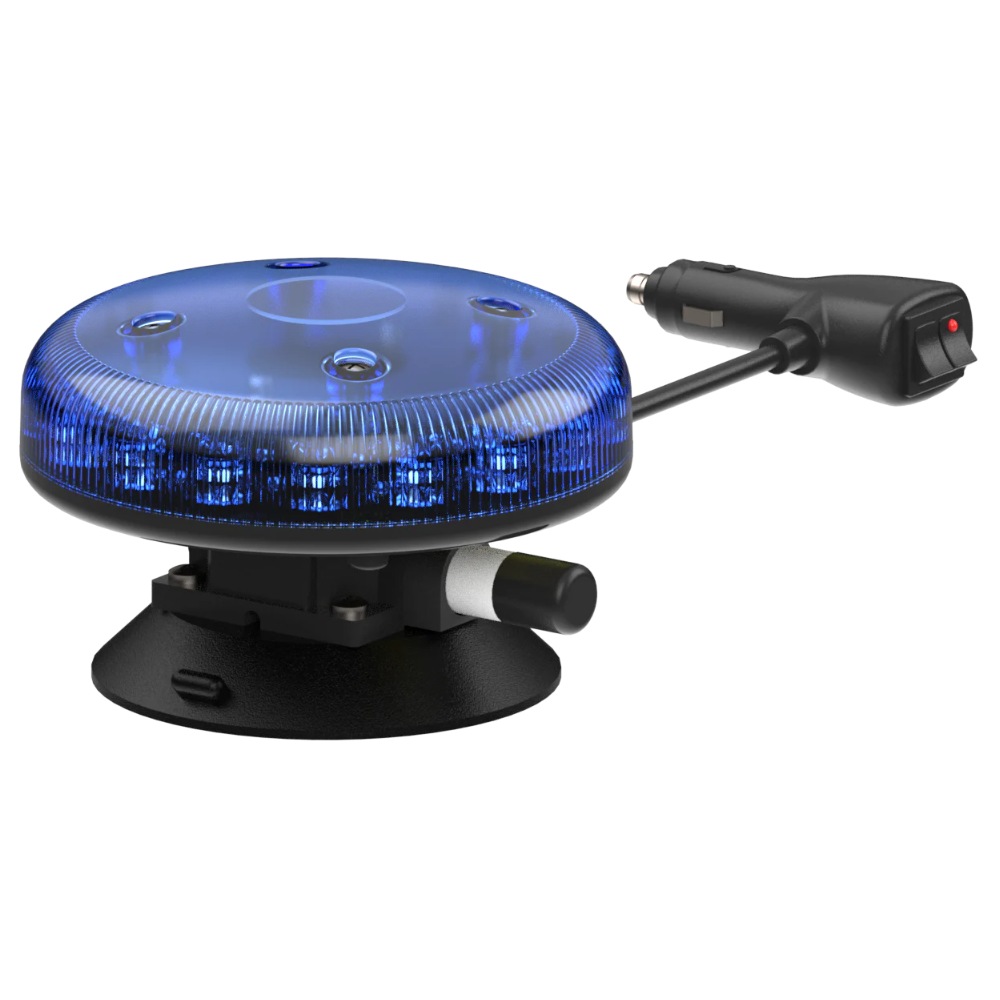

Redtronic 11-32V R65 CAP168 LED Suction Mounted Beacon PN: BTNS-047
BTNS-047
Redtronic’s Tornado B47 beacon is designed to incorporate a sleek and modern design whilst providing the ultimate light output to meet R65 Class II in amber and blue. The Tornado B47 beacon meets IP69K to protect against water and dust and features include CAP168/ICAO approval, multiple flash patterns and a variety of mounting options to meet most vehicle applications. Contributing to the vast features and approvals of the Tornado B47 beacon includes CISPR25 Level 3 and as standard built in auto dim sensor which will automatically reduce output in dark environments whilst still adhering to ECER65. The B47 features ultra-bright latest generation LEDs under an ultra-strong, UV stabilised, fresnel polycarbonate lens offering multiple lens colour options and LED colours. The Tornado B47 is manufactured in the UK.
Configuration
From excl. VAT £124.99
(incl. VAT £149.99)
(incl. VAT £149.99)
Redtronic’s Tornado B47 beacon is designed to incorporate a sleek and modern design whilst providing the ultimate light output to meet R65 Class II in amber and blue. The Tornado B47 beacon meets IP69K to protect against water and dust and features include CAP168/ICAO approval, multiple flash patterns and a variety of mounting options to meet most vehicle applications. Contributing to the vast features and approvals of the Tornado B47 beacon includes CISPR25 Level 3 and as standard built in auto dim sensor which will automatically reduce output in dark environments whilst still adhering to ECER65. The B47 features ultra-bright latest generation LEDs under an ultra-strong, UV stabilised, fresnel polycarbonate lens offering multiple lens colour options and LED colours. The Tornado B47 is manufactured in the UK.
Specifications:
Mounting options available:
Dimensions and tech spec:
Specifications:
- Directional Type: Intense and Wide-angle Optic with Ultra-bright latest generation LED's
- Material Type: Ultra-strong UV stabilised polycarbonate lens
- Shape: Compact, low profile modern design beacon
- R65: R65 Class II (Amber, Blue)
- EMC: EMC/R10 Compliant
- CISPR 25: Level 3
- IP Rating: Expected IP69K
- Dekra Speed Rating: Expected 146.6mph / 236km/h
- CAP168/ICAO: CAP168/ICAO Airport Flash
- Dim Mode: Night & Day (Dim mode) (50% Brightness)
- AutoDIM Mobule: Activation Night Mode - 100[lx] (-50/+100) Provided Activated as Standard
- Cruise: Yes
- Voltage Spec: 11-32VDC
- Operating Temperature: -40°C / +100°C
- Flash Patterns: 9 Flash Patterns (2 Rotate)
- Flash Patterns: Quad, Triple, Double, Single, Quad/Single, Quad/Triple/Double/Single + CAP168, Slow Rotate, Fast Rotate
- Sync: Synchronisation with other Redtronic products
- Warranty: 3 Year Warranty
Mounting options available:
- Mount Option 1: 1 Bolt
- Mount Option 2: Pole
- Mount Option 3: Magnetic

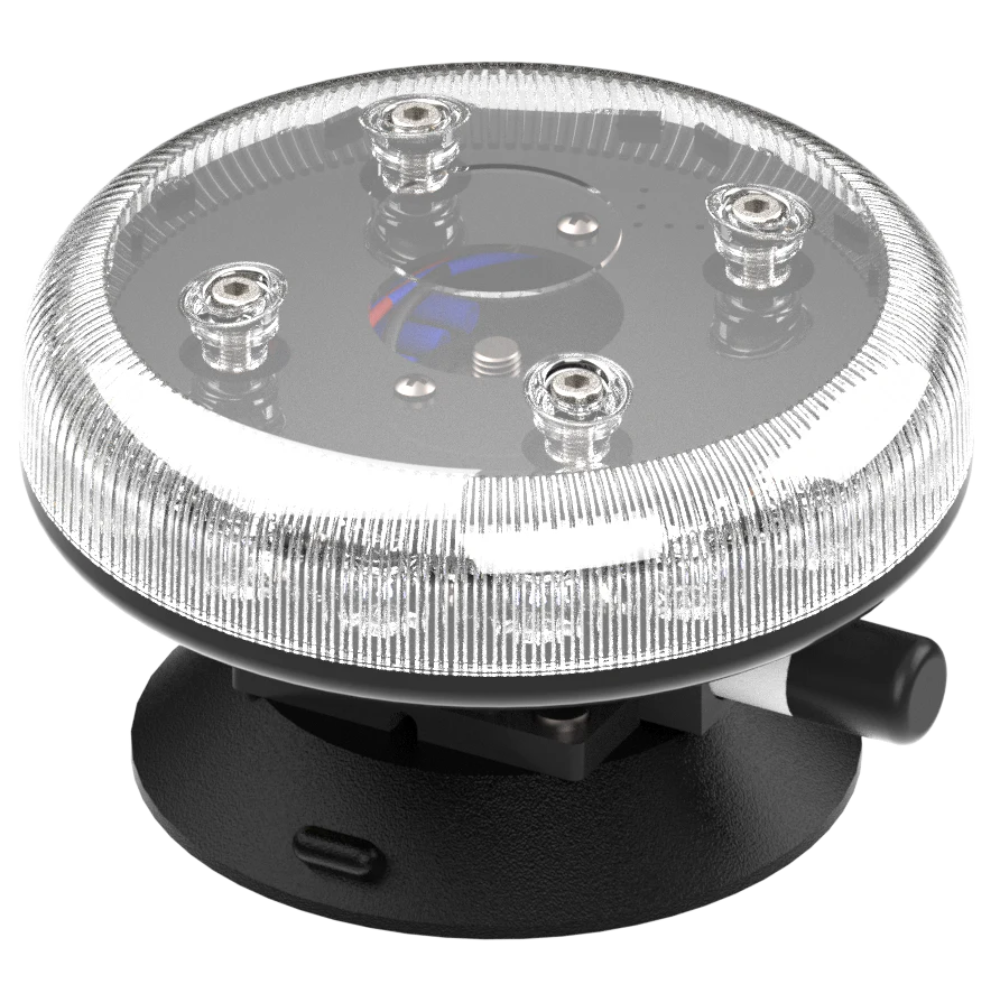

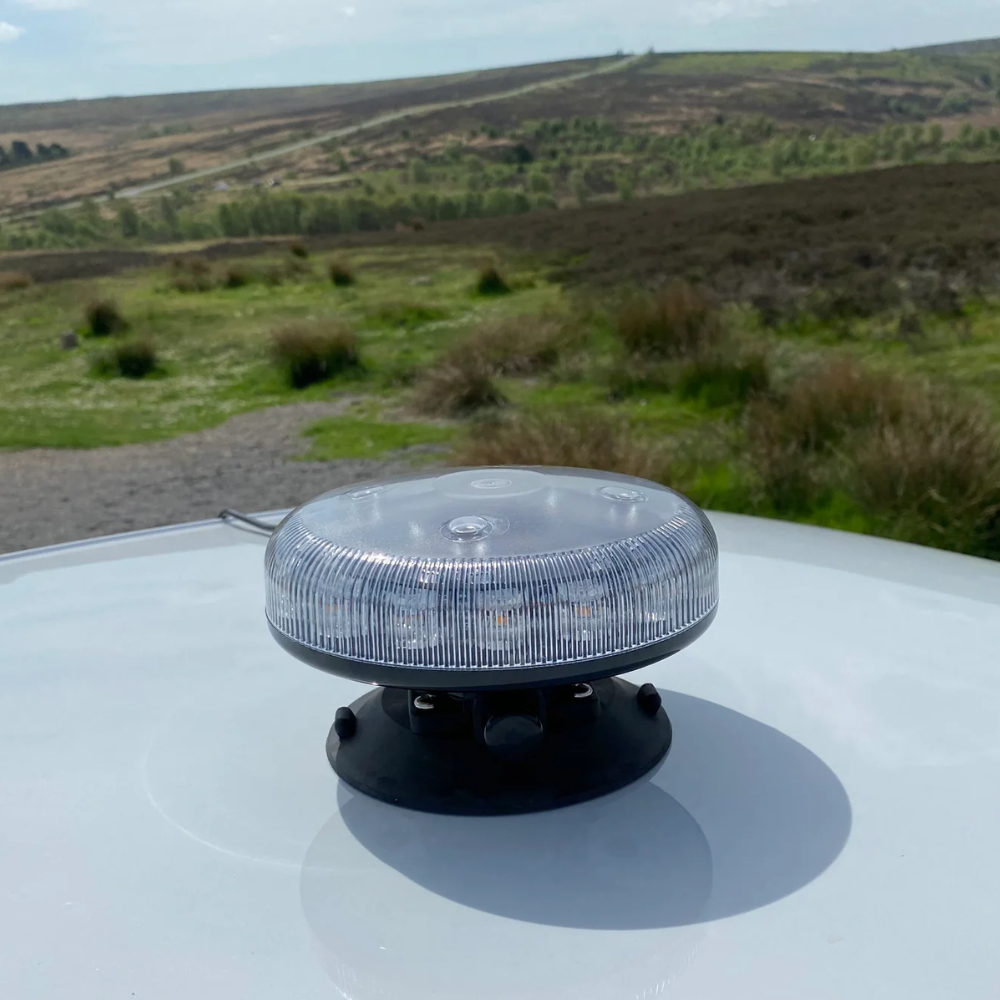

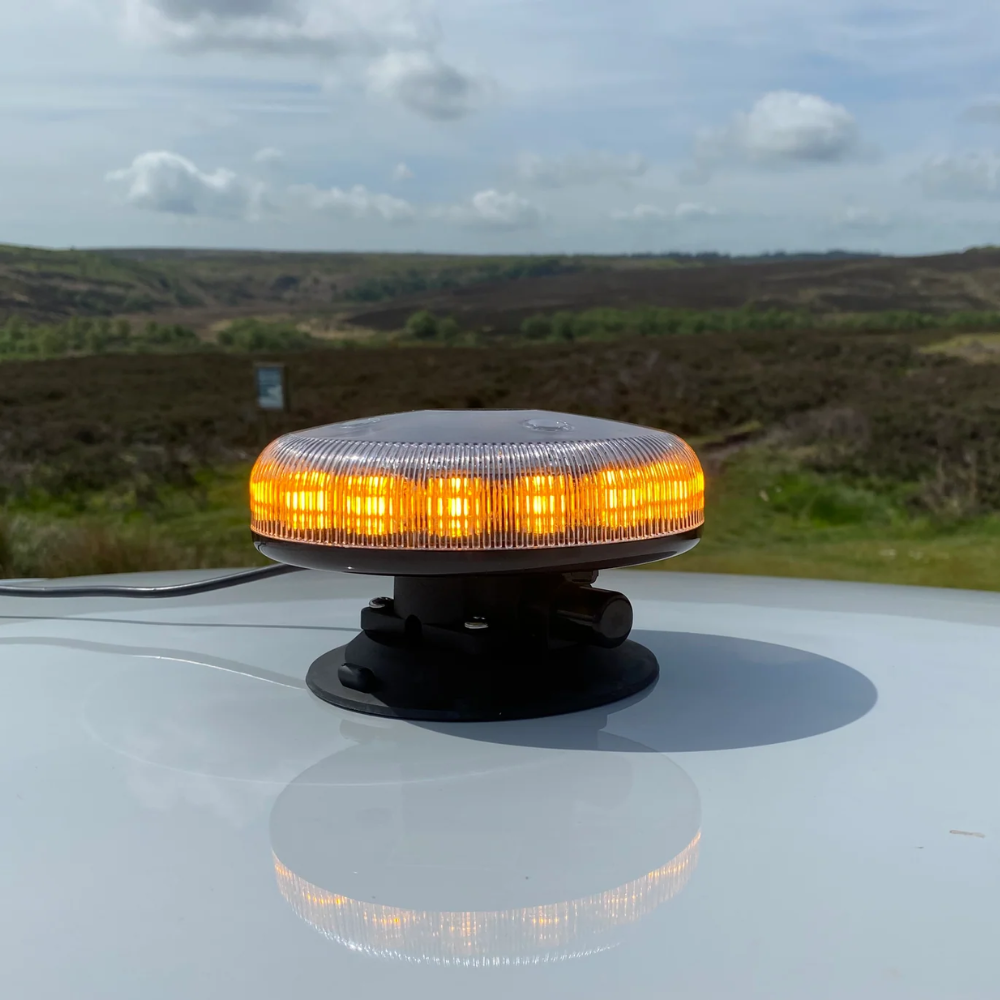

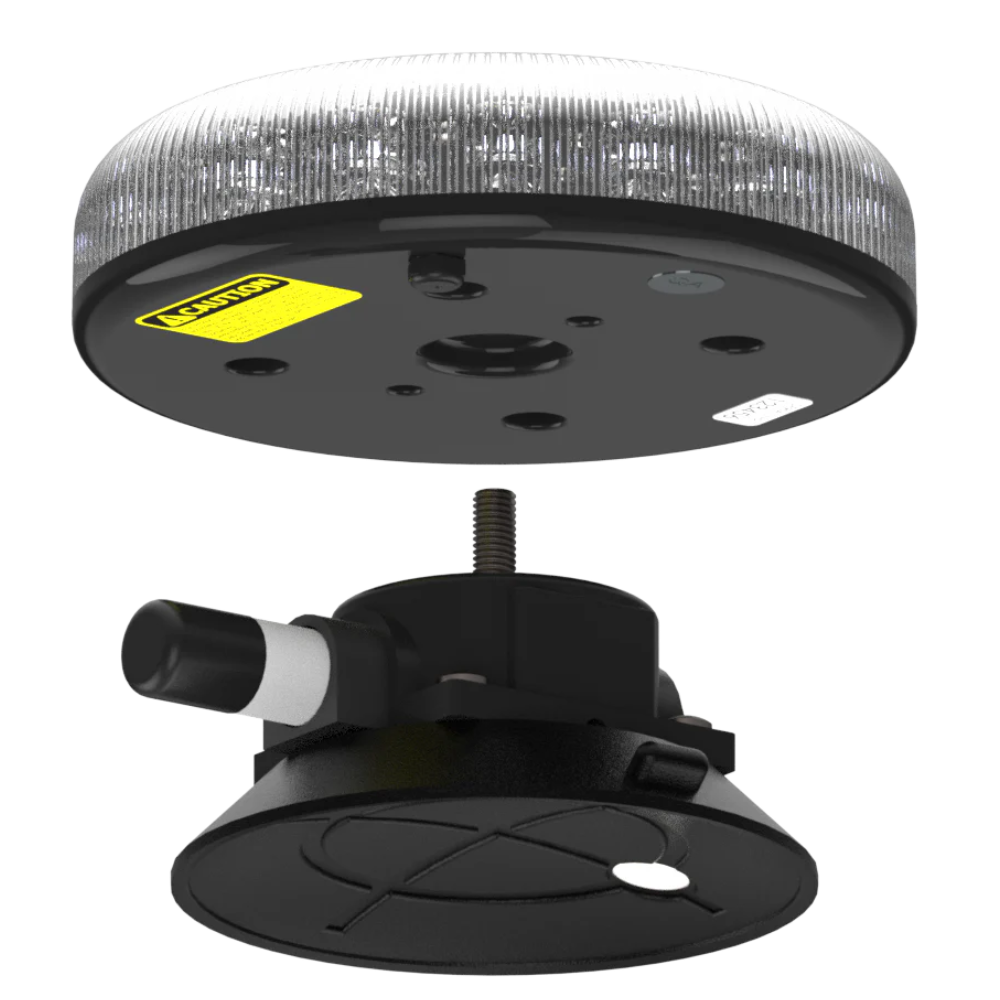

- Mount Option 4: Suction
Dimensions and tech spec:
- Dimensions (1 Bolt): 154mm x 53mm
- Dimensions (Pole): 154mm x 47mm
- Dimensions (Magnetic): 154mm x 53mm
- Dimensions (Suction Cup): 154 mm x 98mm
- LED Power (Watts): 48 watts
- Light Output (Lumens): TBC
- Weight: 450g (Single Bolt)
- Current Draw (12V): 2.8A @12V / 1.4A @24V
