Ledson Orion10+ Oval LED Driving Lamp With Strobe & Position Light PN: 33490429

Orion10+ Gen2 Strobe with warning lights

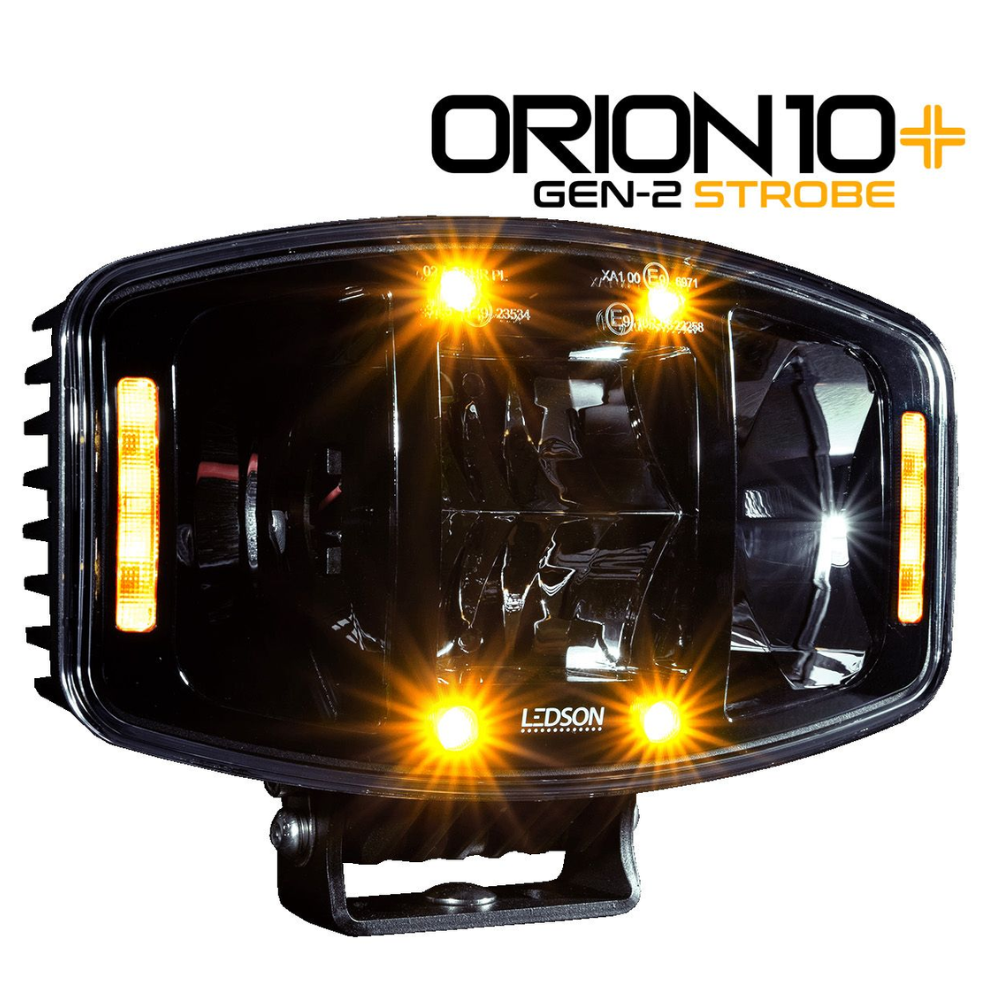

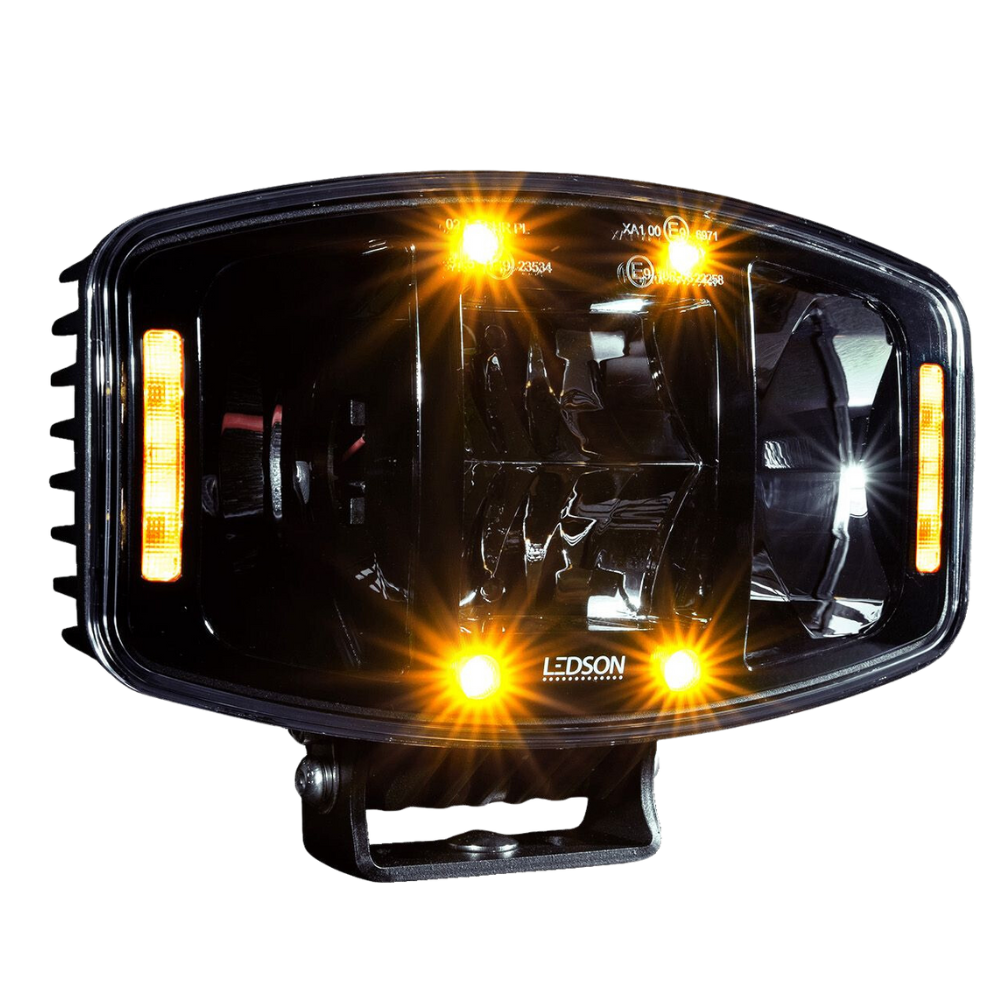

Orion10+ Gen2 Strobe is a further development of Orion10+ Gen2. In addition to everything that a standard Orion10+ Gen2 has, this auxiliary light is also equipped with strobe light. Its strobe light consists of four strong LEDs that can be used in five different strobe patterns, one of which is R65-approved.

"Strongest oval light" in Trailer magazine!
The strongest of the tested oval auxiliary lights. Unique with a stylish design with two vertical decorative light surfaces that provide a neat assembly with several lights mounted low. Pronounced high-beam character, which gives a good light image that reaches far if several are mounted together.

Flash patterns:

• Single flash (ECE R65)
• Double flash
• Triple flash
• Quadruple flash
• Continuous hyper flash

Synchronizable and with alternating flash pattern

Orion10+ Gen2 Strobe can be synchronized with each other, which means that all of the lights use the same flash pattern and strobe synchronized. But you also have the option of an alternating flash pattern, which means that your auxiliary lights can be divided into two different groups so that they strobe opposite of each other (eg right / left or top / bottom). You can synchronize and use alternating flash patterns with an infinite number of lights, i.e. there are no restrictions on the number of lights you use.

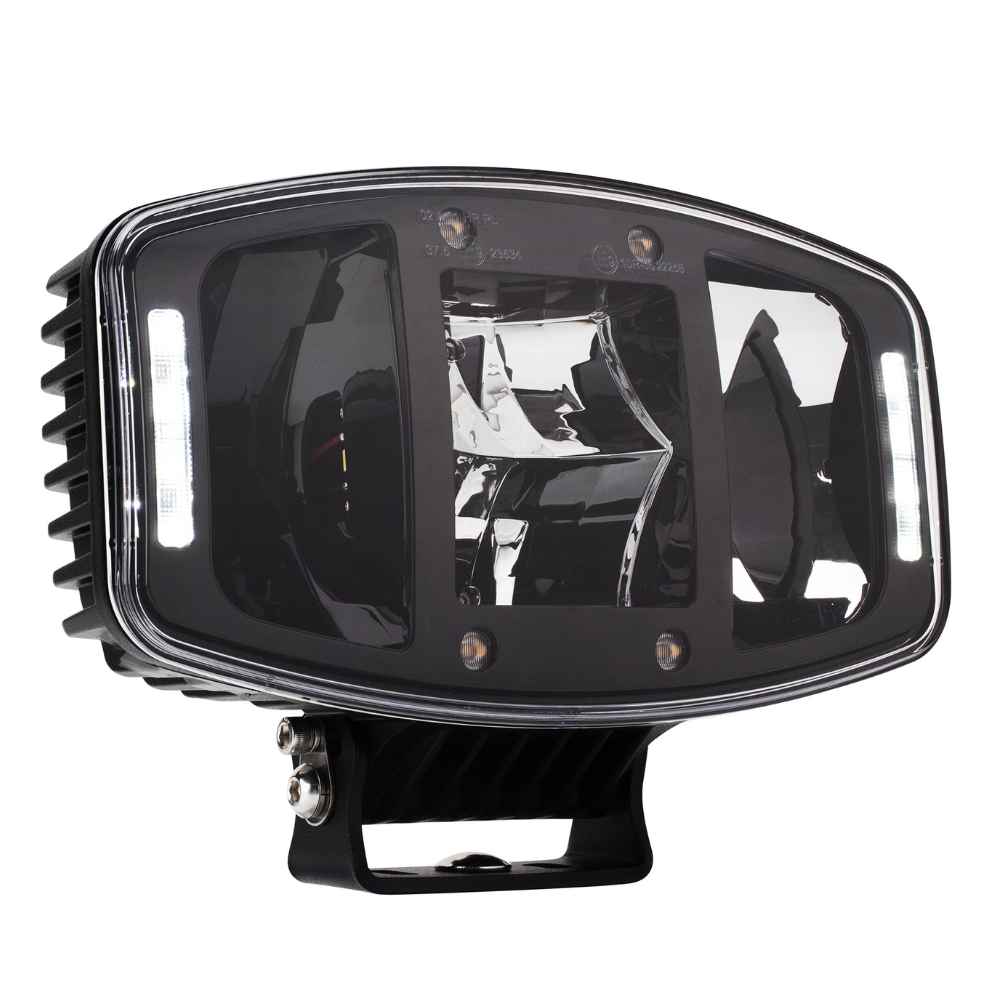

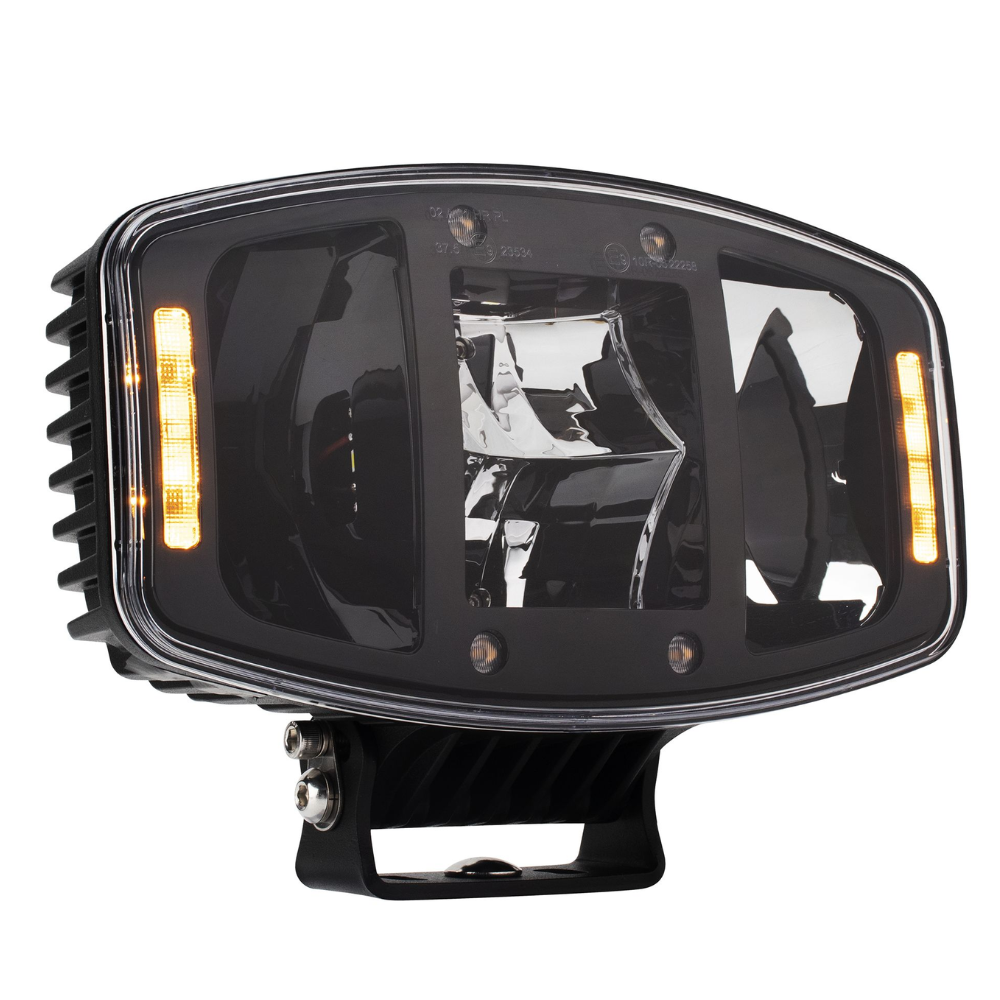

In addition to its beautiful design, the auxiliary light is also equipped with a stylish position light that can be set between xenon white and amber: you choose which one you want. If you get tired of one color with time, you just switch to the other one. Orion10+ Gen2 has a range of E-markings ECE R112 / R65 / R10 / R7, 8500 actual lumens, 6000K light temperature for a modern look, ETM, EMC, side reflective optical system and more ....with great performance, Orion10+ Gen2 leaves you with that must-have-feeling!

Thanks to its size and design, Ledson Orion10+ Gen2 fits really nicely mounted on all types of vehicles.

Driving Beam light image

Driving beams reflectors are all computer generated and manufactured to provide a similar light image as combo but more consistent and within the limits of what is legal. It mimics and enhances the car's existing headlight and light image.

Mounting on vehicle

We strongly recommend using our DT relay with original connection to connect the LED bar to the vehicle. You can then choose between controlling the bar with a button or switching it on with the main beam (the bar lights up and goes off automatically when the main light is on and off, as most people prefer). There is also a fuse between external light and battery to prevent possible damage to battery and other equipment. Detailed installation instructions are included with the DT relay.
Can be mounted directly on the vehicle (drill in a suitable place) or a little smoother and more stylish using a number plate holder.

Specifications:

• Strobe light (4 pcs orange LED) with 5 different strobe patterns
• Position light, yellow-orange or xenon white (select the color you desire)
• Driving beam light that mimics and reinforces the vehicle's regular light
• E-marked E9 (Ref. 37,5), ECE R112 / R65 / R10 / R7 (white position light)
• Range: 850 m (0,25 lux), 444 m (1 lux)
• EMC secured (does not disrupt the radio)
• 10000 lumen (raw), 8500 lumen (effective)
• Cold white light (6000 K)
• ETM (Electronic Thermal Management) - adjusts the diode's strength depending on how hot they are for optimum life
• Side reflecting optical system
• Pressure relief membrane
• Aluminum alloy heat-sink
• Adjustable bracket in stainless steel
• Lexan polycarbonate front cover
• 36 month warranty

Technical data:

• 100W (4 x 25W LED)
• IP69K (water/dust-proof)
• DT connector / DT-adapter 2-4 pin supplied with the product
• Voltage 9-36 V
• Load 6,8 A @ 12 V and 3,4 A @ 24 V

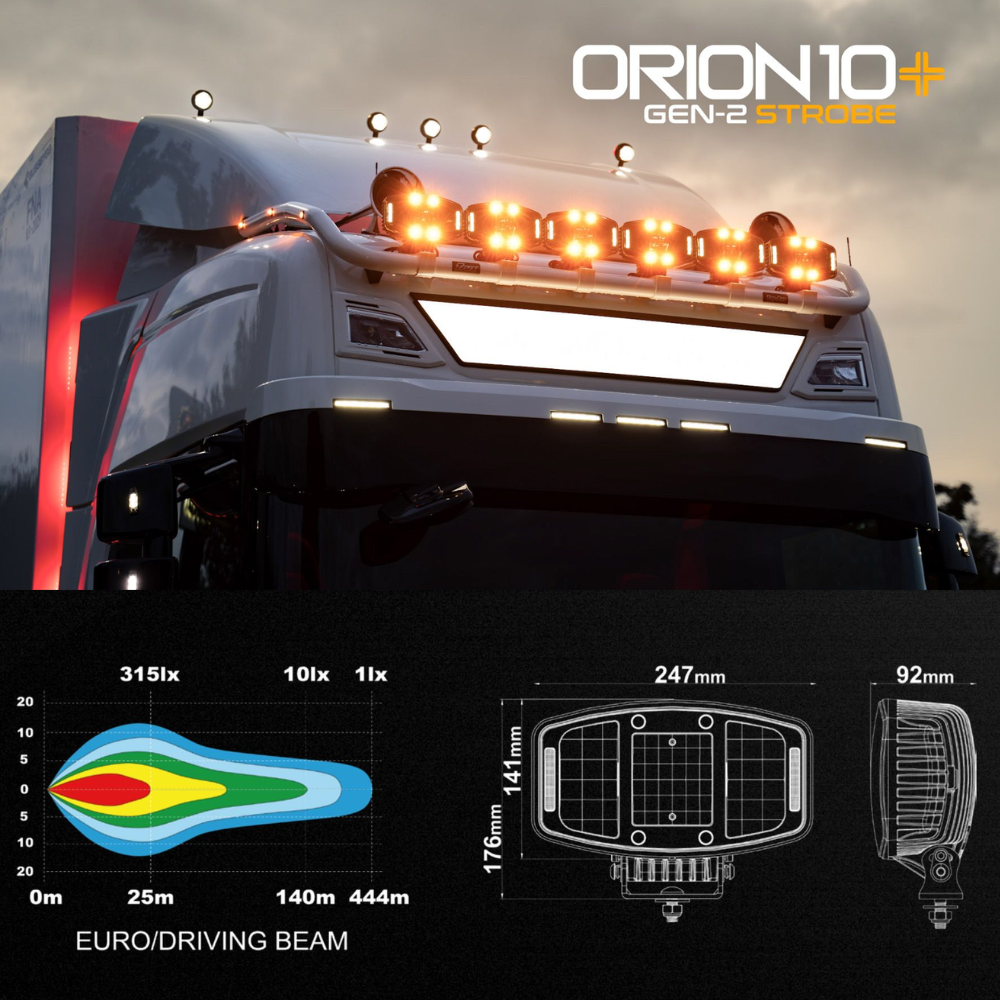

Measurement & weight:

• Width: 247 mm
• Height: 141 mm (176 mm incl mounting)
• Depth: 92 mm
• Weight: 1,82 kg

Supplied:

• Orion10+ Gen2 Strobe LED auxiliary light
• Bracket, bults and screws to fasten the light
• DT connector (6-pole)
• Installation instructions

Cable installation (detailed installation instructions included):

• Red: Light (+)
• Black: Light / Position light (- ground)
• White: Position light white (+)
• Orange: Position light yellow-orange (+)
• Green: Strobe light (+)
• Blue: Synchronization & pattern (+)
• Brown: Alternating (+)

NOTE: The DT connector must not be cut as it involves an increased risk of moisture damage and the guarantee then expires..
