Lazer Lamps VW Transporter T7 (2022+) Linear-6 Grille Kit PN: GK-T7
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits are custom-fit mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.
(incl. VAT £456.00)
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits are custom-fit mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.

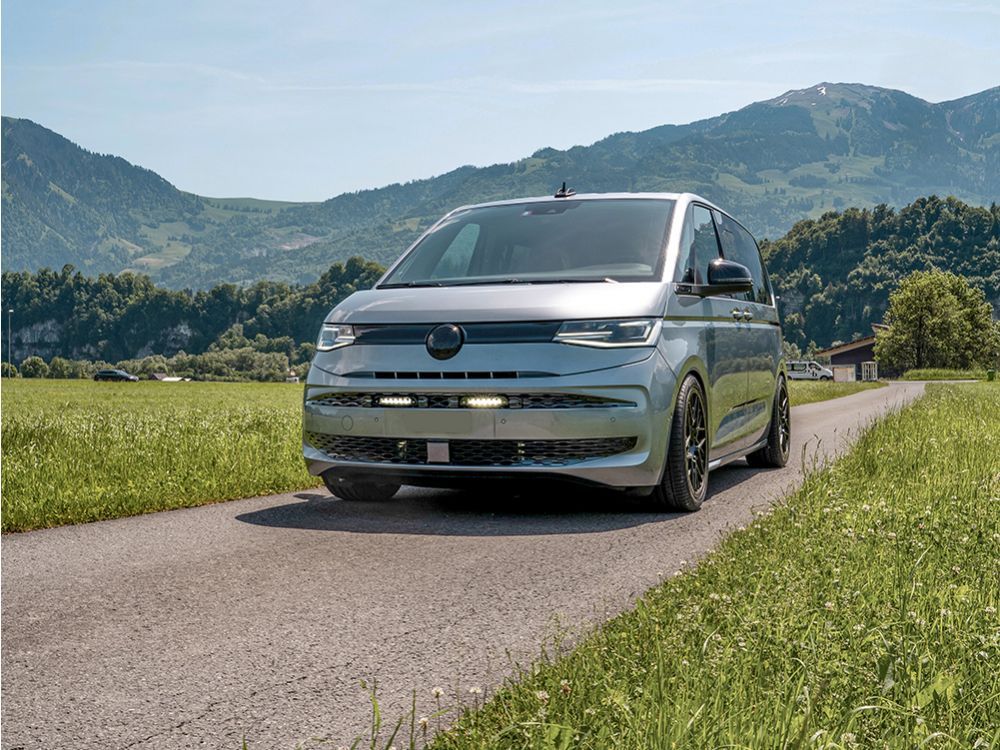

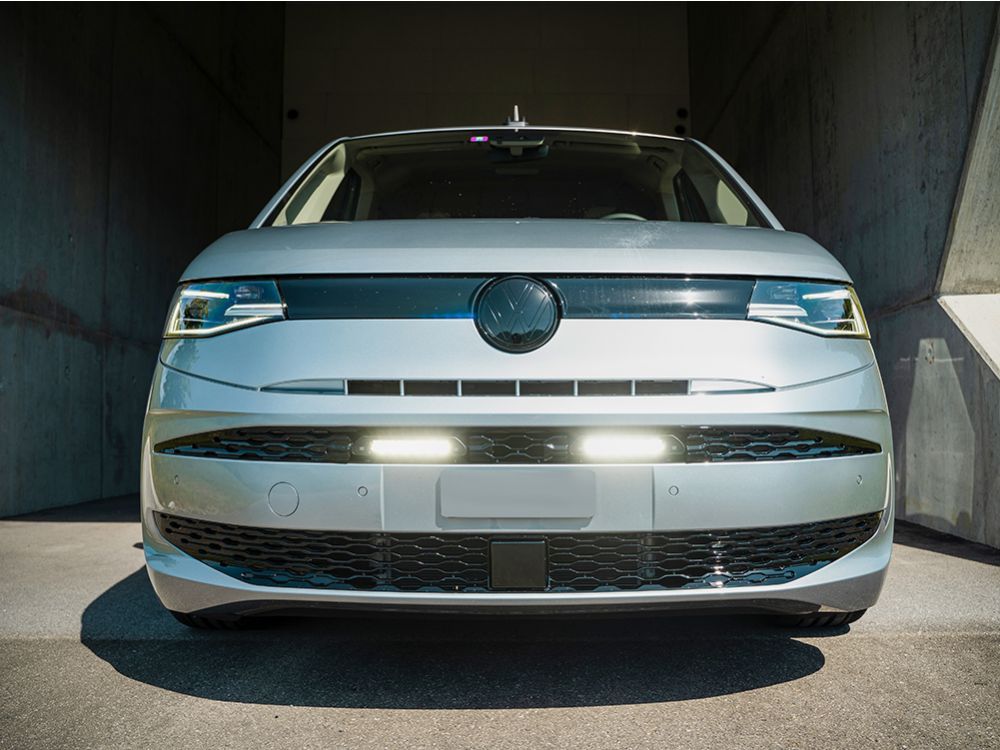

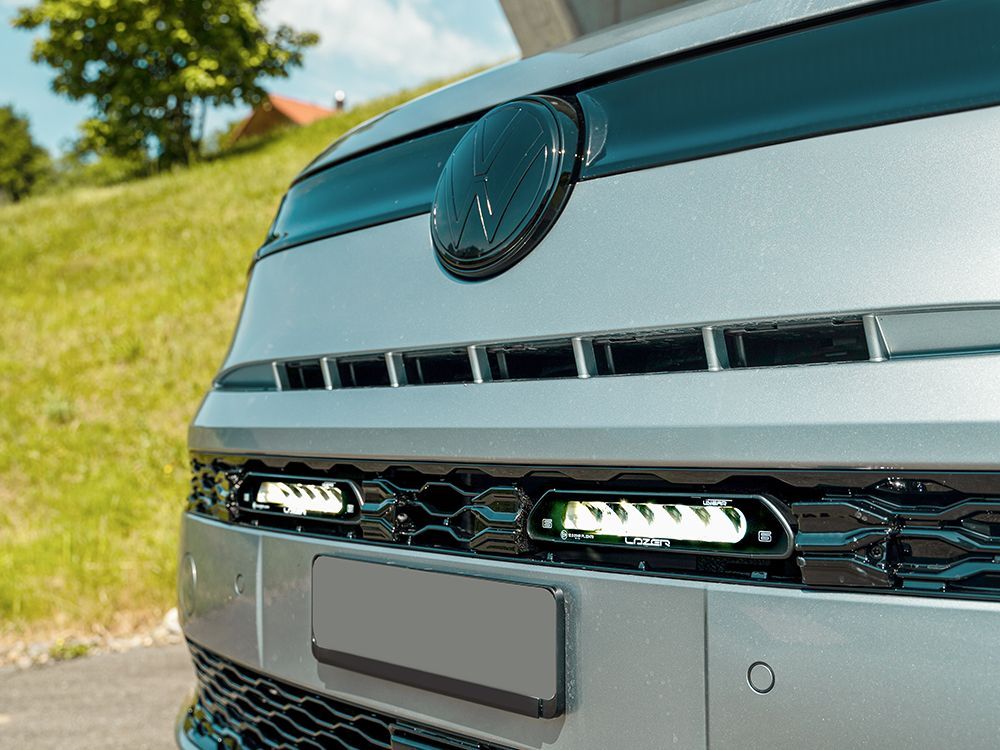

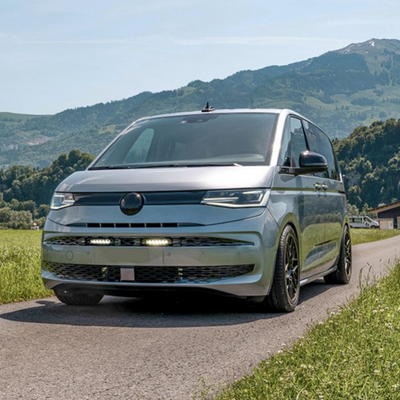

The VW T7 (2022+) integration kit includes a pair of Linear-6 (Standard or Elite) High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied anti-theft self-tapping screws. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
The VW T7 Grille Integration Kits are optimised for use with Linear-6 High Performance LED Spotlights, the lights are fully ECE approved for connecting directly into the vehicle’s electrical system.
- Bespoke mounting bracket kit for Lazer LED Spotlight installation
- Custom fit for VW T7 (2022+)
- Kits include: 4x brackets, cutting guides, and fasteners
- Made from high strength, UV-stable, ASA material
- 5-year warranty
- Made in Britain
- Optimised for use with Linear-6 LED Spotlights
What's included:
- x2 Linear-6 (Std/Elite) High Performance LED Spotlights

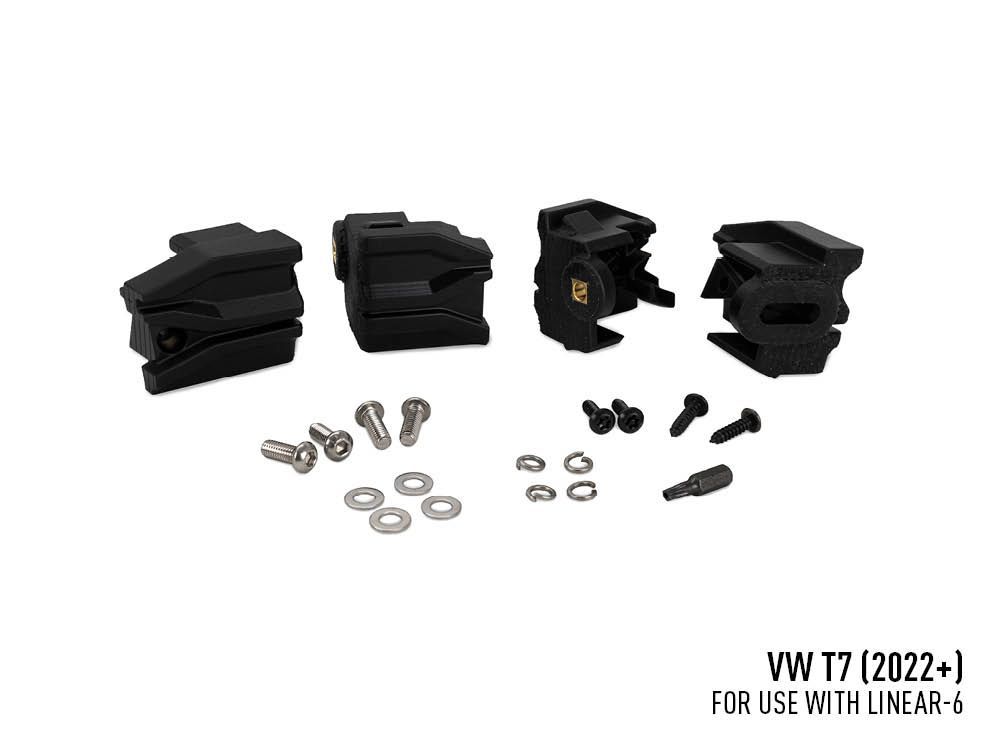

- x1 Mounting Kit (comprising 4x Brackets and fasteners)
- x1 Cutting Guide (comprising 4x Brackets)
- x1 Two-Lamp Wiring Kit
- x1 Installation instructions

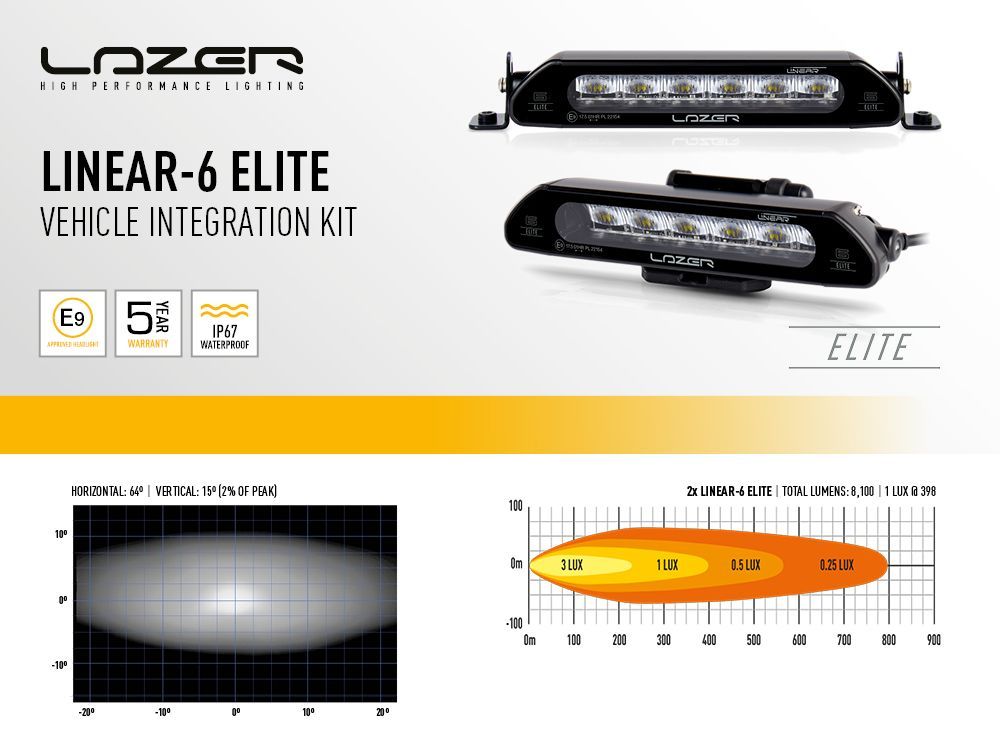

Based on Elite setup i.e. x2 Linear-6 Elite High Performance LED Lamps:
Voltage Range | 10-32V |
LED Life | 50,000 hours |
Weight | 1 kg |
HIGH BEAM FUNCTION | |
Total Luminous Flux | 12150 Lm |
Total Driver 'FOV' Flux † | 8651 Lm |
Colour Temperature | 5000k |
Number of High Output LEDs | 2 x 6 |
Power Consumption | 84 Watts |
Current Draw (at 14.4V) | 5.8 Amps |
Start-Up Time * | 100ms |
CERTIFICATION | |
High Beam | ECE R112 |
E-Mark Ref | 17.5 x2 |

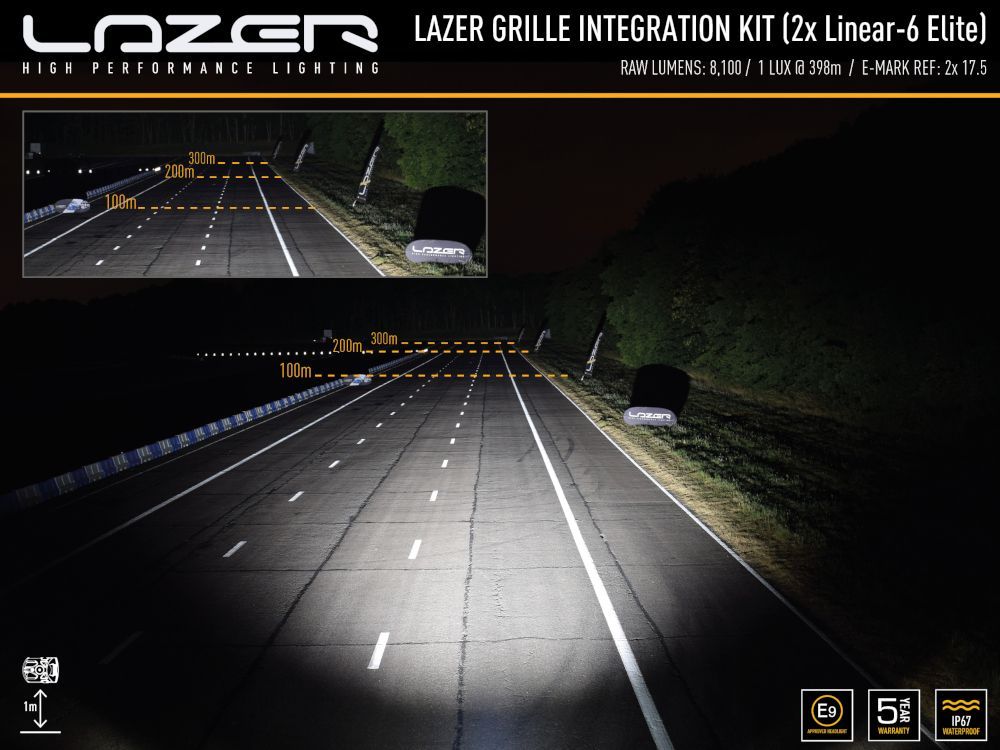

PHOTOMETRIC DATA | |
Horizontal Beam Angle | 42 Degrees |
0.25 lx Line | 796 metres |
0.5 lx Line | 563 metres |
1 lx Line | 398 metres |
3 lx Line | 230 metres |
* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
