Lazer Lamps VW Tiguan (2016+) Bumper Beam Mounting Kit PN: VIFK-TIGUAN

VIFK-TIGUAN

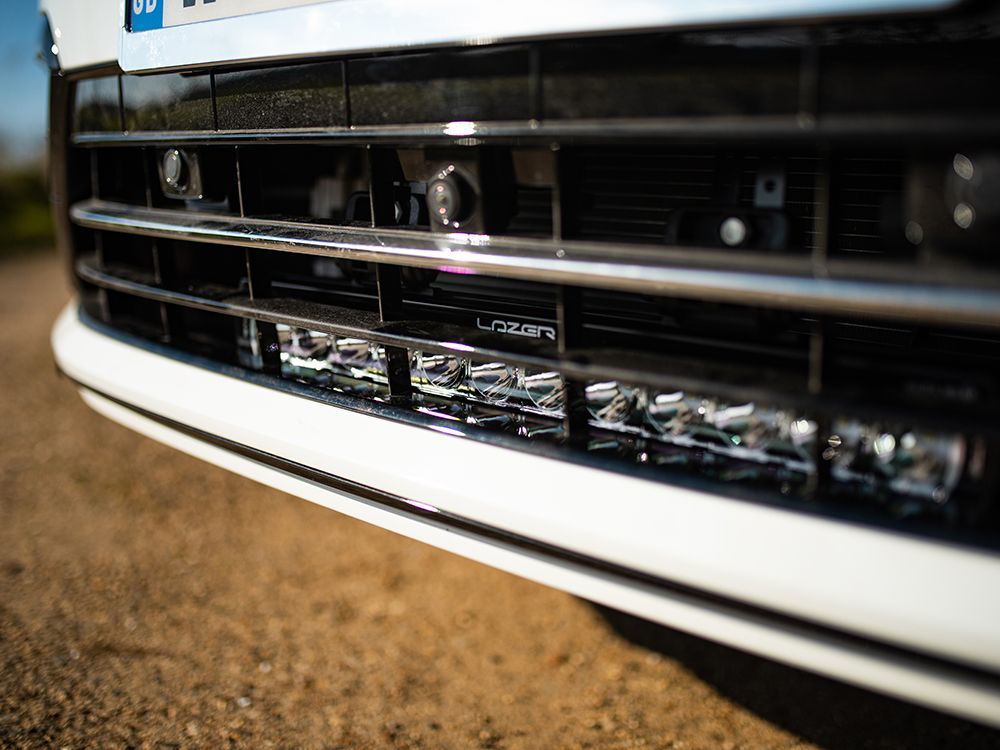

The Bumper Beam Mounting Kit for the VW Tiguan (2016+) is a specially engineered mounting solution that allows for the fitting of either a pair of ST4 or a single ST12 Lazer High Performance LED Driving Lights, fixed directly to the bumper beam of the vehicle, behind the lower front grille, for a totally secure and discreet auxiliary light install. Whether choosing ST4 or ST12, the lights deliver exceptional visibility tuned in a combination beam pattern that delivers far superior distance illumination, compared to the standard high beam driving lights, but with the real difference coming from the much wider spread of light, that leaves little to the imagination, and an exceptional comfortable night driving experience.

CONTACT US FOR TRADE PRICING
Product Options
From excl. VAT £393.85
(incl. VAT £472.62)

The Bumper Beam Mounting Kit for the VW Tiguan (2016+) is a specially engineered mounting solution that allows for the fitting of either a pair of ST4 or a single ST12 Lazer High Performance LED Driving Lights, fixed directly to the bumper beam of the vehicle, behind the lower front grille, for a totally secure and discreet auxiliary light install. Whether choosing ST4 or ST12, the lights deliver exceptional visibility tuned in a combination beam pattern that delivers far superior distance illumination, compared to the standard high beam driving lights, but with the real difference coming from the much wider spread of light, that leaves little to the imagination, and an exceptional comfortable night driving experience.

The mounting brackets themselves are made from 3mm mild steel, with e-coat satin black powder coat, and come supplied with 4x rivets for secure fixing to the bumper beam.

With no compromises in component parts or production techniques, as with all Lazer products, we have taken every step to maximise lighting performance, and build quality, to ensure your lighting installation remains in excellent condition for years to come, backed up by our comprehensive 5yr warranty.

Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface. For advice on how to check for a 12V high beam signal, please click here.

  • Auxiliary spotlight installation for VW Tiguan (2016+)
  • Optimised mounting for a pair of ST4 or a single ST12 Evolution lights
  • Secured to vehicle’s bumper beam bar behind lower grille
  • Vehicle wiring kits and CANbus Interfaces available
  • Fully road-legal
  • 5-year warranty
  • Made in Britain

Based on setup i.e. x2 ST4 Evolution Lazer High Performance LED Lamps:

E-Mark Ref 10 x2
Voltage Range 10-32V
LED Life 50,000 hours
Weight 2 kg
HIGH BEAM FUNCTION
Total Luminous Flux 8272 Lm
Total Driver 'FOV' Flux † 4980 Lm
Number of High Output LEDs 2 x 4
Power Consumption 94 Watts
Current Draw (at 14.4V) 6.6 Amps
Start-Up Time *  100ms
CERTIFICATION
High Beam ECE R112
PHOTOMETRIC DATA
Horizontal Beam Angle 28 Degrees
0.25 lx Line 786 metres
0.5 lx Line 555 metres
1 lx Line 393 metres
3 lx Line 227 metres

* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
