Lazer Lamps Volvo XC90 (2015+) Linear-18 Bumper Mounting Kit PN: VIFK-XC90

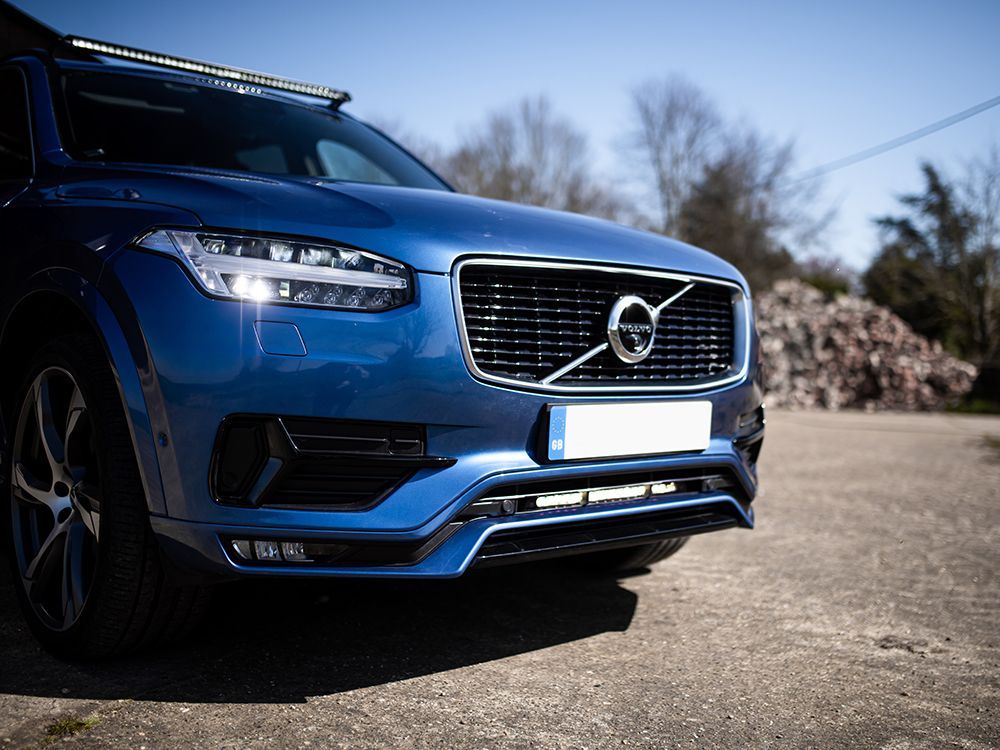

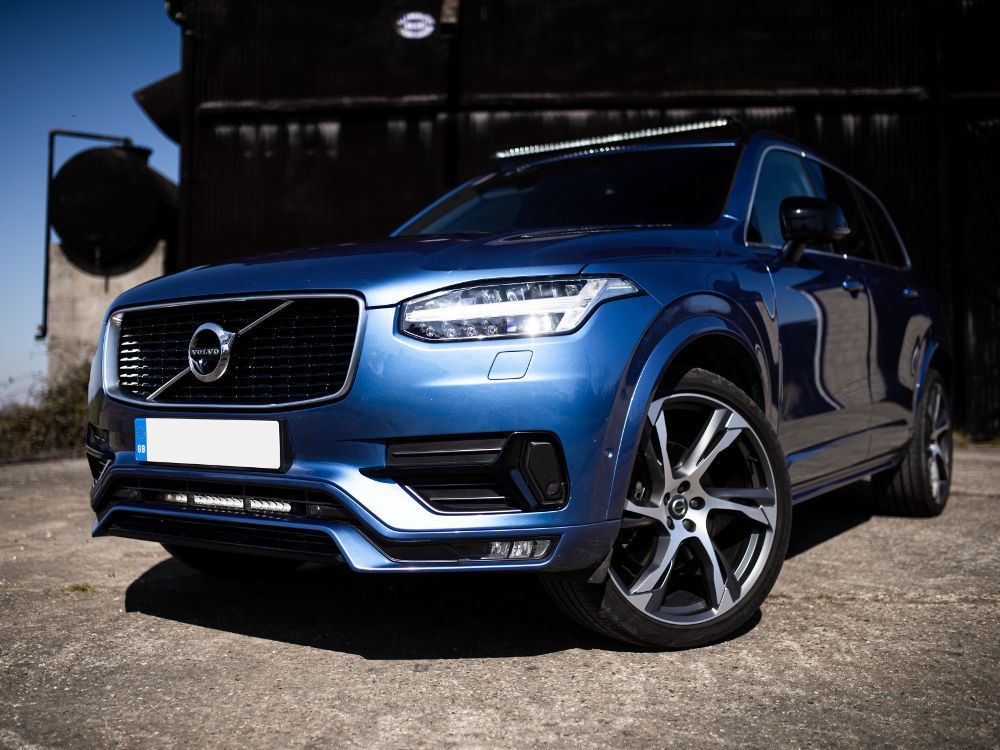

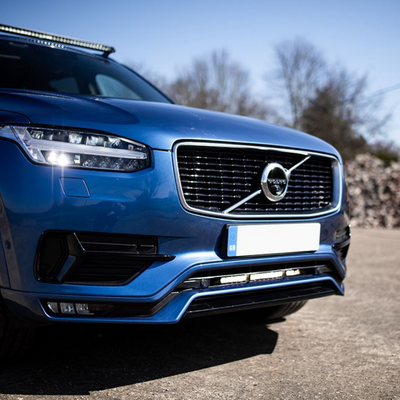

Utilising satin black mounting brackets concealed behind the lower grille, the Lazer Lamps vehicle integration kit for the Volvo XC90 (2015+), allows for mounting of our class-leading Linear-18 (Standard, Elite or Elite with i-LBA) high performance LED spotlight, for an auxiliary LED driving light installation that impresses day and night. The slimline design and high-end styling of the Linear-18 blends seamlessly into the front-end of the vehicle for an understated integration, albeit one that delivers exceptional lighting performance (borne out of development and testing done at the highest levels of professional motorsport) perfectly tuned to everyday road and off-road use.
(incl. VAT £438.00)
Utilising satin black mounting brackets concealed behind the lower grille, the Lazer Lamps vehicle integration kit for the Volvo XC90 (2015+), allows for mounting of our class-leading Linear-18 (Standard, Elite or Elite with i-LBA) high performance LED spotlight, for an auxiliary LED driving light installation that impresses day and night. The slimline design and high-end styling of the Linear-18 blends seamlessly into the front-end of the vehicle for an understated integration, albeit one that delivers exceptional lighting performance (borne out of development and testing done at the highest levels of professional motorsport) perfectly tuned to everyday road and off-road use.
E-mark certification allows for connecting into the vehicle's electrical system so that the light activates with the vehicle's standard high beam lights. Available with all necessary installation parts including wiring loom, and fixtures, the XC90 lighting upgrade kit delivers incredible levels of illumination for when the sun goes down. Where the vehicle utilises LED driving lights as standard, a CanM8 high beam interface is available as an optional part to complete a unified electrical install.

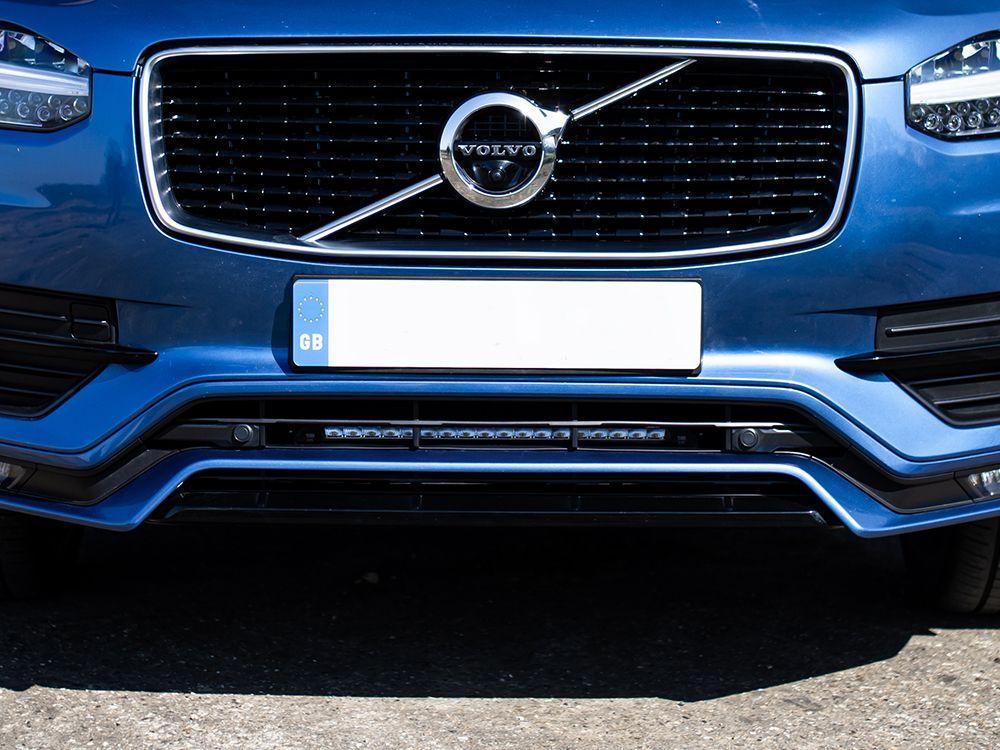

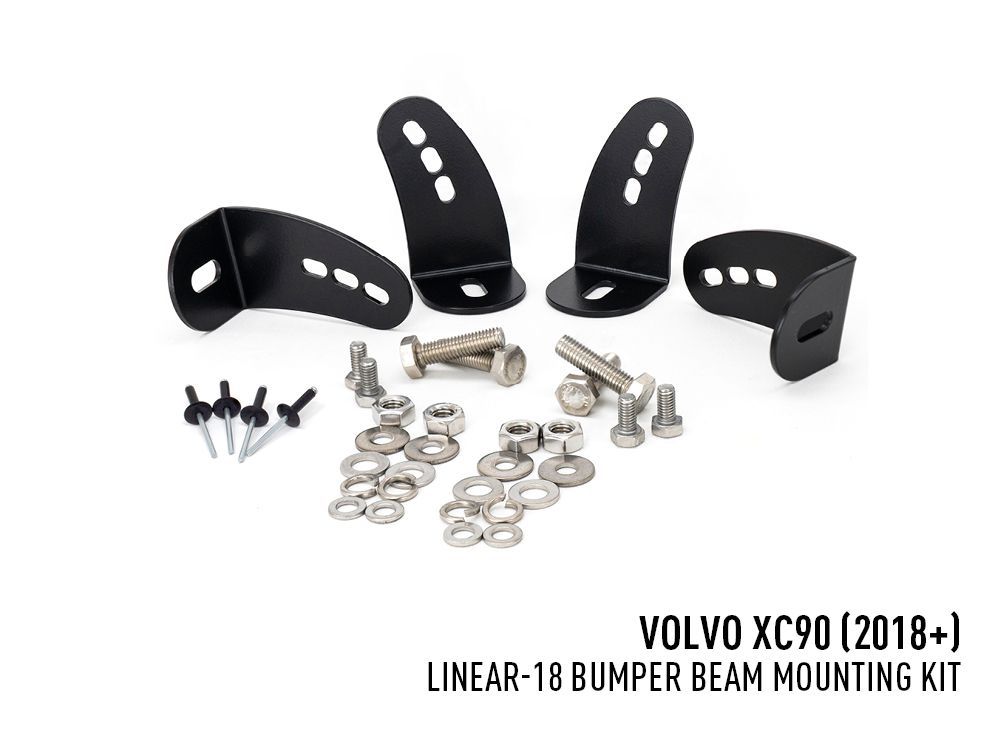

The mounting of the light is quick and simple utilising our side mounting brackets made from folded aluminium, that are finished with a satin black powder coat. The mounts mount directly to the bumper beam bar for a subtle installation behind the lower grille, secured using supplied rivets. The resulting setup is secure and robust, with the added extra security of the light being mounted behind the grille. Like all lighting products from Lazer Lamps, the Linear-18's are designed, engineered, and manufactured in the UK, backed up by our comprehensive 5 year warranty. With no compromises in component parts or production techniques, your installation will stay looking in great shape year-after-year.
Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface. For advice on how to check for a 12V high beam signal, please click here.
- Auxiliary spotlight installation for Volvo XC90 (2015+)
- Compatible with Linear-18 Standard or Elite
- Fully robust and secure, with extra protection against theft
- Vehicle wiring kits and CANbus Interfaces available
- Fully road-legal
- 5-year warranty
- Made in Britain
Based on setup: 1x Linear-18 Elite High Performance LED Lamps:
| Voltage Range | 10-32V |
| LED Life | 50,000 hours |
| Weight | 1090 gr |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 12150 Lm |
| Colour Temperature | 5000k |
| Number of High Output LEDs | 36 |
| Power Consumption | 126 Watts |
| Current Draw (at 14.4V) | 8.8 Amps |
| CERTIFICATION | |
| High Beam | ECE R112 |
| ECE Reference | 45 |
| DIMENSIONS | |
| Width | 532 mm |
| Depth | 62 mm |
| Height | 40 mm |

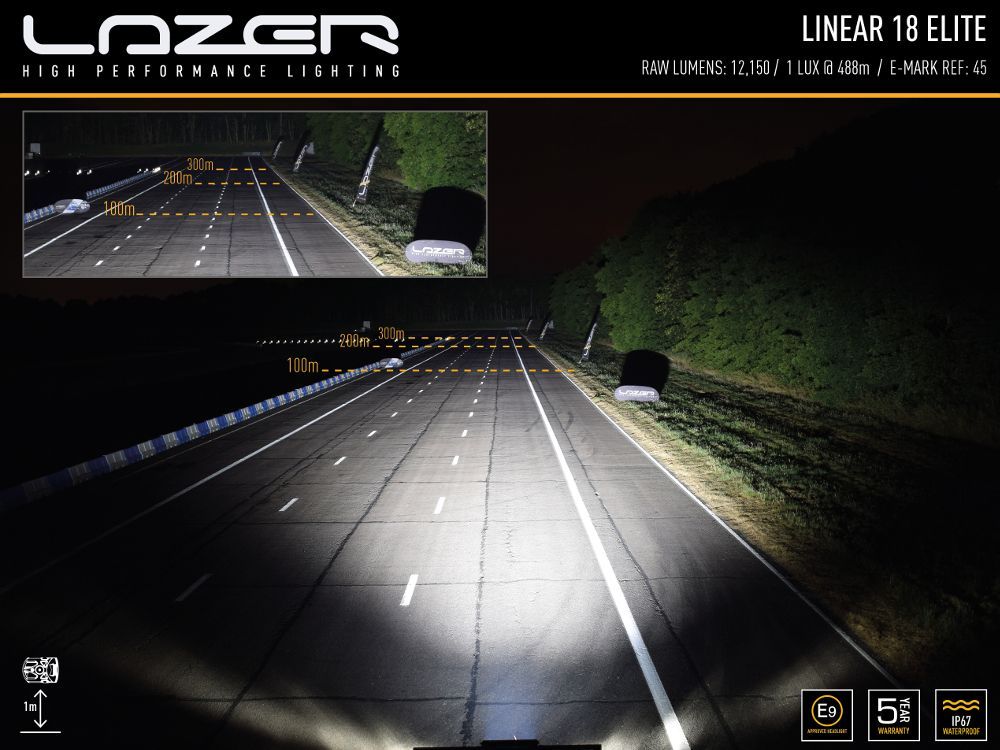

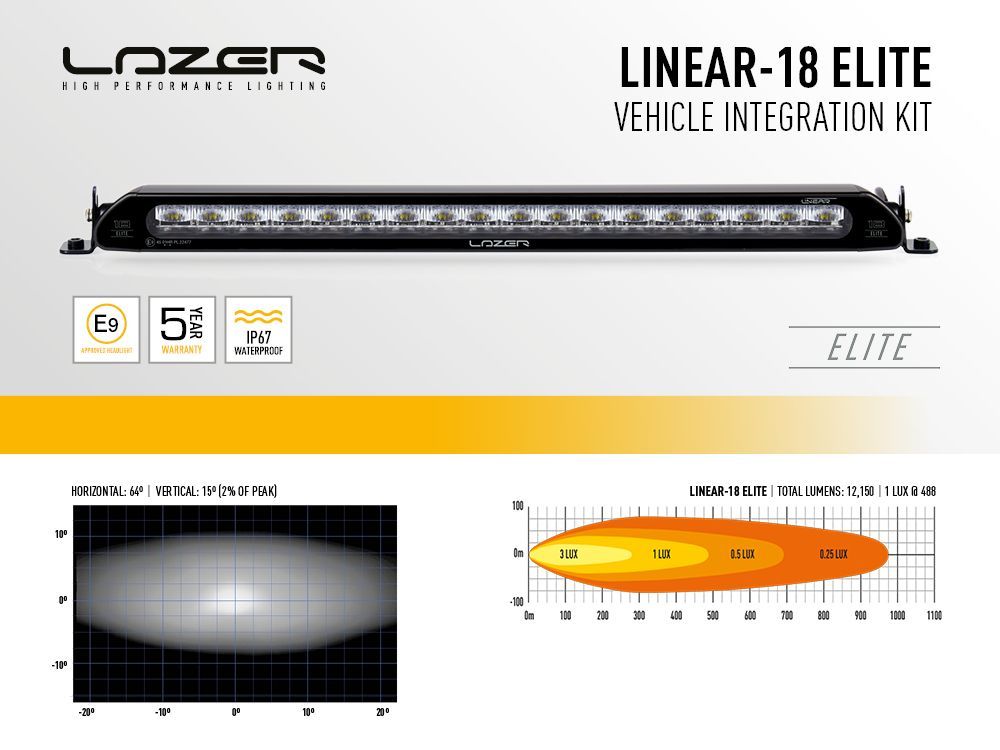

| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 42 deg |
| 0.25 lx Line | 975 metres |
| 0.5 lx Line | 690 metres |
| 1 lx Line | 488 metres |
| 3 lx Line | 282 metres |
