Lazer Lamps Toyota Hilux (2017+) Triple-R 16 Elite Bumper Beam Mounting Kit PN: VIFK-HILUX-G2
For a totally secure and covert auxiliary spotlight installation, the Bumper Beam Mounting Kit for the Toyota Hilux (2017+) is a specially engineered mounting solution that allows for the fitting of a range of Lazer High Performance LED Driving Lights, fixed directly to the bumper beam of the vehicle, concealed behind the lower front grille. Compatible with our Triple-R 16 LED driving light, the ultimate in off-road lighting delivering incredible levels of illumination. So, when the sun goes down, the fun starts.
(incl. VAT £785.78)
For a totally secure and covert auxiliary spotlight installation, the Bumper Beam Mounting Kit for the Toyota Hilux (2017+) is a specially engineered mounting solution that allows for the fitting of a range of Lazer High Performance LED Driving Lights, fixed directly to the bumper beam of the vehicle, concealed behind the lower front grille. Compatible with our Triple-R 16 LED driving light, the ultimate in off-road lighting delivering incredible levels of illumination. So, when the sun goes down, the fun starts.
The brackets are made from 3mm mild steel, with e-coat pre-treatment and a satin black powder coat to ensure automotive grade corrosion resistance. The brackets come supplied with all required fasteners for a secure fixing to the bumper beam.
With no compromises in component parts or production techniques, as with all Lazer products, the products are backed up by our comprehensive 5yr warranty.
- Auxiliary spotlight installation for Toyota Hilux (2017+)
- Optimised mounting for Triple-R 16 Elite

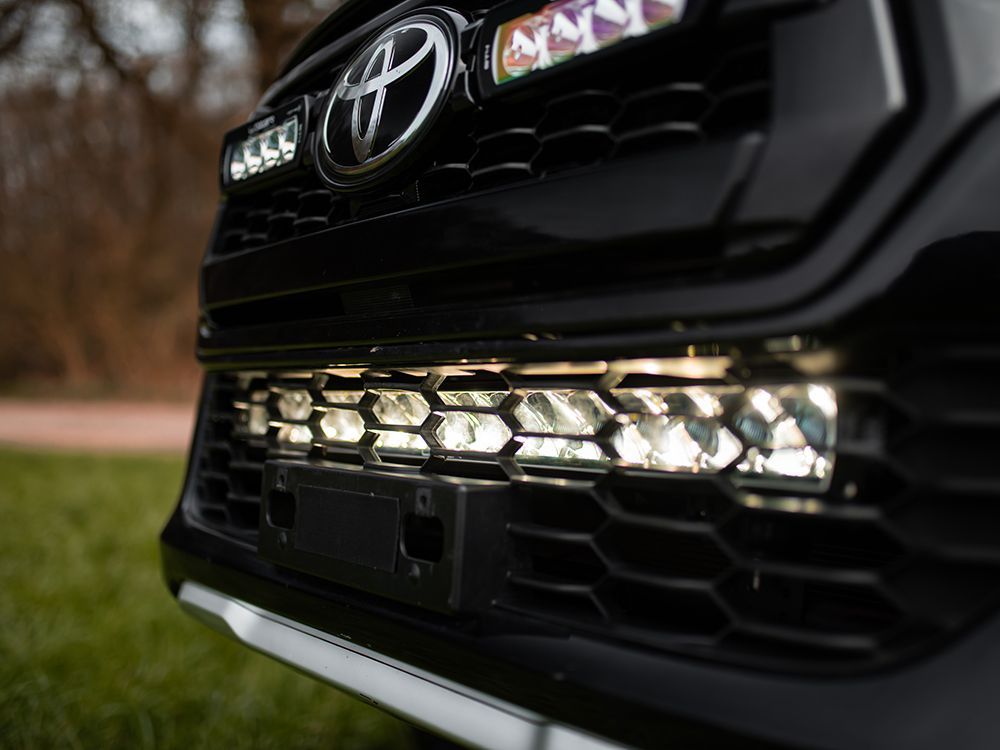

- Secured to vehicle’s bumper beam bar behind lower grille
- Fully robust and secure, with extra protection against theft
- Vehicle wiring kit included and CANbus Interfaces available
- 5-year warranty
- Made in Britain
| Triple-R 16 Elite (Gen2) | |
| Voltage Range | 10-32V |
| LED Life | 50,000 hrs |
| Weight | 2.84 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux |
18040 Lm |
| Total Driver 'FOV' Flux † | 11888 Lm |
| Colour Temperature | 5000k |
| Number of High Output LEDs | 16 |
| Power Consumption | 208 Watts |
| Current Draw (at 14.4V) | 14.4 Amps |
| Start-Up Time * | 100ms |
| CERTIFICATION | |
| High Beam | N/A |
| ECE Reference | N/A |

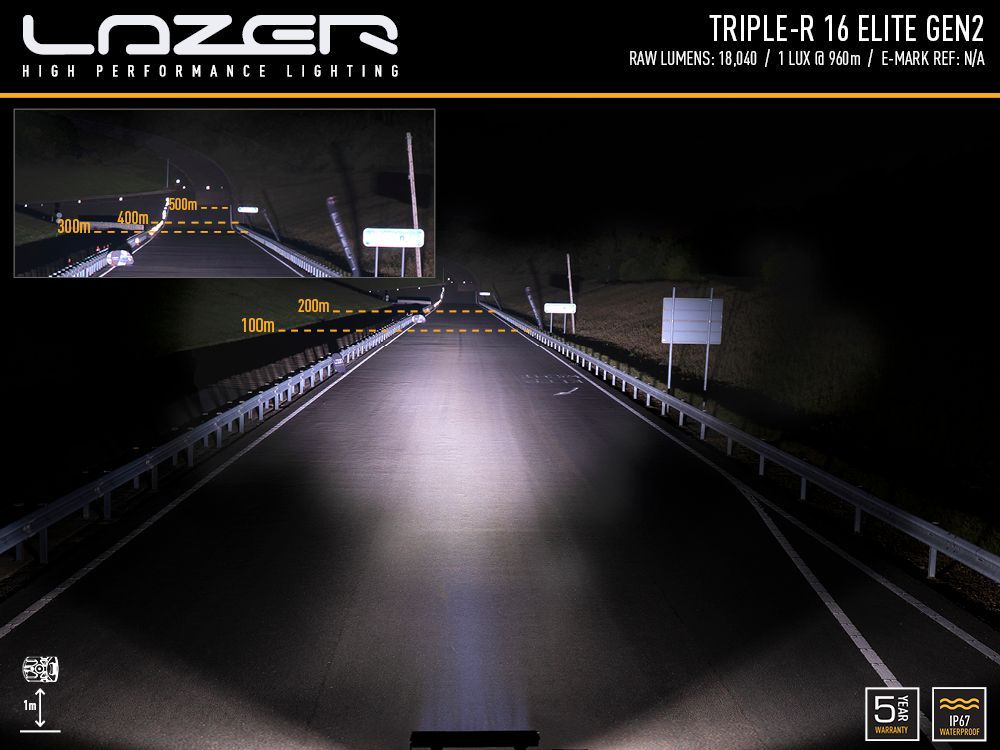

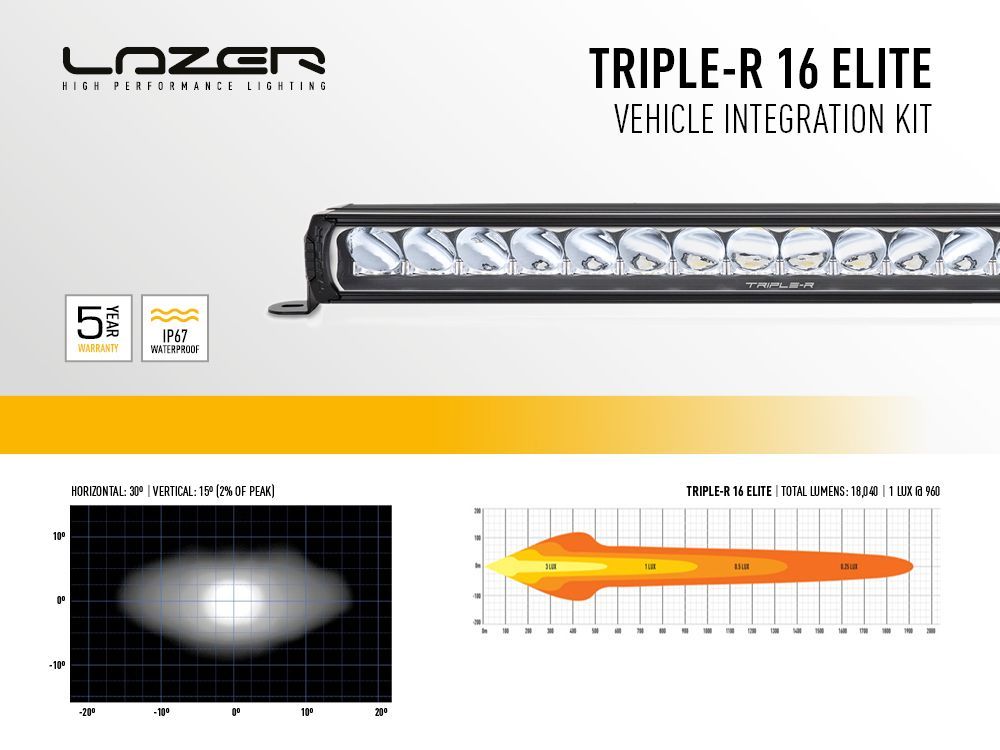

| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 30 Deg |
| 0.25 lx Line | 1920 metres |
| 0.5 lx Line | 1358 metres |
| 1 lx Line | 960 metres |
| 3 lx Line | 554 metres |
* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
