Lazer Lamps Single-Lamp Wiring Kit (Low Power, 12V) PN: 1L-LP-120

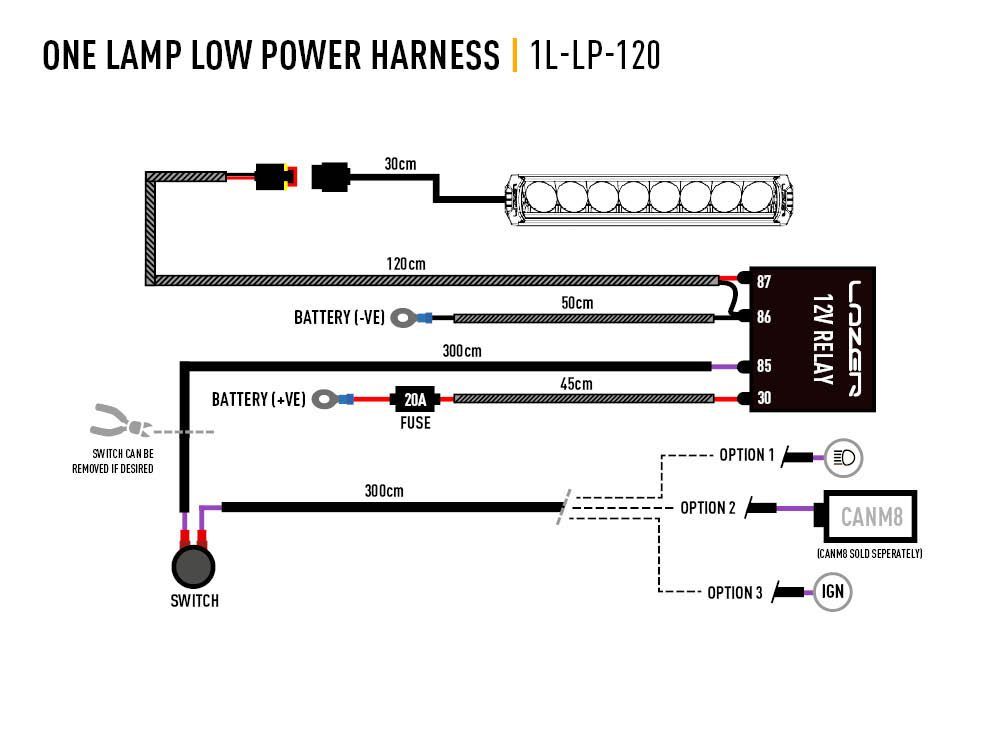

The ideal solution for wiring an E-mark approved Lazer high performance LED spotlight. The setup is quick, easy, and reliable with 2-pin superseal connection and no configuration procedures. The kit features a 12V relay (in waterproof housing), 20A fuse, a battery terminal at one end, and 1.2m of flex on the lamp cable, and allows for the operation of Lazer products either in parallel with the standard lighting on the vehicle, and/or via an independent switch which can be mounted inside your vehicle.
(incl. VAT £39.86)
The ideal solution for wiring an E-mark approved Lazer high performance LED spotlight. The setup is quick, easy, and reliable with 2-pin superseal connection and no configuration procedures. The kit features a 12V relay (in waterproof housing), 20A fuse, a battery terminal at one end, and 1.2m of flex on the lamp cable, and allows for the operation of Lazer products either in parallel with the standard lighting on the vehicle, and/or via an independent switch which can be mounted inside your vehicle.
All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.

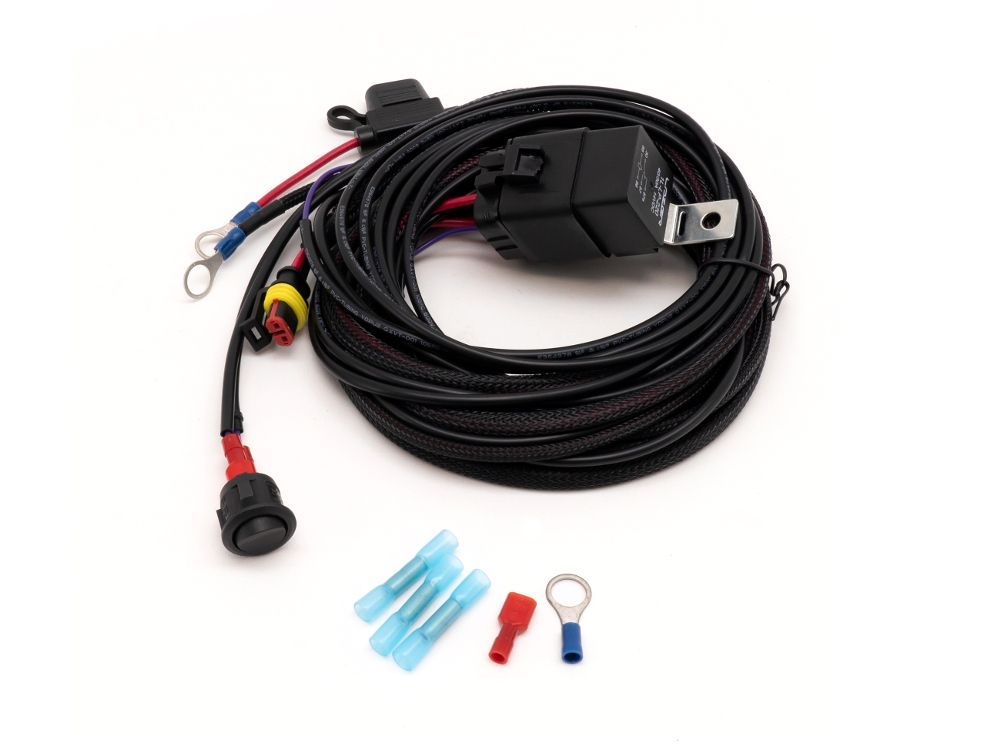

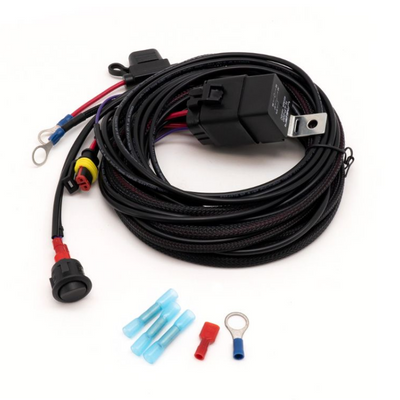

- One-Lamp Wiring Kit for Lazer E-mark approved driving lights
- 1.2m cable length
- Includes 12V relay and 20 amp fuse
- Superseal connections
- Includes optional on/off switch for independent operation of high beam
- Braided cable sections for added protection in engine bay
Compatible with:
- ST Evolution (All Products)
- Triple-R 750 Wide (Gen 2)
- Triple-R 750 Elite (Gen2)
- Triple-R 850 Elite (Gen2)
- Triple-R 1000 Elite (Gen2)
- Linear-6 (Std / Elite)
- Linear-12 (Std / Elite)
- Linear-18 (Std / Elite)
- Linear-36
- Linear-42
- Linear-48
