Lazer Lamps Single-Lamp Wiring Kit (High Power, 12V) PN: 1L-HP-300

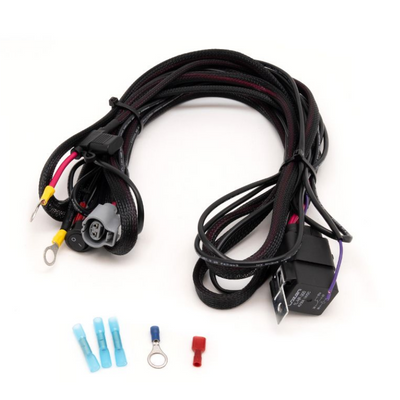

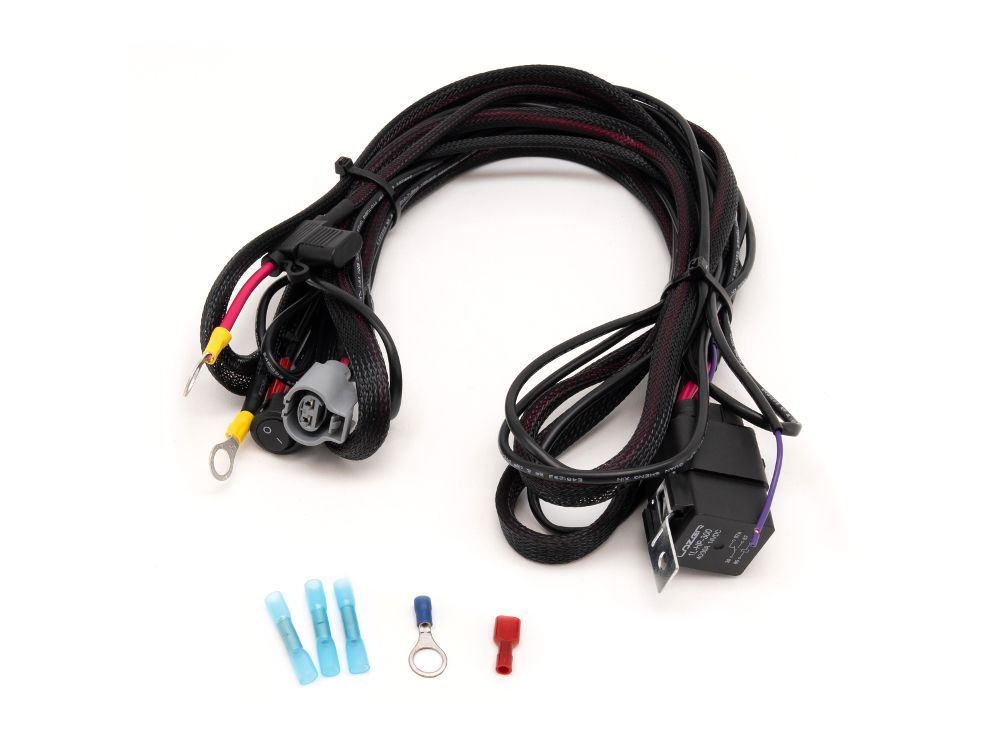

One-lamp wiring kit for all non E-mark certified Lazer high performance LED spotlights (excluding Linear-48), where the requirement is to operate the light via an independent switch located inside the vehicle. The setup is quick, easy, and reliable with deutsch connector and no configuration procedures. The kit features a 12V relay (in waterproof housing), 35A fuse, a battery terminal at one end, and 3m of flex on the lamp cable.
(incl. VAT £60.00)
One-lamp wiring kit for all non E-mark certified Lazer high performance LED spotlights (excluding Linear-48), where the requirement is to operate the light via an independent switch located inside the vehicle. The setup is quick, easy, and reliable with deutsch connector and no configuration procedures. The kit features a 12V relay (in waterproof housing), 35A fuse, a battery terminal at one end, and 3m of flex on the lamp cable.
All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.
- One-Lamp Wiring Kit for non E-mark approved Lazer products (excluding Linear-48)
- 3m cable length
- Includes 12V relay and 35 amp fuse
- Relay holder approved to IP53 when mounted in a vertical (upright) orientation
- Deutsch connection
- Includes on/off switch for independent operation
- Braided cable sections for added protection in engine bay
Compatible with:
- T-16 Evolution
- T-24 Evolution
- T-28 Evolution
- Triple-R 16
- Triple-R 24
- Triple-R 28
Note - all lamps above are supplied as new with the Single-Lamp Wiring Kit (High Power, 12V) included.
