Lazer Lamps Mercedes X-Class Linear-36 Roof Mount Kit (With Roof Rails) PN: 3001-XCLASS-WRR

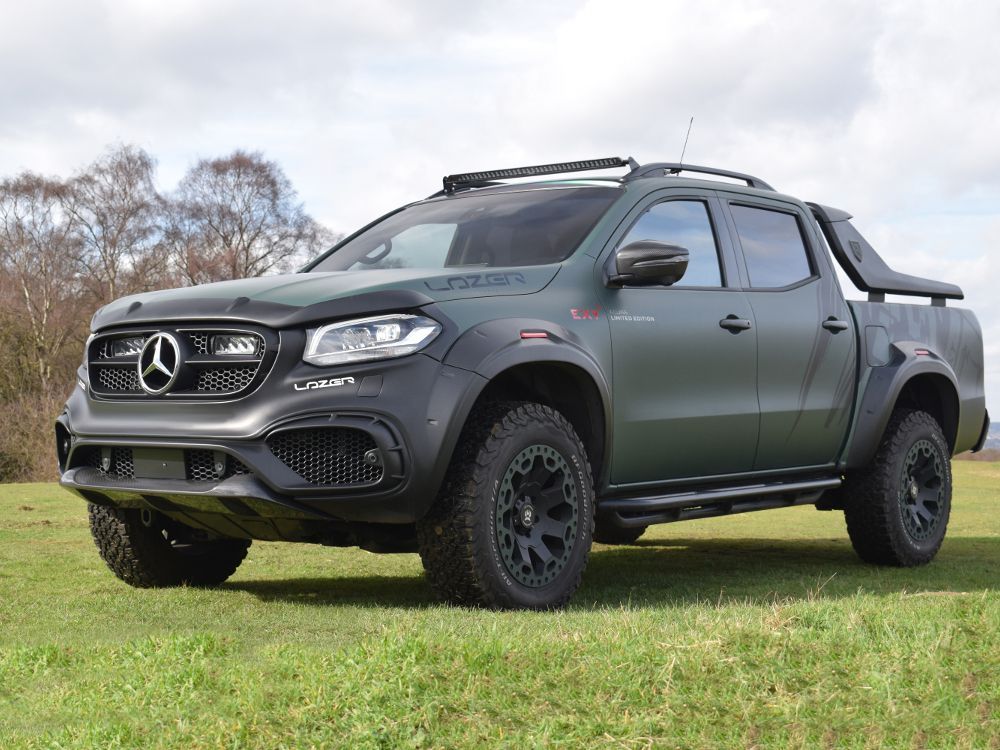

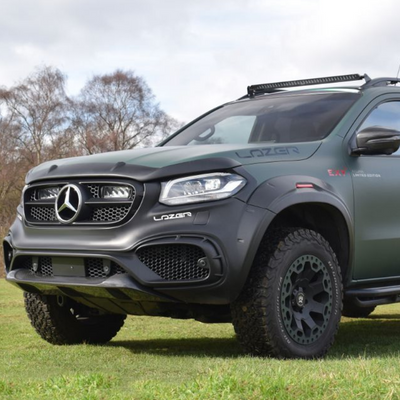

Optimised for the Mercedes X-Class, the Lazer Lamps Roof Mounting Kit comprises stainless steel brackets that fix to the vehicle’s roof rails for easy fitment of the Linear-36 high performance LED spotlight.
(incl. VAT £671.90)
Optimised for the Mercedes X-Class, the Lazer Lamps Roof Mounting Kit comprises stainless steel brackets that fix to the vehicle’s roof rails for easy fitment of the Linear-36 high performance LED spotlight.
Manufactured from A2 stainless steel, and finished with a UV-stable, satin black powder coat, the mounting brackets are fully corrosion resistant in line with automotive grade quality standards, as are the supplied countersunk anti-theft fasteners, and cylindrical spacers to aid positioning of the lamp. Cable grommets are supplied to ensure a tidy, and sealed cable entry point whether into the roof rail, and/or through the roof into the vehicle’s headlining.

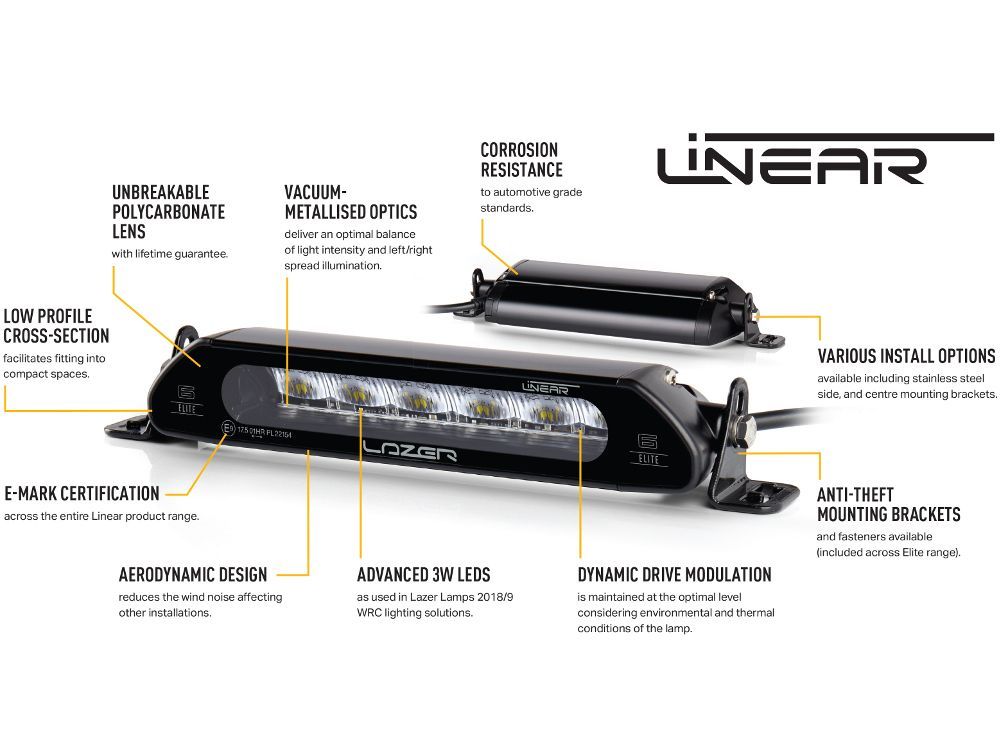

With its low-profile aerodynamic housing, smooth lines, and contemporary design features, the Linear-36 is an ECE-approved auxiliary LED spotlight that integrates effortlessly for an understated install, that boasts class-leading lighting performance. The Linear-36 delivers good distance illumination, and left/right spread, that leaves little to the imagination. The low-profile design also benefits from exceptional low wind noise, which can affect many roof light installations when driving at higher speeds.
Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface. For advice on how to check for a 12V high beam signal, please click here.
- Complete one-stop solution for roof-mounting on Mercedes X-Class with Roof Rails
- Optimised for Linear-36 high performance LED spotlight

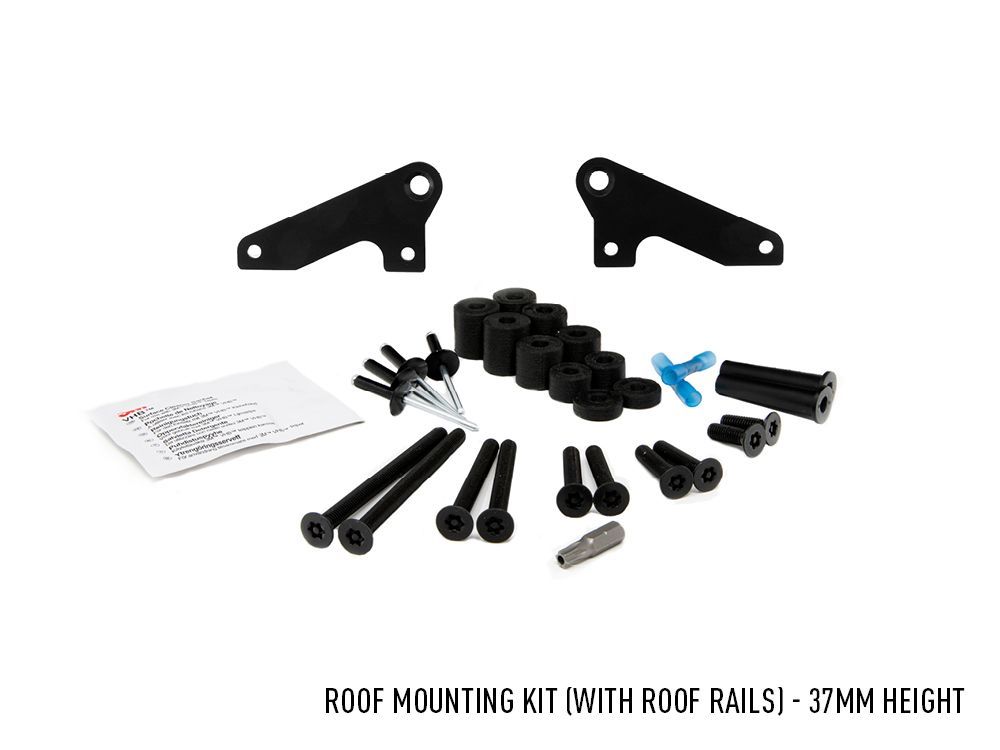

- Mounting brackets made from 3mm A2 stainless steel
- UV-stable, satin black powder coat
- Includes assortment of A2 stainless steel, anti-theft fixings with countersunk head
- Spacers facilitate positioning of different length LED light bars

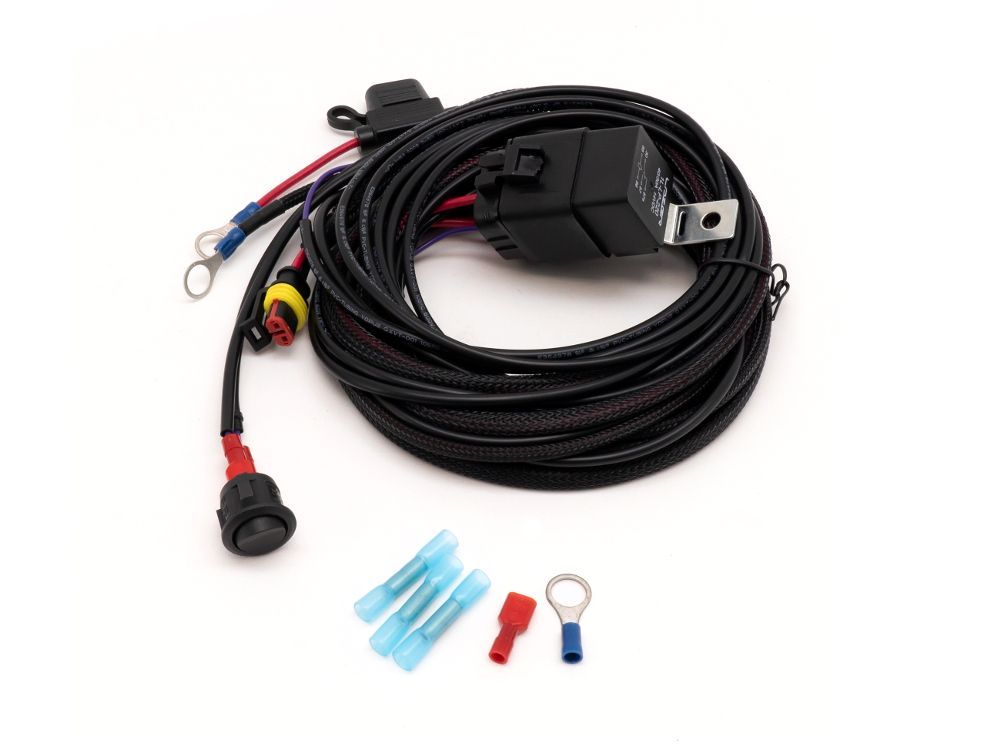

- Vehicle wiring kits available (with Splice or with Switch)
- 5yr Warranty
- Manufactured in the UK
| Voltage Range | 10-32V |
| LED Life | 50,000 hours |
| Weight | 2.7 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 13500 Lm |
| Colour Temperature | 5000k |
| Number of High Output LEDs | 36 |
| Power Consumption | 126 Watts |
| Current Draw (at 14.4V) | 8.8 Amps |
| CERTIFICATION | |
| High Beam | ECE R112 |
| ECE Reference | 50 |
| DIMENSIONS | |
| Width | 982 mm |
| Depth | 62 mm |
| Height | 40 mm |

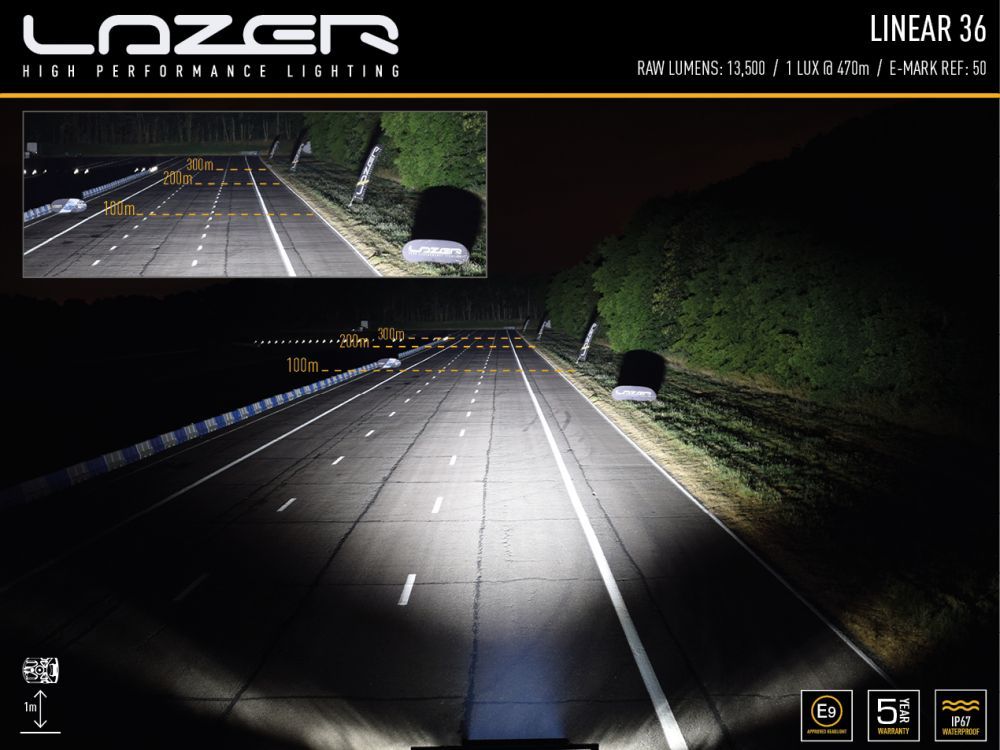

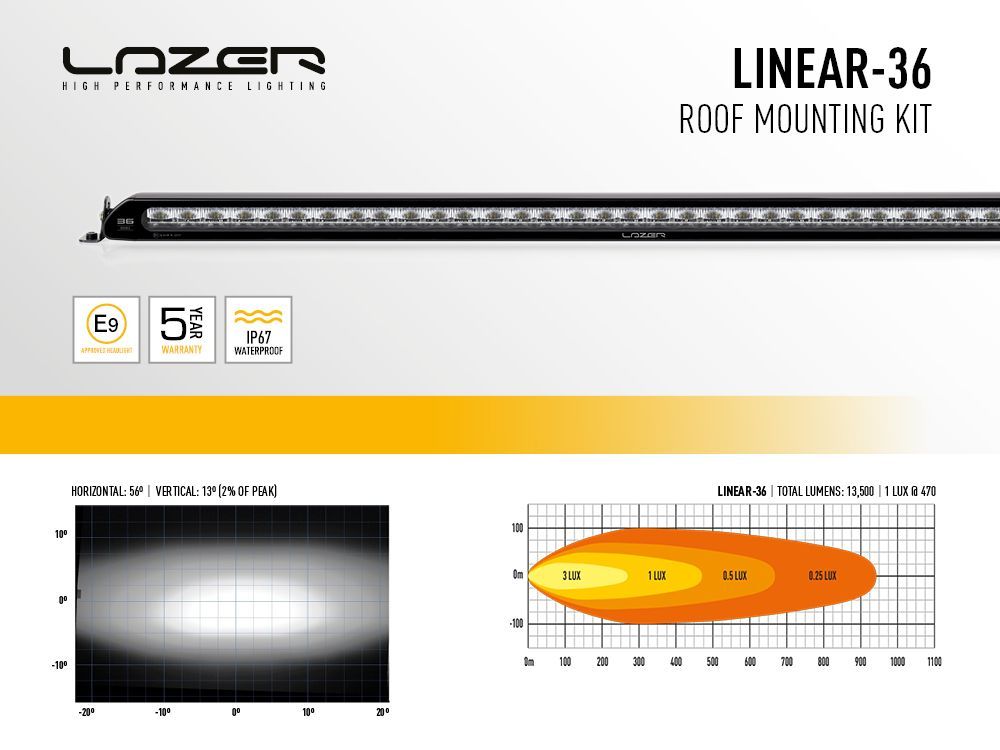

| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 34 Degrees |
| 0.25 lx Line | 940 metres |
| 0.5 lx Line | 665 metres |
| 1 lx Line | 470 metres |
| 3 lx Line | 271 metres |
