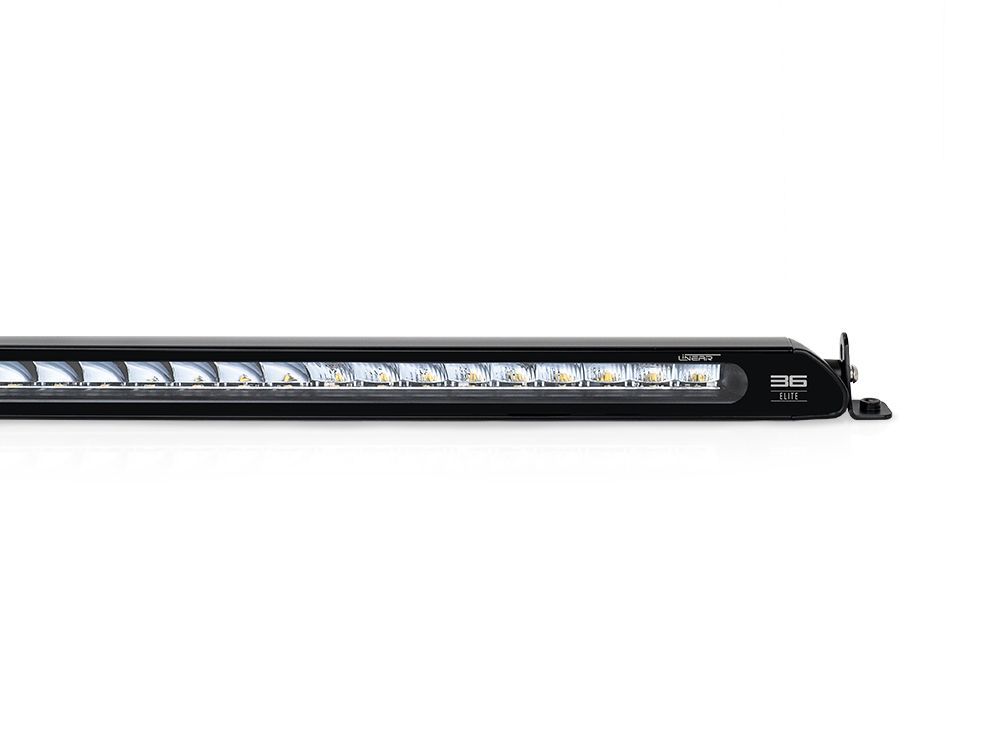

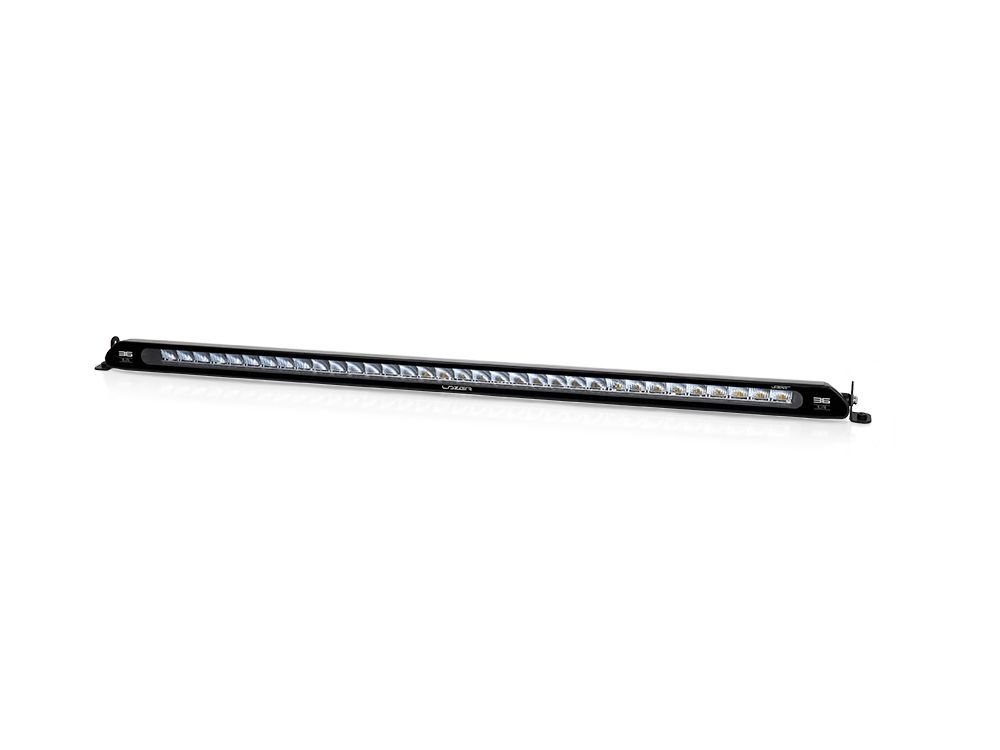

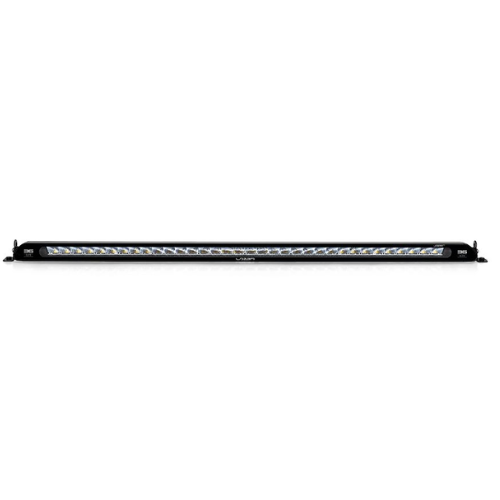

Lazer Lamps Linear 36 Elite 982mm Auxiliary LED Driving Lamp PN: 0L36-EL-LNR

0L36-EL-LNR

Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.

CONTACT US FOR TRADE PRICING
excl. VAT £759.20
(incl. VAT £911.04)

Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.

The Linear range is available in a variety of sizes from the 232mm (9”) Linear-6 to the 1282mm (51”) Linear-48. All Linear Standard grade products are fully UNECE certified to Regulation 112 as Class B Driving lights for on-road use (with the exception of: Linear-48, Linear-36 Elite, Linear-42 Elite and Linear-48 Elite). Elite level products are also available, with these products boasting at least twice the light output compared to the equivalent Standard version. The Linear-12 Elite and Linear-18 Elite lights are also available with the option for integrated position light function providing added safety and styling benefits.

Despite the diminutive proportions of the Linear products, the LED light bars are packed full of advanced and innovative features to maximise performance and longevity. With the products designed, engineered and built in-house, at our UK facility, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed by our comprehensive 5-year warranty.

Linear products are especially well-suited to roof mount installations where the sleek, aero design of the aluminium housing eliminates nearly all wind noise, and the comparatively low up/down spread of light ensures no glare off the vehicle bonnet.

Included:

x1 Linear-36 Elite LED Lamp

x1 Anti-Theft Side Mount (1127k)

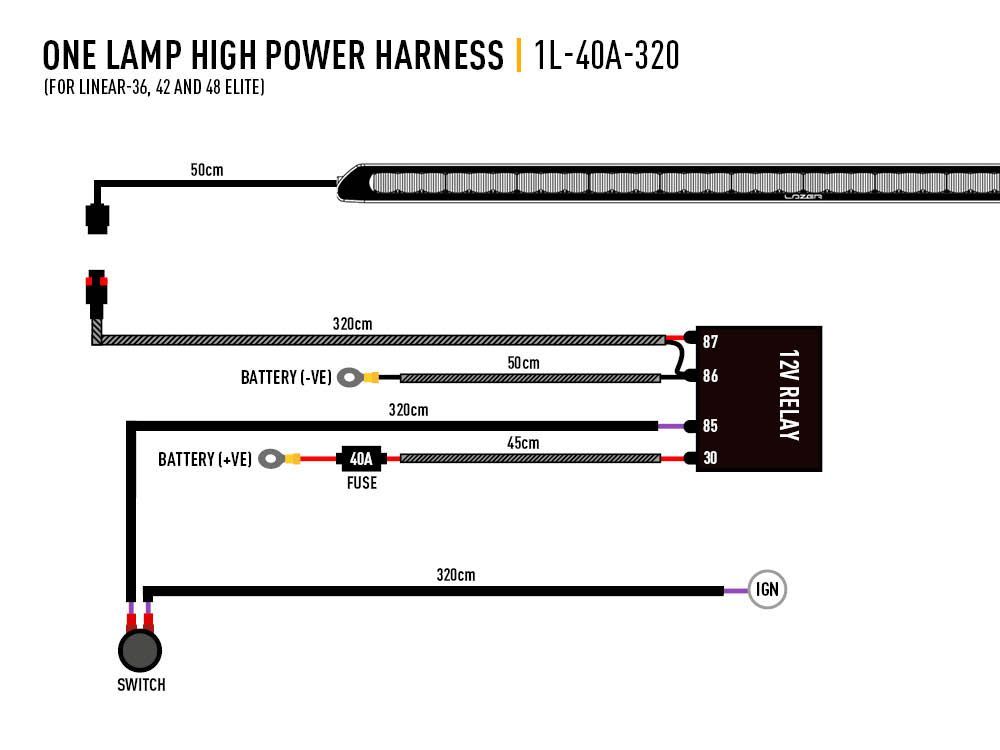

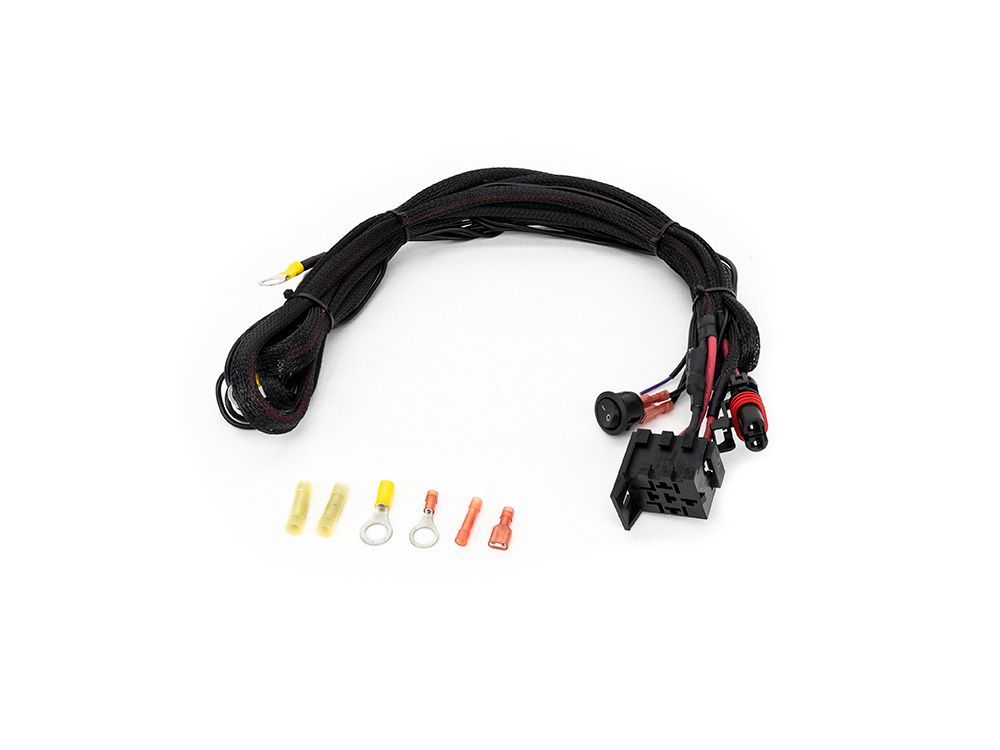

x1 Single-Lamp Wiring Harness (1L-40A-320)

x1 Installation Instructions

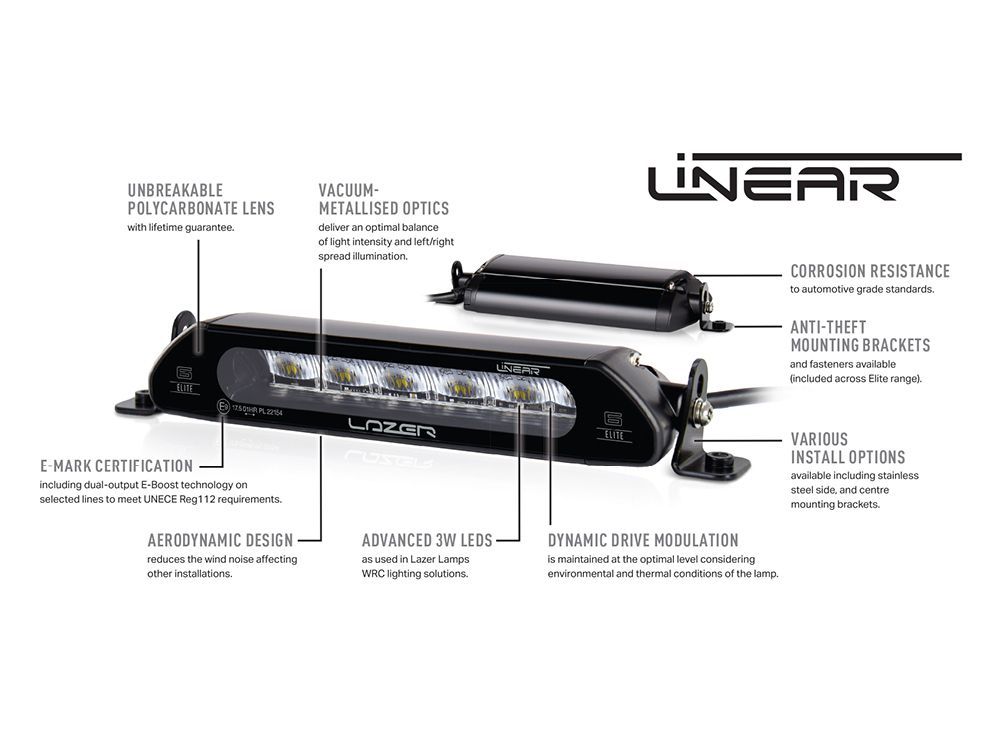

  • Combination of highly efficient 3W ‘premium bin’ LEDs
  • 5000K LED colour temperature and 80CRI maximises sharpness and definition
  • Vacuum-metallised optics deliver wide spread of light
  • Reduced up/down spread of light suits even low mounting positions, or roof mounting
  • Sleek, low profile design eases installation
  • Aero design virtually eliminates wind noise on roof installations

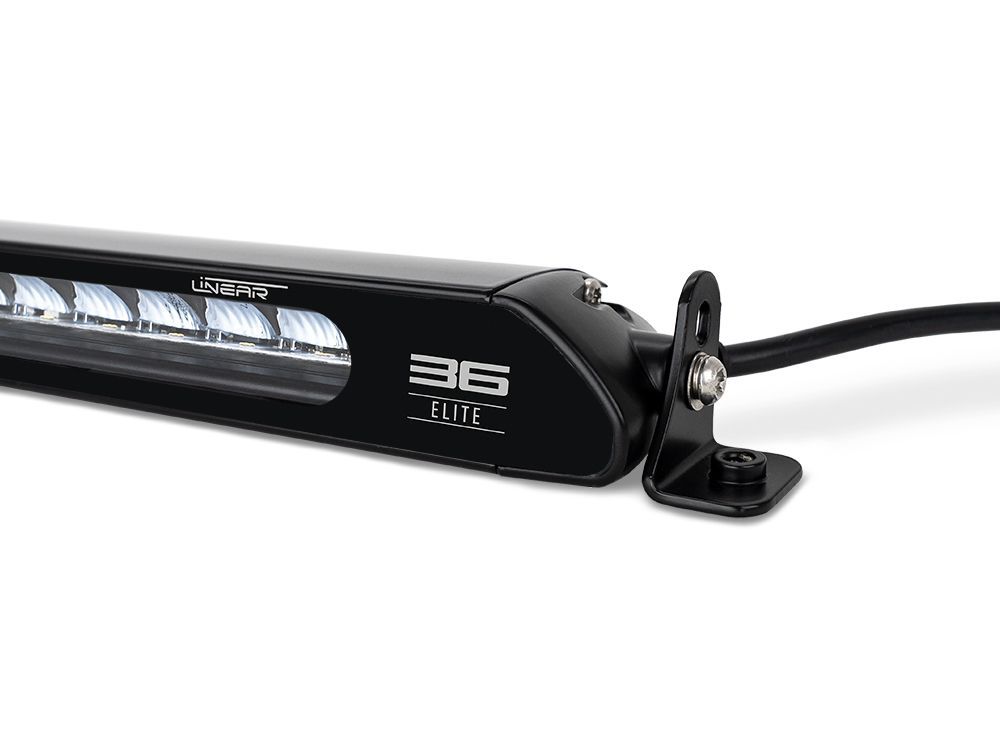

  • Flexible mounting options – anti-theft side mounting brackets included
  • Electronic thermal management system optimises light output to preserve longevity of the LEDs
  • Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
  • CAE optimised heatsink offers improved thermal dynamics
  • Over voltage protected
  • Reverse polarity protected
  • ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
  • UNECE approved Reg 10
  • IP67 watertight
  • 5 year warranty
  • Supplied with pre-wired male/female 2-pin Superseal connectors
  • Designed and manufactured in UK

Based on: 1x Linear-36 Elite.

Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 2.7 kg
HIGH BEAM FUNCTION
Total Luminous Flux 29700 Lm
Total Driver 'FOV' Flux † 21325 Lm
Colour Temperature 5000K
Number of High Output LEDs 72
Power Consumption 308 Watts
Current Draw (at 14.4V) 21.4 Amps
CERTIFICATION
High Beam N/A
ECE Reference N/A

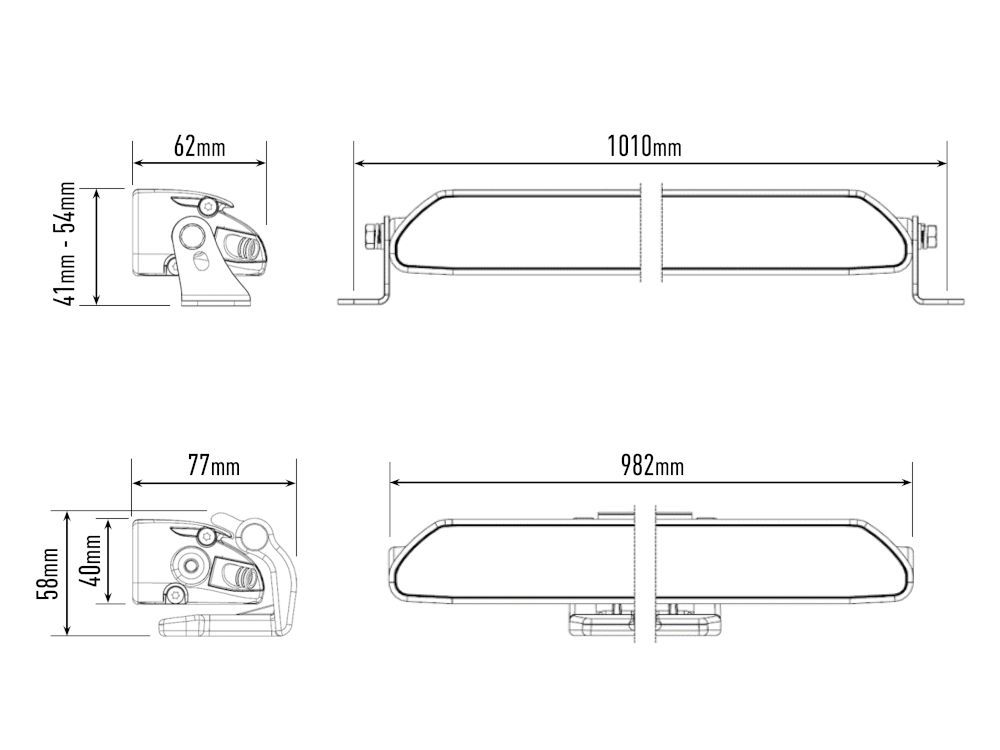

DIMENSIONS
Width 982 mm
Depth 62 mm
Height 40 mm

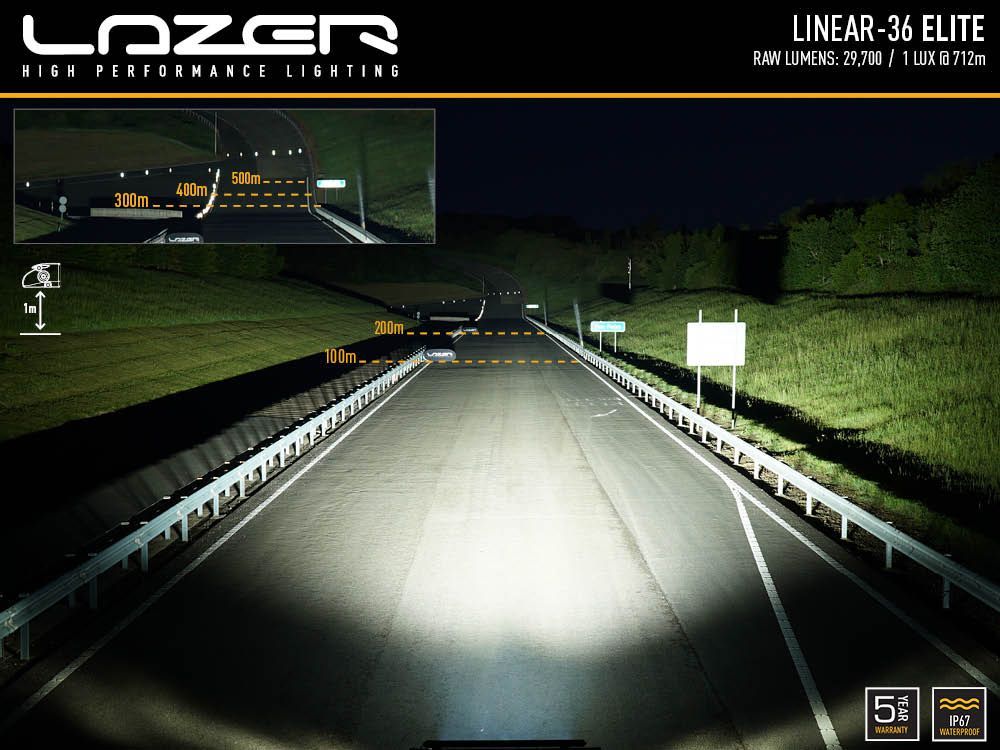

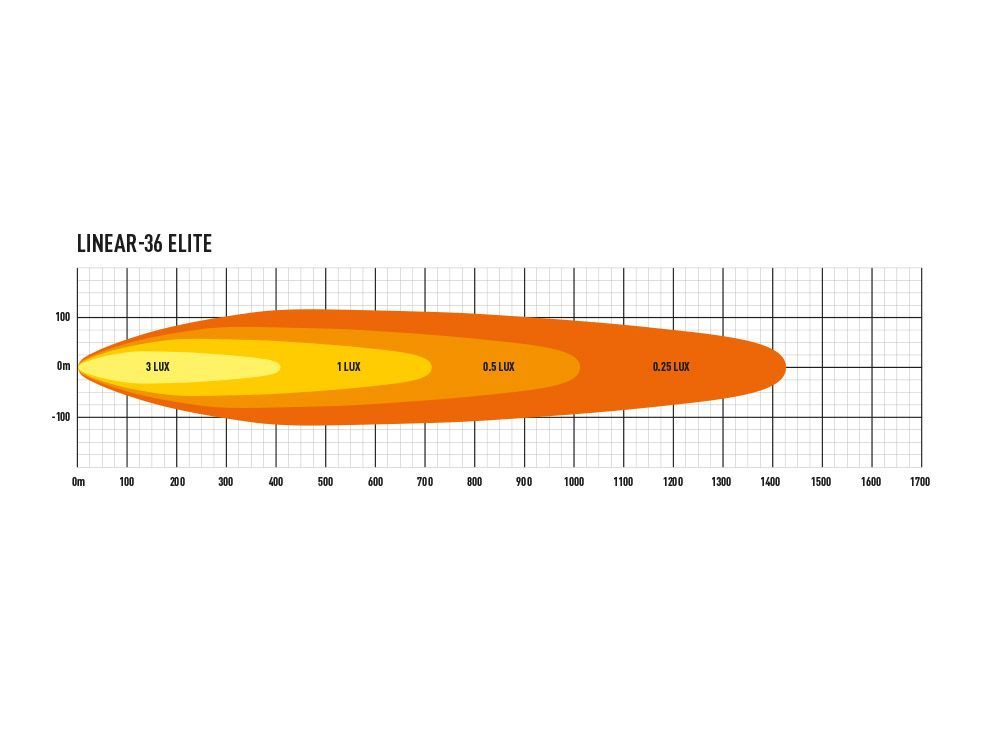

PHOTOMETRIC DATA

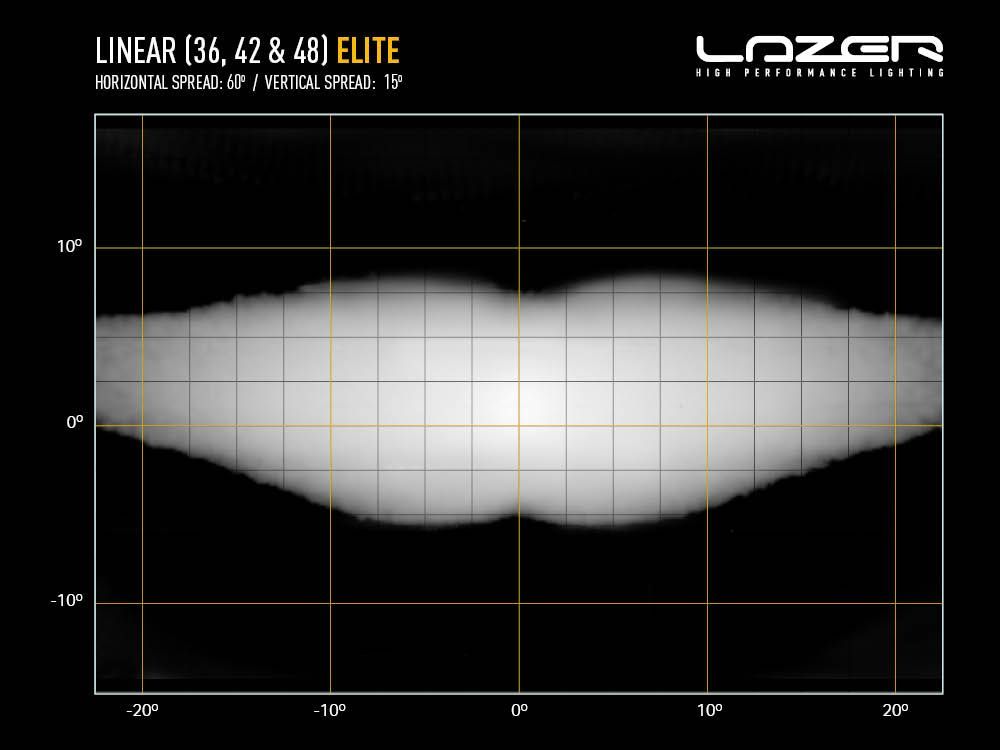

Horizontal Beam Angle 60°
0.25 lx Line 1423m
0.5 lx Line 1006m
1 lx Line 712m
3 lx Line 411m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
