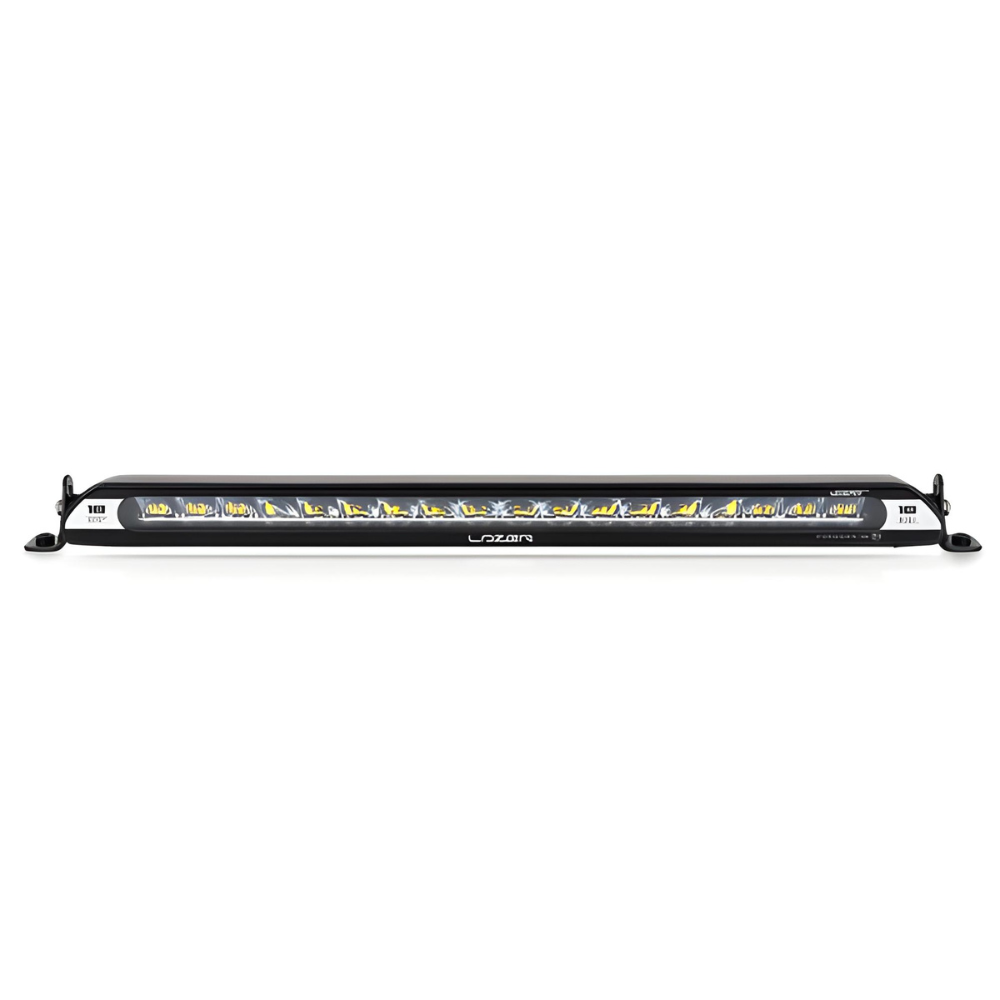

Lazer Lamps Linear 18 Elite+ 532mm Auxiliary LED Dual Colour Driving Lamp PN: 0L18-PLUS-LNR
Representing an evolution in our highest performance LED lighting solutions, the Elite+ range comprises products with enhanced performance, light distribution, and functionality. Improvements are in part made through the placement of supplemental yellow LEDs in each of the lights, which can either combine with the already superior white light high beam function for awe-inspiring night-time visibility at a slightly softer, more relaxing colour temperature. Or the option to operate the yellow LEDs on their own, with that light angled slightly down and to the sides of the road or track making this function ideal in snow, fog, or dust conditions.
(incl. VAT £626.34)
Representing an evolution in our highest performance LED lighting solutions, the Elite+ range comprises products with enhanced performance, light distribution, and functionality. Improvements are in part made through the placement of supplemental yellow LEDs in each of the lights, which can either combine with the already superior white light high beam function for awe-inspiring night-time visibility at a slightly softer, more relaxing colour temperature. Or the option to operate the yellow LEDs on their own, with that light angled slightly down and to the sides of the road or track making this function ideal in snow, fog, or dust conditions.
The lights are intended to cycle through the different lighting modes via a momentary switch. The lighting modes are: Boost (white only), Combo (white + yellow), Snow/Fog/Dust Mode (yellow only), and E-mark (white only; road-legal at reduced output compliant with UNECE Reg 149). A memory function within the lamp means the previous mode selected will be in effect when your vehicle is restarted for example. Additionally, pressing and holding the momentary switch for 2 seconds will result in the light instantly jumping to the E-mark mode.
Despite the low-profile aero design of the Linear-18 Elite+, through advanced electronic design the light consists of an impressive 36 white LEDs and 18 yellow LEDs. With the light operating in Boost mode the white LEDs produce 14,850 raw lumen (10% more than the current Linear-18 Elite). Switching to ‘Combo’ mode the white and yellow LEDs combine to produce 21,000 raw lumen representing incredible lighting performance for an LED light bar of its size. All LEDs operating in combination results in 190W power consumption and 14Amps current draw (at 14V). To support operation of the lamp and electrical installation, a supplied wiring kit with high power Aptiv connector is included.
Like all Lazer products, the Elite+ range has been designed, engineered, and is manufactured in-house in the UK to exacting standards, both in terms of performance, reliability, and appearance. With the light’s contemporary design, the styling and finish is impressive especially up-close, but the true wow moments comes when you turn the light on at night! Backed up by our comprehensive 5-year warranty, and Lifetime Lens Guarantee, this is a product you can have confidence will last for years in even the harshest environments.
- Combination of highly efficient white (5000k) and PC-yellow LEDs.
- Yellow LEDs optimised for use in snow / fog / dust conditions.
- White light ECE approved to Reg 149 (Class B, Driving Light) for on-road use (E-Boost technology).
- Supplied with One-Lamp Wiring Kit.
- Momentary switch facilitates switching lighting modes.
- Memory function recalls preferred lighting mode without needing to re-select each journey.

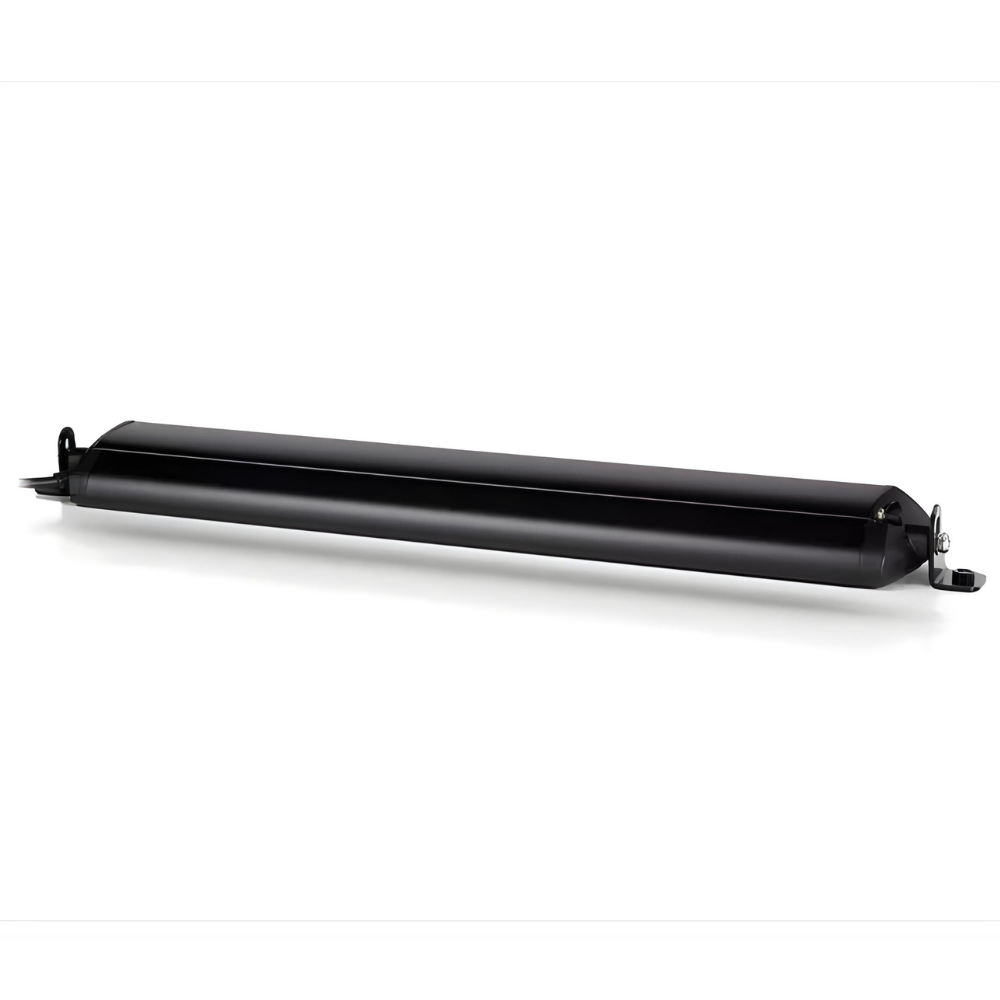

- Sleek, low profile design facilitates installation
- Flexible mounting options – anti-theft mounting brackets included
- CAE optimised heatsink offers improved thermal dynamics
- Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection
- Electronic thermal management system optimises light output to preserve longevity of the LEDs .
- ‘Unbreakable’ and hardcoated polycarbonate lens
- IP68 watertight
- 5-year warranty
- Designed & manufactured in the UK
What's Included?

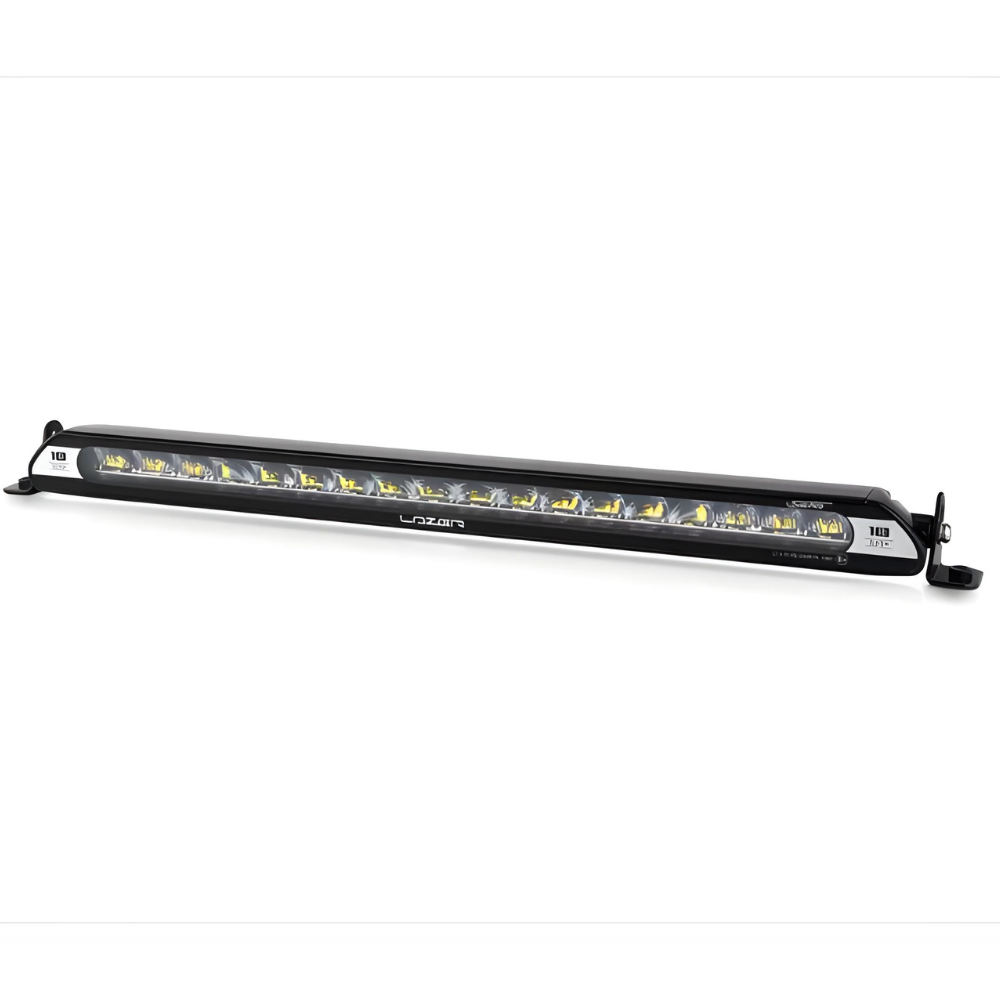

- Linear-18 Elite+ LED Lamp
- Anti-Theft Side Mount (1127k)

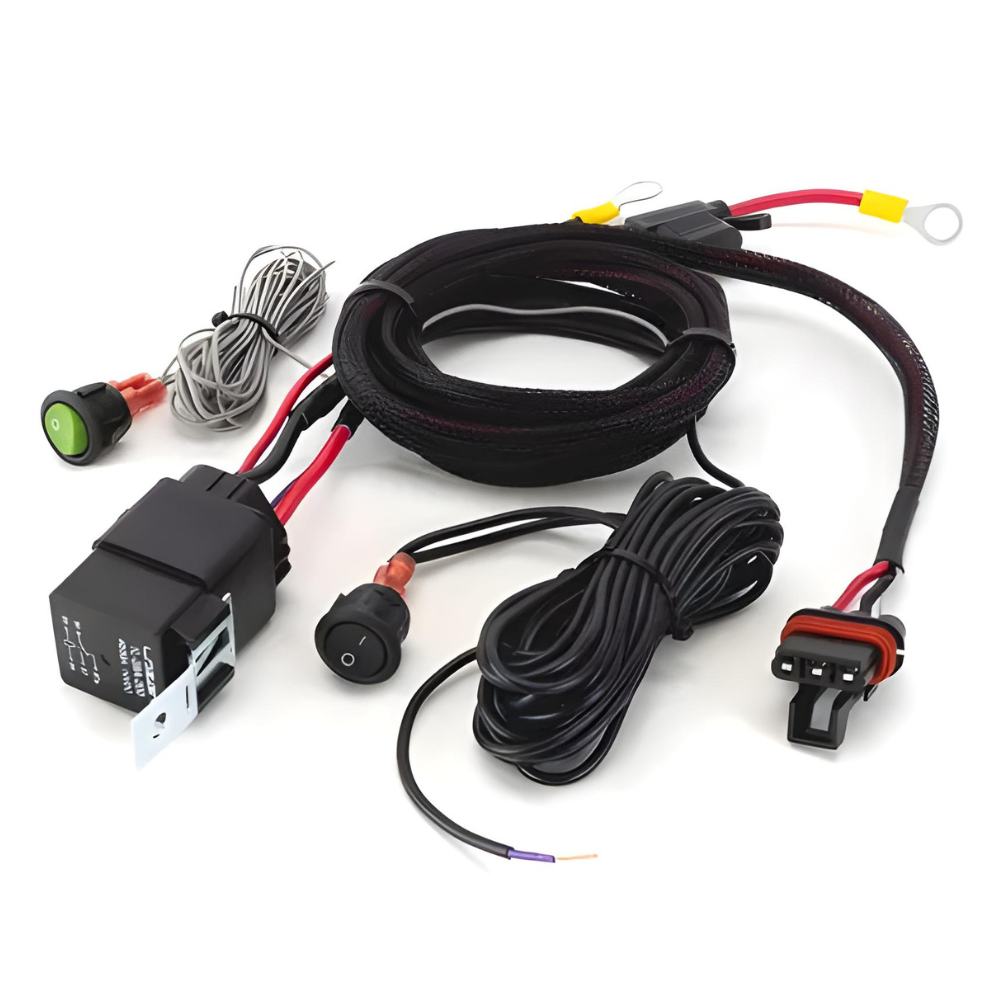

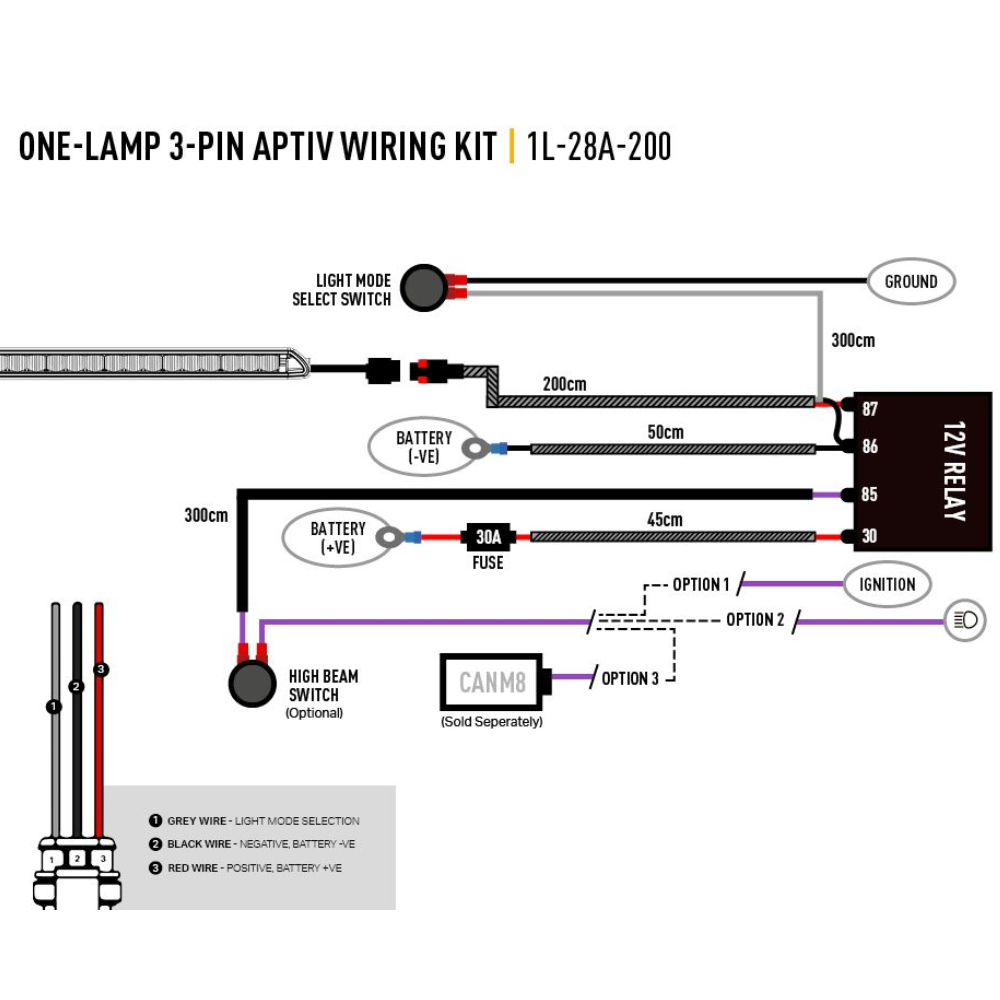

- Single-Lamp Wiring Kit (1L-28A-200)
- Installation Instructions
Based on: 1x Linear-18 Elite+ LED Lamp.
| White LED's (E-Boost / E-Mark Mode) |
Yellow LED's (Fog / Dust / Snow Mode) |
White & Yellow LED's (Combo Mode) |
|
| Voltage Range (DC) | 10-32V | 10-32V | 10-32V |
| LED Life | 50,000 hours | 50,000 hours | 50,000 hours |
| Weight | 1090 gr | 1090 gr | 1090 gr |
| HIGH BEAM FUNCTION | |||
| Total Luminous Flux | 14850 / 4455 Lm | 6150 Lm | 21000 Lm |
| Total Driver 'FOV' Flux † | 10573 / 3172 Lm | 3737 Lm | 14284 Lm |
| Colour Temperature | 5000K | PC Yellow | N/A |
| Number of High Output LEDs | 36 | 18 | 36 White / 18 Yellow |
| Power Consumption | 134 W / 39 W | 56 W | 190 W |
| Current Draw | 9.9 A / 2.7 A | 4.1 A | 14.1 A |
| Peak Current Draw | 13.3 A / 3.8 A | 6.1 A | 19 A |
| CERTIFICATION | |||
| High Beam | ECE R149 | N/A | |
| ECE Reference | TBC | ||

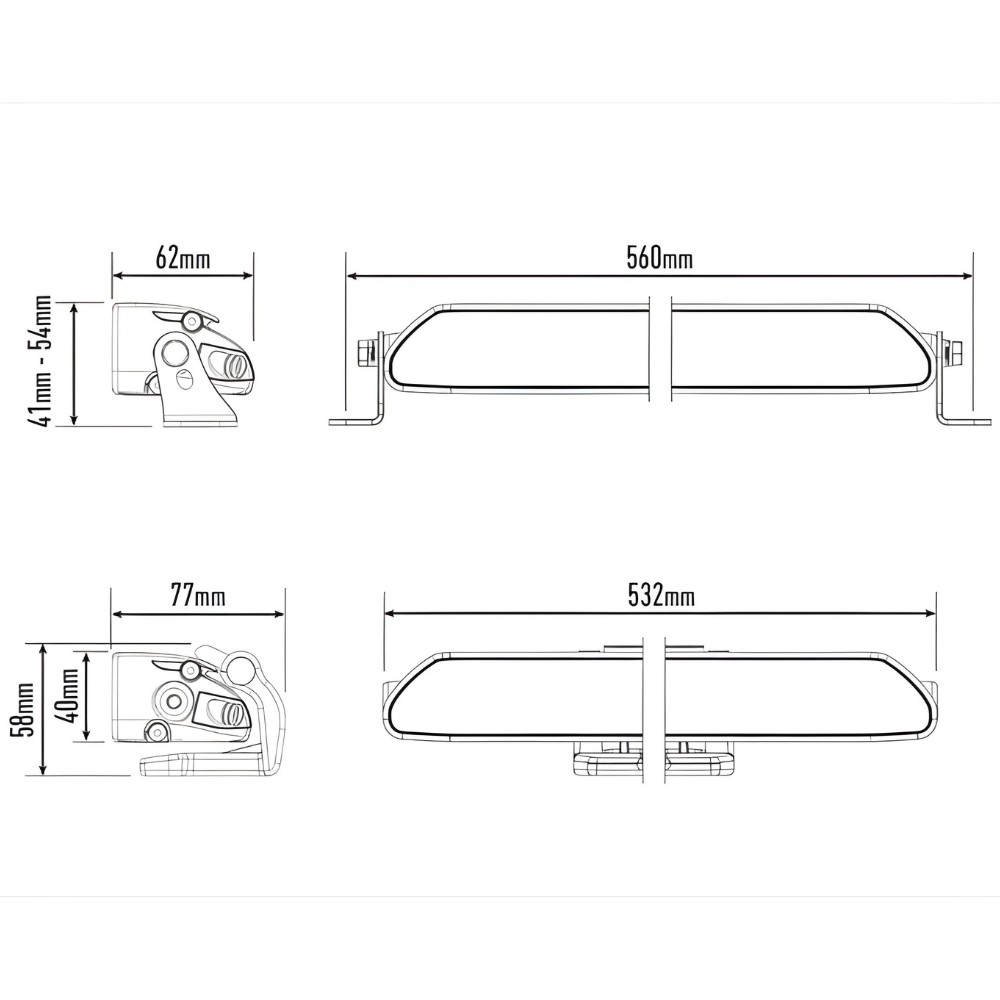

| DIMENSIONS | |||
| Width | 532 mm | 532 mm | 532 mm |
| Depth | 62 mm | 62 mm | 62 mm |
| Height | 40 mm | 40 mm | 40 mm |
| PHOTOMETRIC DATA | |||
| Horizontal Beam Angle | 84o | 84o | 84o |

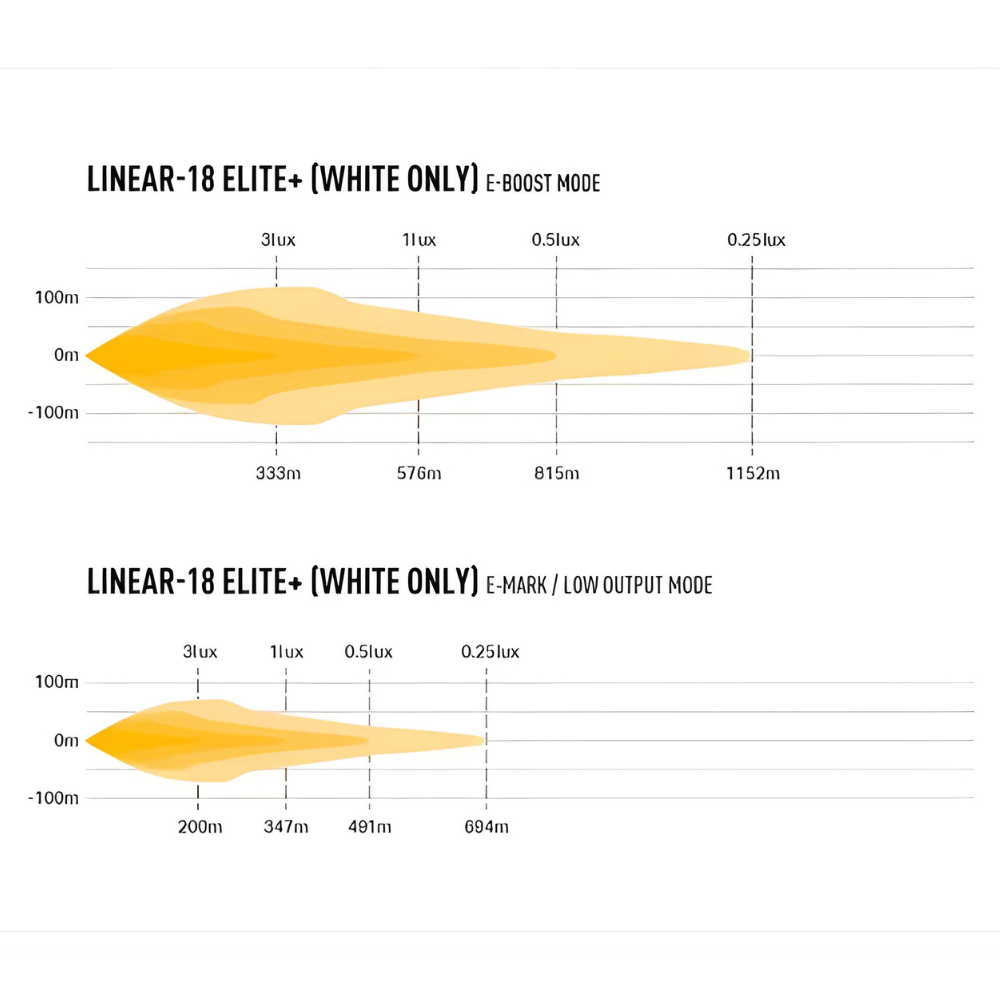

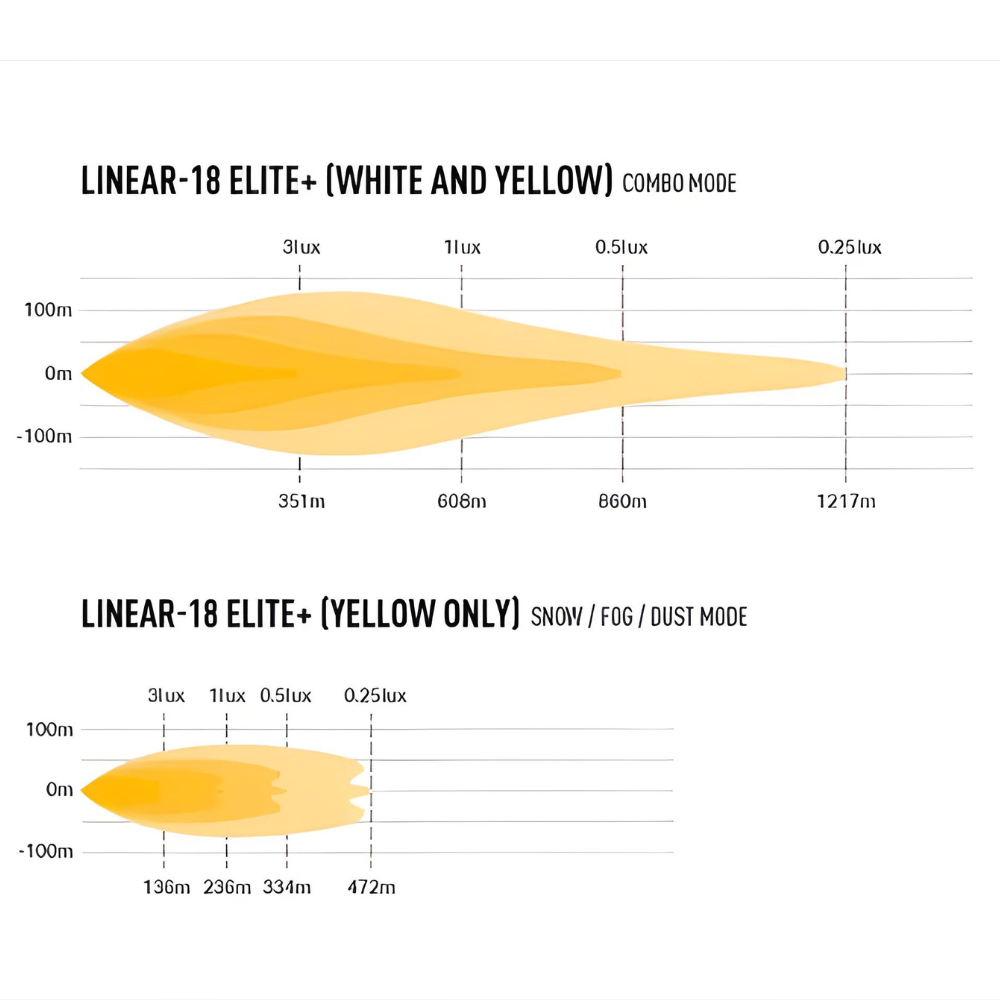

| 0.25 lx Line | 1152m / 694m | 472m | 1217m |
| 0.5 lx Line | 815m / 491m | 334m | 860m |
| 1 lx Line | 576m / 347m | 236m | 608m |
| 3 lx Line | 333m / 200m | 136m | 351m |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
