Lazer Lamps Land Rover Defender (2020+) Sentinel Mounting Kit PN: VIFK-DEF2020-0S
Utilising satin black mounting brackets concealed behind the bumper surround, the Lazer Lamps vehicle integration kit for the Land Rover Defender (2020+) allows for mounting a pair of our class-leading Sentinel LED driving lights, for an auxiliary LED driving light installation that impresses day and night. Included with the kit are stabilising bars to ensure each lamp is fully robust and secure without any adverse vibrations.
(incl. VAT £972.00)
Utilising satin black mounting brackets concealed behind the bumper surround, the Lazer Lamps vehicle integration kit for the Land Rover Defender (2020+) allows for mounting a pair of our class-leading Sentinel LED driving lights, for an auxiliary LED driving light installation that impresses day and night. Included with the kit are stabilising bars to ensure each lamp is fully robust and secure without any adverse vibrations.

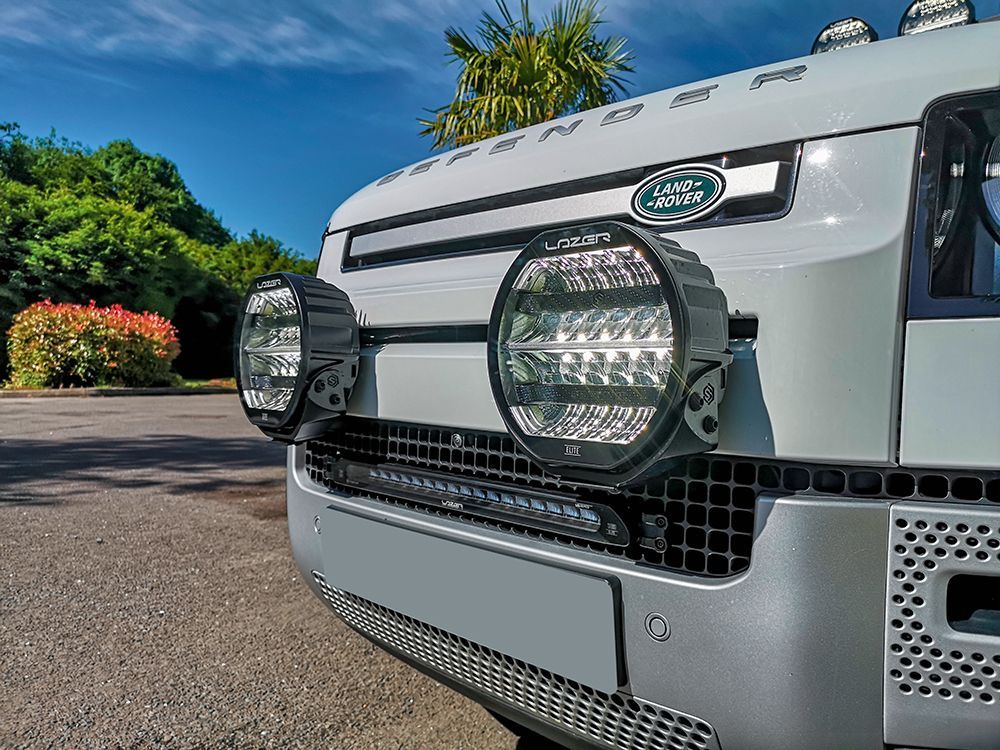

The mounting brackets are made from 3mm folded A2 stainless stell, that benefit from an e-coat finish complete with satin black powder coat. The mounts are secured to the vehicles bumper beam bar for a subtle installation, secured using supplied fasteners and rivets. The resulting setup is secure and robust, aided by the supplied stay bar kits. Like all lighting products from Lazer Lamps, the lights are designed, engineered, and manufactured in the UK, backed up by our comprehensive 5-year warranty. With no compromises in component parts or production techniques, your installation will stay looking in great shape year-after-year.

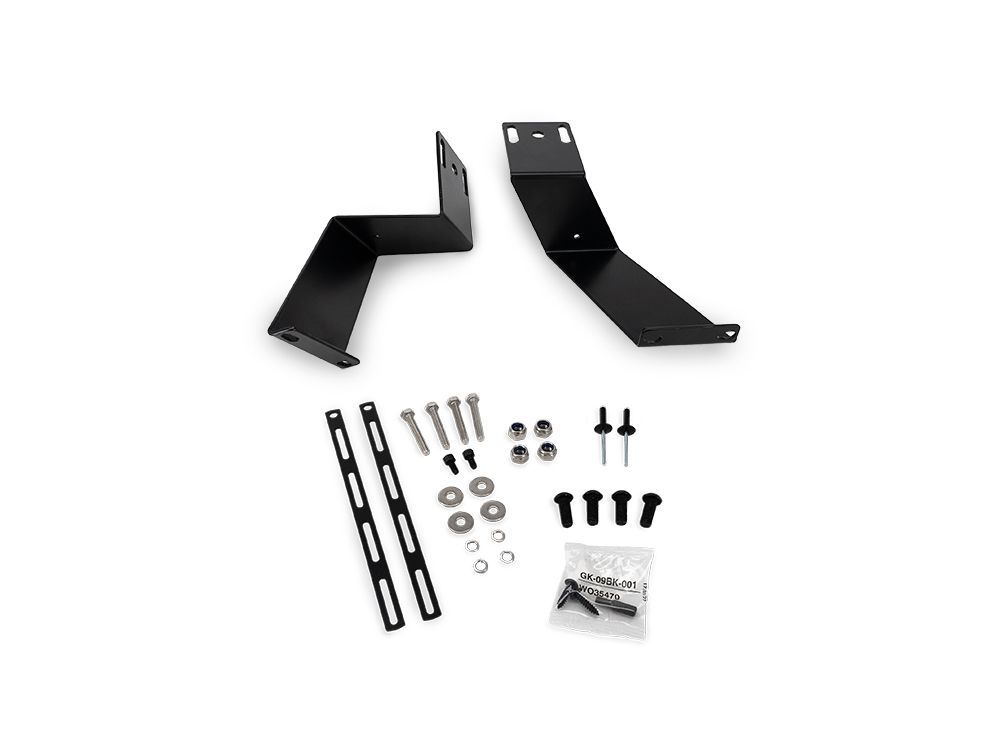

Whats included?
2 x Lazer Lamps Sentinel Lights
2 x Brackets
- Bespoke vehicle integration kit for Lazer LED Spotlight installation
- Custom fit for Land Rover Defender (MY 2020+)
- Compatible with: 2x Sentinel High Performance LED Spotlights
- Made from 3mm A2 stainless steel
- UV-stable e-coat finish with satin black powder coat
- Supplied with stainless steel fixtures and fasteners
- Stabilising kits included for a fully robust install
- Fully road-legal
- 5-year warranty
- Made in Britain
Based on: 2x Sentinel 9'' LED Lights.
| E-Boost | E-Mark | |
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs |
| Weight | 5 kg | 5 kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux |
19,040 Lm |
3,808 Lm |
| Total Driver 'FOV' Flux † | 11,176 Lm | 2,236 Lm |
| Colour Temperature | 5000k | 5000k |
| Number of High Output LEDs | 2x20 | 2x20 |
| Power Consumption | 174 Watts | 34 Watts |
| Peak Current Draw (10v) | 16.2 Amps | 3.2 Amps |
| Current Draw (at 14.4V) | 12 Amps | 2.4 Amps |
| Start-Up Time* | 5ms | 5ms |
| CERTIFICATION | ||
| High Beam | N/A | ECE R112 |
| E-Mark Ref | N/A | 2x20 |
| Position Light (White) | ECE R7 | ECE R7 |

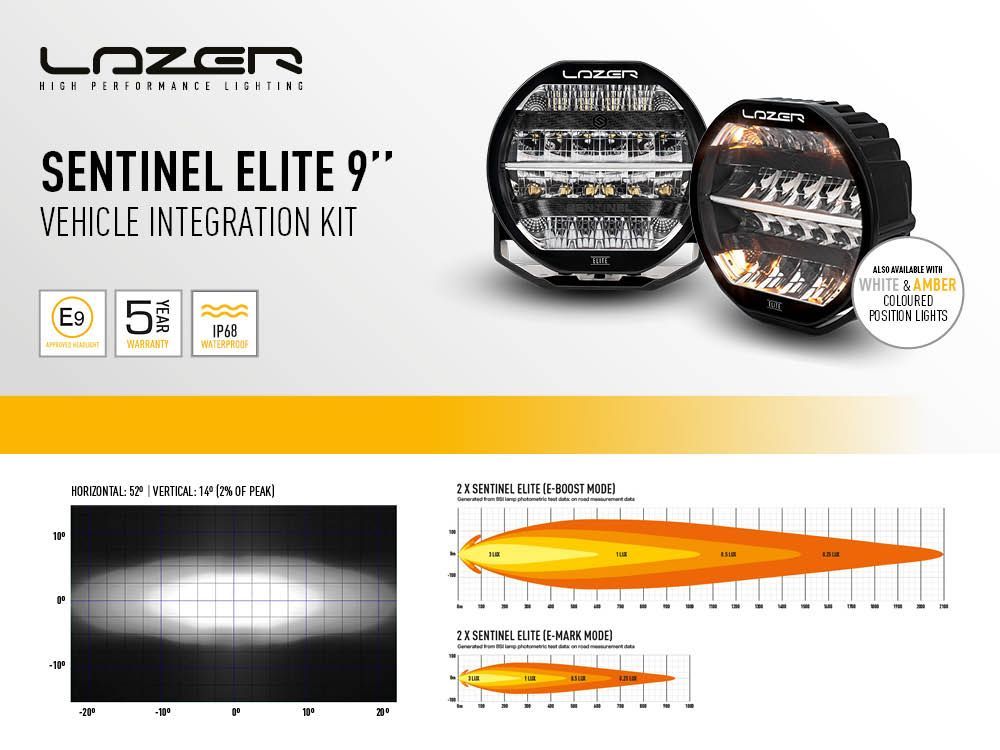

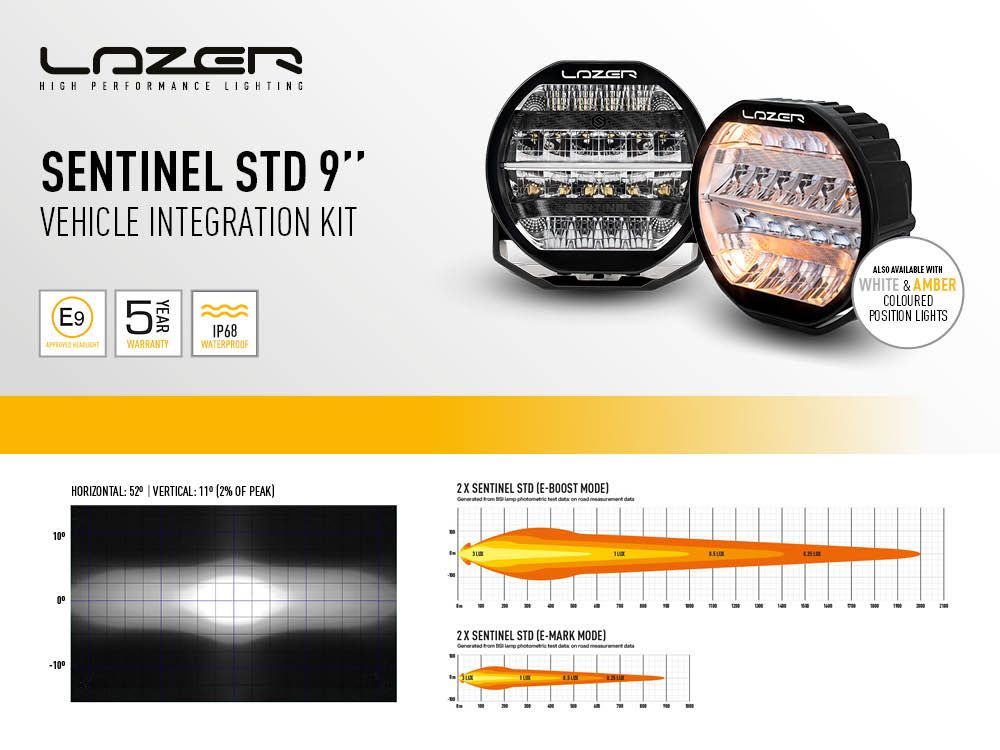

| PHOTOMETRIC DATA | ||
| Horiz Beam Angle | 52 Deg | 52 Deg |
| 0.25 lx Line | 2000 metres | 895 metres |
| 0.5 lx Line | 1414 metres | 632 metres |
| 1 lx Line | 1000 metres | 447 metres |
| 3 lx Line | 575 metres | 260 metres |
* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
