Lazer Lamps Land Rover Defender (2020+) Expedition Roof Rack Linear-36 Mounting Kit PN: 3001-RR-DEF

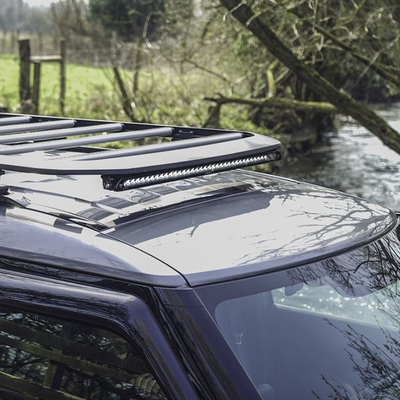

The Defender Adventure Roof Rack Mounting Kit enables mounting of Lazer Lamps’ Linear-36 high performance LED light bar to the underside of the front of the roof rack system for a simple, secure install. Included within the kit are: M8 rivnuts plus fasteners, and ‘Standard’ Linear Side Mount Brackets (supplied anti-theft brackets with the Linear LED lights themselves are not suitable for this type of install).
(incl. VAT £637.73)
The Defender Adventure Roof Rack Mounting Kit enables mounting of Lazer Lamps’ Linear-36 high performance LED light bar to the underside of the front of the roof rack system for a simple, secure install. Included within the kit are: M8 rivnuts plus fasteners, and ‘Standard’ Linear Side Mount Brackets (supplied anti-theft brackets with the Linear LED lights themselves are not suitable for this type of install).
When mounting the ECE Reg112 approved Linear-36 to activate with the vehicle’s high beams, if the vehicle has the LED Matrix headlight system as standard, it may not be possible to detect a 12V high beam signal. In these instances, it will be necessary to complete the electrical installation using a Lazer CAN Interface. For advice on how to check for a 12V high beam signal, please click here.
- Designed for facilitating LED light bar mounting to the Land Rover’s Defender OEM Adventure Roof Rack System
- Supplied rivnuts and mounting fixtures optimised for Lazer Linear side mounting brackets
- Stainless steel hardware

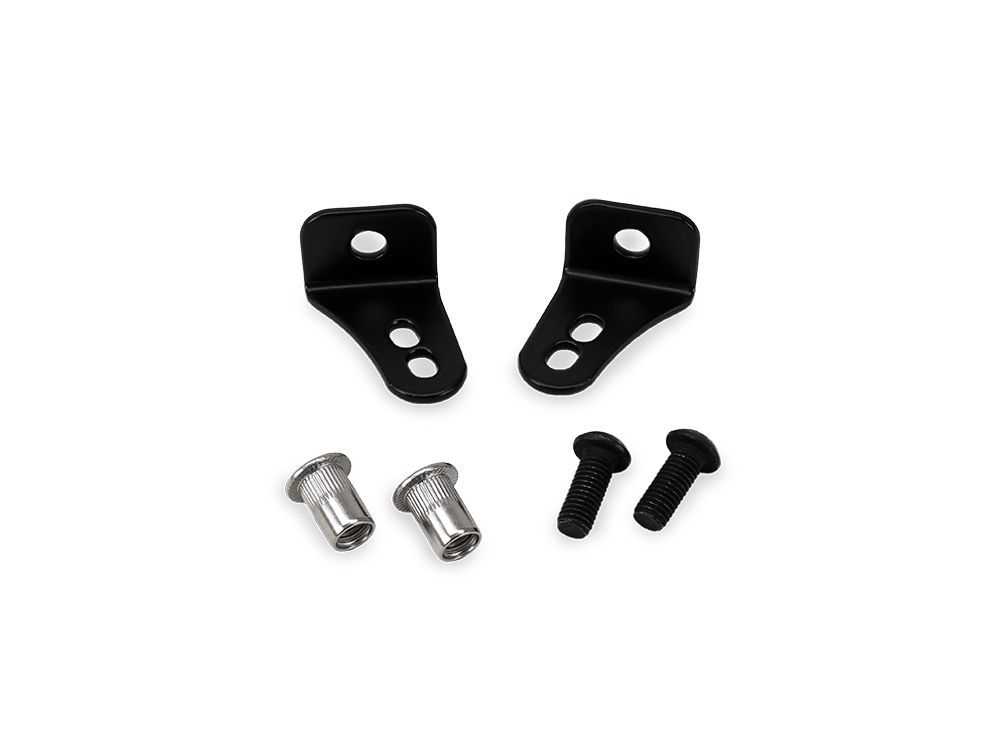

What's included:
1x Linear-36
2x Stainless Steel Mounting Bracket (LH/RH) – for Linear
2x M8 Rivnuts
2x M8 Spring Washers
2x M8 Bolts
| Voltage Range (DC) | 10-32V |
| LED Life | 50,000 hours |
| Weight | 2.1 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 13500 Lm |
| Total Driver 'FOV' Flux † | 9612 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 36 |
| Power Consumption | 126 Watts |
| Current Draw (at 14.4V) | 8.8 Amps |
| Start-up Time * | 100ms |
| CERTIFICATION | |
| High Beam | ECE R112 |
| ECE Reference | 2x 30 |
| DIMENSIONS | |
| Width | 982 mm |
| Depth | 62 mm |
| Height | 40 mm |

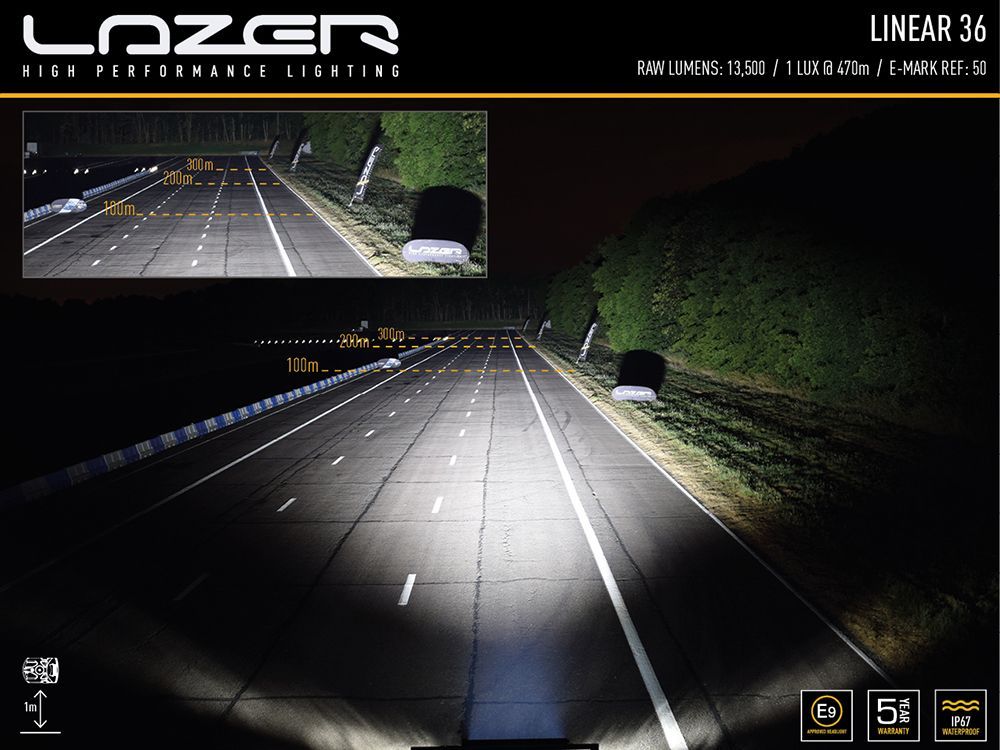

| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 34 degrees |
| 0.25 lx Line | 940 metres |
| 0.5 lx Line | 665 metres |
| 1 lx Line | 470 metres |
| 3 lx Line | 271 metres |
* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
