Lazer Lamps Land Rover Defender (2020+) A Pillar Mount PN: VIFK-DEF2020-UT25

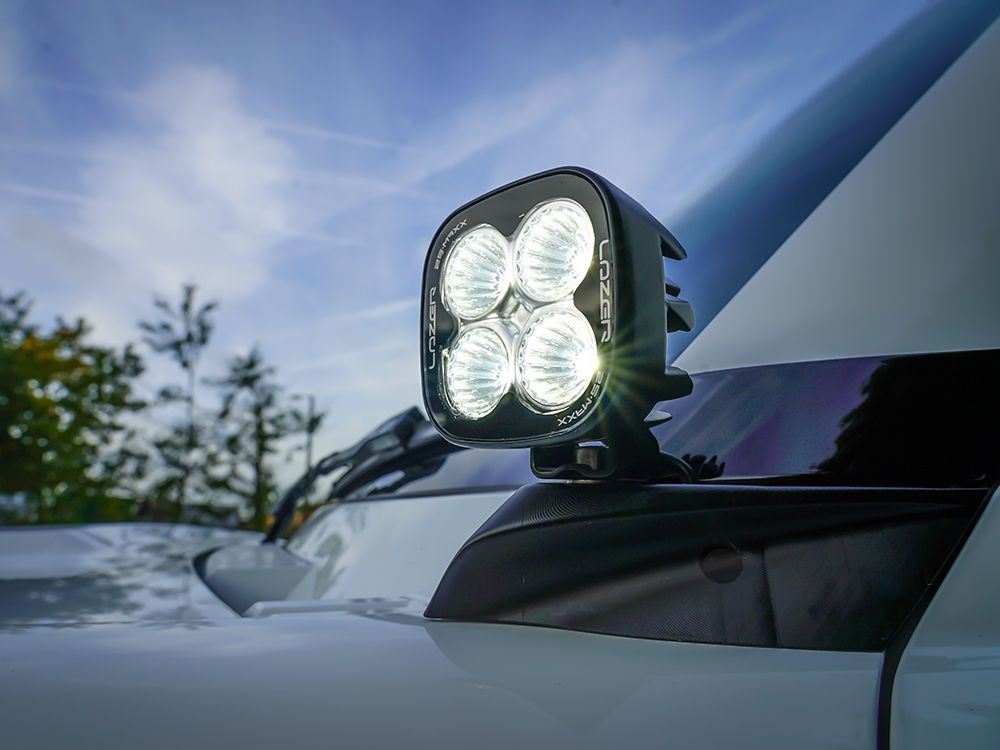

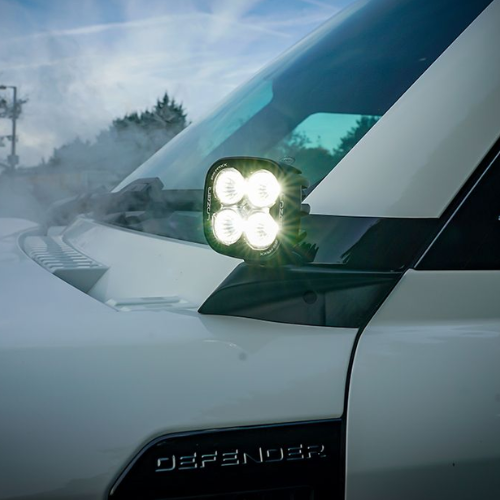

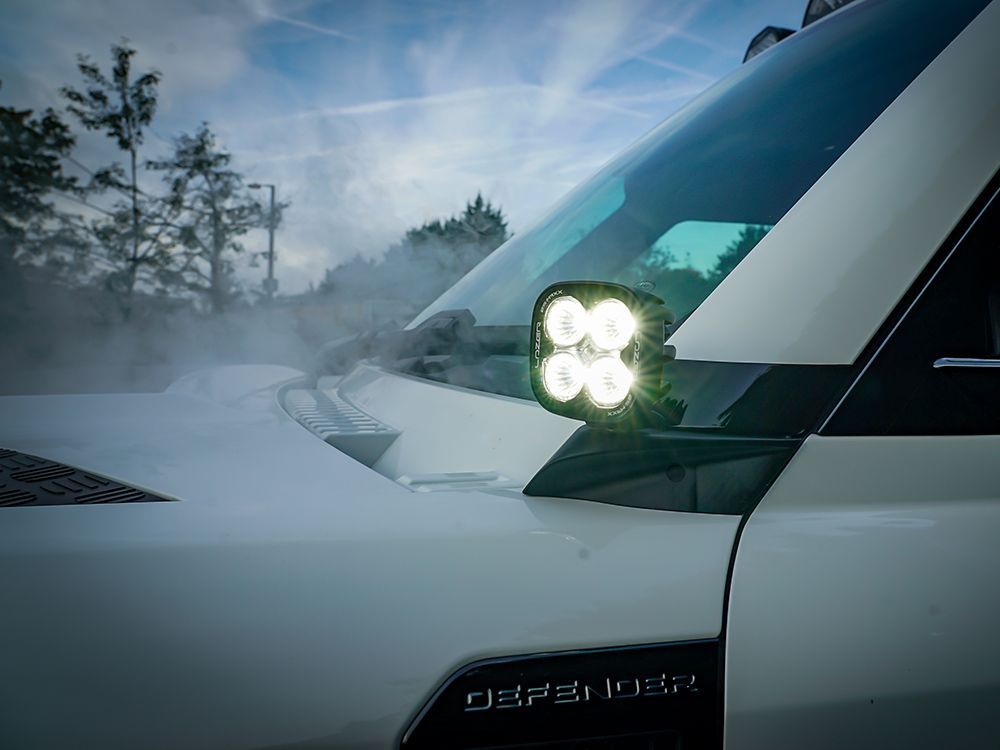

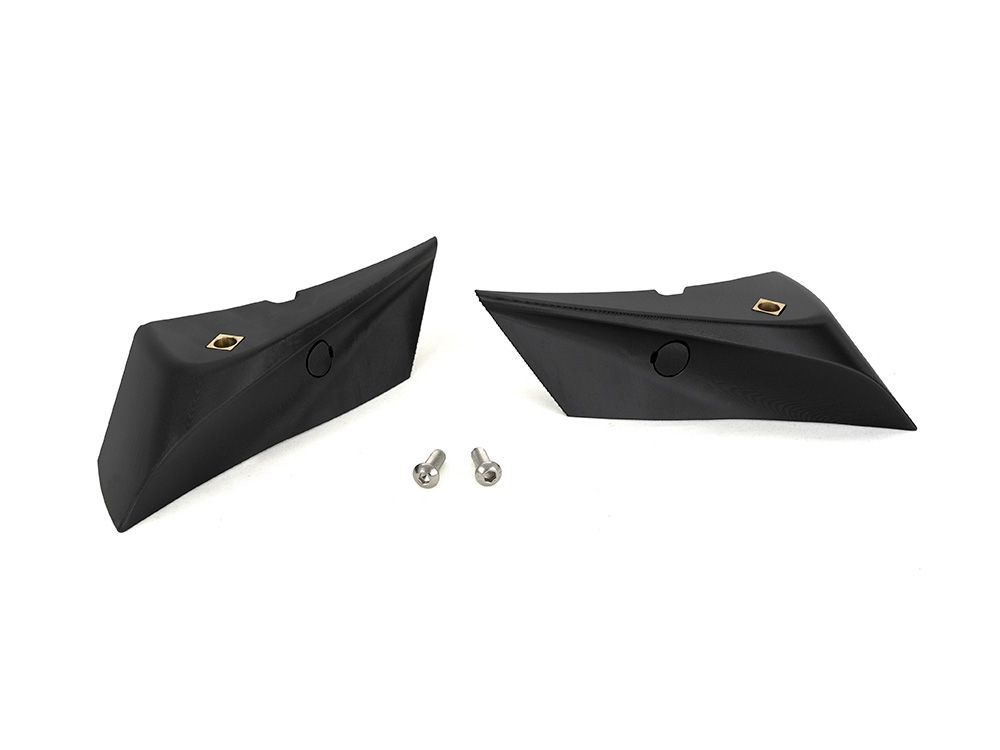

A pair of custom-made mounting brackets, designed around the A-pillar of the Land Rover Defender (2020+), to facilitate the mounting of Utility-25 or Utility-25 MAXX LED work lights. The brackets themselves locate in the original fixtures on the Defender, replacing a small piece of trim material at the base of each A-pillar, and with no drilling required. Made from a high-strength composite material, with matt black finish, the end-result has a real OE look and finish.
(incl. VAT £84.00)
A pair of custom-made mounting brackets, designed around the A-pillar of the Land Rover Defender (2020+), to facilitate the mounting of Utility-25 or Utility-25 MAXX LED work lights. The brackets themselves locate in the original fixtures on the Defender, replacing a small piece of trim material at the base of each A-pillar, and with no drilling required. Made from a high-strength composite material, with matt black finish, the end-result has a real OE look and finish.
Optimised for mounting either Utility-25 or Utility-25 MAXX work lights, the brackets include design features to facilitate the installation of the lights as well as routing of the lamp cables and wiring.
- A-pillar mounting brackets comprising left-hand and right-hand parts
- Custom fit for Land Rover Defender (MY 2020+)
- Compatible with: Utility-25 / Utility-25 MAXX LED work lights
- Produced from high strength, UV-stable, composite material
- Easy installation with no drilling required
- 5-year warranty
- Made in Britain
Based on: 1x Utility-25
| Voltage Range (DC) | 10-32V |
| LED Life | 50,000 hours |
| Colour Temperature | 5,000 Kelvin |
| Weight | 360 gr |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 3016 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 4 |
| Power Consumption | 25 Watts |
| Current Draw (at 14.4V) | 1.6 Amps |
| CERTIFICATION | |
| Work Lamp | ECE R10 |
| IP Rating | IP69K |
| Salt Spray Test | ISO 9227 (1000H) |
| EMC Protection | CISPR-25 (Class 5†) |
| OPERATING CONDITIONS | |
| Shock | TBC |
| Vibration (BS EN 60068-2-64) | 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz |
| Operating Temperature | -40deg C ... +90degC |
| DIMENSIONS | |
| Width | 80 mm |
| Depth | 56 mm |
| Height | 80 mm |

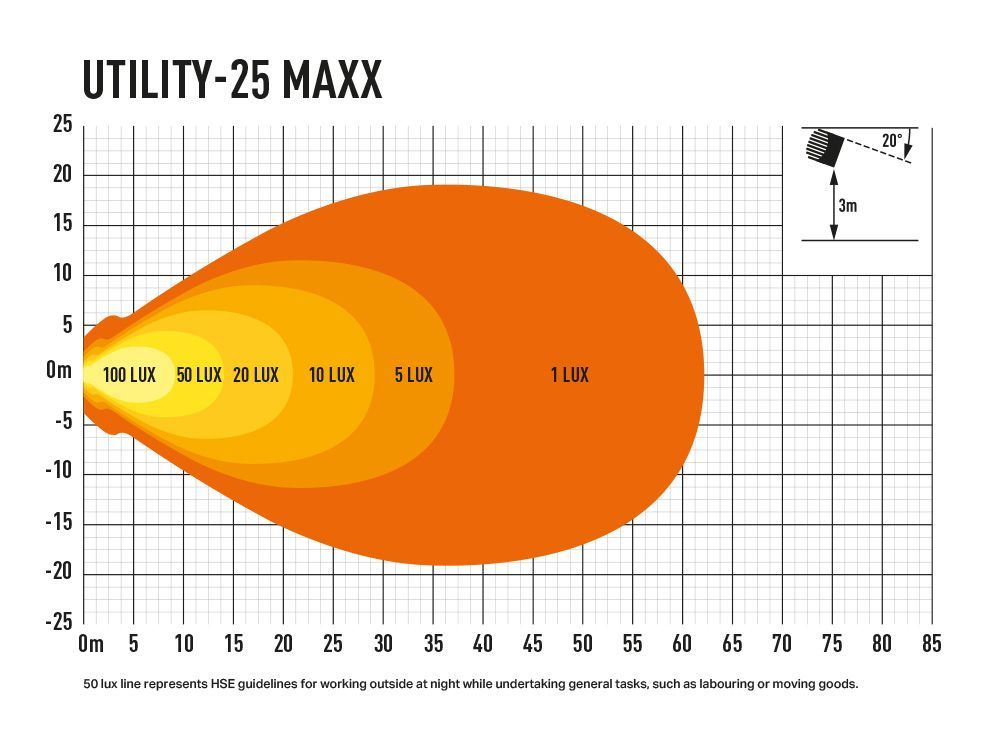

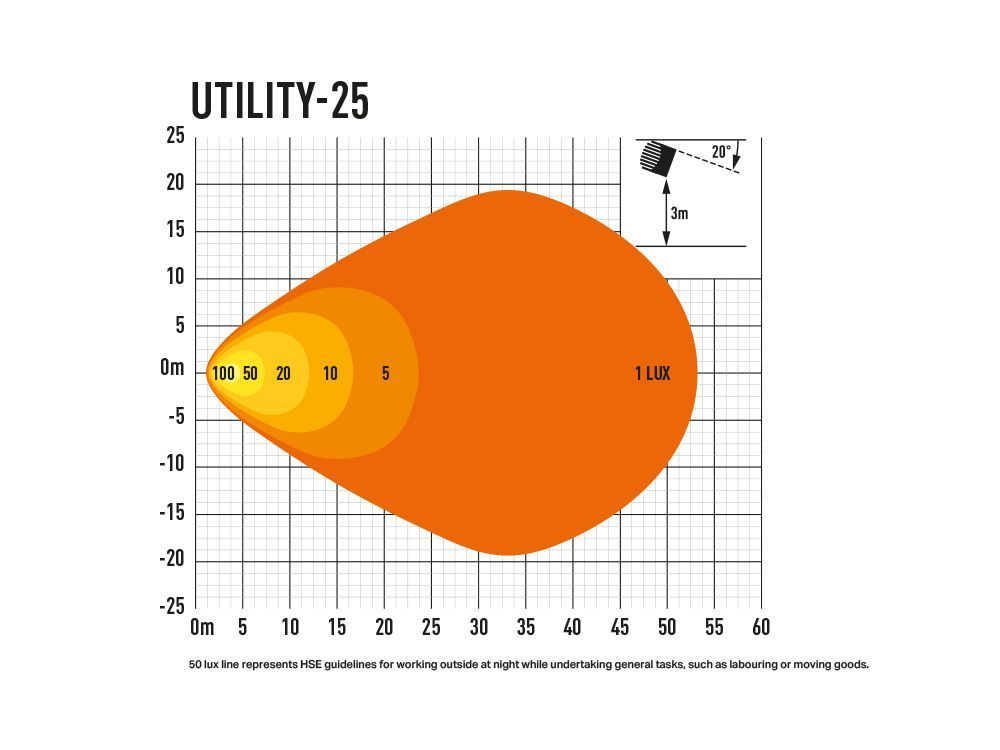

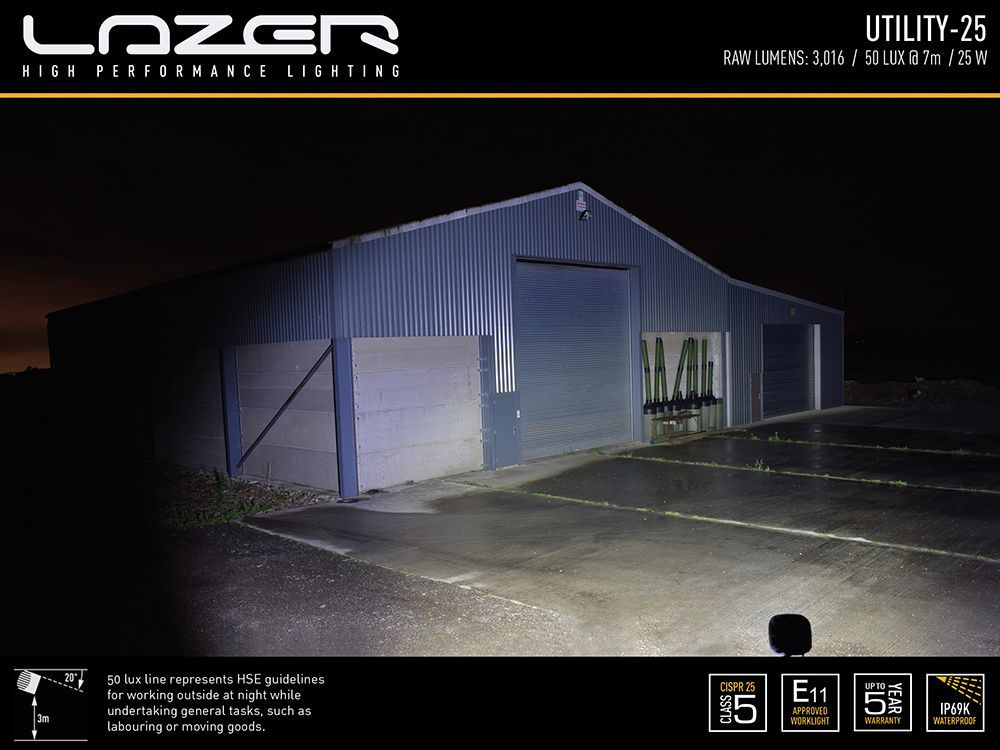

| PHOTOMETRIC DATA | |
| 1Lx Line @ | 54m |
| 5Lx Line @ | 24m |
| 20Lx Line @ | 12m |
| 50Lx Line @ | 7m* |
* - 50Lx represents HSE guidelines for effective illumination when working outdoors at night.
