Lazer Lamps Land Rover Defender (-2018) Linear or Triple-R Roof Mounting Kit PN: 3001-Def-G2
Specifically engineered for the Land Rover Defender (-2018), the Lazer Lamps Roof Mounting Kit, for pre-2019 vehicles, comprises stainless steel brackets that fix to the vehicle’s roof side gutter and are optimised for either our Linear-48 or Triple-R 28 off-road LED spotlights.
(incl. VAT £954.00)
Specifically engineered for the Land Rover Defender (-2018), the Lazer Lamps Roof Mounting Kit, for pre-2019 vehicles, comprises stainless steel brackets that fix to the vehicle’s roof side gutter and are optimised for either our Linear-48 or Triple-R 28 off-road LED spotlights.

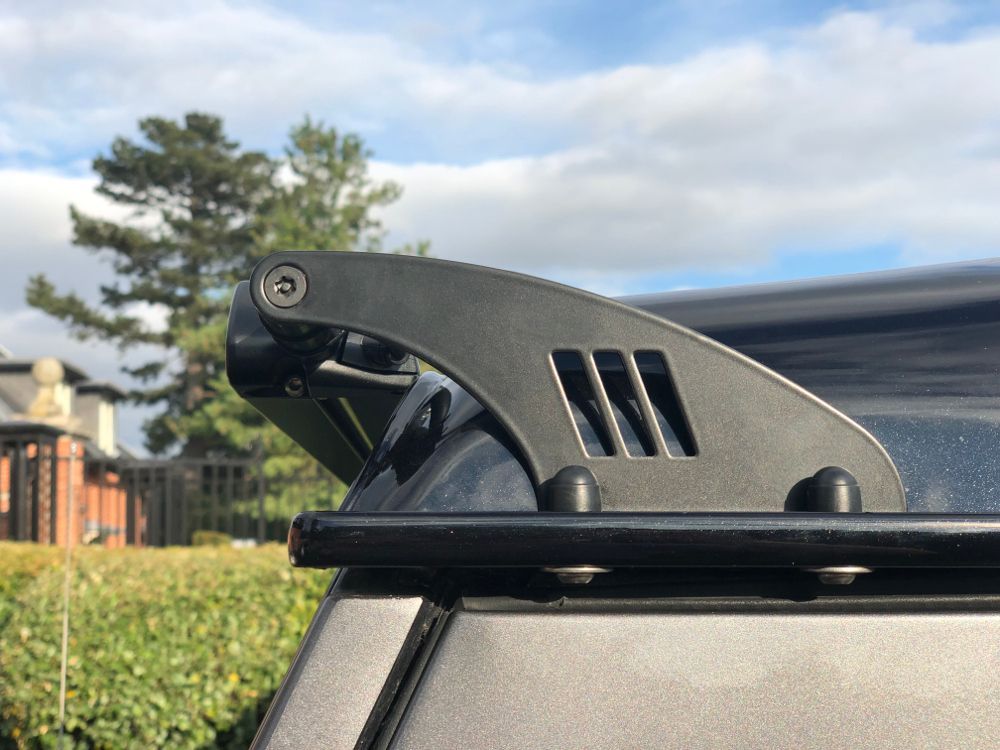

Manufactured from A2 stainless steel, and finished with a UV-stable, satin black powder coat, the brackets are fully corrosion resistant in line with automotive grade quality standards, as are the supplied countersunk anti-theft fasteners, which come in a variety of lengths from 20mm–80mm. To complete the mounting of different length light bars, cylindrical carbon spacers, of varying lengths, are provided to aid positioning.
The installation of the brackets to your vehicle is completed using M6 fasteners fixed within the gutter location either side of the Defender’s roof. Cable grommets are supplied to ensure a tidy, and sealed cable entry point, while a supplied VHB cleaning pad is provided for preparation of areas where additional sealant might be applied. Electrical butt connectors are provided to help assure the integrity of the cable reattachment once thread through the roof.
- Complete one-stop solution for roof-mounting on Land Rover Defender (pre 2018)
- Optimised for either Triple-R 28 or Linear-48 LED spotlights
- Made from 3mm A2 stainless steel
- UV-stable, satin black powder coat
- Includes assortment of A2 stainless steel fixings with countersunk head
- Carbon spacers facilitate positioning of different length LED light bars
- M6 fasteners facilitate mounting brackets to underside of the roof rails
- Manufactured in the UK

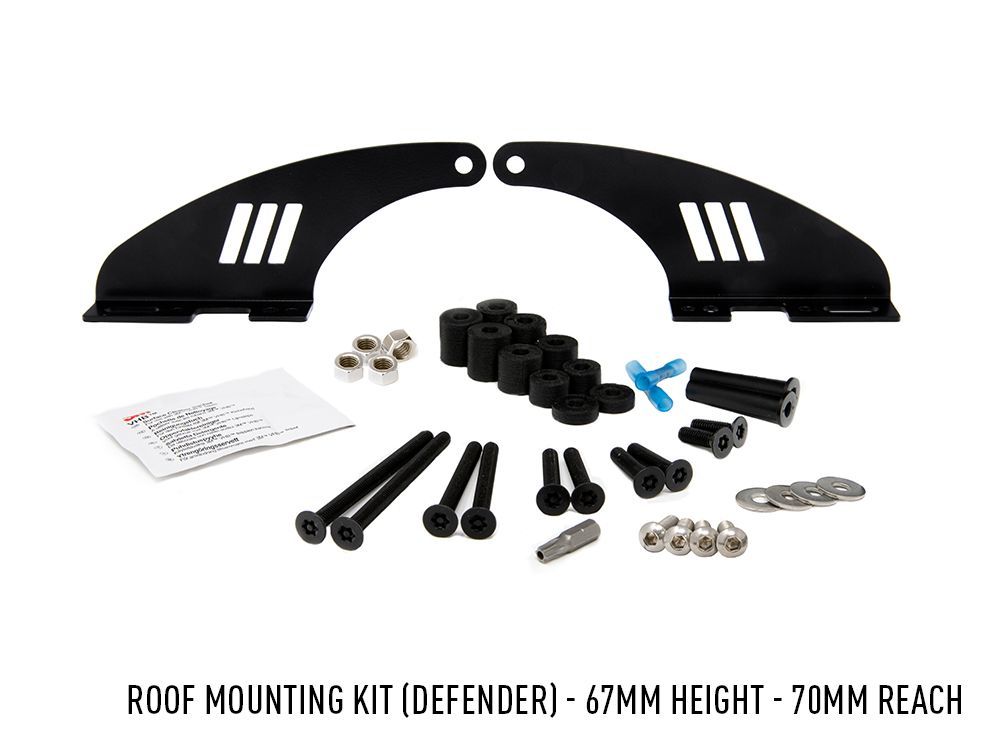

What's included:
- 2x Stainless Steel Mounting Bracket (LH/RH)
- 1x Anti-theft Fastener Set (various sizes)
- 1x Spacer Set (various sizes)
- 4x M6 Anti-Theft Fasteners
- 2x Cable Grommet
- 1x VHB Cleaning Sachet
- 2x Heat-shrink Butt Splice
| Linear-48 | Triple-R 28 Elite (Gen2) | |
| Voltage Range | 10-32V | 10-32V |
| LED Life | 50,000 hours | 50,000 hours |
| Weight | 4 kg | 4.7kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 18000 Lm | 28560 Lm |
| Total Driver 'FOV' Flux † | 12816 Lm | 18821 Lm |
| Colour Temperature | 5000k | 5000k |
| Number of High Output LEDs | 48 | 28 |
| Power Consumption | 168 Watts | 315 Watts |
| Current Draw (at 14.4V) | 11.7 Amps | 21.9 Amps |
| Start-Up Time * | 100ms | 100ms |
| CERTIFICATION | ||
| High Beam | N/A | N/A |
| ECE Reference | N/A | N/A |

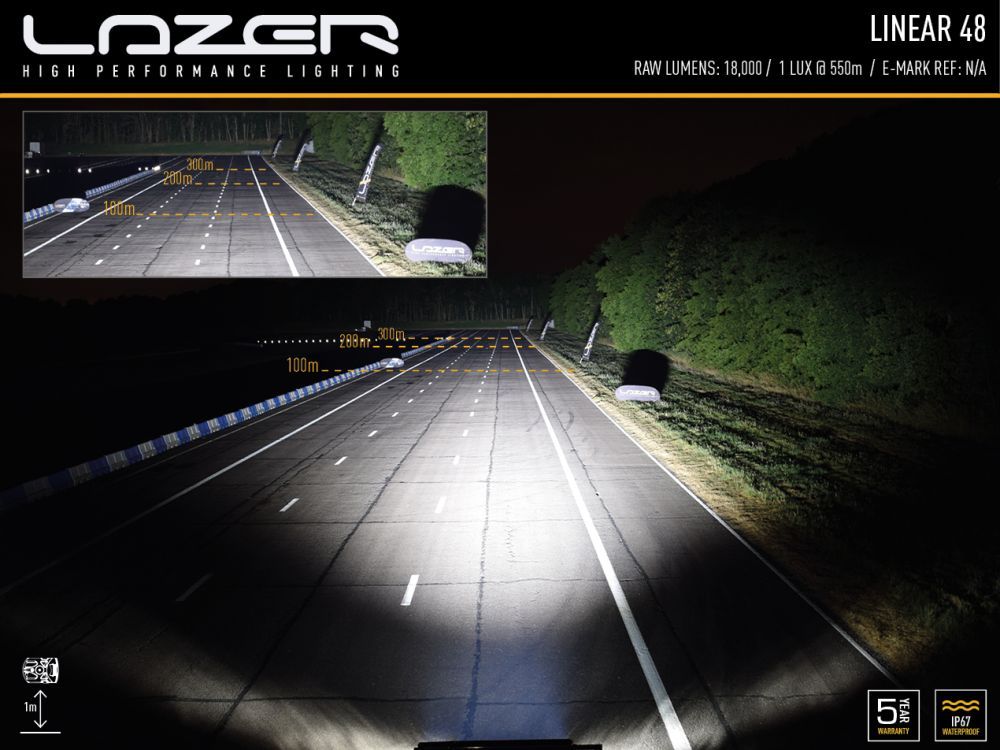

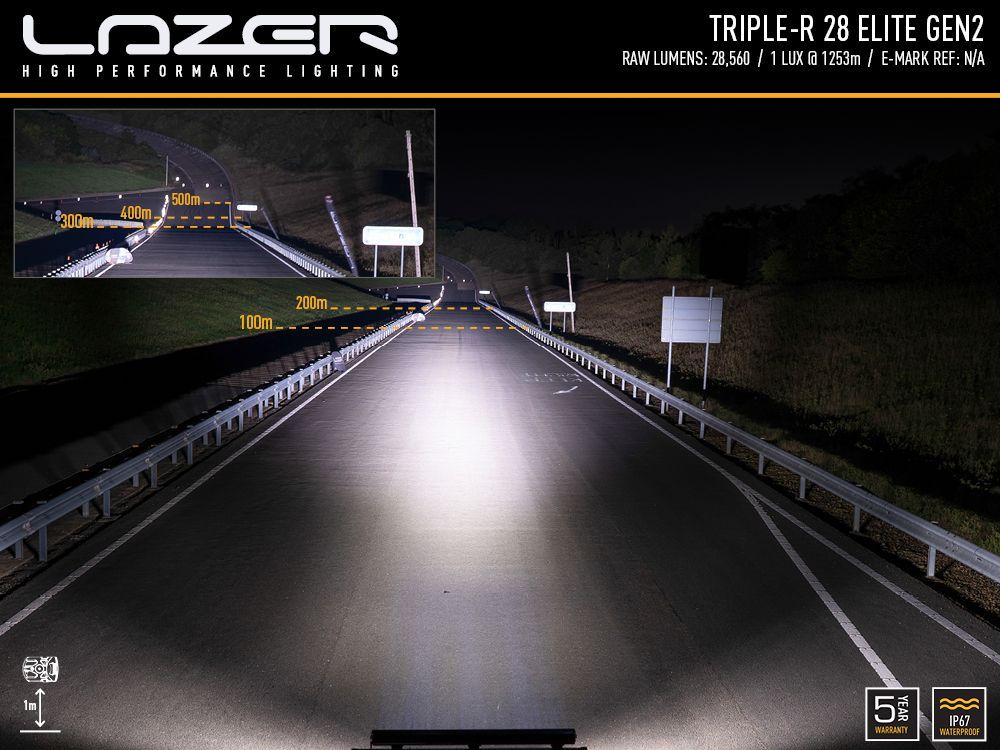

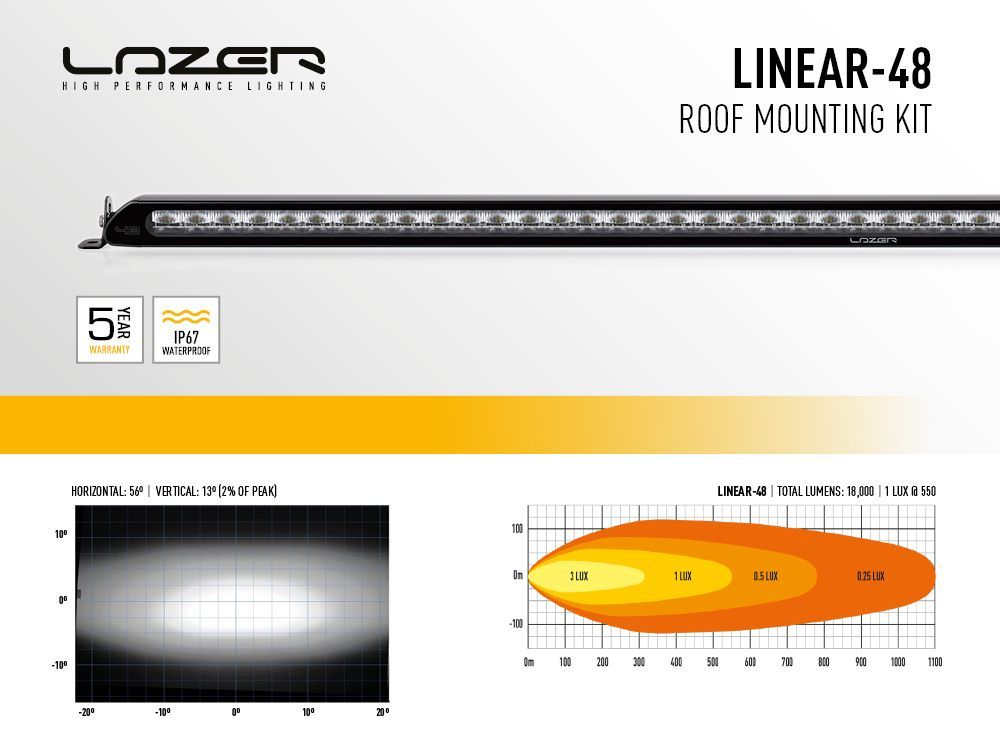

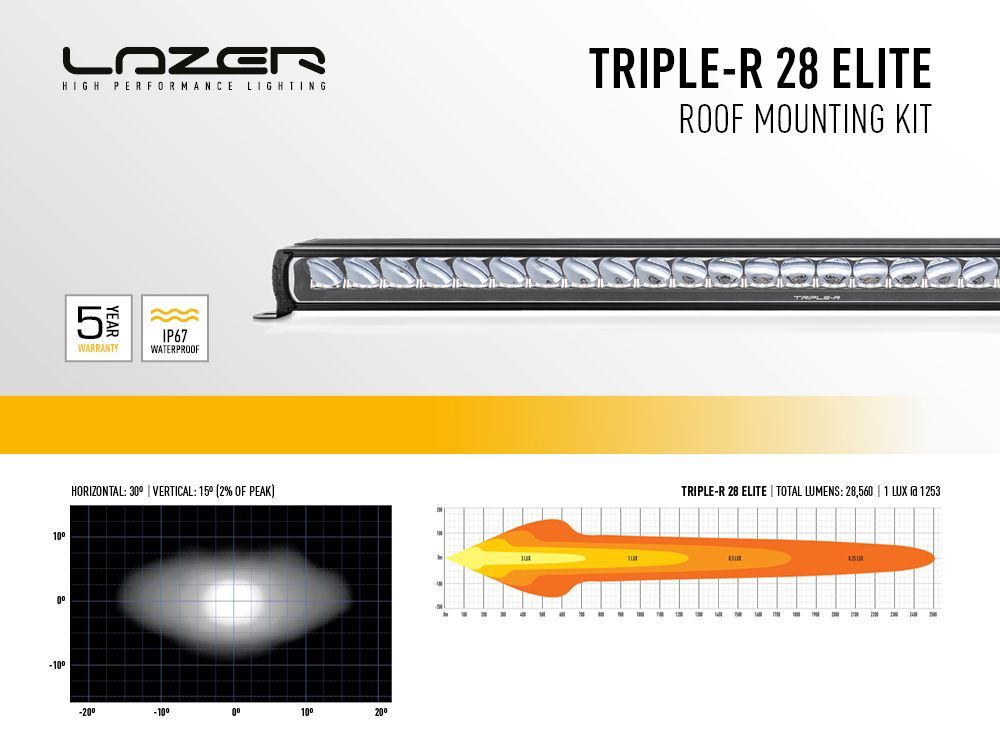

| PHOTOMETRIC DATA | ||
| Horizontal Beam Angle | 34 deg | 42 deg |
| 0.25 lx Line | 1101 metres | 2506 metres |
| 0.5 lx Line | 779 metres | 1772 metres |
| 1 lx Line | 550 metres | 1253 metres |
| 3 lx Line | 318 metres | 724 metres |
* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
