Lazer Lamps Isuzu D-Max Sports Bar Triple-R or ST8 Mounting Kit PN: VIFK-DMAX-SPORTS-BAR-G2
For the Isuzu D-Max with Sports Bar, a choice of auxiliary light options fitted to the bar, for a fully road-legal LED lighting upgrade that delivers exceptional levels of night-time visibility, backed up by a comprehensive 5-year warranty.
(incl. VAT £766.43)
For the Isuzu D-Max with Sports Bar, a choice of auxiliary light options fitted to the bar, for a fully road-legal LED lighting upgrade that delivers exceptional levels of night-time visibility, backed up by a comprehensive 5-year warranty.

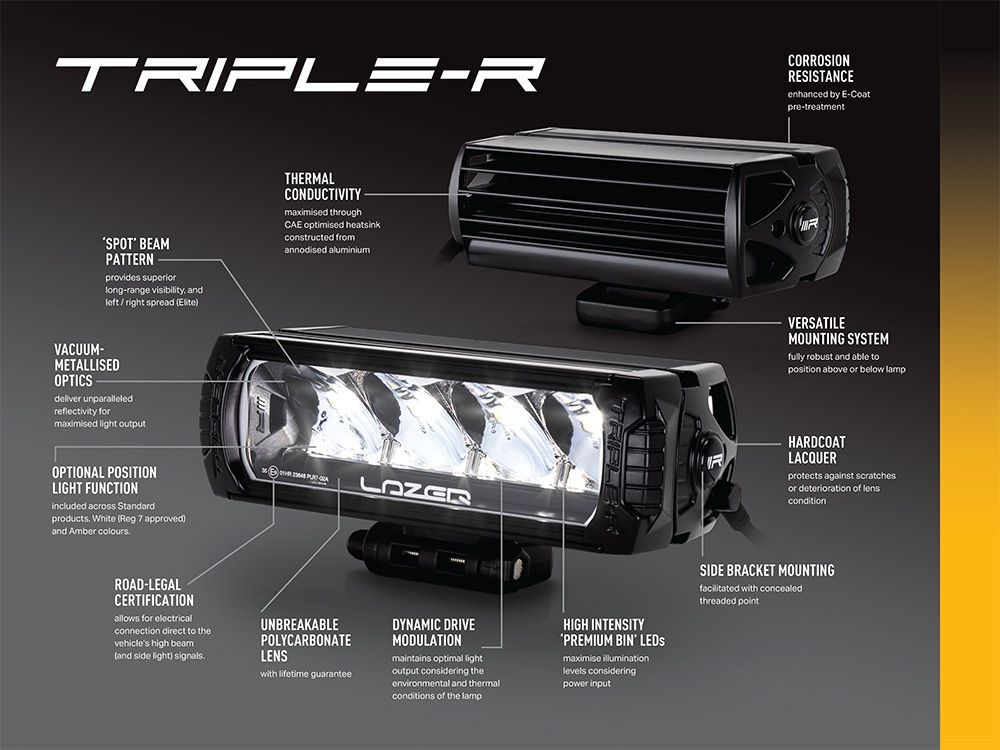

Optimised for the ST8 Evolution, or range of Triple-R 1000 high performance spotlights, the lights mount in pairs on the sports bar using stainless steel 76mm Tube Clamps, which are powder coated satin black for a sleek, stylish finish to your installation. Vehicle wiring kits are also available allowing for connecting your lights either direct to your standard high beams, and/or operated via a separate switch on your dashboard.

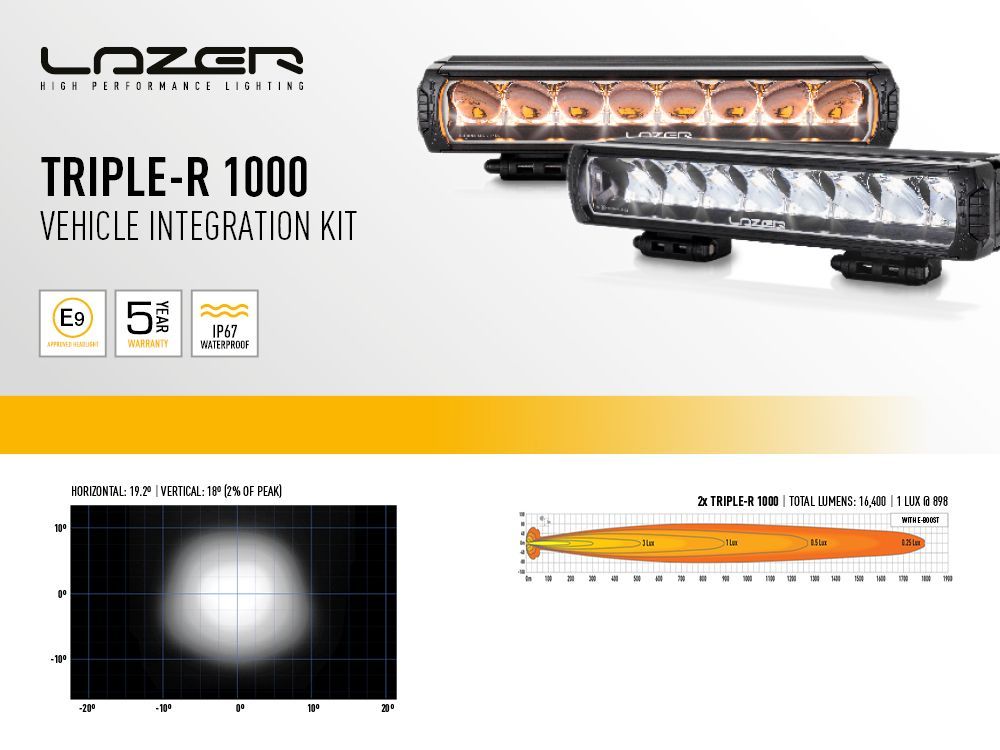

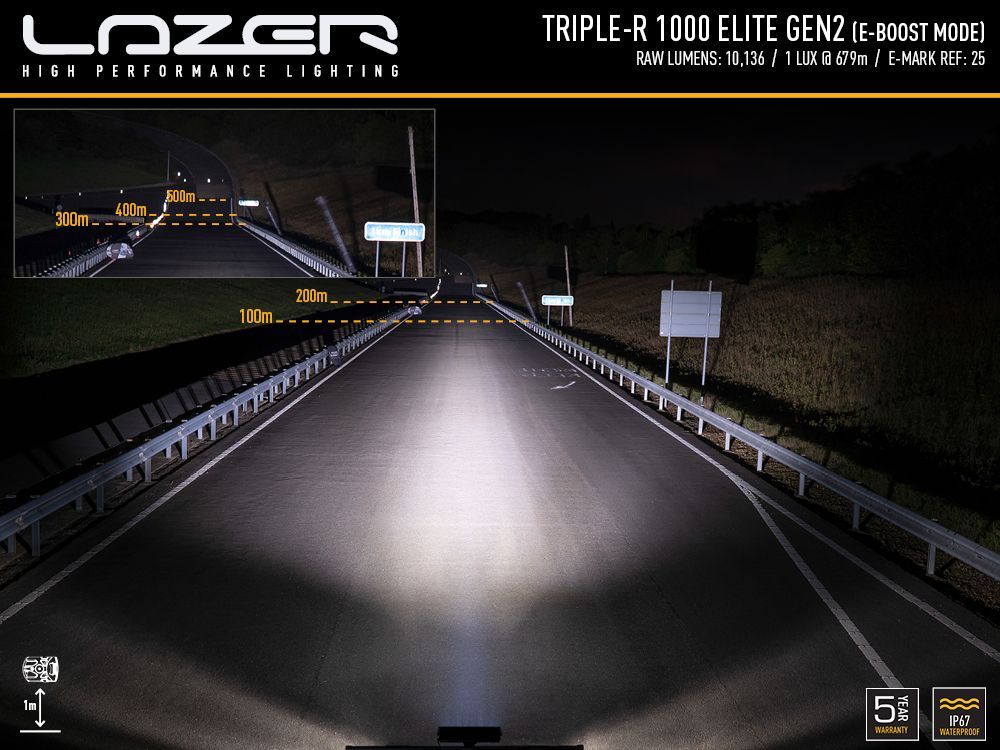

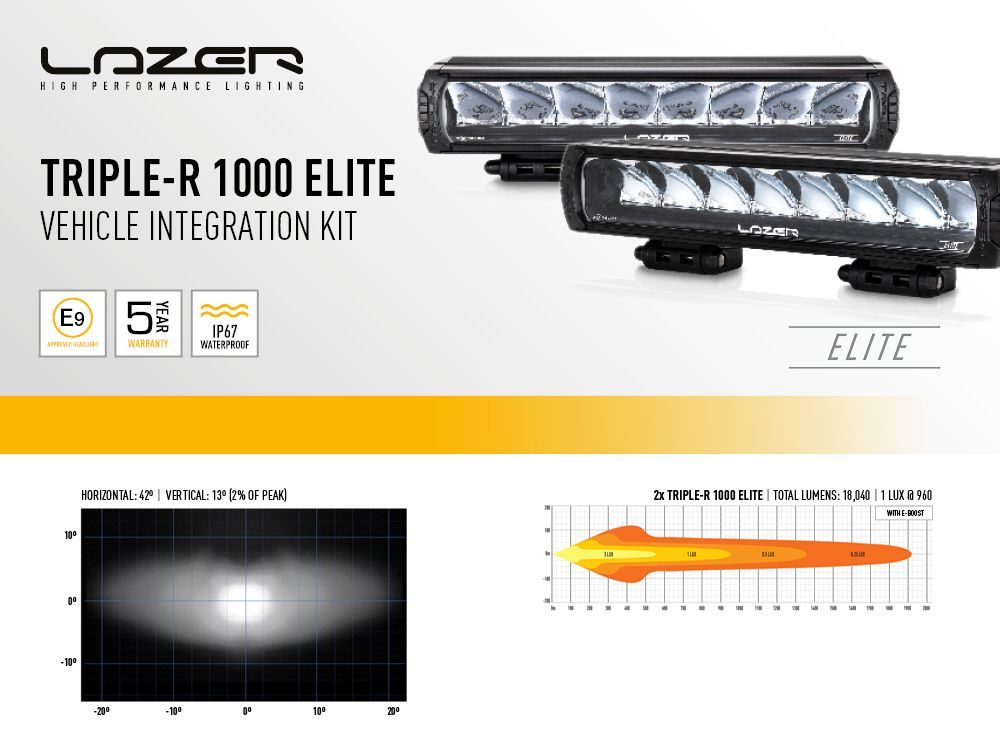

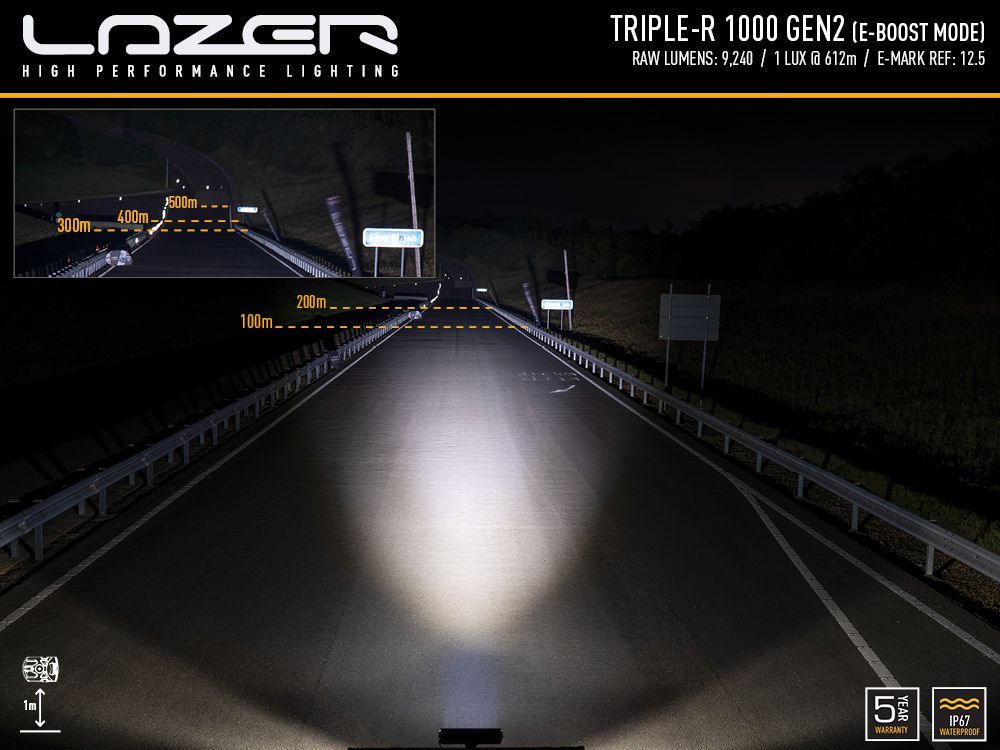

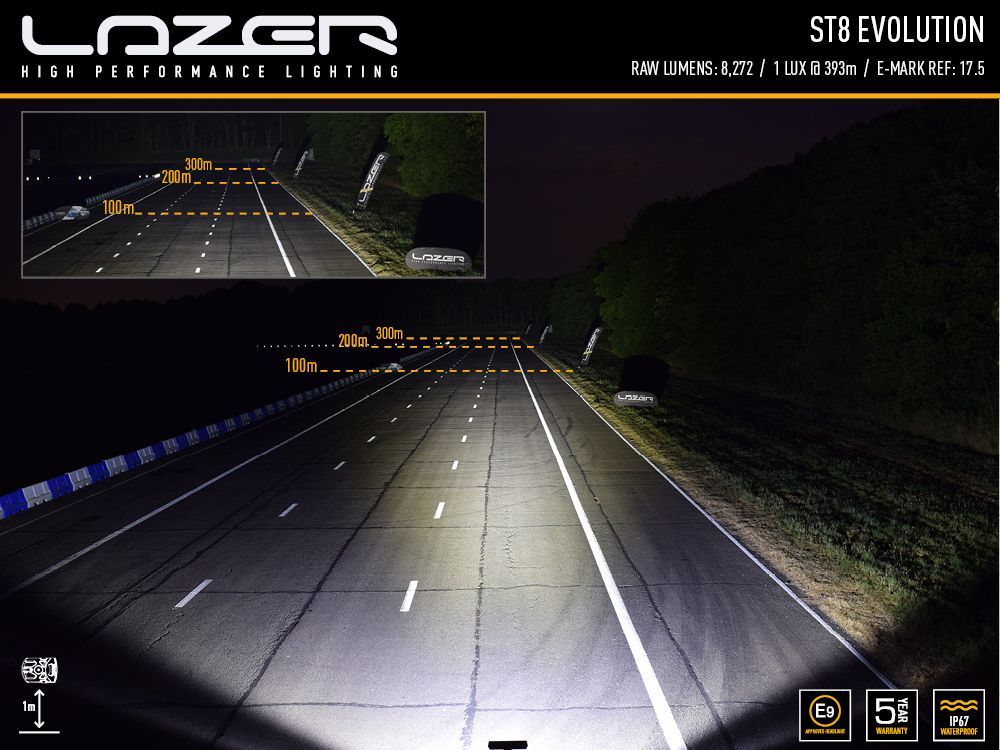

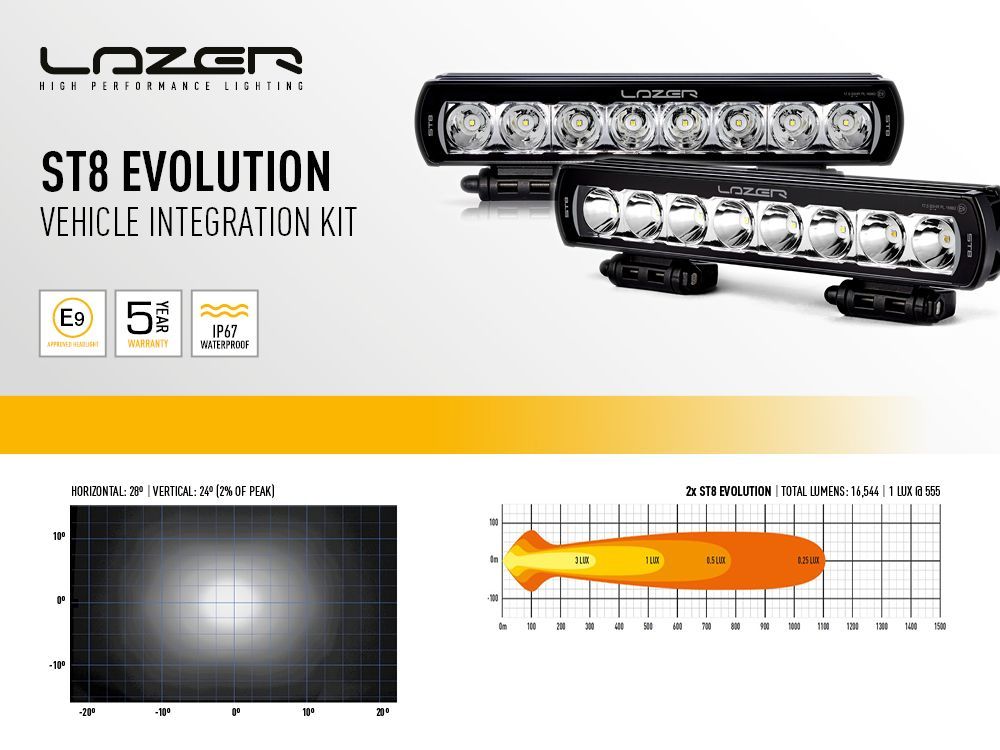

The ST8 Evolution option delivers good distance illumination (1 lux at 555m) but with an all-round spread of light that ensures excellent visibility both left/right and up/down. In this respect, the ST8 is particularly well suited for customers driving in rural or off-road locations. By contrast the Triple-R 1000 (available in Standard or Elite grade) delivers a spot beam with 1 lux reaching 898m or 960m depending the lamp version selected. All options are fully ECE approved for on-road use.
With no compromises in component parts or production techniques, as with all Lazer products, we have taken every step to maximise lighting performance, and build quality, to ensure your lighting installation remains in excellent condition for years to come.
Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface. For advice on how to check for a 12V high beam signal, please click here.

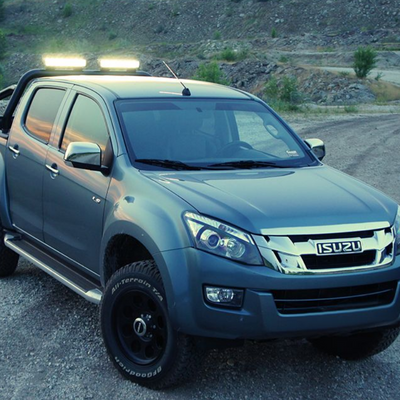

- Auxiliary spotlight installation for Isuzu D-Max with Sports Bar
- Optimised mounting with pair of ST8 Evolution or Triple-R 1000 spotlights

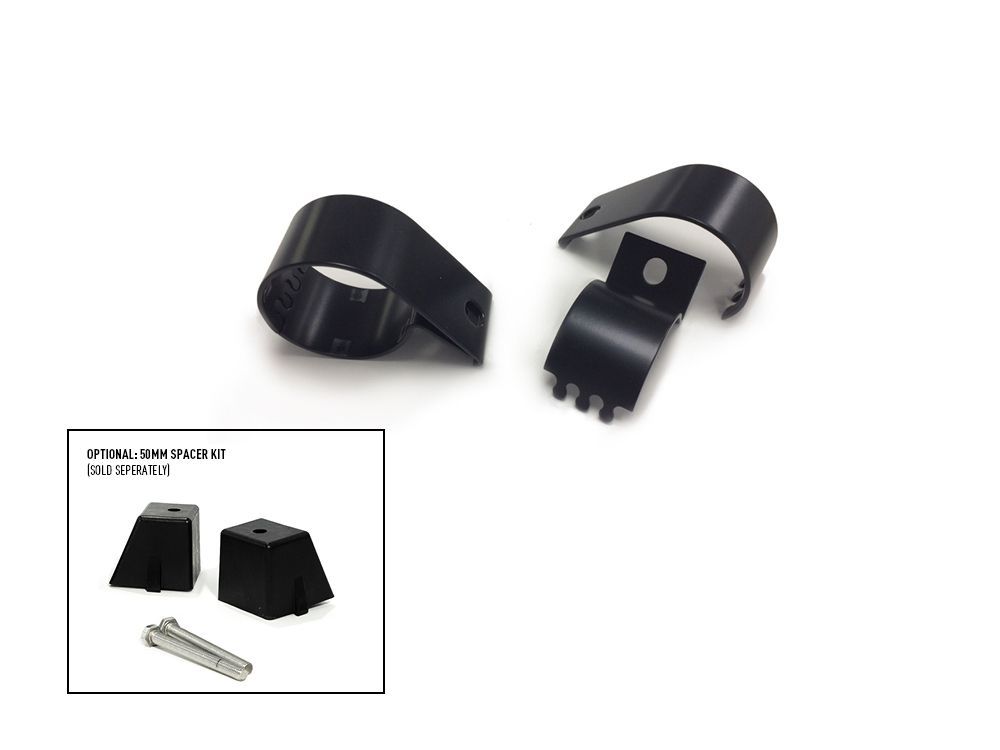

- Secured using satin black, stainless steel 76mm Tube Clamps

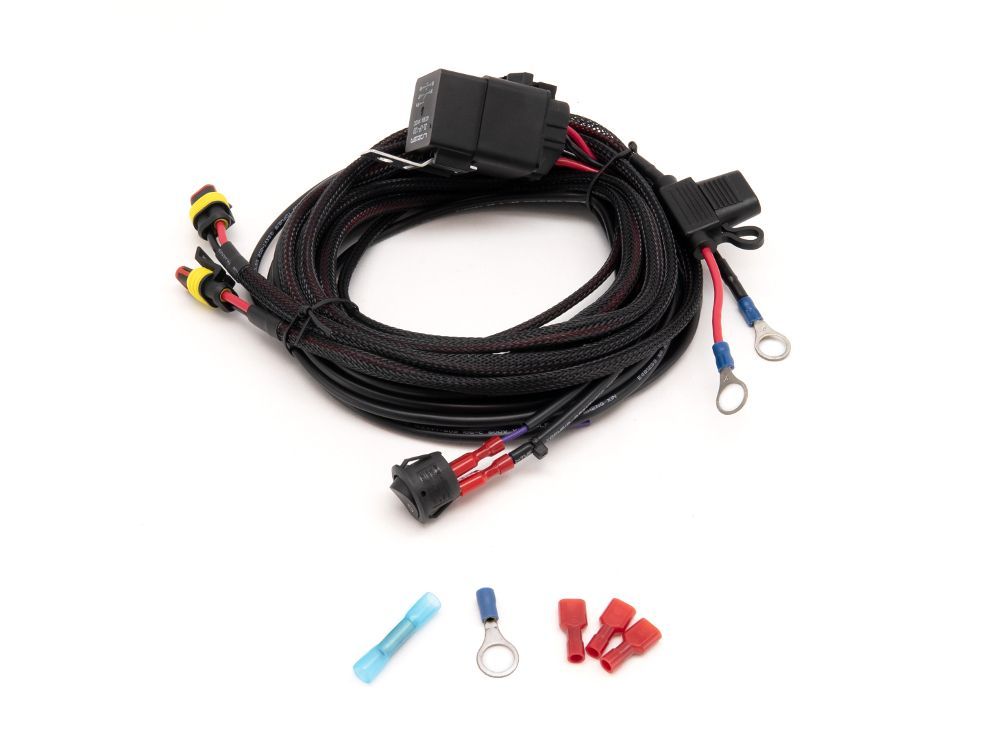

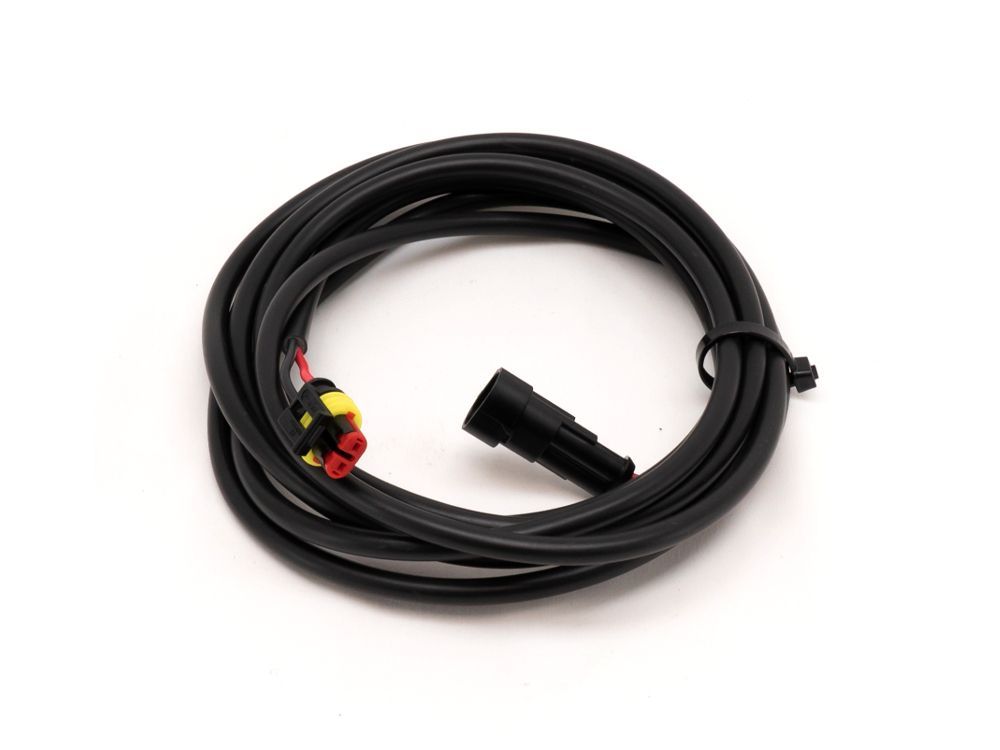

- Vehicle wiring kits available
- Fully road-legal
- 5-year warranty
- Made in Britain
| 2x ST8 Evolution | 2x Triple-R 1000 Standard | |
| Voltage Range | 10-32V | 10-32V |
| LED Life | 50,000 hours | 50,000 hours |
| Weight | 1.1kg | 1.1kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 16544 Lm | 18040 Lm |
| Total Driver 'FOV' Flux † | 9959 Lm | 11888 Lm |
| Number of High Output LEDs | 2x 8 LED | 2x 8 LED |
| Power Consumption | 192 Watts | 208 Watts |
| Current Draw (at 14.4V) | 13.4 Amps | 14.4 Amps |
| Start-Up Time* | 100ms | 100ms |
| CERTIFICATION | ||
| High Beam | ECE R112 | ECE R112 |
| E-Mark Ref | 17.5 | 2x 12.5 |
| PHOTOMETRIC DATA | ||
| Horizontal Beam Angle | 28 Degrees | 11 Degrees |
| 0.25 lx Line | 1111 metres | 1920 metres |
| 0.5 lx Line | 786 metres | 1358 metres |
| 1 lx Line | 555 metres | 960 metres |
| 3 lx Line | 321 metres | 554 metres |
* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
