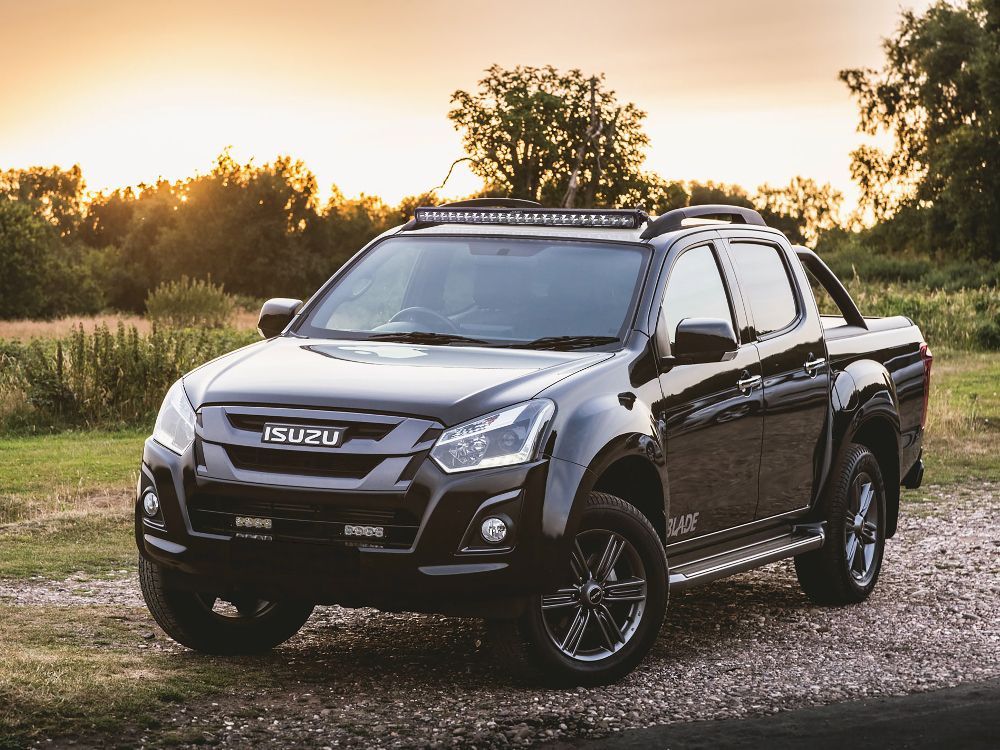

Lazer Lamps Isuzu D-Max Linear-36 or T24 Roof Mounting Kit (With Roof Rails) PN: 3001-DMAX-WRR
Optimised for the Isuzu D-Max (model years 2017+ or 2021+), the Lazer Lamps Roof Mounting Kit comprises stainless steel brackets that fix to the vehicle’s roof rails for easy fitment of the Linear-36 or T24 Evolution high performance LED spotlights.
(incl. VAT £671.90)
Optimised for the Isuzu D-Max (model years 2017+ or 2021+), the Lazer Lamps Roof Mounting Kit comprises stainless steel brackets that fix to the vehicle’s roof rails for easy fitment of the Linear-36 or T24 Evolution high performance LED spotlights.

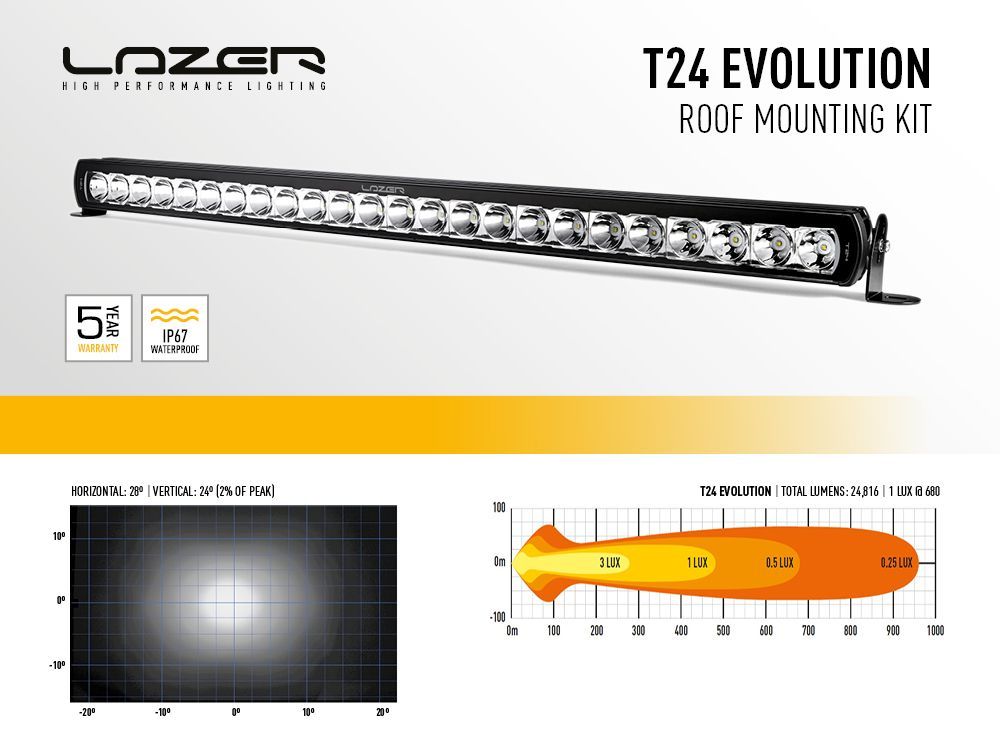

With its low-profile aerodynamic housing, smooth lines, and contemporary design features, the Linear-36 is an ECE-approved auxiliary LED spotlight that integrates effortlessly for an understated install, that boasts class-leading lighting performance. The Linear-36 delivers good distance illumination, and left/right spread, that leaves little to the imagination. The low-profile design also benefits from exceptional low wind noise, which can affect many roof light installations when driving at higher speeds. For customers looking to make more of a statement, the T24 Evolution is an off-road LED driving light producing nearly 25,000 lumen with a flood beam pattern for excellent all-round visibility. Both options are designed and engineered to the highest standards, and through our UK manufacturing nothing has been left to chance with the products’ build quality or reliability, backed up by our comprehensive 5 year warranty.
Manufactured from A2 stainless steel, and finished with a UV-stable, satin black powder coat, the mounting brackets are fully corrosion resistant in line with automotive grade quality standards, as are the supplied countersunk anti-theft fasteners, and cylindrical spacers to aid positioning of the lamps. Cable grommets are supplied to ensure a tidy, and sealed cable entry point whether into the roof rail, and/or through the roof into the vehicle’s headlining. Electrical butt connectors are provided to help assure the integrity of the cable reattachment once thread through the roof.
- Complete one-stop solution for roof-mounting on Isuzu D-Max (2017+ or 2021+) with Roof Rails

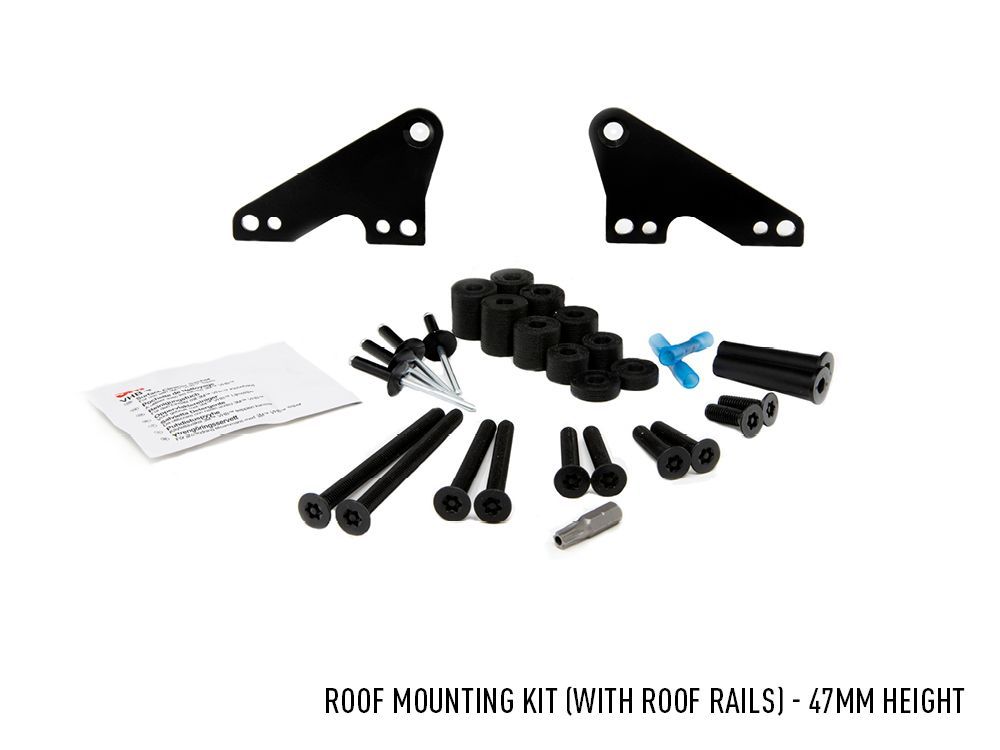

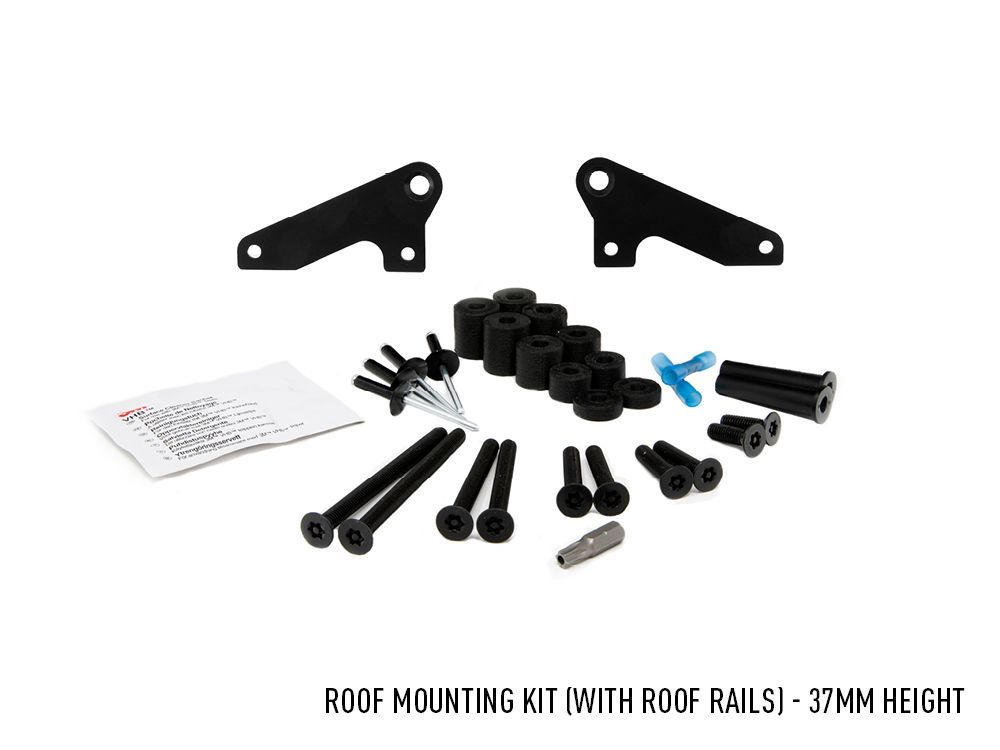

- Optimised for Linear-36 (37mm height brackets) or T24 Evolution (47mm height brackets) high performance LED spotlights
- Mounting brackets made from 3mm A2 stainless steel
- UV-stable, satin black powder coat
- Includes assortment of A2 stainless steel, anti-theft fixings with countersunk head
- Spacers facilitate positioning of different length LED light bars

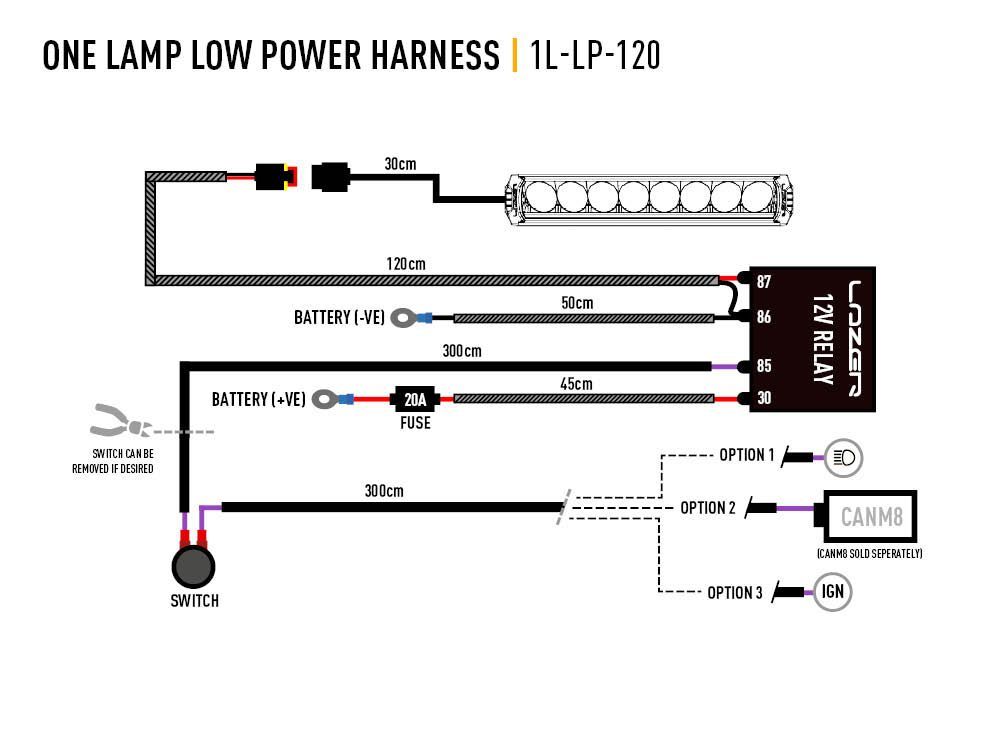

- Vehicle wiring kits available (included with T24)
- 5yr Warranty
- Manufactured in the UK
| Linear-36 | T24 Evolution | |
| Voltage Range | 10-32V | 10-32V |
| LED Life | 50,000 hours | 50,000 hours |
| Weight | 2.7 kg | 3.1 kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 13500 Lm | 24816 Lm |
| Colour Temperature | 5000k | 5000k |
| Number of High Output LEDs | 36 | 24 |
| Power Consumption | 126 Watts | 262 Watts |
| Current Draw (at 14.4V) | 8.8 Amps | 18.2 Amps |
| CERTIFICATION | ||
| High Beam | ECE R112 | N/A |
| ECE Reference | 50 | N/A |
| DIMENSIONS | ||
| Width | 982 mm | 1004 mm |
| Depth | 62 mm | 68 mm |
| Height | 40 mm | 64 mm |

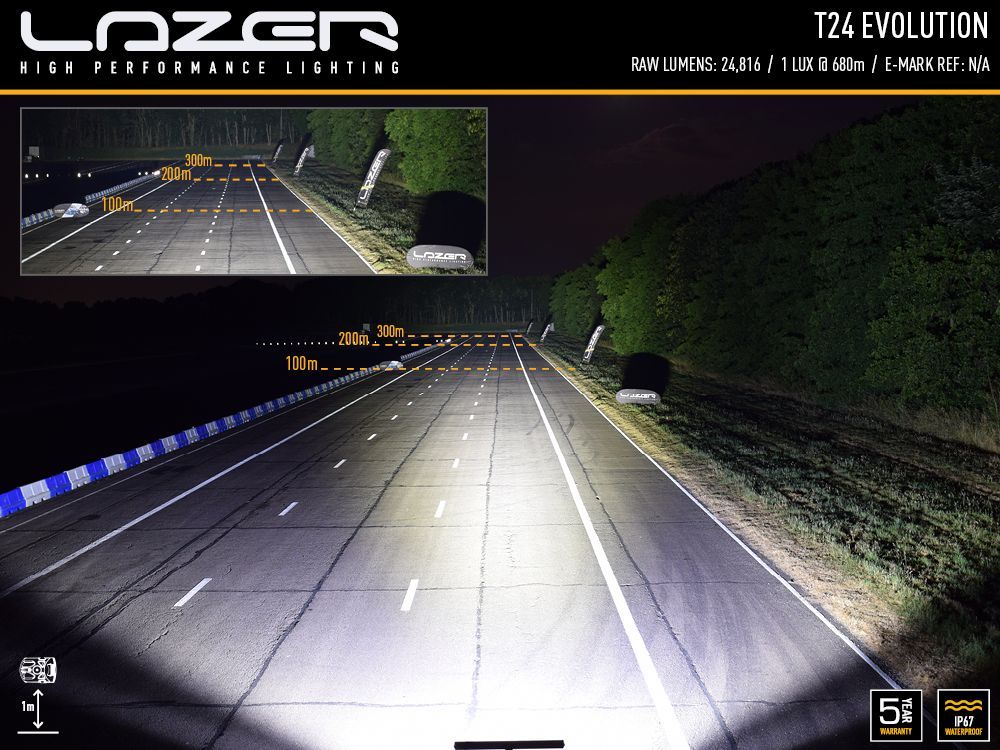

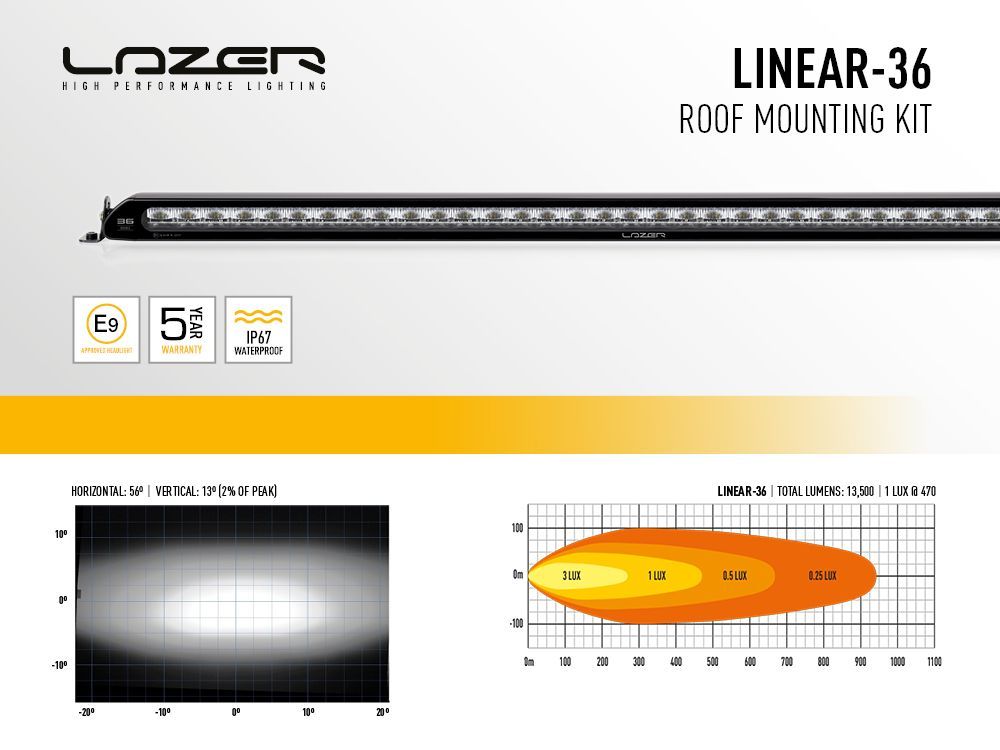

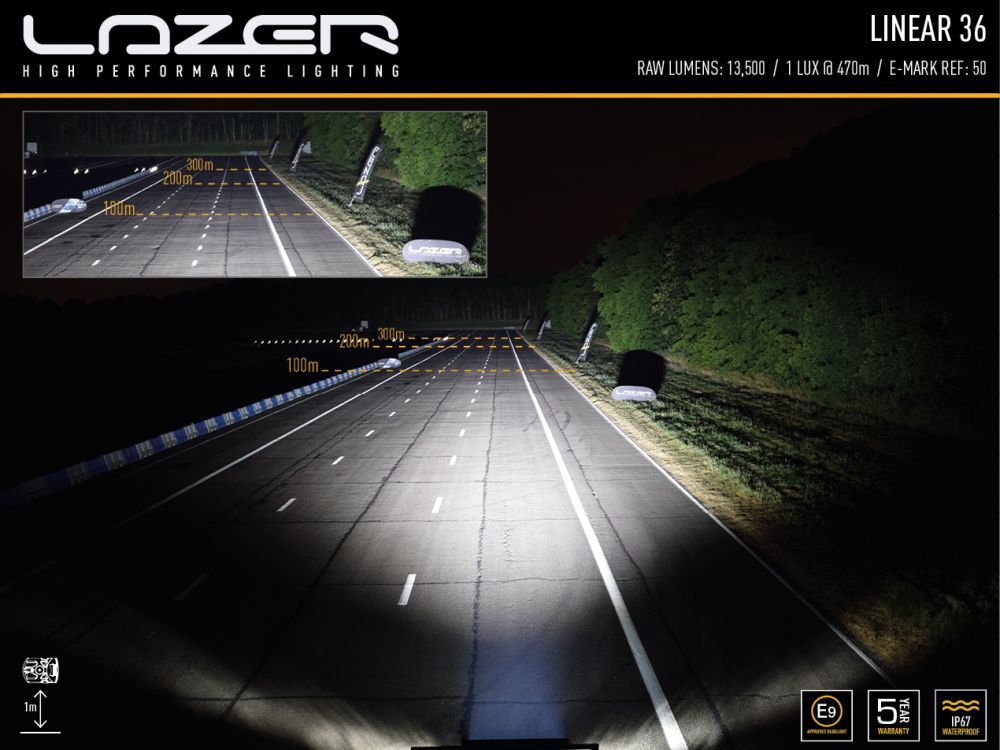

| PHOTOMETRIC DATA | ||
| Horizontal Beam Angle | 25 Deg | 28 Deg |
| 0.25 lx Line | 940 metres | 1361 metres |
| 0.5 lx Line | 665 metres | 962 metres |
| 1 lx Line | 470 metres | 680 metres |
| 3 lx Line | 271 metres | 393 metres |
