Lazer Lamps Ineos Grenadier Triple-R 750 Grille Kit PN: GK-GREN

GK-GREN

For an OE quality, auxiliary LED light installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

XMAS SPECIAL 10% OFF LAZER INTEGRATION KITS. ENDS JAN 6TH. CODE XMAS10
Product Options
From excl. VAT £655.00
(incl. VAT £786.00)

For an OE quality, auxiliary LED light installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

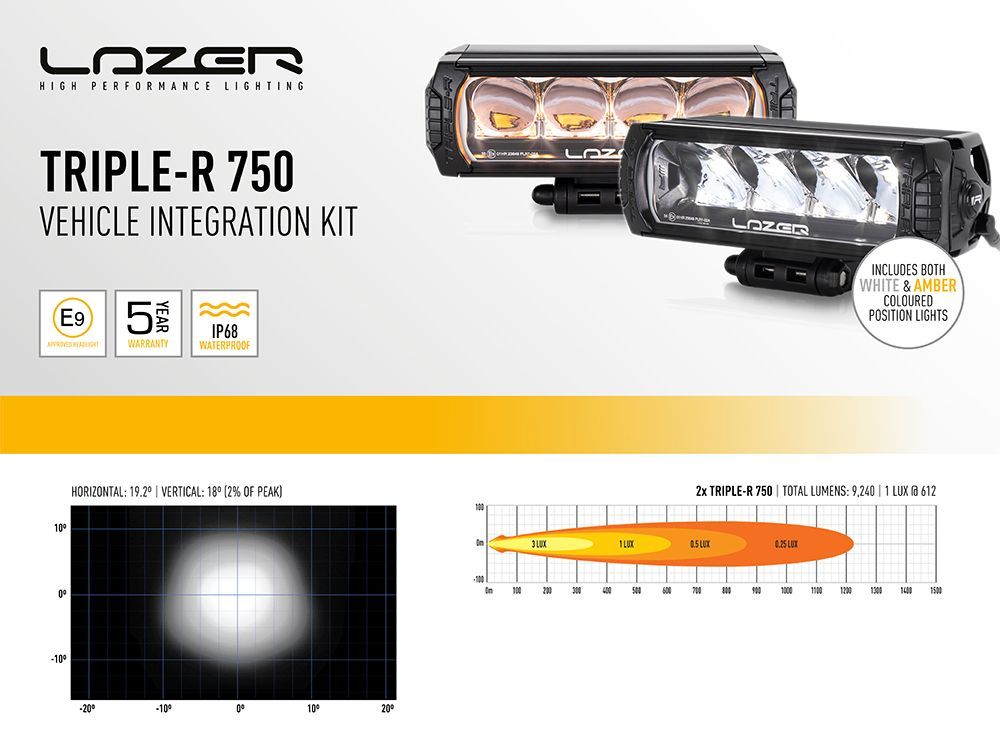

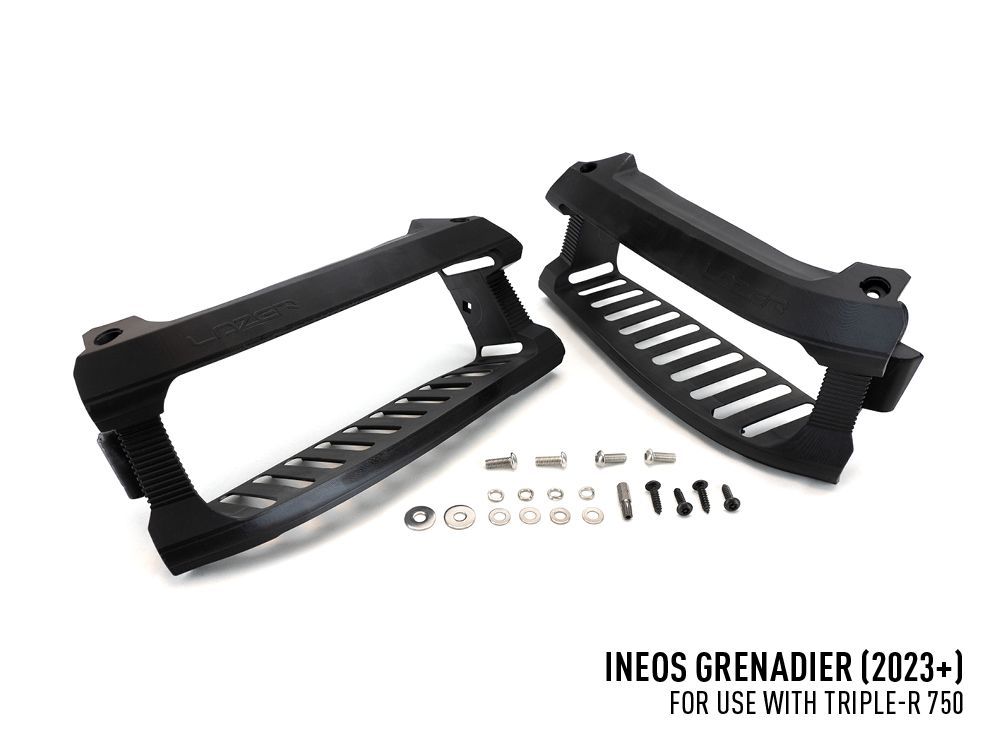

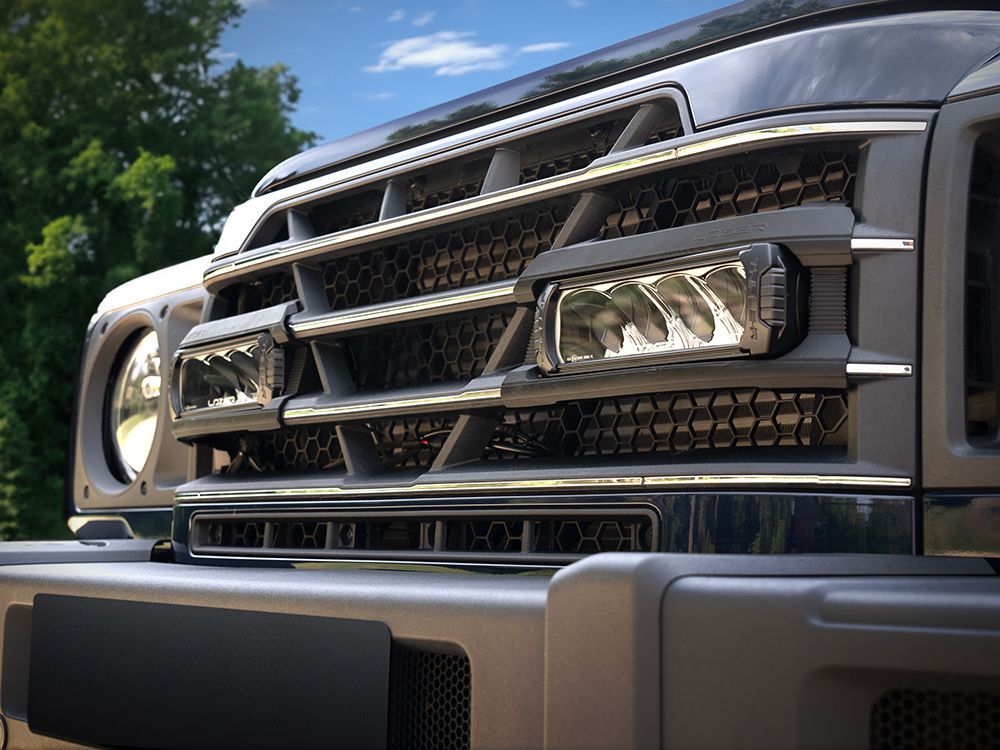

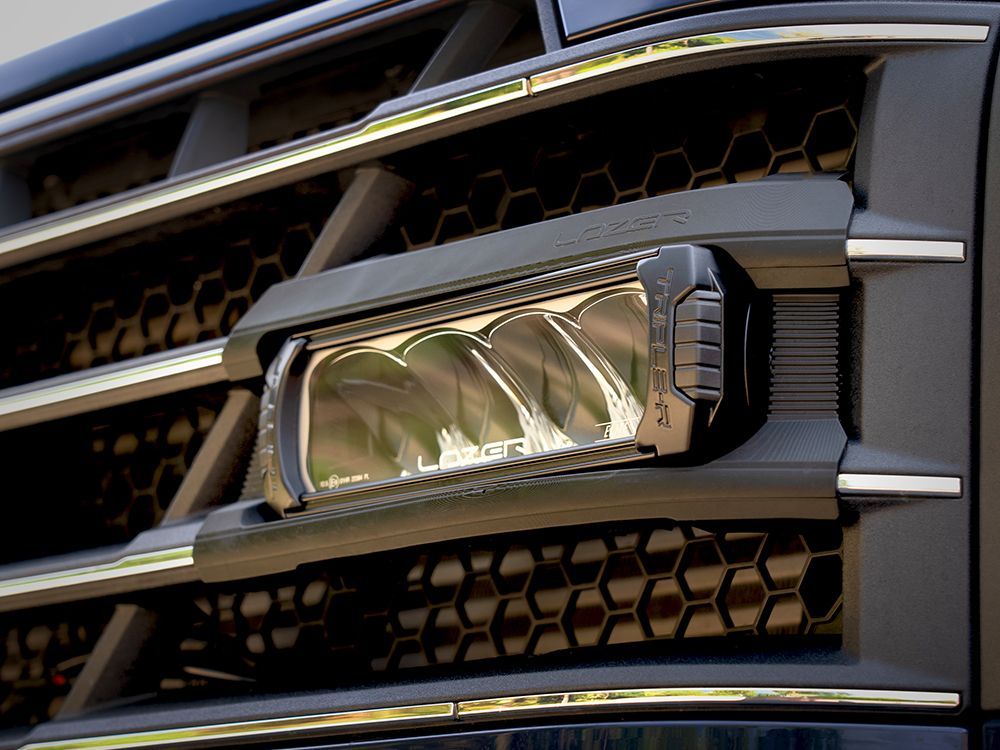

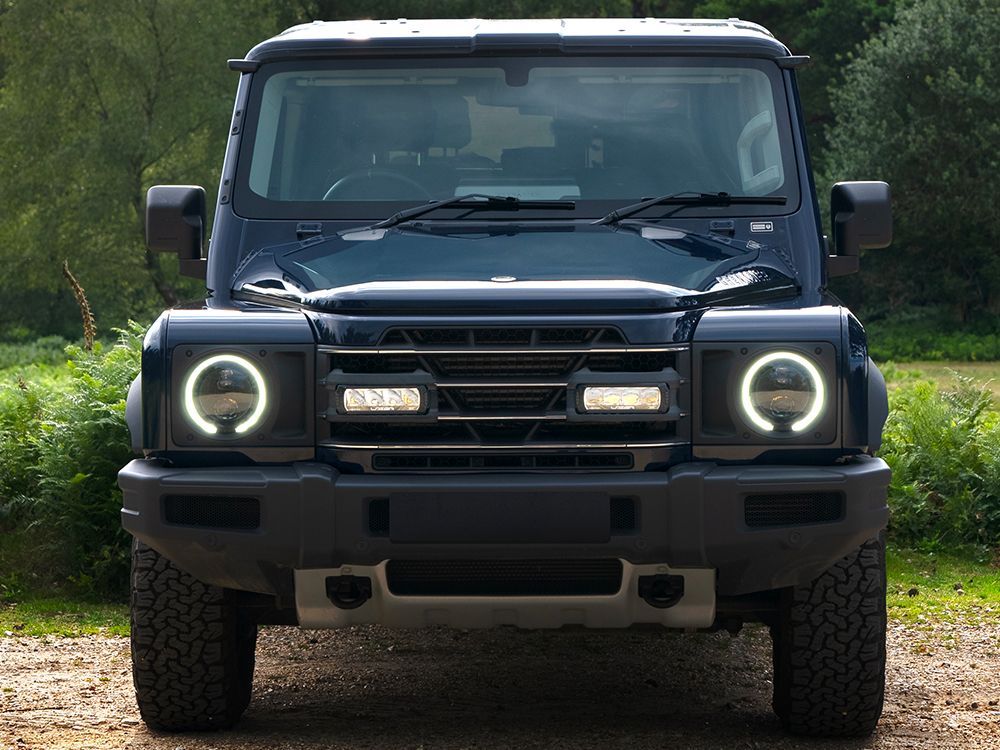

The Ineos Grenadier Grille Kit, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.

Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.

The Ineos Grenadier Grille Integration Kit is optimised for use with Triple-R 750 High Performance LED lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.

Whats included:

1x Grille Mounting Kit (Includes cutting guides)

2x Triple-R 750 LED Lamps

1x Two-Lamp Wiring Kit

Installation Instructions

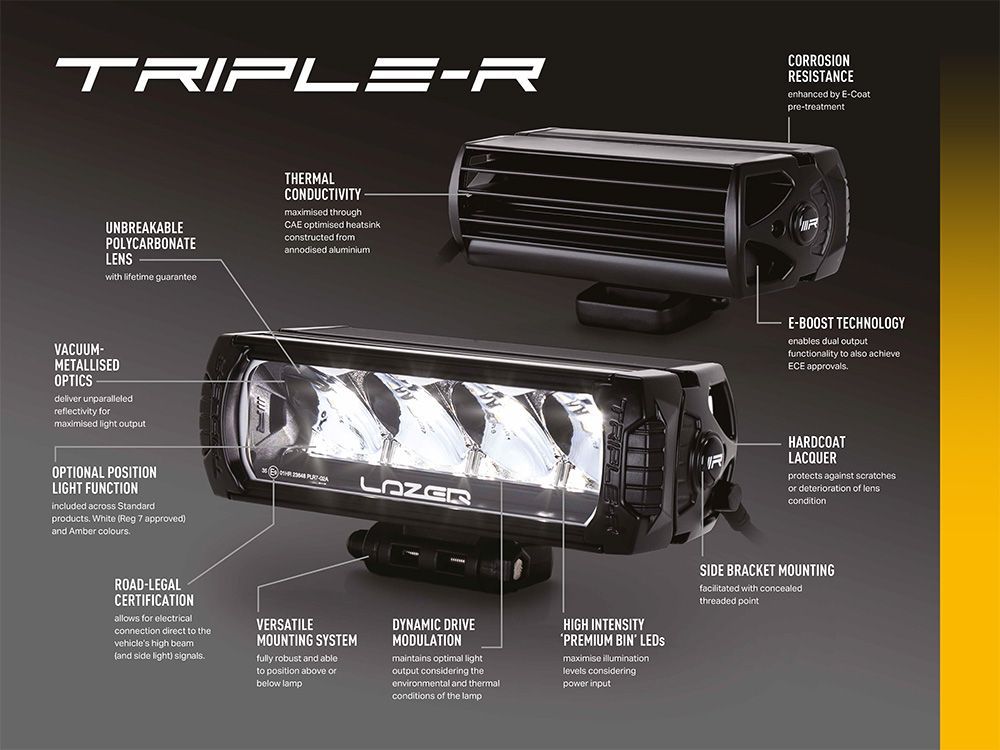

  • Bespoke vehicle integration kit for Lazer LED Light installation
  • Custom fit for Ineos Genadier
  • Available with: Triple-R 750 High Performance LED lights
  • Added option for white or amber position/side light function (Standard model only)
  • Kit also includes bespoke mounting brackets and two-lamp wiring kit
  • Brackets made from high strength, UV -stable, composite material
  • Fully road-legal
  • 5-year warranty
  • Made in Britain
Technical Specifications


2x
Triple-R

750 Elite
(E-Boost Mode)

2x
Triple-R
750 Wide
2x
Triple-R 750
Voltage Range (DC) 10-32V 10-32V 10-32V
LED Life 50,000 hrs 50,000 hrs 50,000 hrs
Weight 2 kg 2 kg 2 kg
HIGH BEAM FUNCTION
Total Luminous Flux

10136 Lm

8640 Lm 9240 Lm
Total Driver 'FOV' Flux † 6680 Lm 5266 Lm 5572 Lm
Colour Temperature 5000K 5000K 5000K
Number of High Output LEDs 2 x 4 2 x 4 2 x 4
Power Consumption 104 Watts 88 Watts 88 Watts
Current Draw (at 14.4V) 7.2 Amps 6.2 Amps 6.2 Amps
CERTIFICATION
High Beam ECE R112 ECE R149 ECE R112
ECE Reference

N/A
(12.5 x2 - E-Mark Mode)

20 x2 35 x2
Position Light (White only) N/A N/A ECE R7

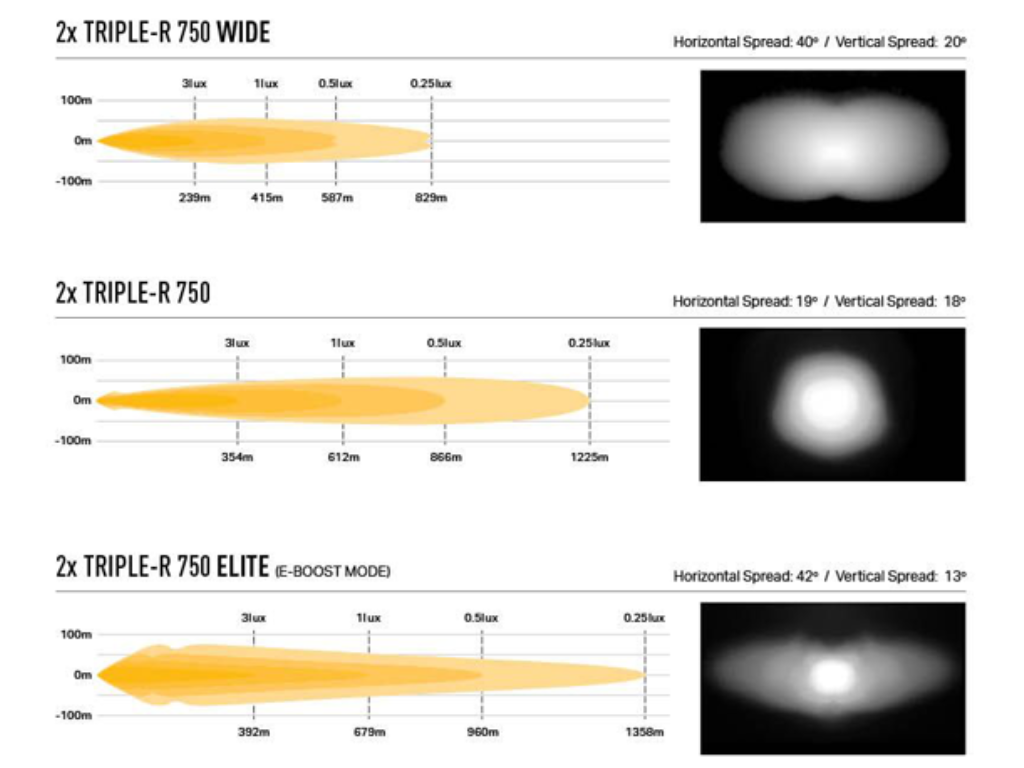

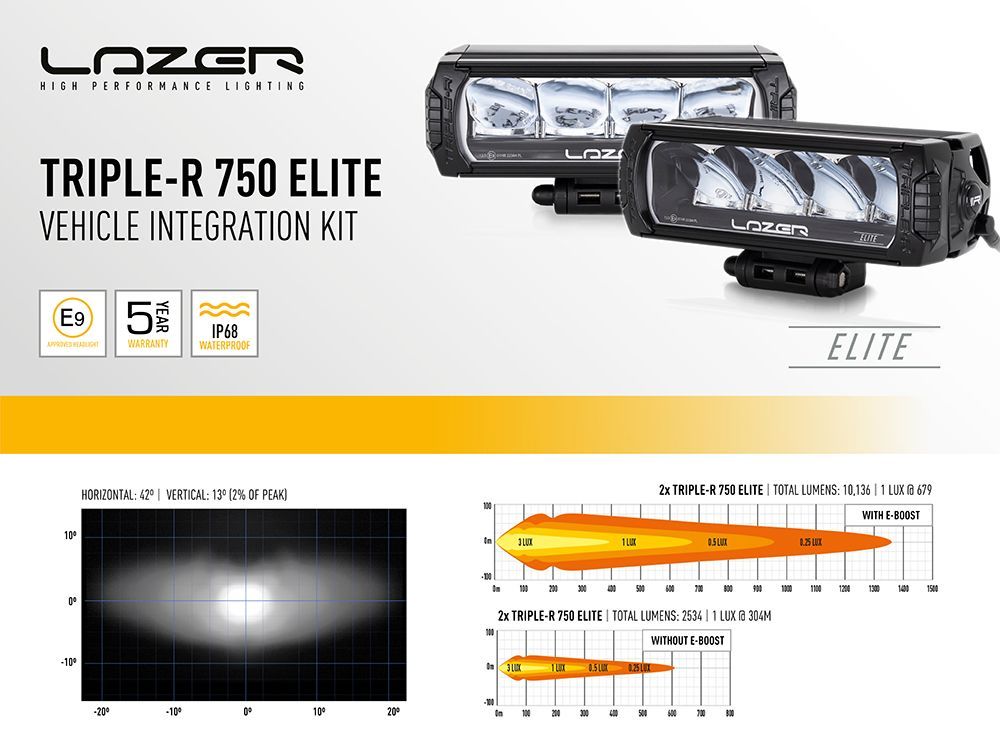

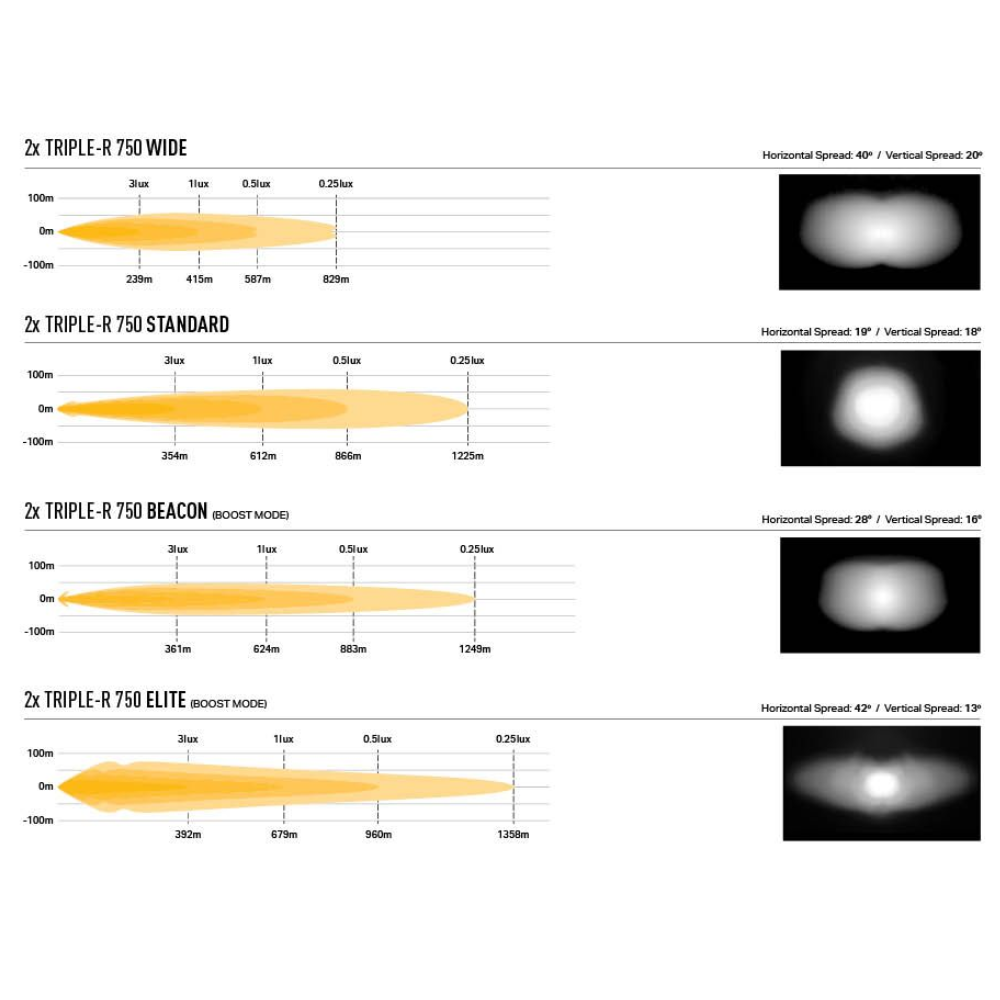

PHOTOMETRIC DATA
Horizontal Beam Angle 42° 40o 19°
0.25 lx Line 1358m 829m 1225m
0.5 lx Line 960m 587m 866m
1 lx Line 679m 415m 612m
3 lx Line 392m 239m 354m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
