Lazer Lamps Ford Transit Custom (2024+) Triple-R 750 Grille Kit PN: GK-FTC-04K
GK-FTC-04K
For an OE quality, auxiliary light installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.
Product Options
From excl. VAT £485.00
(incl. VAT £582.00)
(incl. VAT £582.00)
For an OE quality, auxiliary light installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.

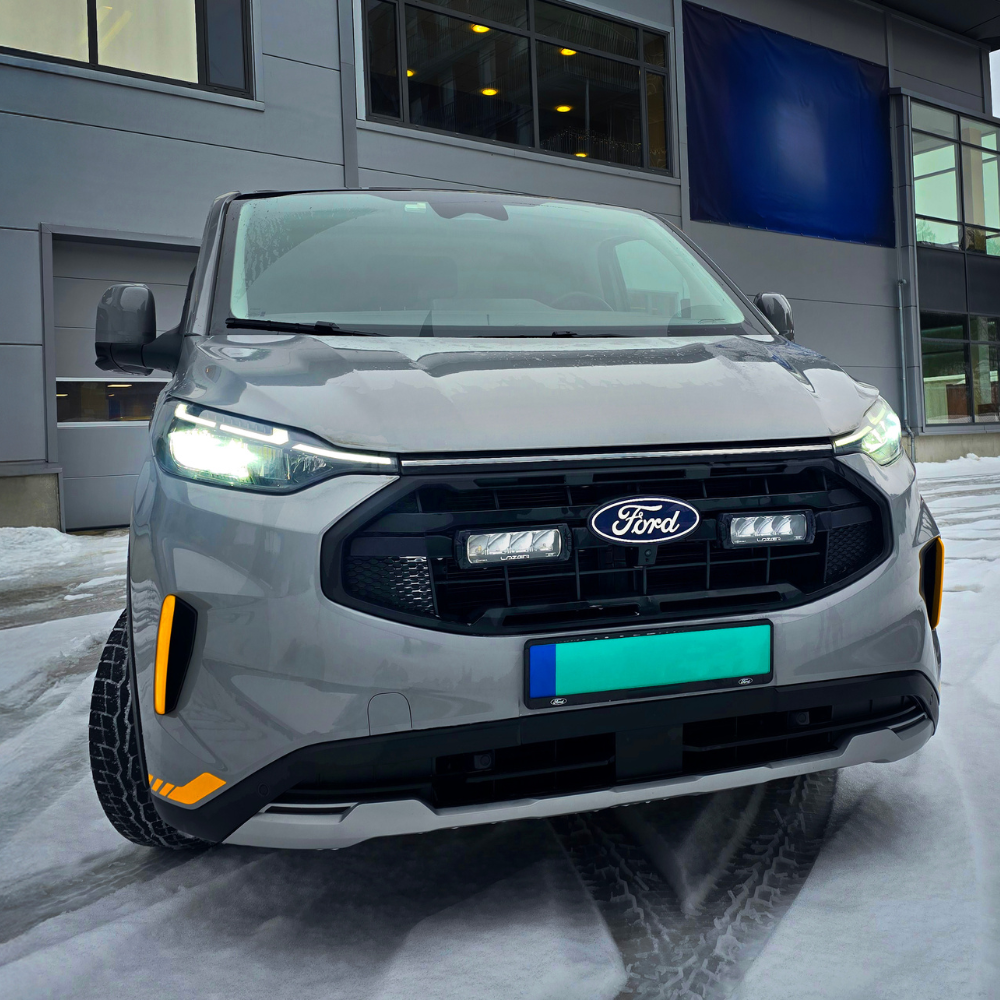

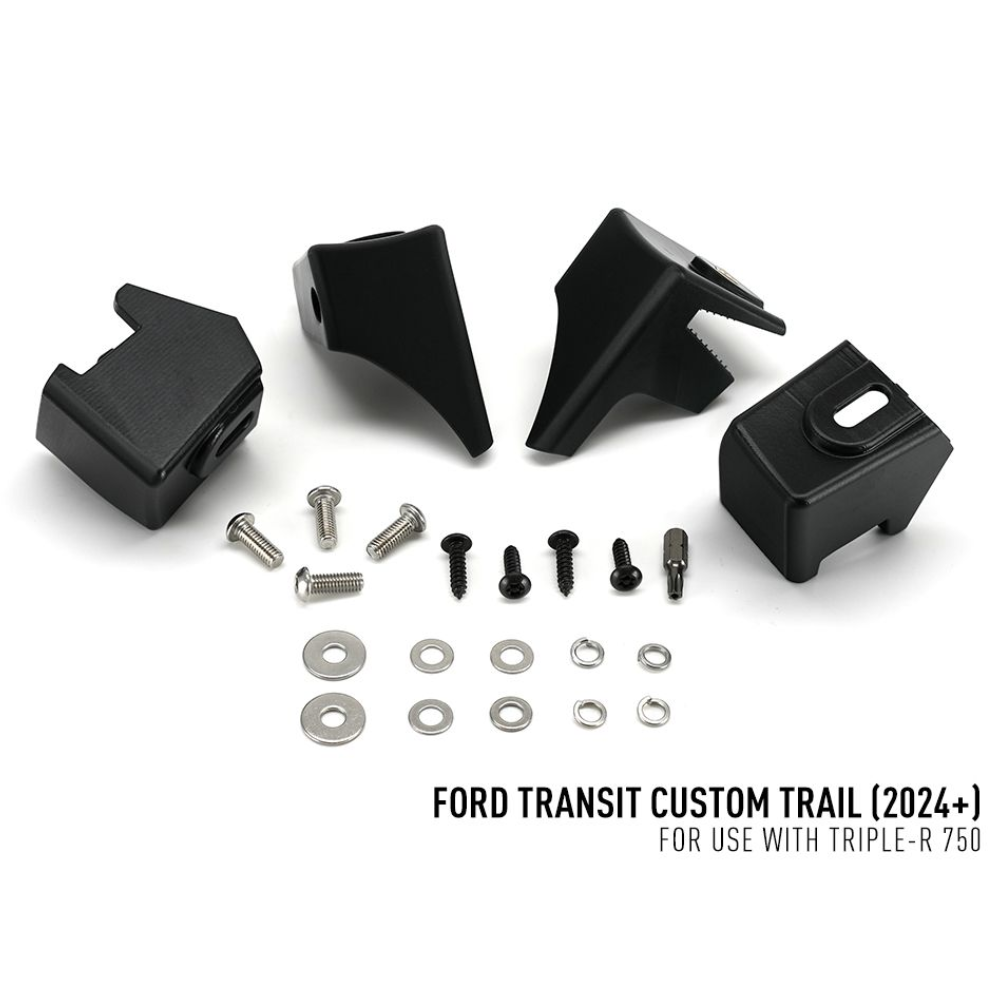

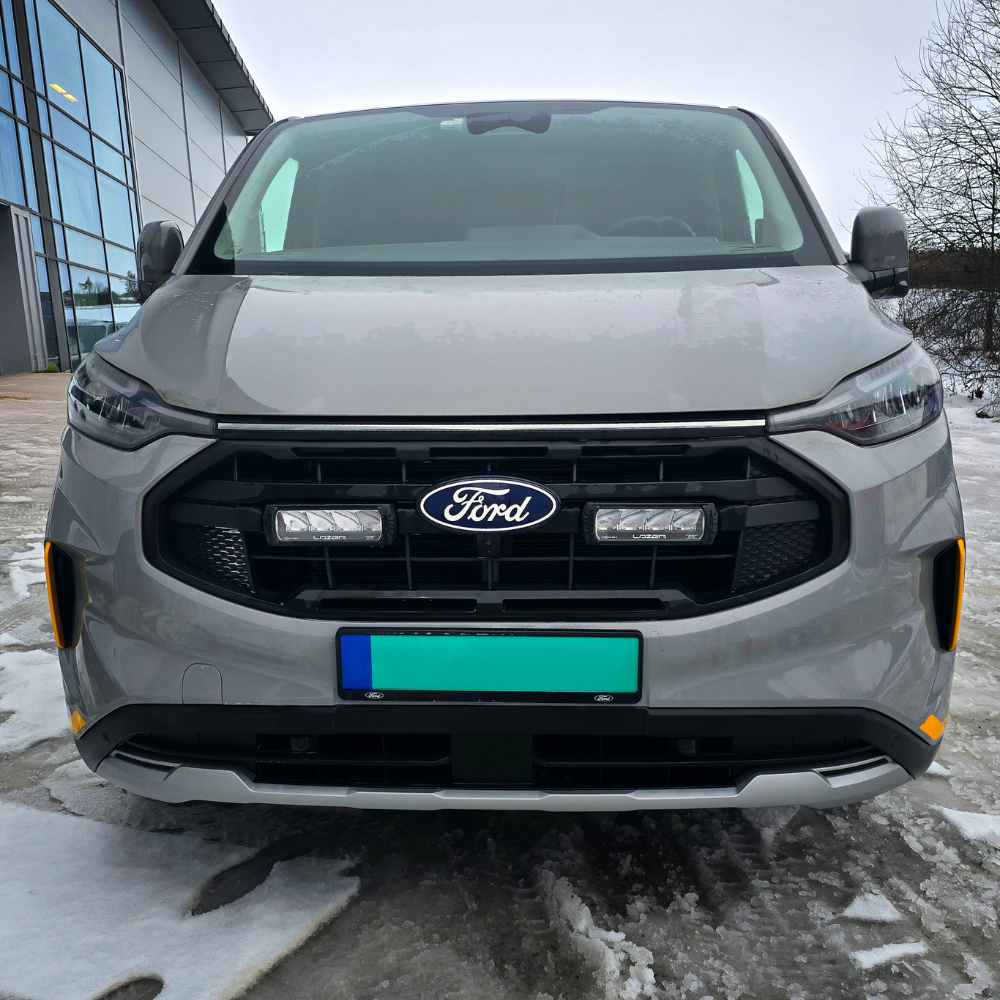

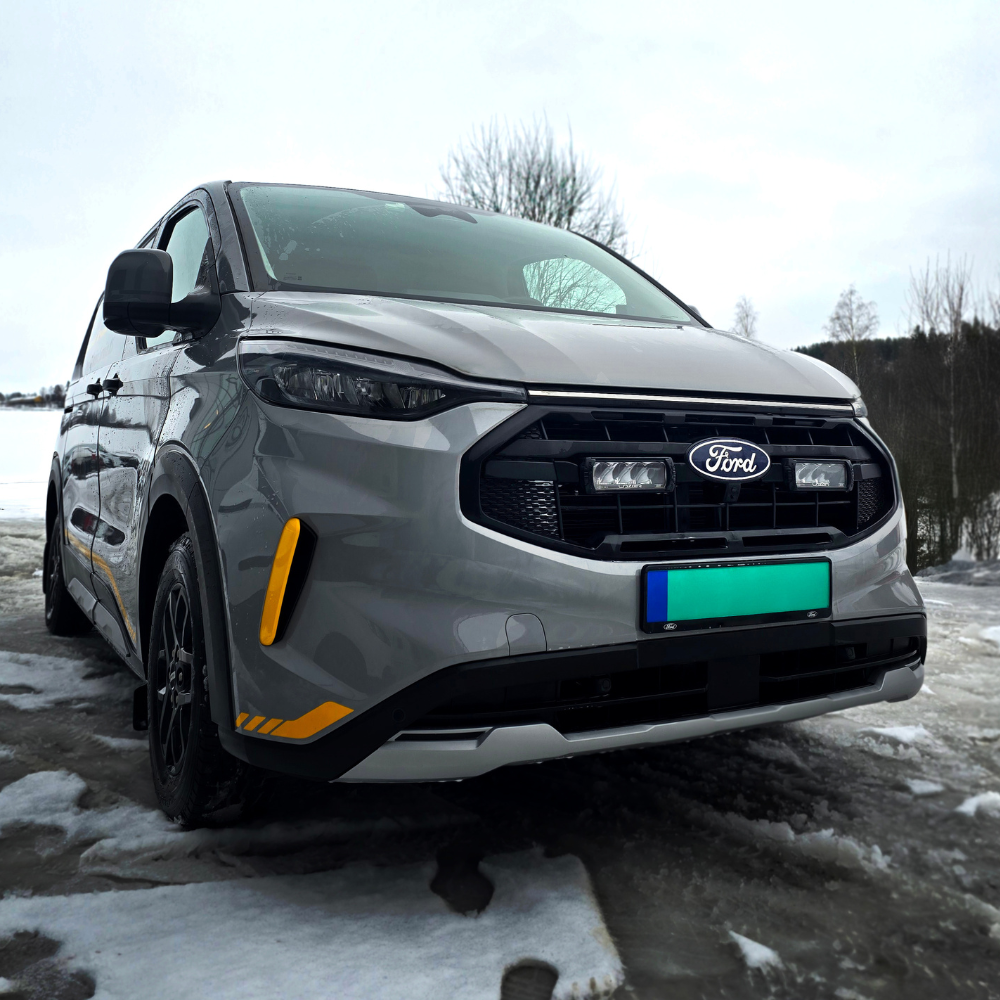

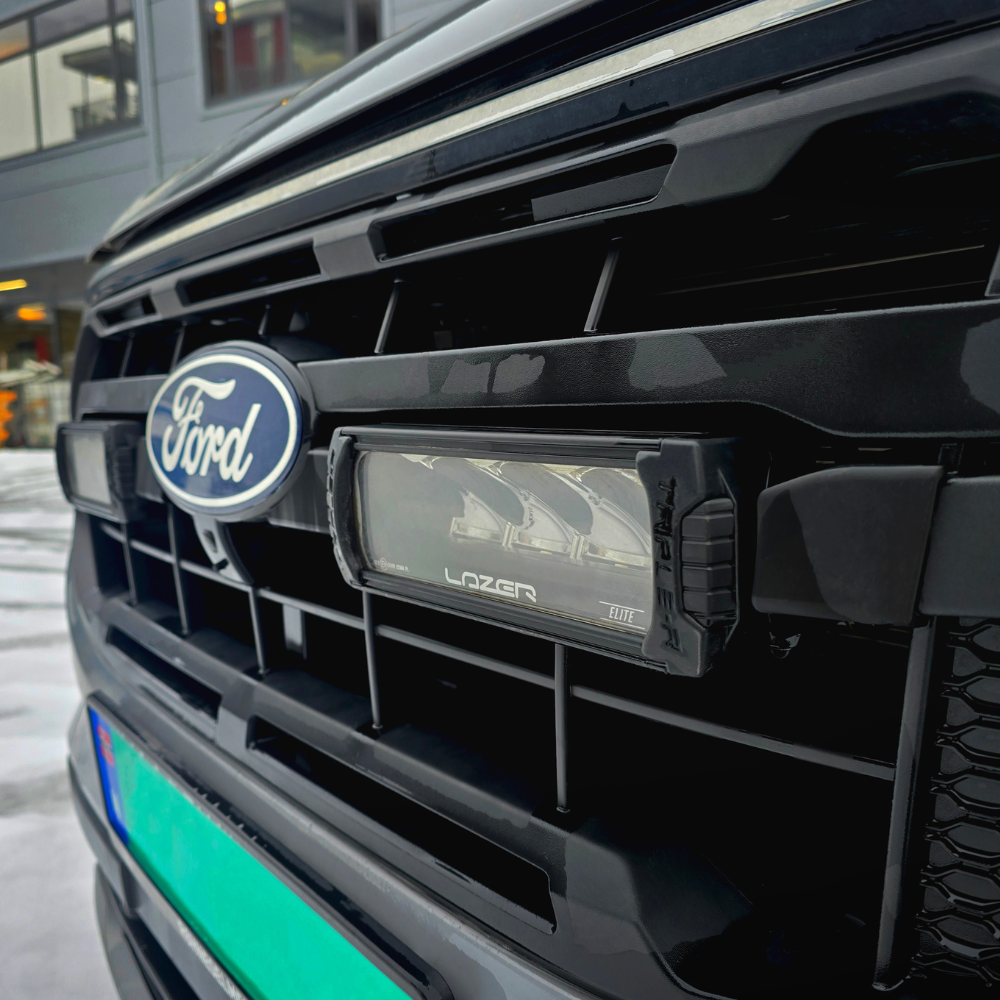

The Ford Transit Custom Trail kit, designed for 2024+ vehicles, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.
The Ford Transit Custom Trail (2024+) Grille Integration Kit is optimised for use with Triple-R 750 High Performance LED lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
Features:
1x Grille Mounting Kit (Includes cutting guides)
2x Triple-R 750 LED Lamps

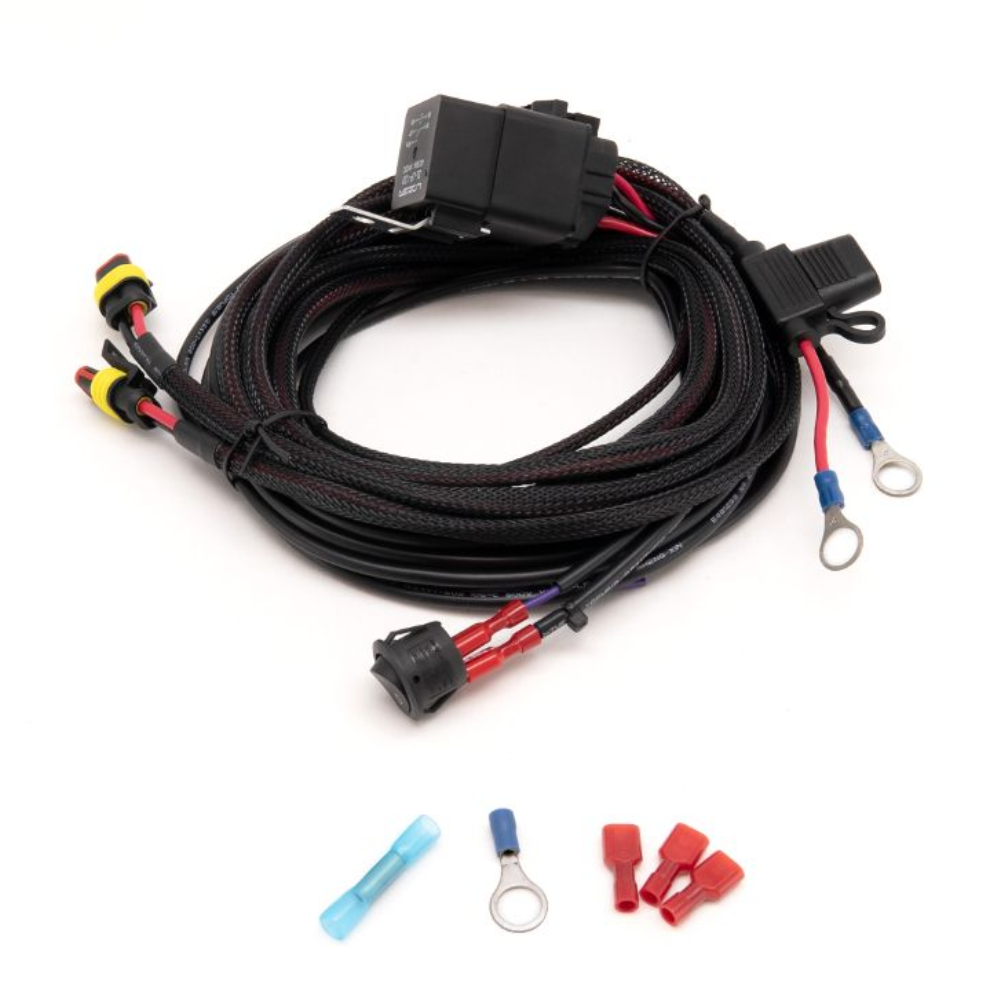

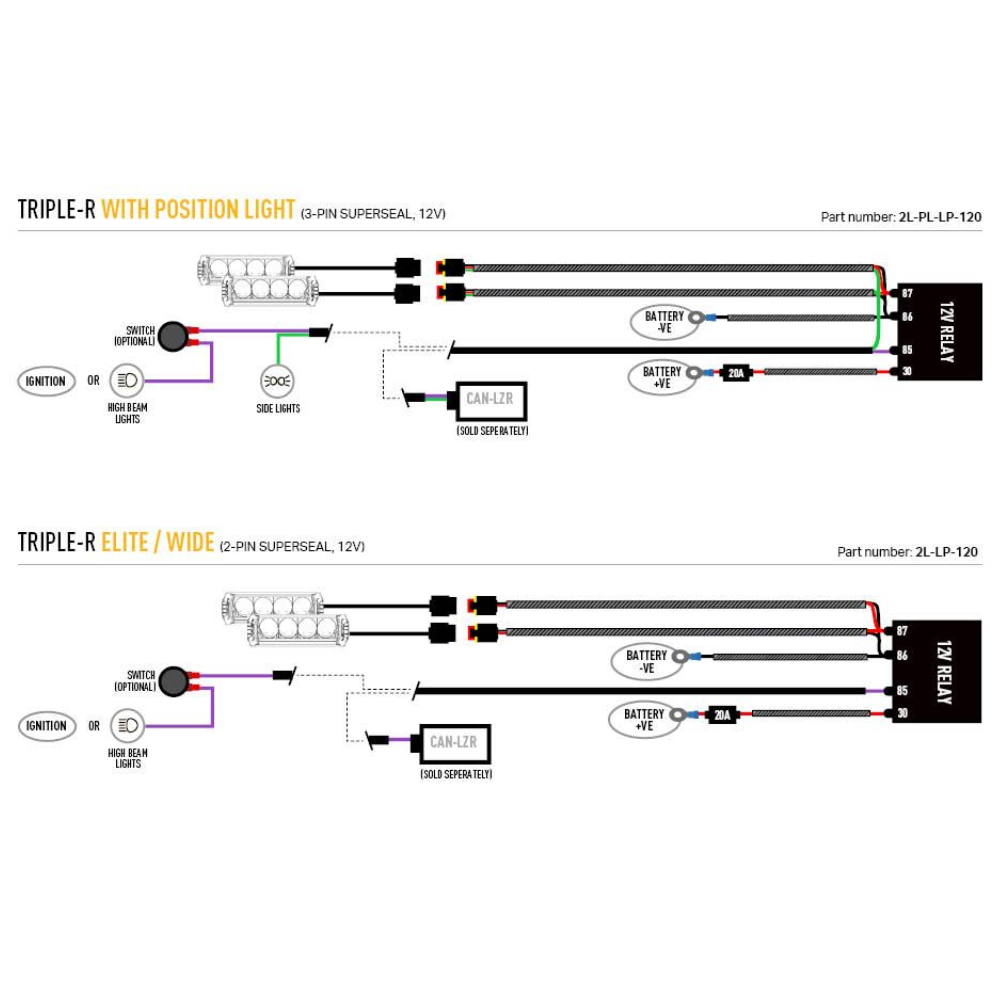

1x Two-Lamp Wiring Kit
Installation Instructions
The Ford Transit Custom Trail kit, designed for 2024+ vehicles, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from composite material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.
The Ford Transit Custom Trail (2024+) Grille Integration Kit is optimised for use with Triple-R 750 High Performance LED lights. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
Features:
- Bespoke vehicle integration kit for Lazer LED light installation

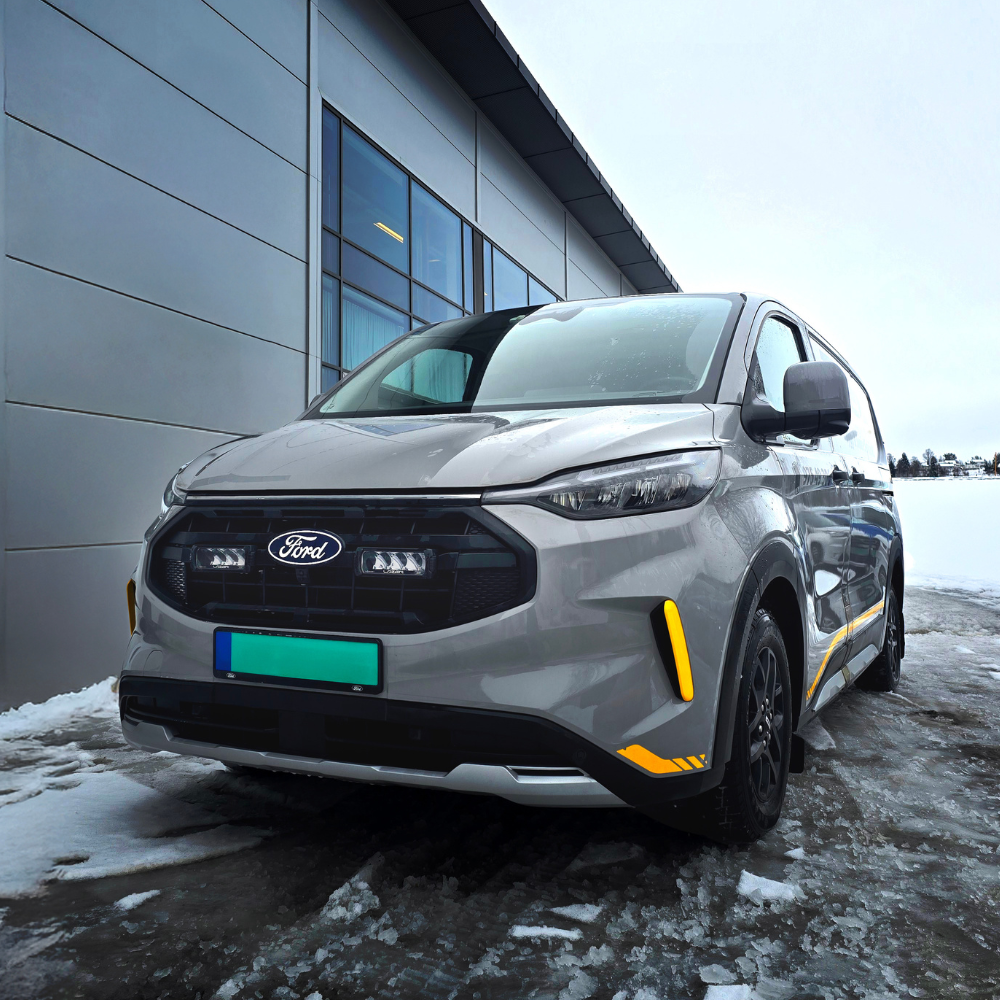

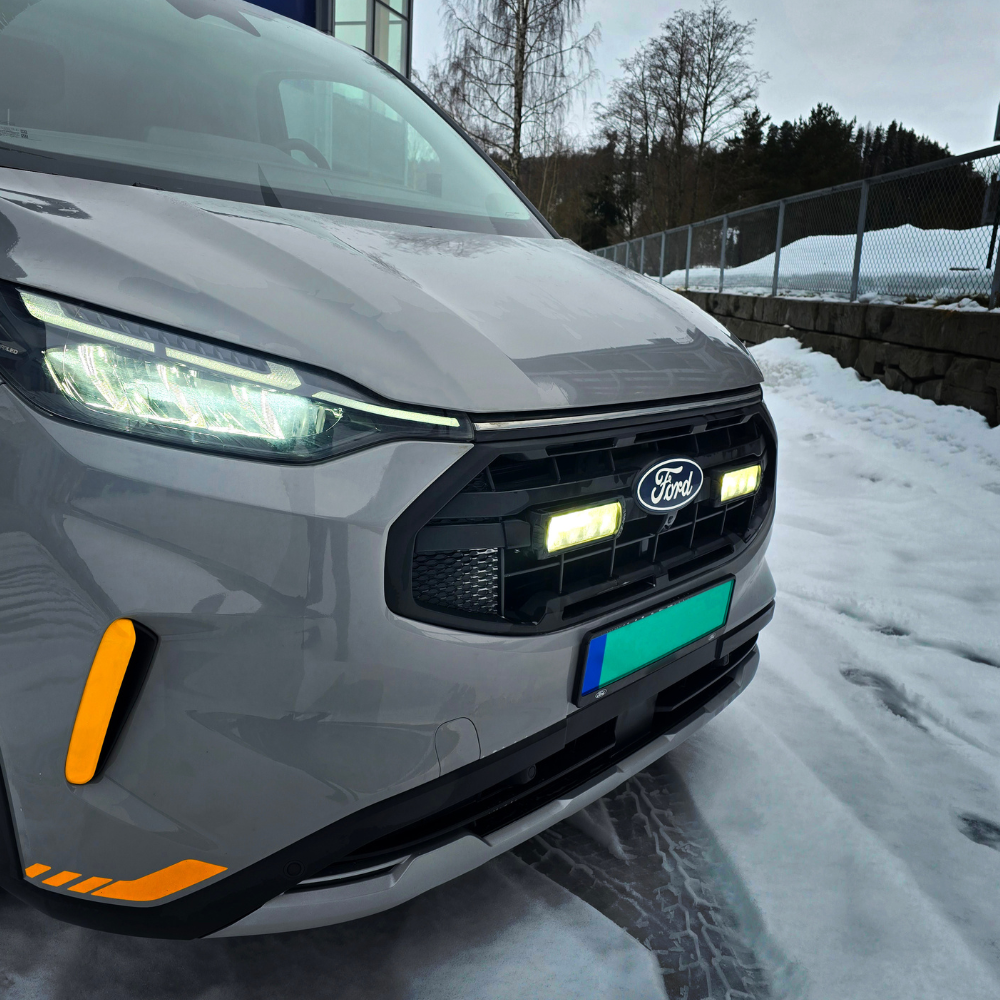

- Custom fit for Ford Transit Custom Trail (2024+)
- Available with: Triple-R 750 High Performance LED lights
- Added option for white or amber position/side light function (Standard model only)
- Kit also includes bespoke mounting brackets and two-lamp wiring kit
- Brackets made from high strength, UV -stable, composite material
- Fully road-legal
- 5-year warranty
- Made in Britain
1x Grille Mounting Kit (Includes cutting guides)
2x Triple-R 750 LED Lamps
1x Two-Lamp Wiring Kit
Installation Instructions
2x | 2x | 2x | |
|---|---|---|---|
| Voltage Range (DC) | 10-32V | 10-32V | 10-32V |
| LED Life | 50,000 hours | 50,000 hours | 50,000 hours |
| Weight | 2.6 kg | 2.6 kg | 2.6 kg |
| HIGH BEAM FUNCTION | |||
| Total Luminous Flux | 9240 Lm | 9240 Lm | 10136 Lm |
| Total Driver 'FOV' Flux † | 5266 Lm | 5572 Lm | 6680 Lm |
| Colour Temperature | 5000K | 5000K | 5000K |
| Power Consumption | 88 Watts | 88 Watts | 104 Watts |
| Current Draw (14.4V) | 6.2 Amps | 6.2 Amps | 7.2 Amps |
| Connector | 2-Pin Superseal (+25cm Cable) | 3-Pin Superseal (+25cm Cable) | 2-Pin Superseal (+25cm Cable) |
| CERTIFICATION | |||
| IP Rating # | IP68 | IP68 | IP68 |
| High Beam (E9 approval) | ECE R149 - Ref: 2x 20 | ECE R112 - Ref: 2x 35 | ECE R112 - Ref: 2x 12.5 (Low Output Mode) |
| Position Light (White) | N/A | ECE R148 | N/A |
| EMC Certification | ECE R10 | ECE R10 | ECE R10 |
| Salt Spray Test | ISO 9227 | ISO 9227 | ISO 9227 |
| Dump Load Protection | ISO 7637-2 | ISO 7637-2 | ISO 7637-2 |

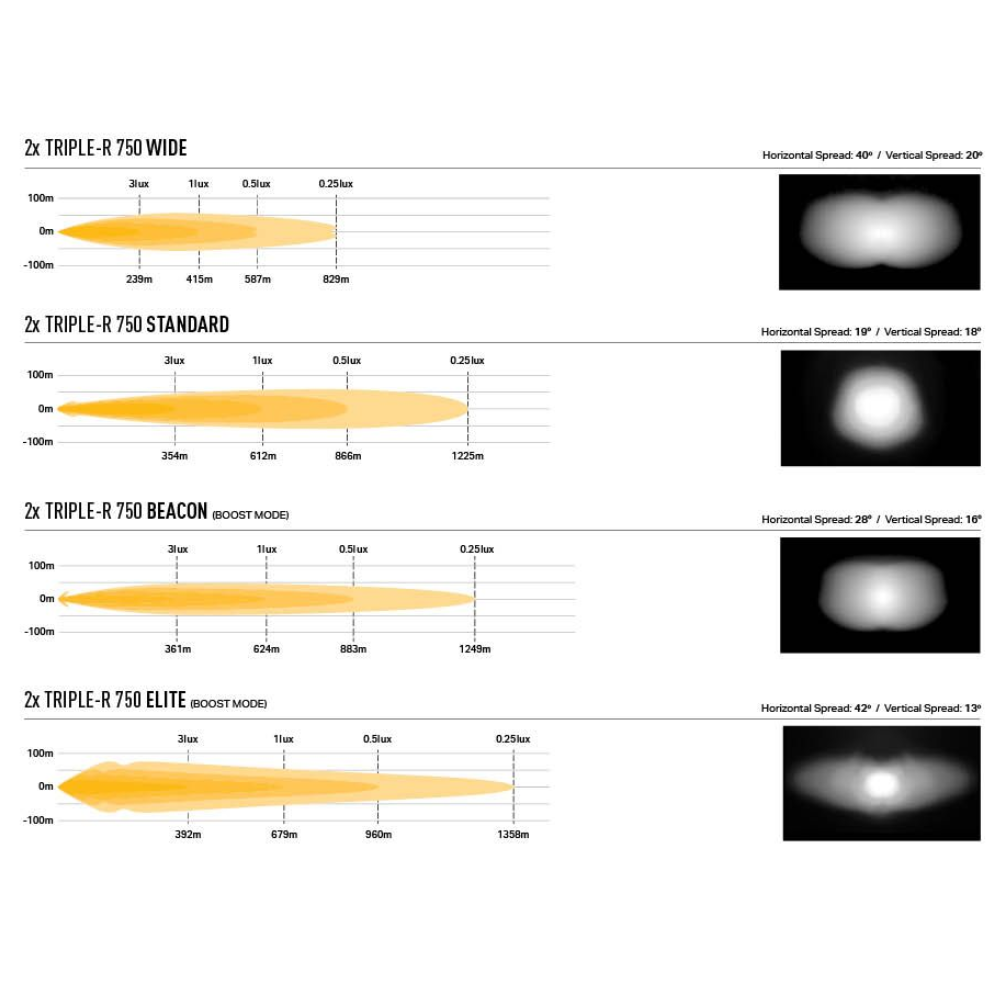

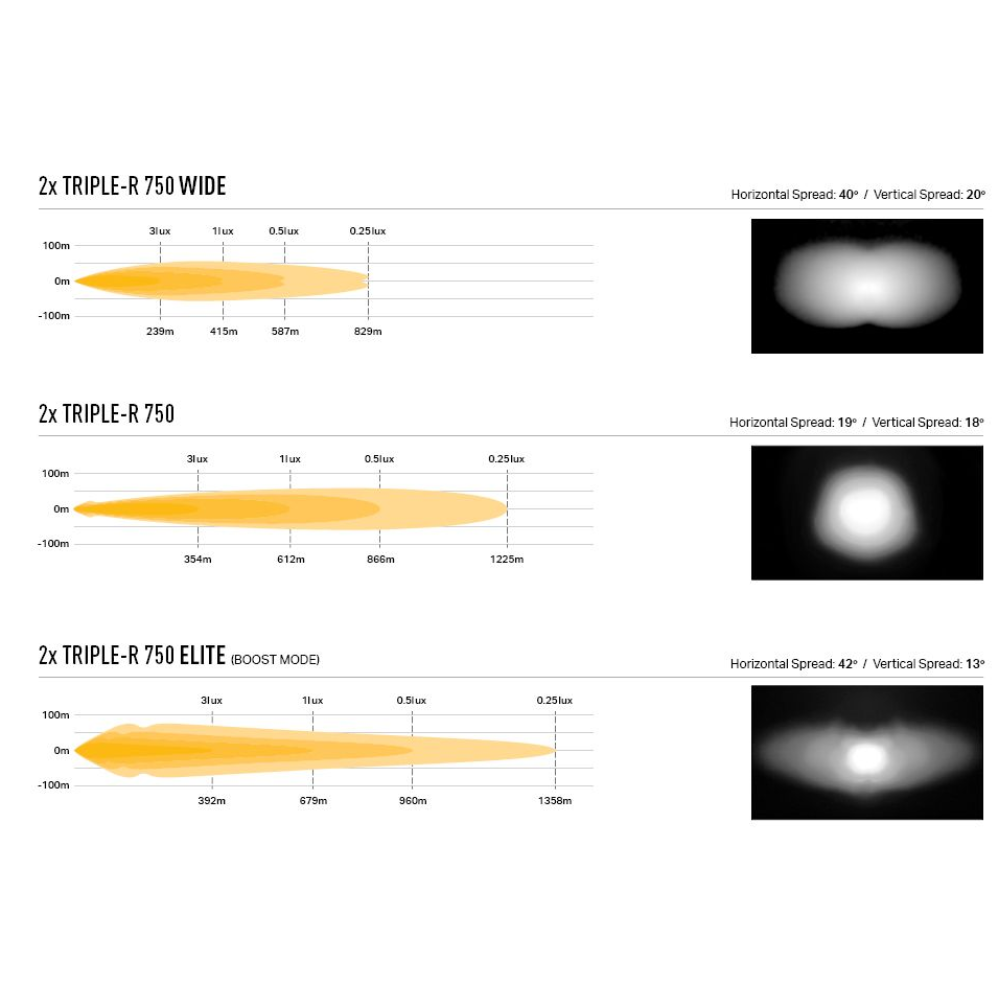

| PHOTOMETRIC DATA | |||

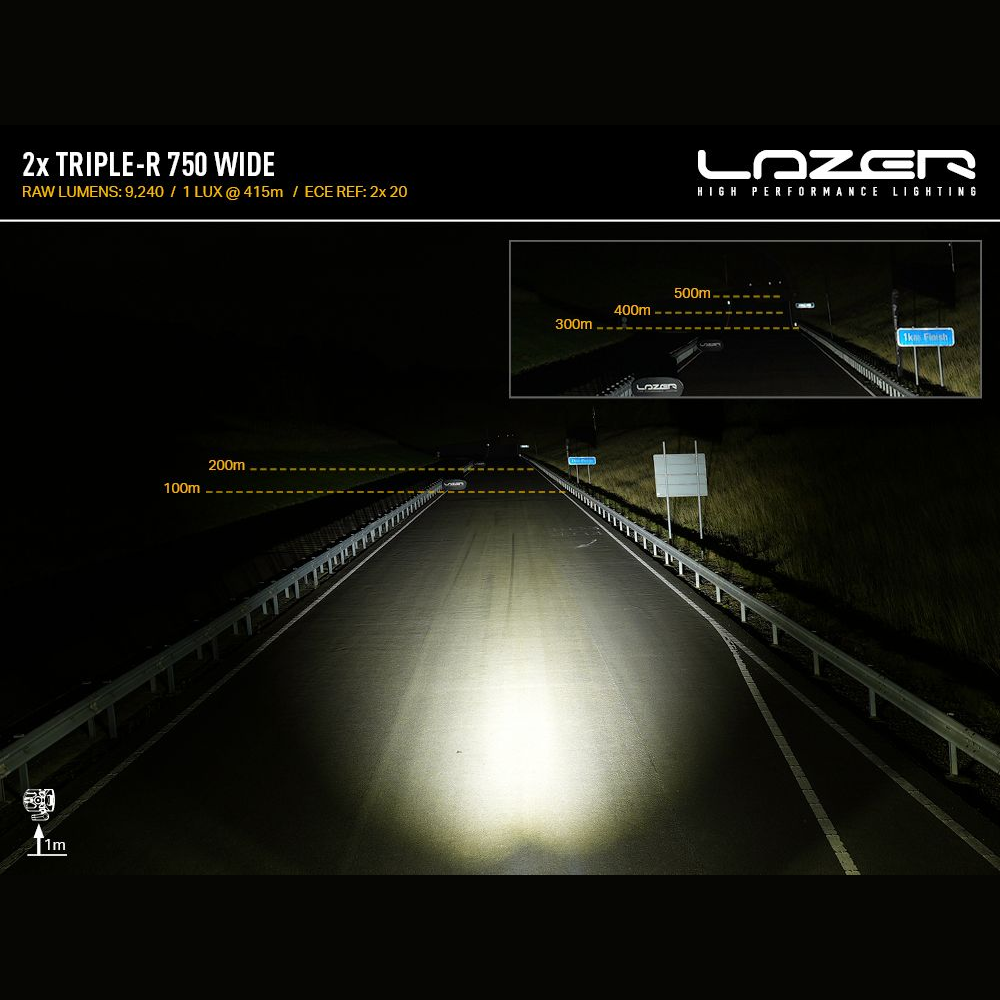

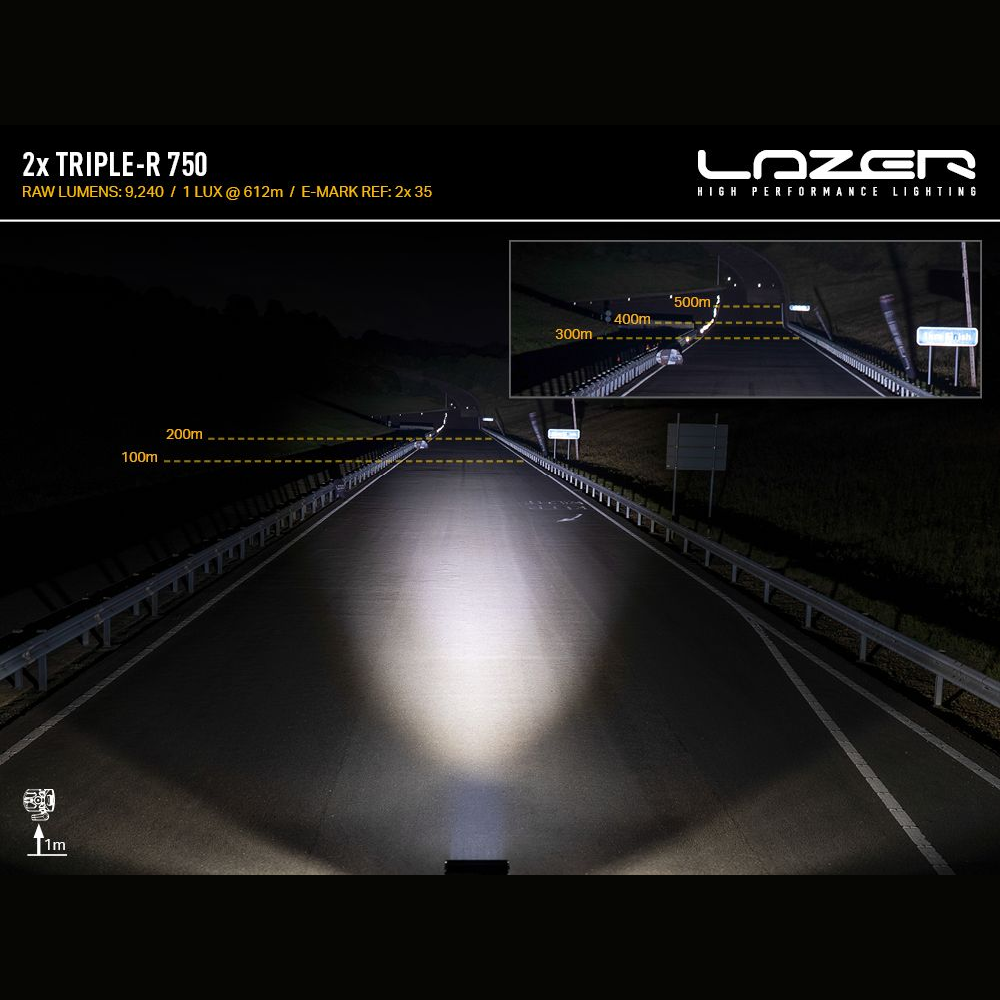

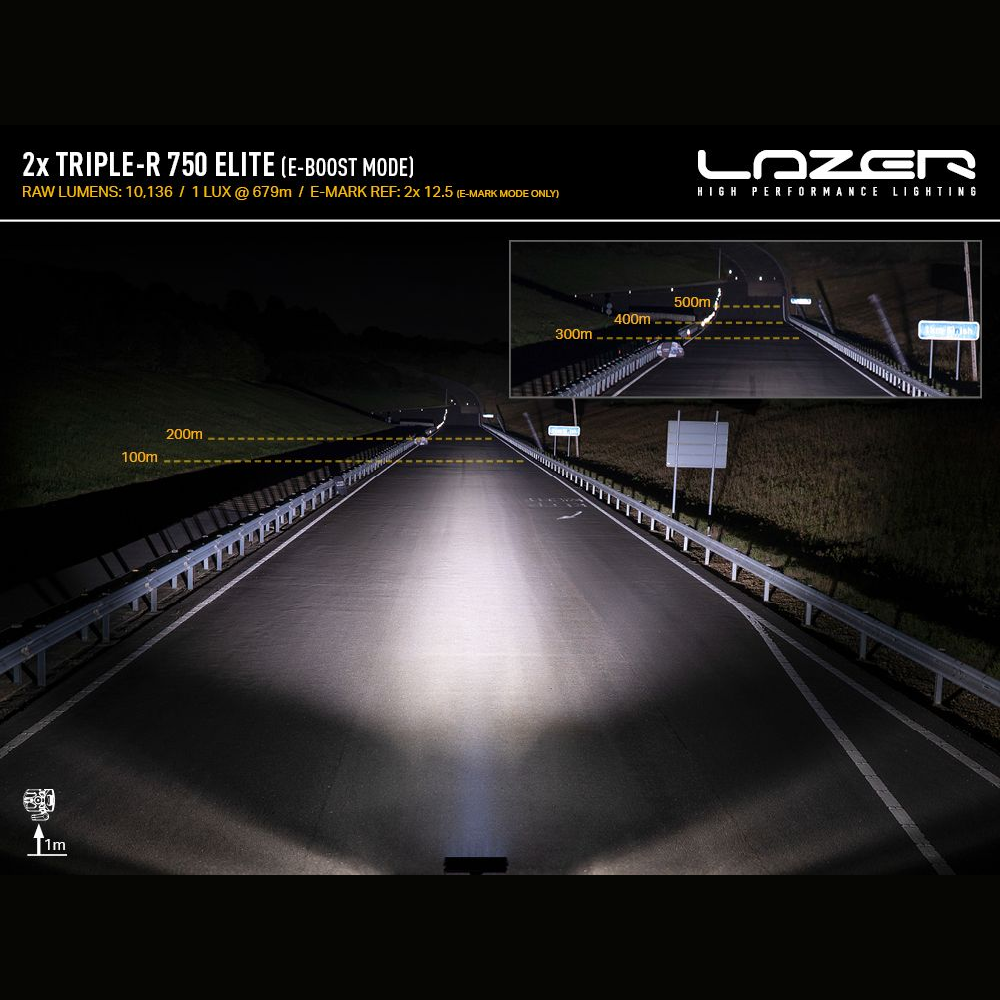

| Horizontal / Vertical Beam Angle | 40° / 20° | 19° / 18° | 42° / 13° |
| 0.25 Lux | 829m | 1225m | 1358m |
| 0.5 Lux | 587m | 866m | 960m |
| 1 Lux | 415m | 612m | 679m |
| 3 Lux | 239m | 354m | 392m |
† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
