Lazer Lamps Ford Transit Custom 2024+ Glide Grille Kit PN: GK-FTC-0G
GK-FTC-0G
The Ford Transit Custom (2024+) Grille Integration Kit features your choice of Glide (Standard/Elite – with or without Position Light) High Performance LED lightbar, along with a wiring kit and precision-engineered brackets that fit perfectly within the vehicle’s standard centre grille.
Product Options
From excl. VAT £345.00
(incl. VAT £414.00)
(incl. VAT £414.00)
For an OE-quality auxiliary lightbar installation, the Lazer Grille Integration Kits include custom-designed mounting brackets that facilitate the quick and seamless fitting of Lazer High Performance LED lightbars into the front grilles of popular road cars, pick-up trucks, and light commercial vehicles. Crafted to complement each vehicle's original styling, the integrated setup is robust, secure, and features added anti-theft protection.
The Ford Transit Custom (2024+) Grille Integration Kit features your choice of Glide (Standard/Elite – with or without Position Light) High Performance LED lightbar, along with a wiring kit and precision-engineered brackets that fit perfectly within the vehicle’s standard centre grille. For added durability and reinforcement, the kit includes self-tapping (plastic) screws for extra hold.
Constructed from a robust composite material renowned for its exceptional strength and UV resistance, the brackets are designed to withstand harsh weather conditions and chemicals, ensuring long-lasting performance. Additionally, the kit comes with precise cutting guides that simplify the installation process, delivering a perfect fit every time—no need to remove grille or bumper components.
The Ford Transit Custom (2024+) Grille Integration Kit is carefully tailored and optimised for seamless compatibility with the Glide LED lightbars. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
What's Included?
The Ford Transit Custom (2024+) Grille Integration Kit features your choice of Glide (Standard/Elite – with or without Position Light) High Performance LED lightbar, along with a wiring kit and precision-engineered brackets that fit perfectly within the vehicle’s standard centre grille. For added durability and reinforcement, the kit includes self-tapping (plastic) screws for extra hold.
Constructed from a robust composite material renowned for its exceptional strength and UV resistance, the brackets are designed to withstand harsh weather conditions and chemicals, ensuring long-lasting performance. Additionally, the kit comes with precise cutting guides that simplify the installation process, delivering a perfect fit every time—no need to remove grille or bumper components.
The Ford Transit Custom (2024+) Grille Integration Kit is carefully tailored and optimised for seamless compatibility with the Glide LED lightbars. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
- Bespoke vehicle brackets for seamless integration

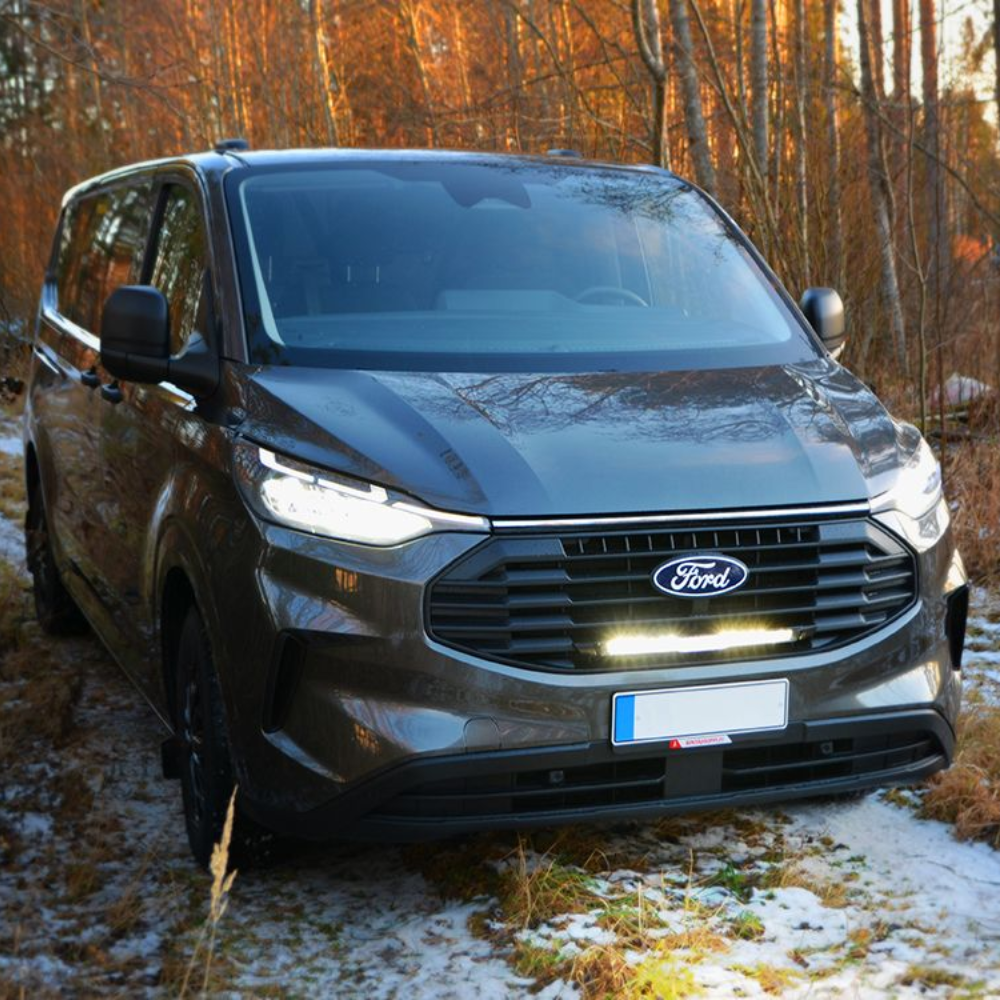

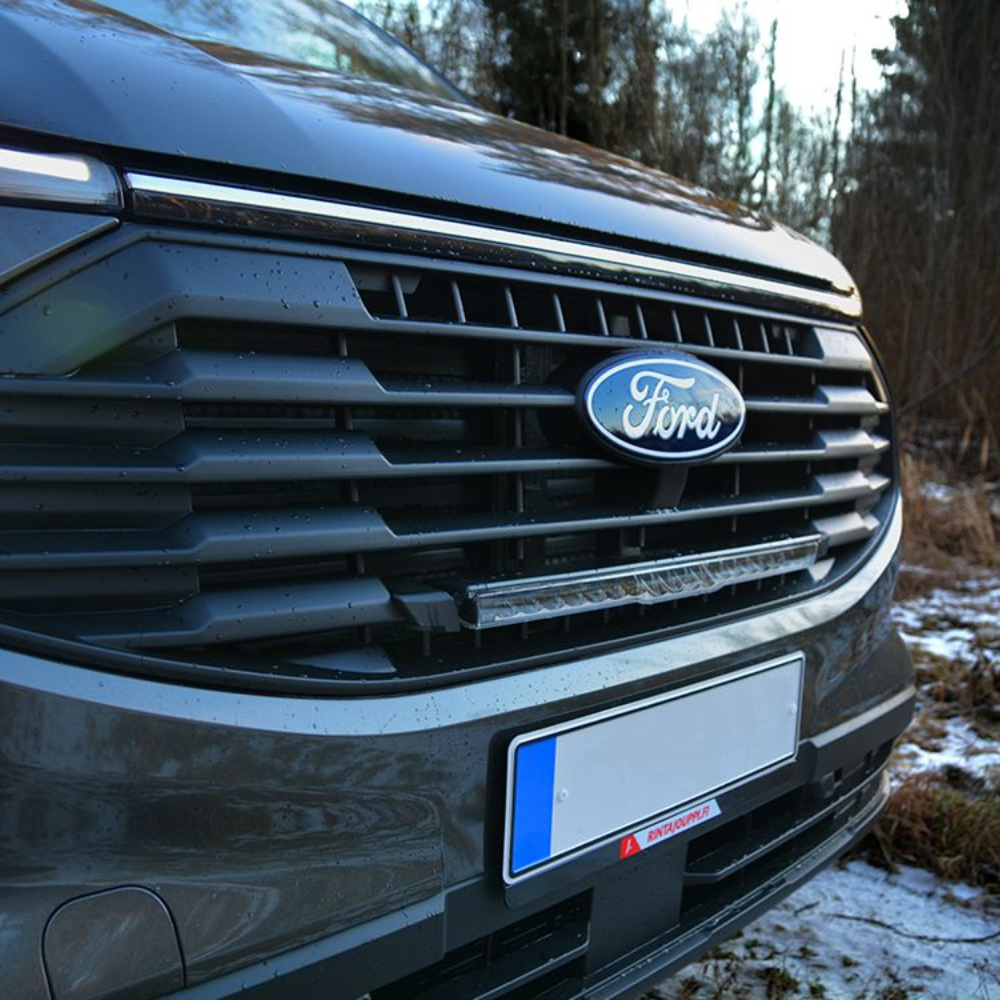

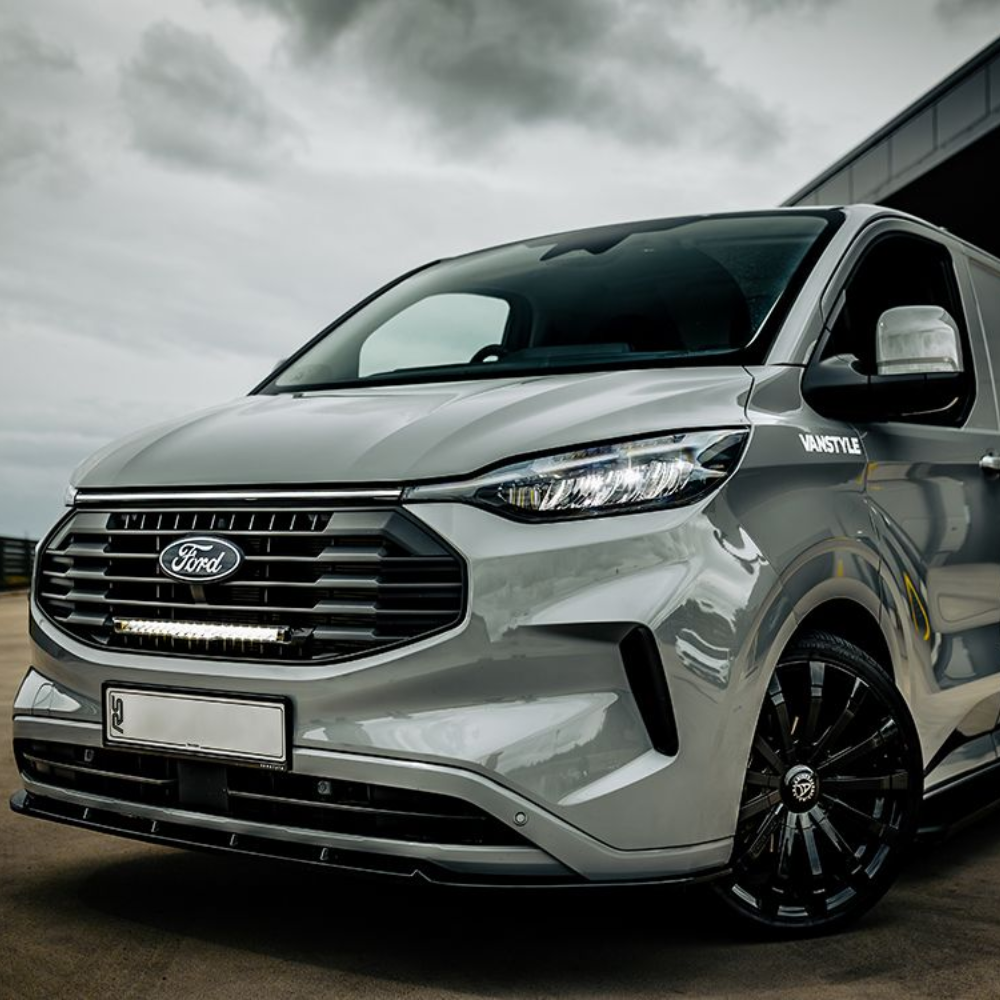

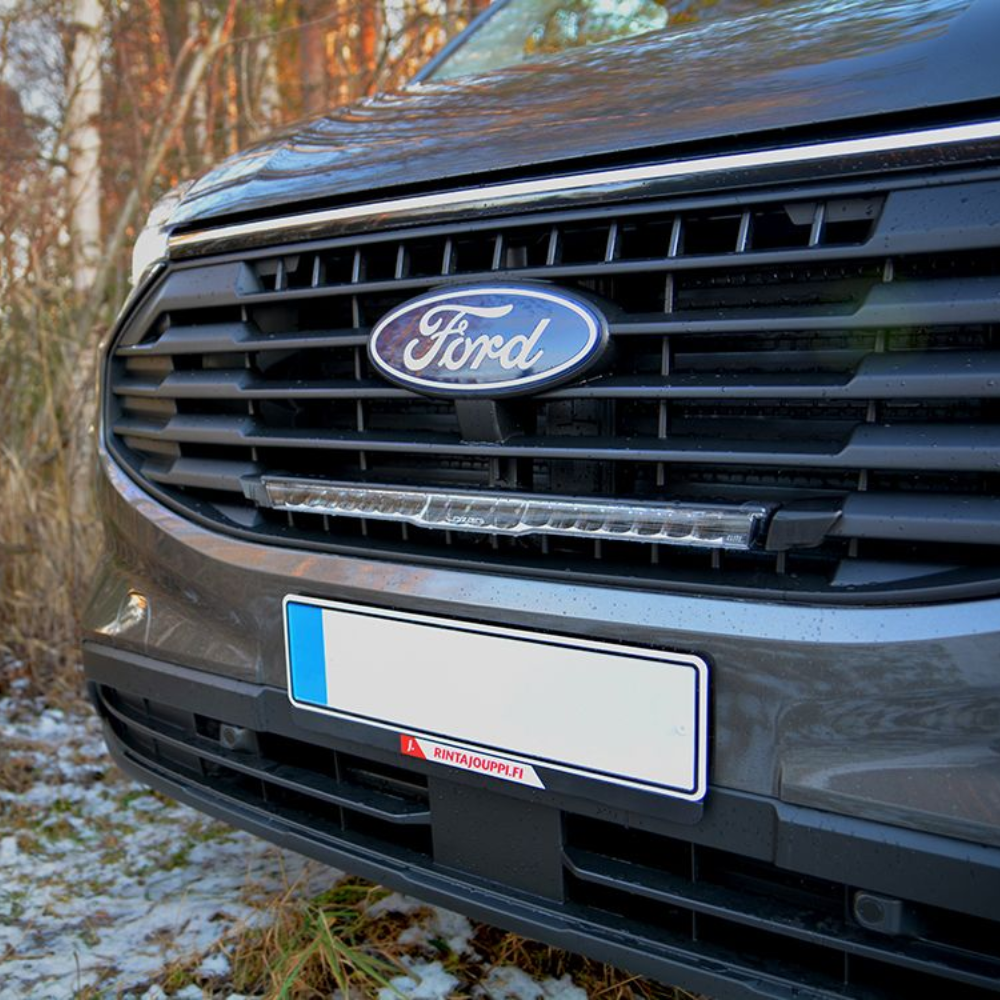

- Custom fit for Ford Transit Custom (2024+)

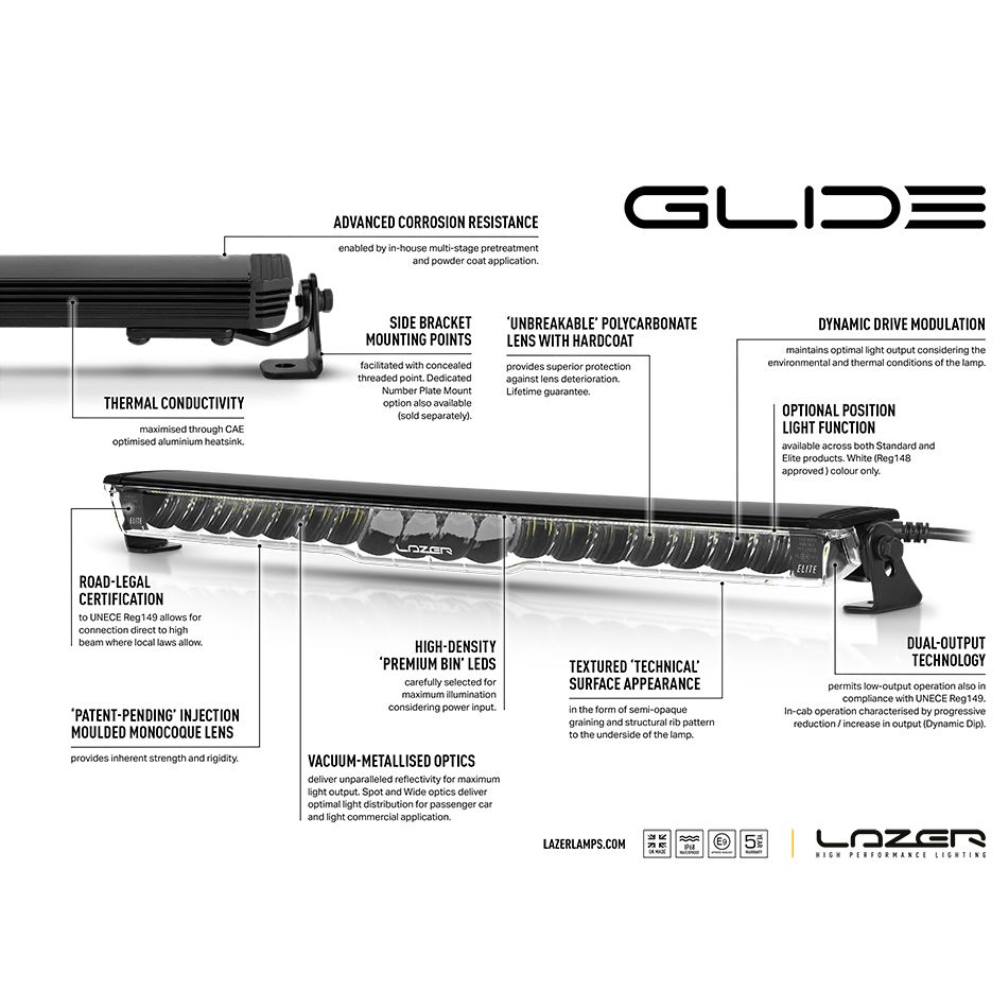

- Compatible with Glide LED Lightbars
- Kit also includes bespoke mounting brackets and wiring kit
- Cutting guides included
- Brackets made from high strength, UV -stable, composite material
- Fully road-legal
- 5-year warranty
- Made in Britain
What's Included?

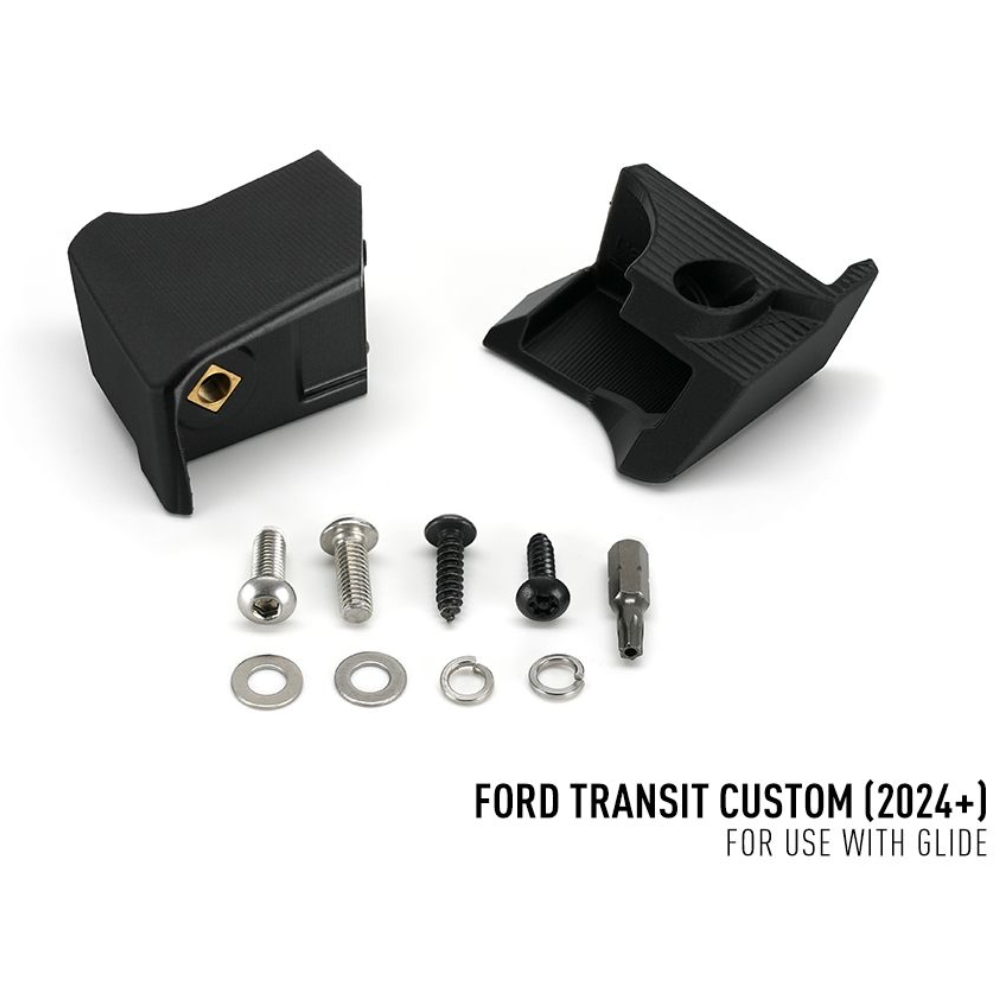

- 1x Grille Mounting Kit (Includes cutting guides)
- 1x LED Lightbar (Glide)

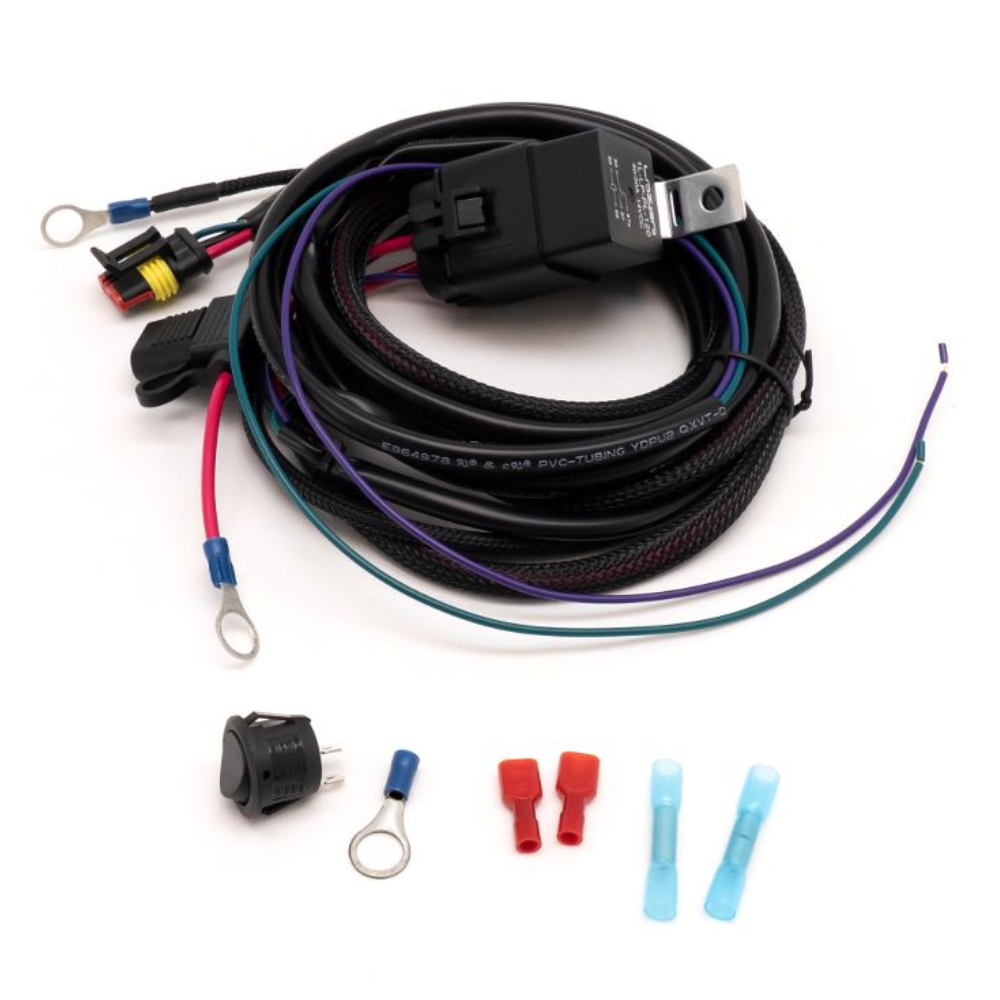

- 1x One-Lamp Wiring Kit
- Installation Instructions
| GLIDE | |
|---|---|---|
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hrs | 50,000 hrs |
| Weight | 0.68 kg | 0.68 kg |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 11,500 Lm | 12,800 Lm |
| Total Driver 'FOV' Flux † | 6,958 Lm | 8,012 Lm |
| Colour Temperature | 5000K | 5000K |
| Power Consumption | 120 Watts | 130 Watts |
| Current Draw (14.4V) | 8.3 Amps | 9.2 Amps |
| Connector | 2-Pin/3-Pin Superseal (+25cm Cable) | 2-Pin/3-Pin Superseal (+25cm Cable) |
| CERTIFICATION | ||
| IP Rating # | IP68 | IP68 |
| High Beam (E9 approval) | ECE R149 (Ref: 12.5*) | ECE R149 (Ref: 12.5*) |
| EMC Certification | ECE R10 | ECE R10 |
| Salt Spray Test | ISO 9227 | ISO 9227 |
| Dump Load Protection | ISO 7637-2 | ISO 7637-2 |

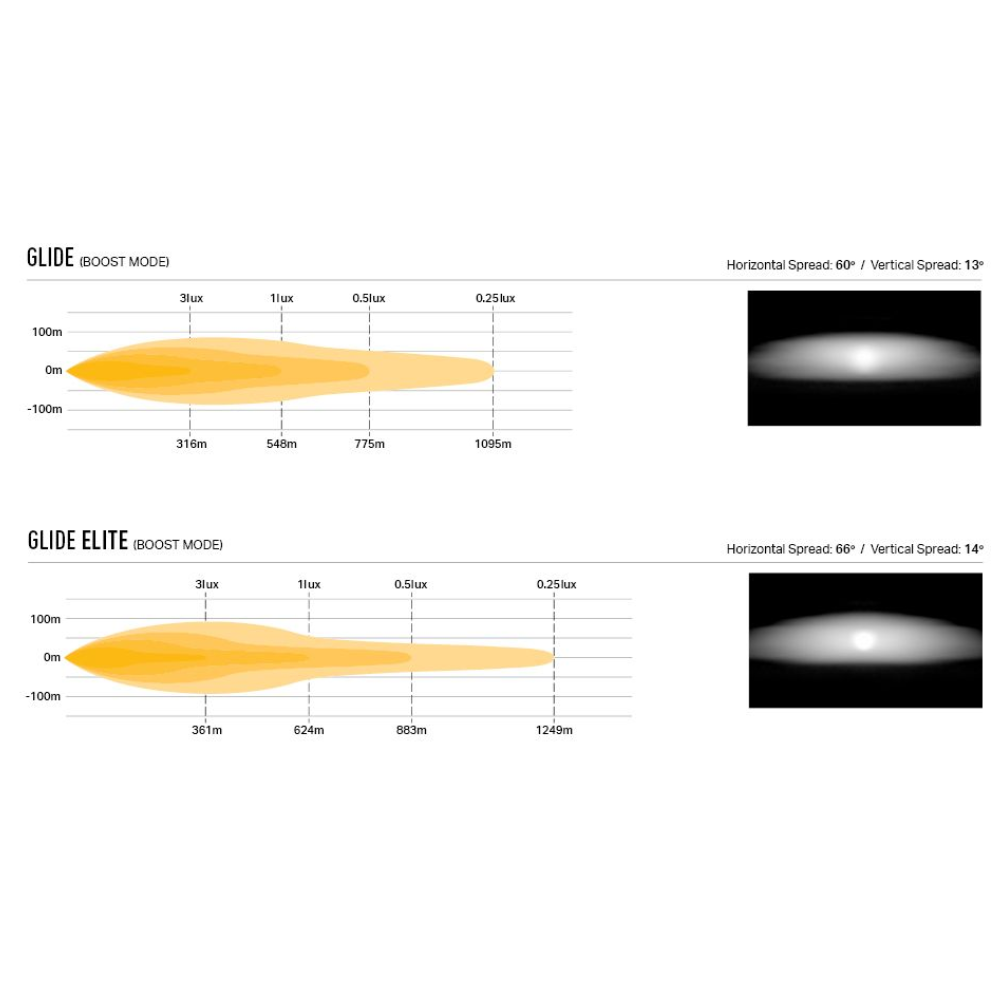

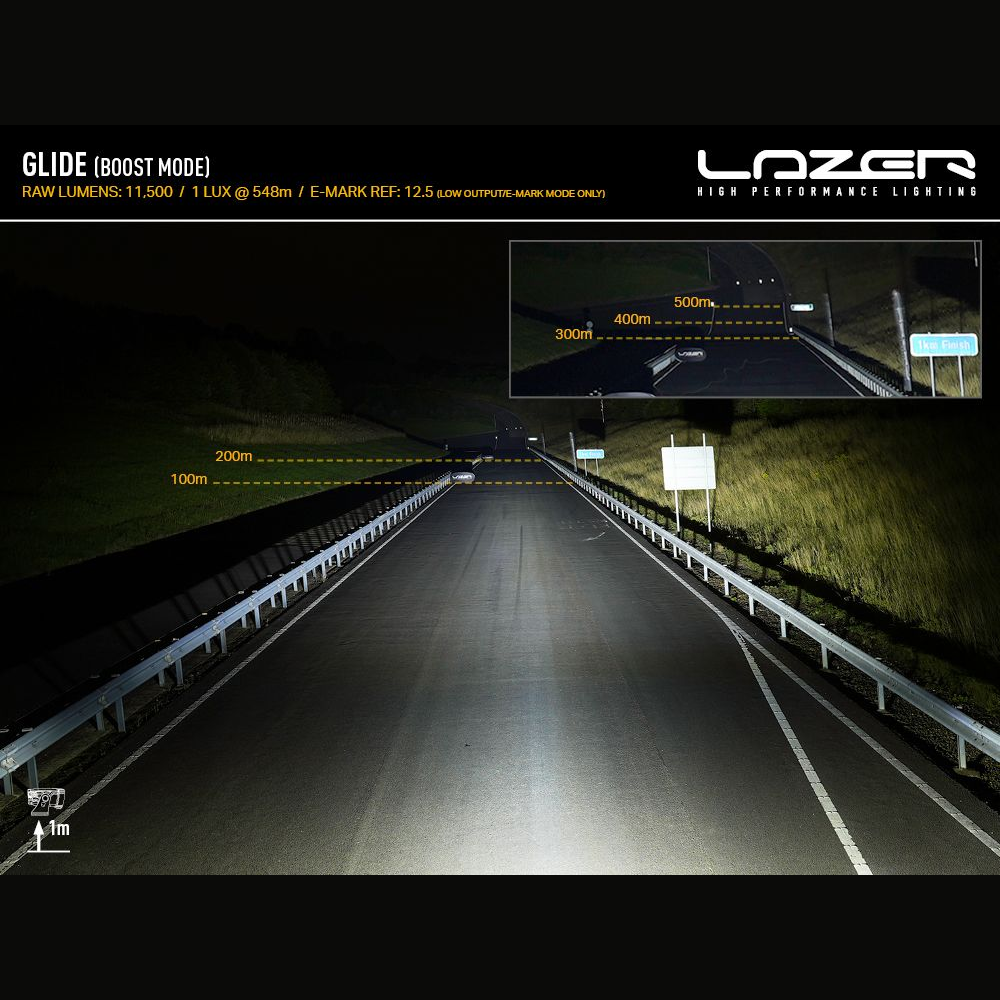

| PHOTOMETRIC DATA | ||
| Horizontal/Vertical Beam Angle | 60° / 13° | 66° / 14° |
| 0.25 lux | 1095m | 1249m |
| 0.5 lux | 775m | 883m |
| 1 lux | 548m | 624m |
| 3 lux | 316m | 361m |
* - The lamp is compliant with UNECE regulations only when operating in low-output mode.
† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver’s ‘field-of-view’ defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
