Lazer Lamps Ford Transit (2019+) Triple-R 750 Grille Kit PN: GK-FT-2019-G2

GK-FT-2019-G2

Whatever the job, whatever the destination, get there quicker, get there safer, get there in style with our bespoke grille integration kit, featuring a pair of our Triple-R 750 high performance LED spotlights, effortlessly set within the front grille of the Ford Transit (2019+).

CONTACT US FOR TRADE PRICING
Product Options
From excl. VAT £460.27
(incl. VAT £552.32)

Whatever the job, whatever the destination, get there quicker, get there safer, get there in style with our bespoke grille integration kit, featuring a pair of our Triple-R 750 high performance LED spotlights, effortlessly set within the front grille of the Ford Transit (2019+).

For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

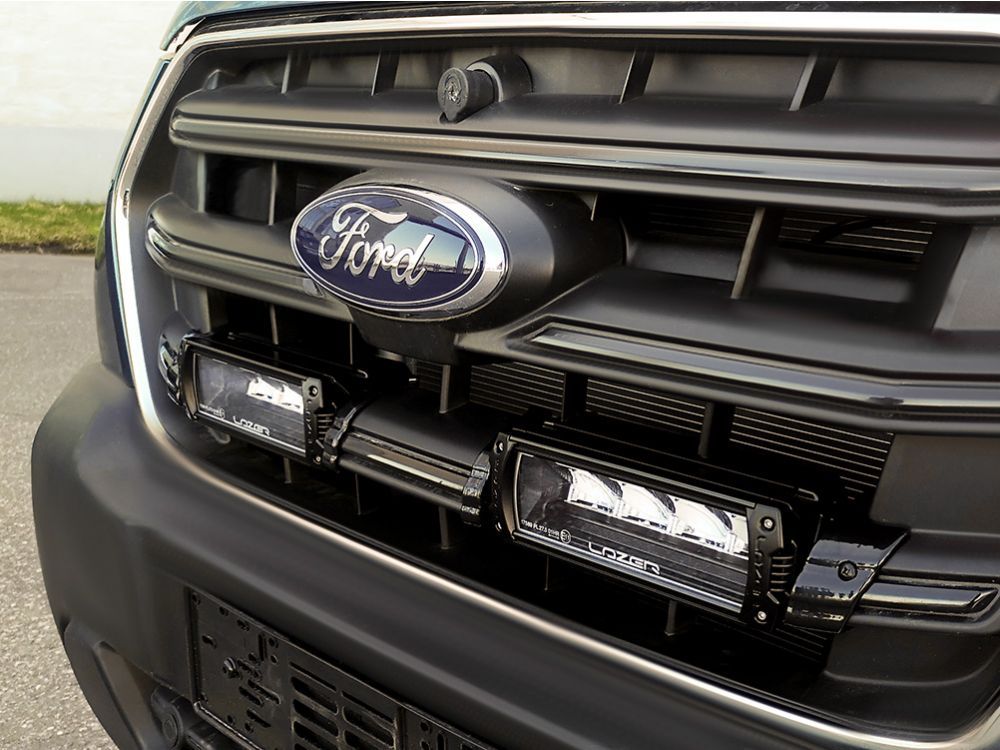

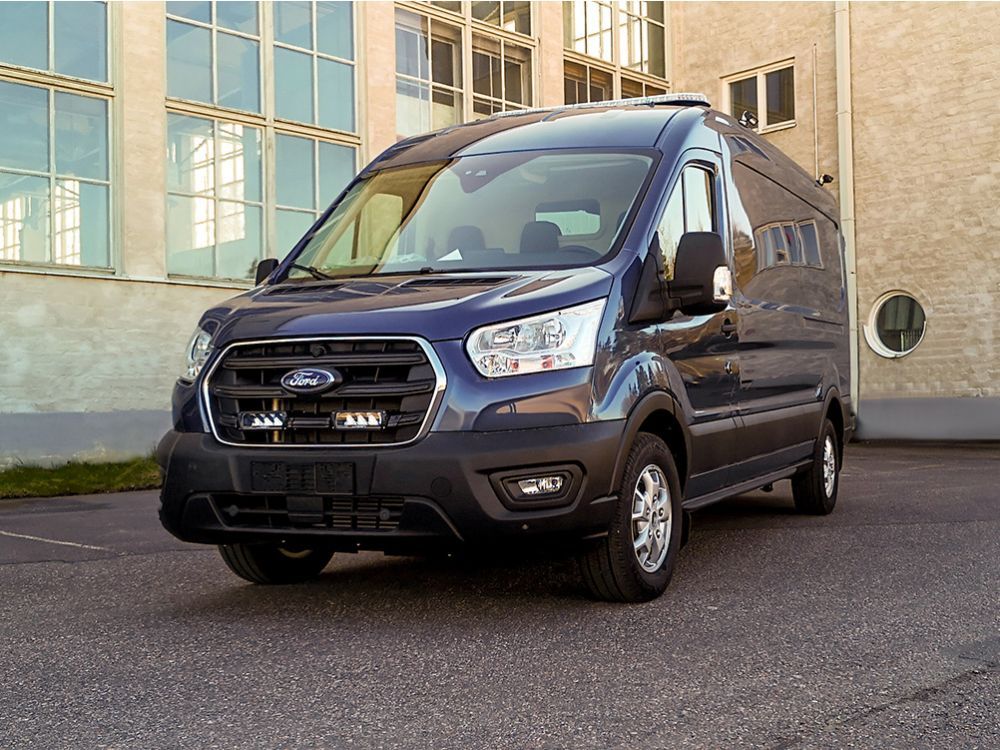

The Ford Transit kit, designed for MY19 vehicles onwards, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.

Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time.

  • Bespoke vehicle integration kit for Lazer LED Spotlight installation

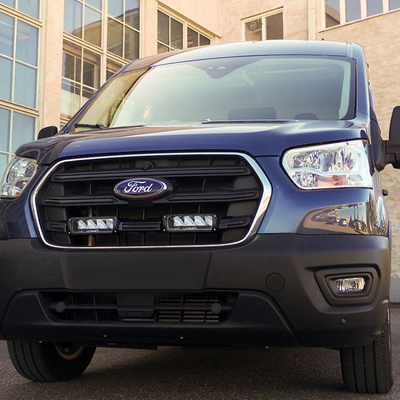

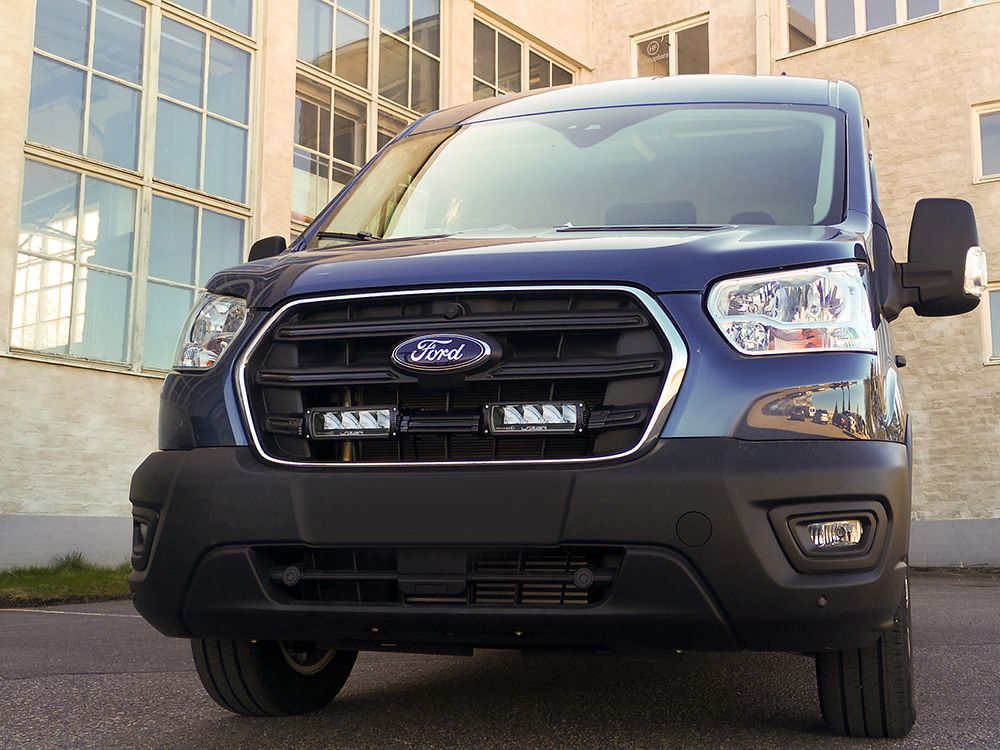

  • Custom fit for Ford Transit (2019+)

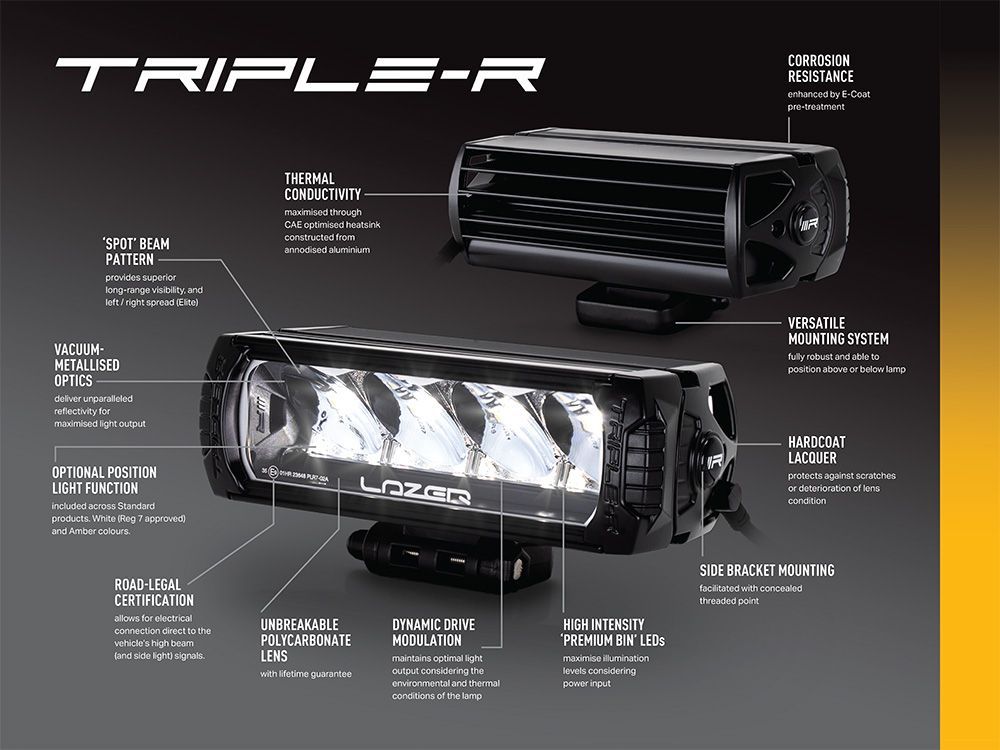

  • Designed for use with Triple-R 750 High Performance LED Spotlights
  • Added option for white or amber position/side light function (Standard model only)
  • Kit also includes bespoke mounting brackets and two-lamp wiring kit
  • Brackets made from high strength, UV -stable, ASA material
  • Fully road-legal
  • 5-year warranty
  • Made in Britain

What's included:
- x2 Triple-R 750 High Performance LED Spotlights

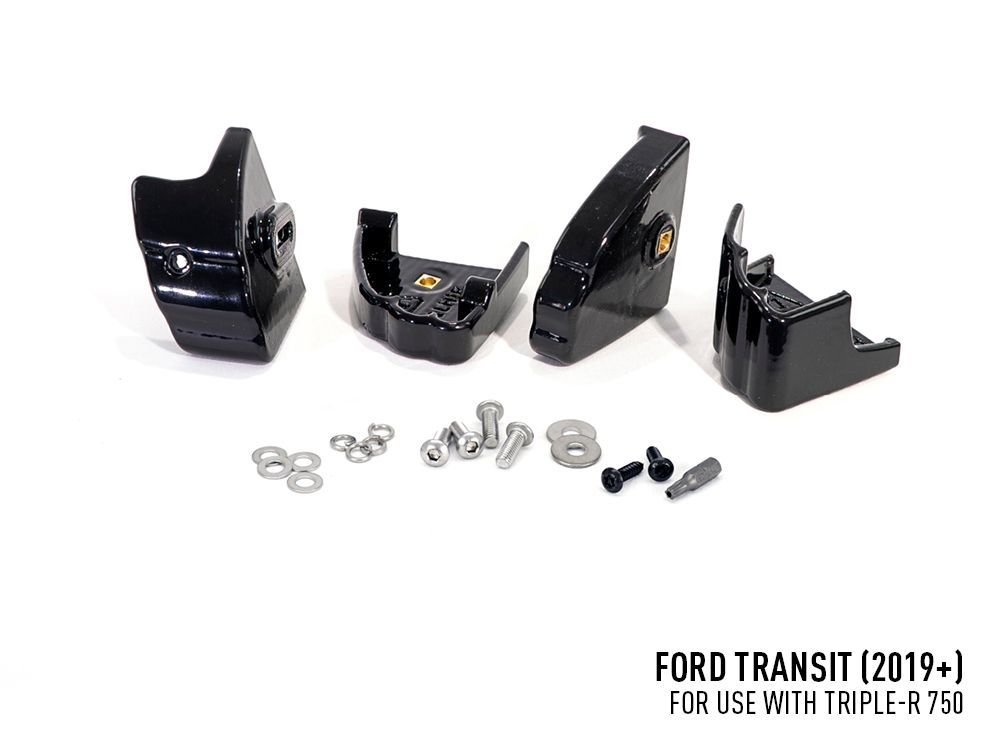

- x1 Mounting Kit (comprising 4x Brackets and Cutting Guides)

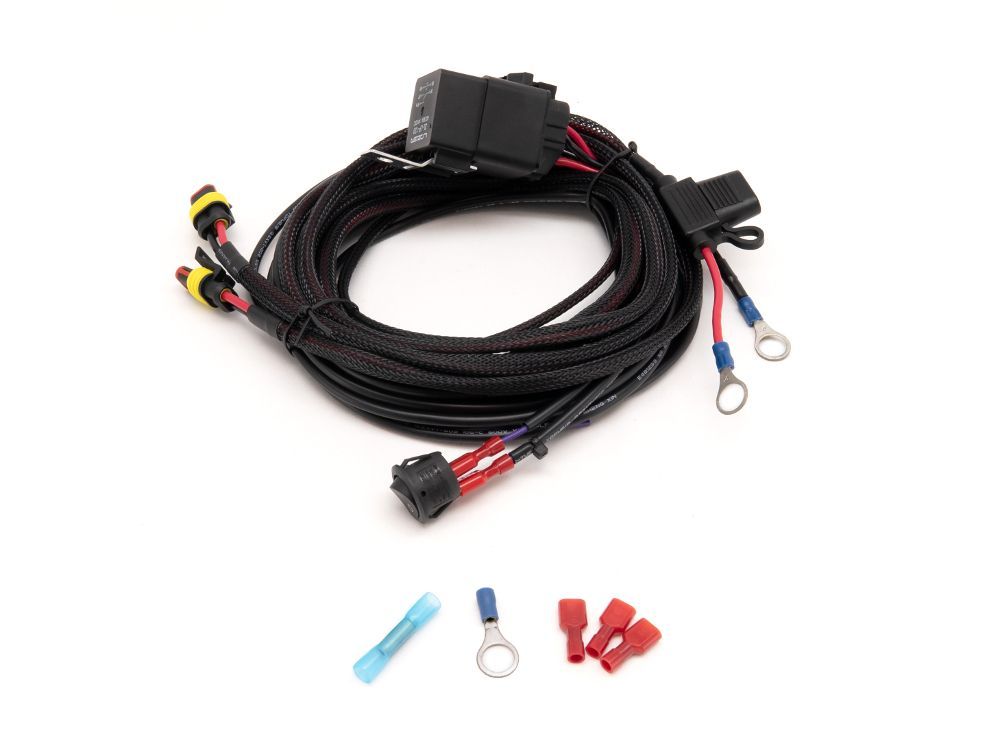

- x1 Two-Lamp Wiring Kit
- x1 Installation instructions

Technical Specifications


2x
Triple-R

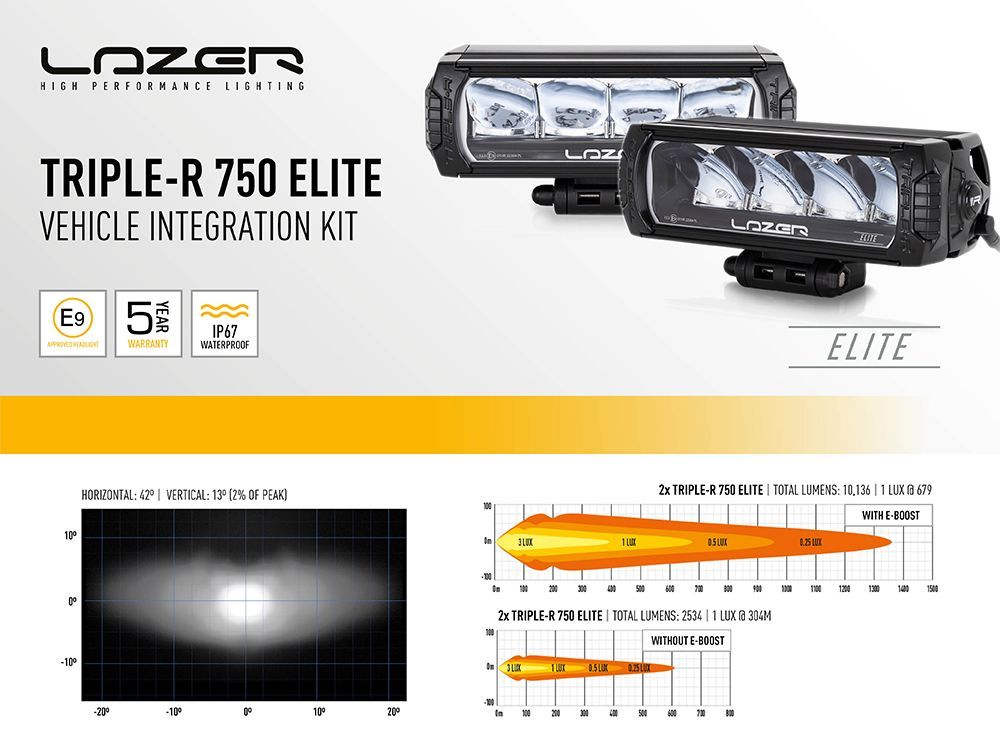

750 Elite
(E-Boost Mode)

2x
Triple-R
750 Wide
2x
Triple-R 750
Voltage Range (DC) 10-32V 10-32V 10-32V
LED Life 50,000 hrs 50,000 hrs 50,000 hrs
Weight 2 kg 2 kg 2 kg
HIGH BEAM FUNCTION
Total Luminous Flux

10136 Lm

8640 Lm 9240 Lm
Total Driver 'FOV' Flux † 6680 Lm 5266 Lm 5572 Lm
Colour Temperature 5000K 5000K 5000K
Number of High Output LEDs 2 x 4 2 x 4 2 x 4
Power Consumption 104 Watts 88 Watts 88 Watts
Current Draw (at 14.4V) 7.2 Amps 6.2 Amps 6.2 Amps
CERTIFICATION
High Beam ECE R112 ECE R149 ECE R112
ECE Reference

N/A
(12.5 x2 - E-Mark Mode)

20 x2 35 x2
Position Light (White only) N/A N/A ECE R7

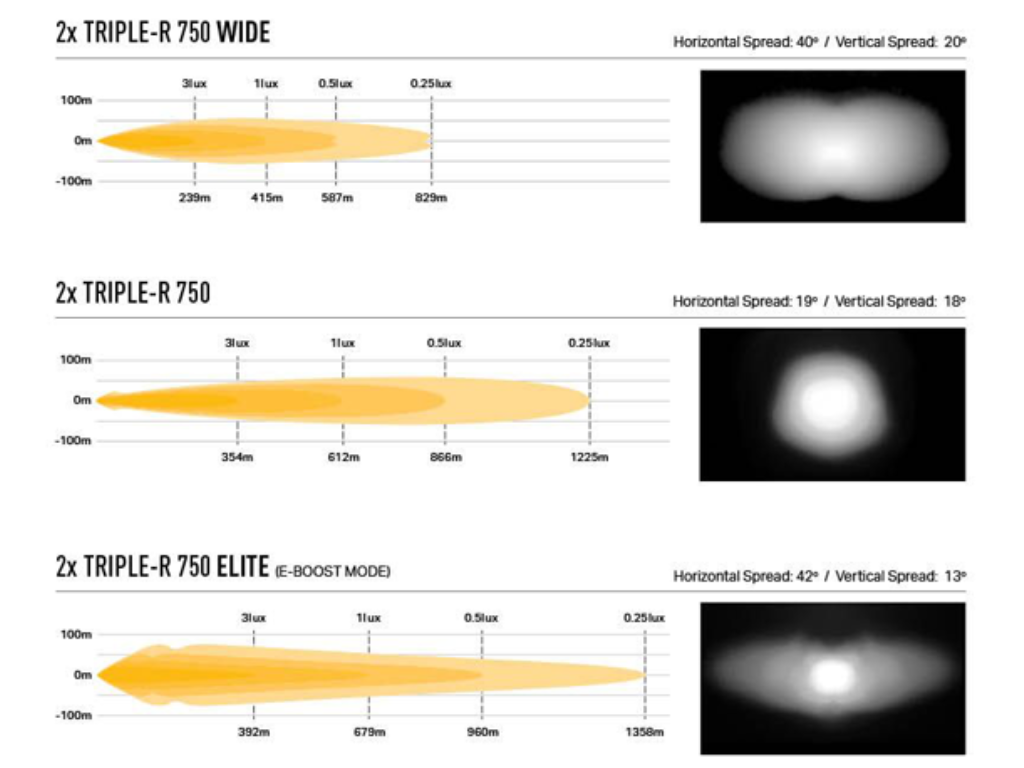

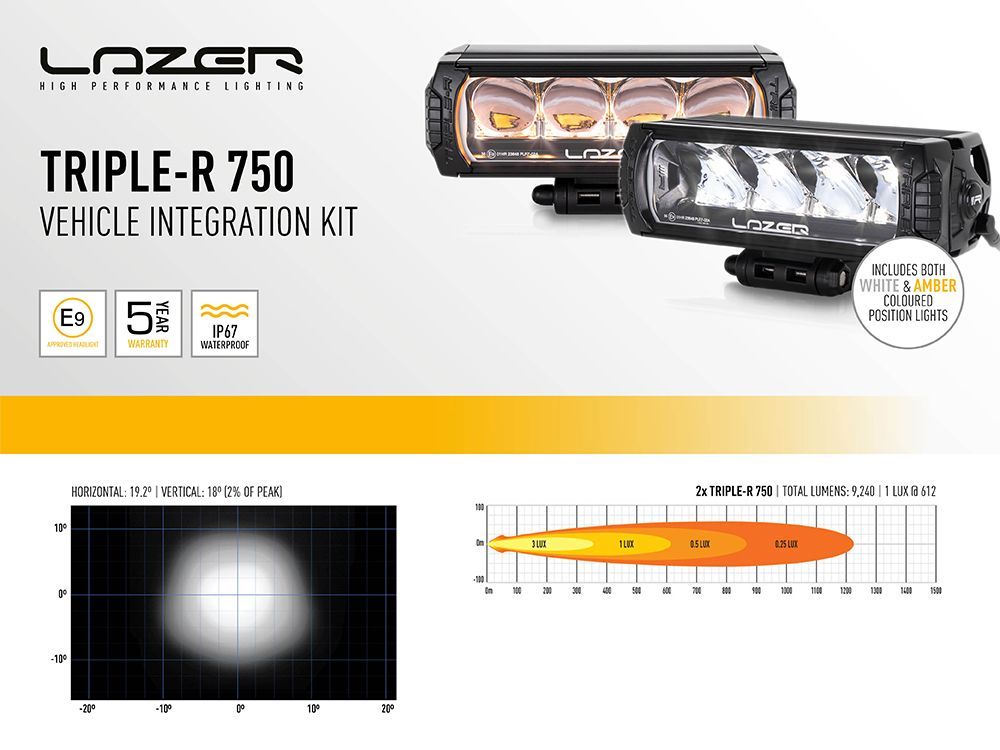

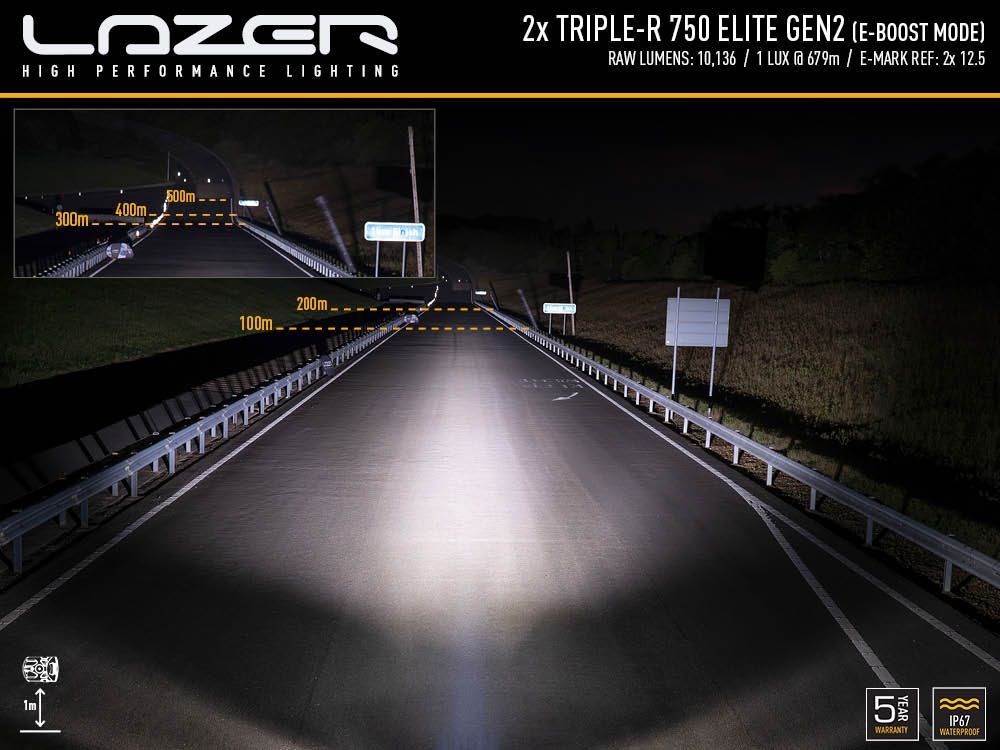

PHOTOMETRIC DATA
Horizontal Beam Angle 42° 40o 19°
0.25 lx Line 1358m 829m 1225m
0.5 lx Line 960m 587m 866m
1 lx Line 679m 415m 612m
3 lx Line 392m 239m 354m

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
