Lazer Lamps Ford Ranger Raptor (2023+) Triple-R 16 Elite Grille Kit PN: GK-RAP-ELITE-03K
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.
(incl. VAT £834.00)
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

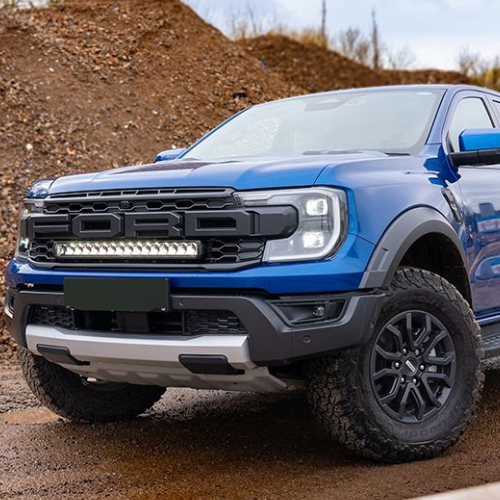

The Ford Ranger Raptor, for vehicles produced since 2023+, includes a Triple-R 16 Elite High Performance LED driving light, plus wiring kit, alongside x2 brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from high strength composite material, known for being exceptionally robust and UV stable. The brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
The Ford Ranger Raptor (2023+) Grille Integration Kit is carefully engineered and optimised for use with our Triple-R 16 Elite High Performance LED lightbar. Our warranty does not cover grille mounts which are fitted with non-Lazer Lamps’ branded products.
Whats included:

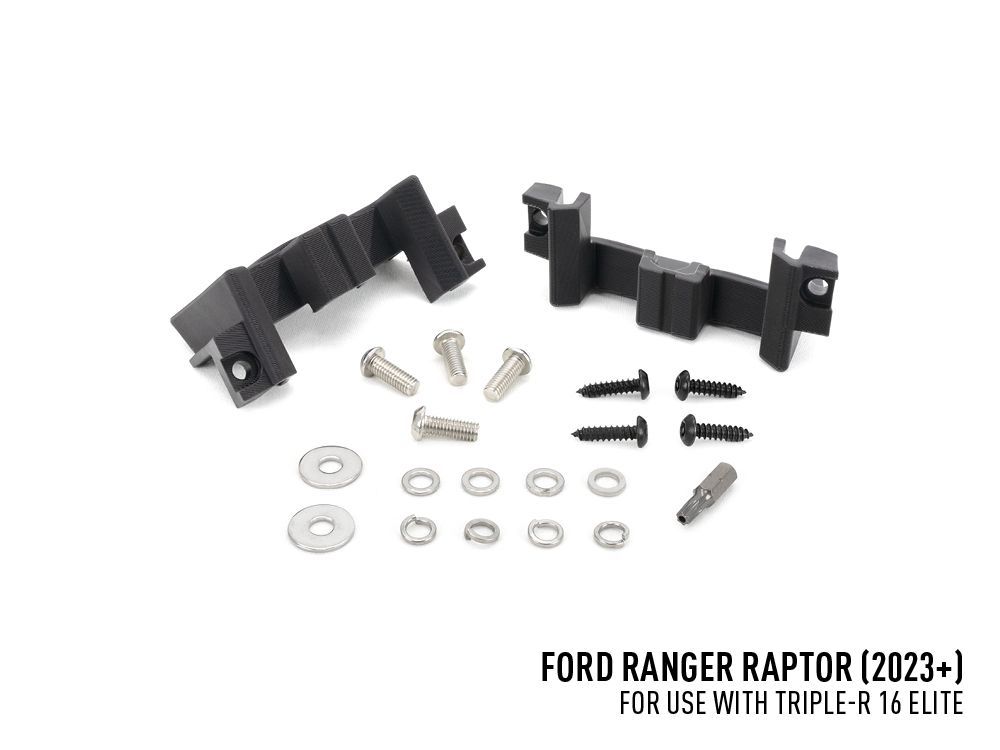

1x Grille Mounting Kit (includes cutting guides)
1x Triple-R 16 Elite LED Lamp
1x One-Lamp Wiring Kit
Installation Instructions
- Bespoke vehicle integration kit for Lazer LED Spotlight installation
- Custom fit for Ford Ranger Raptor (2023+)
- Compatible with Triple-R 16 Elite LED Spotlight
- Kit also includes bespoke mounting brackets and wiring kit with switch
- Cutting guides included
- Brackets made from high strength, UV -stable, composite material
- 5-year warranty
- Made in Britain
|
1x Triple-R 16 Elite |
|
|
Voltage Range (DC) |
10-32V |
|
LED Life |
50,000 hrs |
|
Weight |
3.2 kg |
|
HIGH BEAM FUNCTION |
|
|
Total Luminous Flux |
18040 Lm |
|
Total Driver 'FOV' Flux † |
11888 Lm |
|
Colour Temperature |
5000k |
|
Number of High Output LEDs |
16 |
|
Power Consumption |
208 Watts |
|
Current Draw (at 14.4V) |
14.4 Amps |
|
CERTIFICATION |
|
|
High Beam |
N/A |
|
E-Mark Ref |
N/A |
|

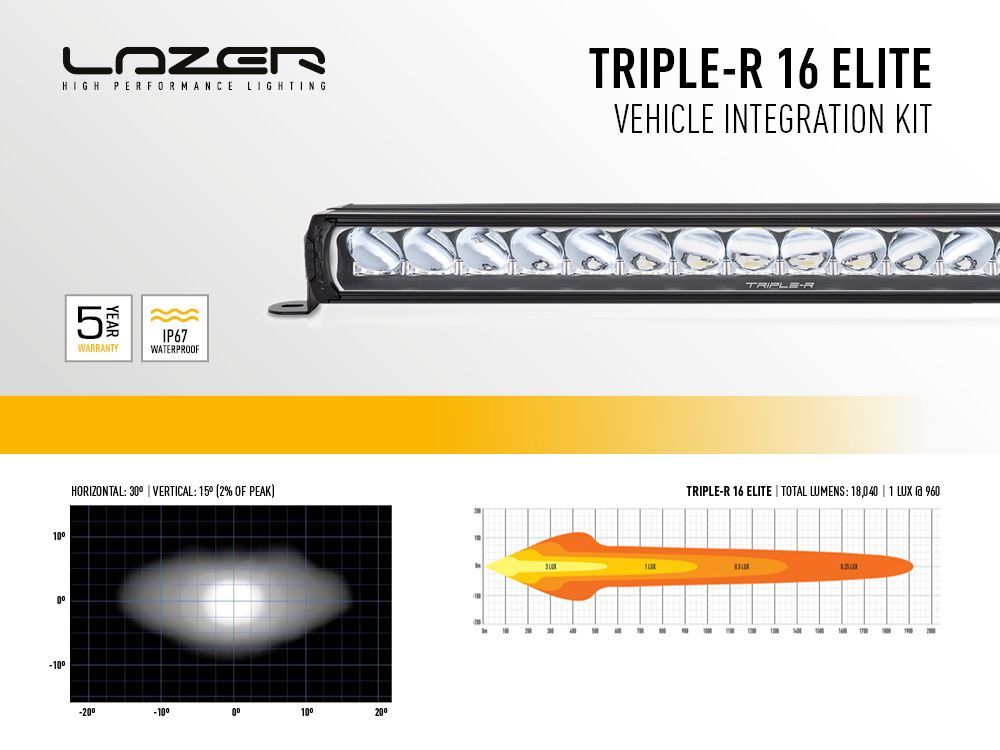

PHOTOMETRIC DATA |
|
|
Horiz Beam Angle |
30 Deg |
|
0.25 lx Line |
1920 metres |
|
0.5 lx Line |
1358 metres |
|
1 lx Line |
960 metres |
|
3 lx Line |
554 metres |
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
