Lazer Lamps Ford Ranger (2016-2022) Roof Mounting Kit With Rails PN: 3001-Ranger

Specifically engineered for the Ford Ranger/Raptor, the Lazer Lamps Roof Mounting Kits, for 2015+ vehicles, comprises stainless steel brackets that fix to the vehicle’s roof rails without having to drill additional holes in the bodywork. Two versions of the Ranger/Raptor roof rail mounting brackets are available, either optimised for our Linear-36 or T24 roof mounted light bars.

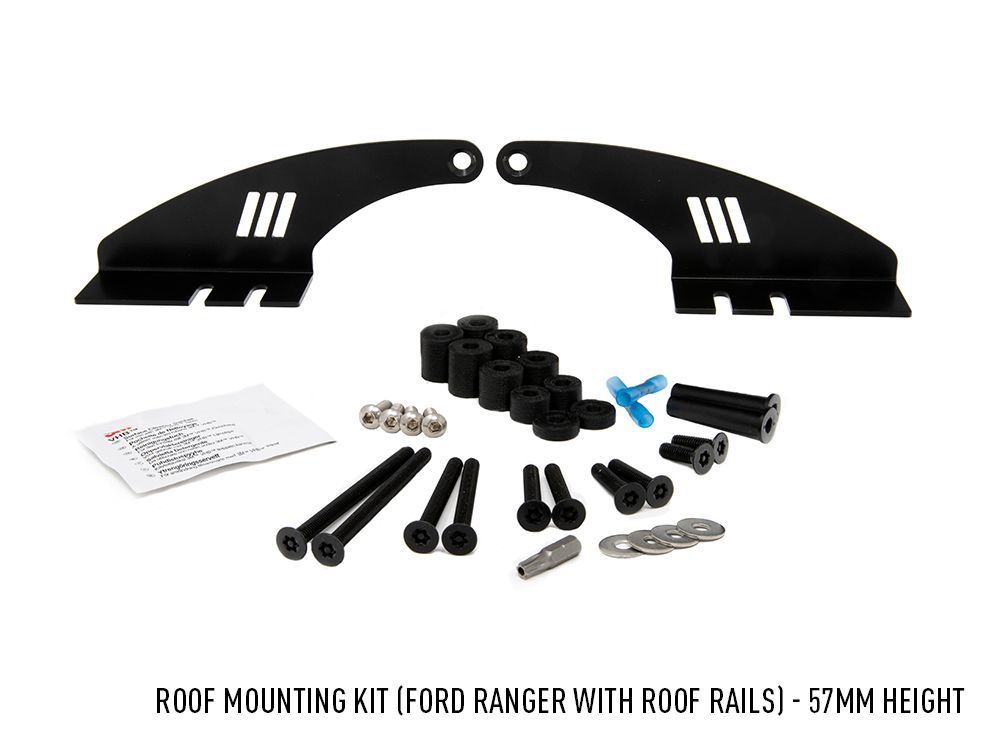

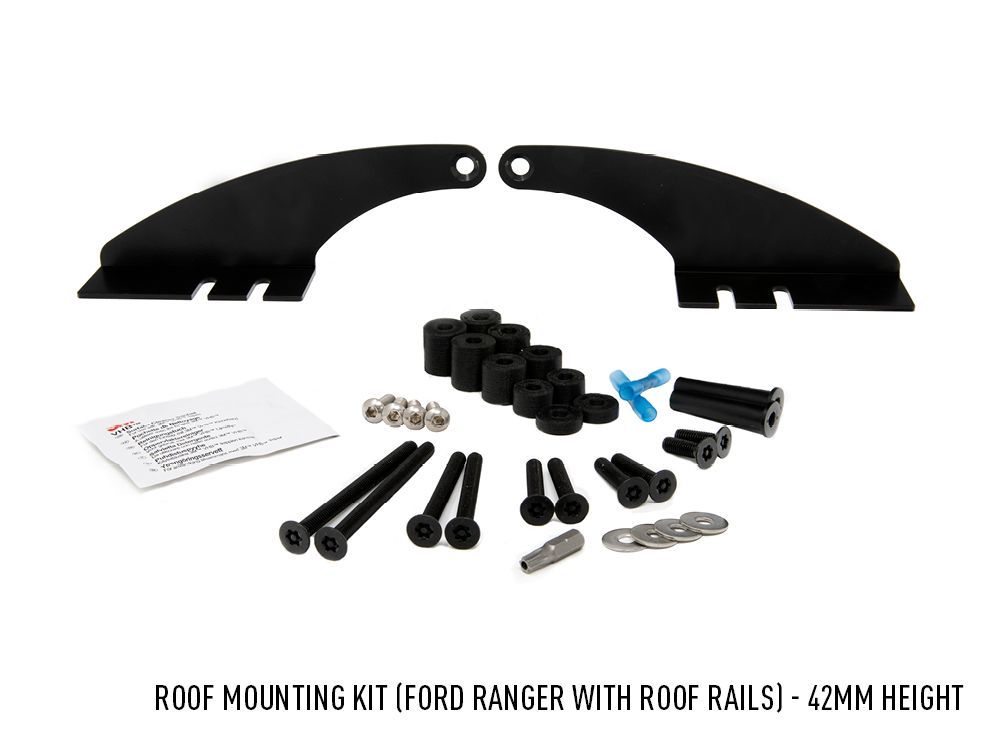

Manufactured from A2 stainless steel, and finished with a UV-stable, satin black powder coat, the brackets are fully corrosion resistant in line with automotive grade quality standards, as are the supplied countersunk anti-theft fasteners, which come in a variety of lengths from 20mm–80mm. To complete the mounting of different length light bars, cylindrical spacers, of varying lengths, are provided to aid positioning. The installation of the brackets to your vehicle is completed using M6 fasteners fitted to pre-threaded holes on the underside of the roof rails. Cable grommets are supplied to ensure a tidy, and sealed cable entry point whether into the roof rail, and/or through the roof into the vehicle’s headlining. A VHB cleaning pad is provided for preparation of areas where additional sealant might be applied. Electrical butt connectors are provided to help assure the integrity of the cable reattachment once thread through the roof.

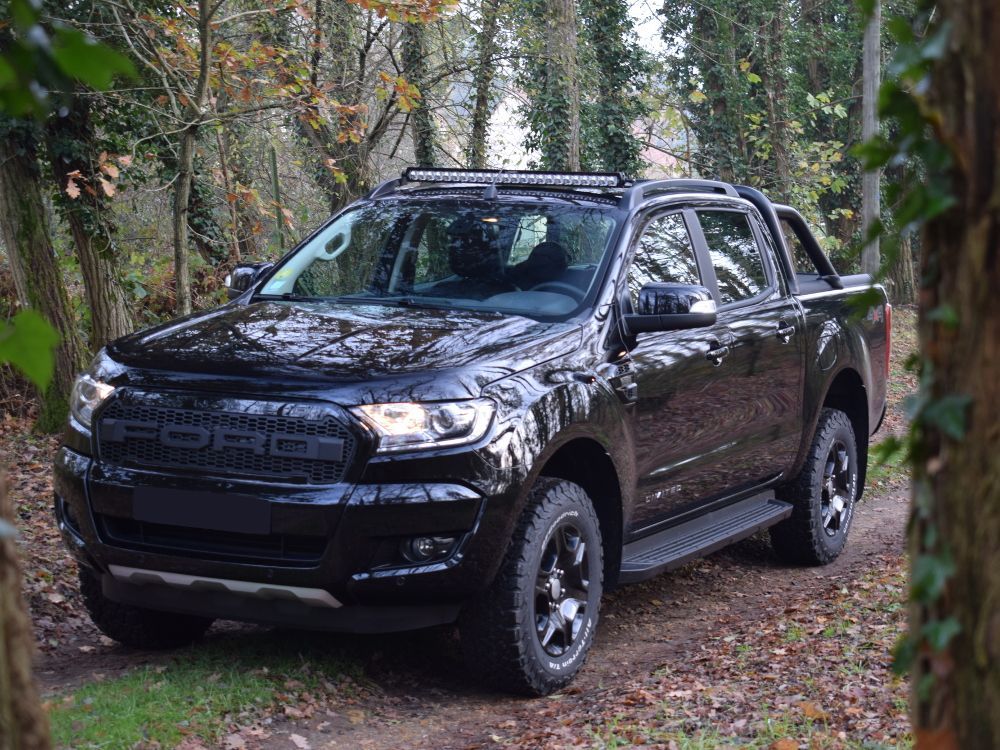

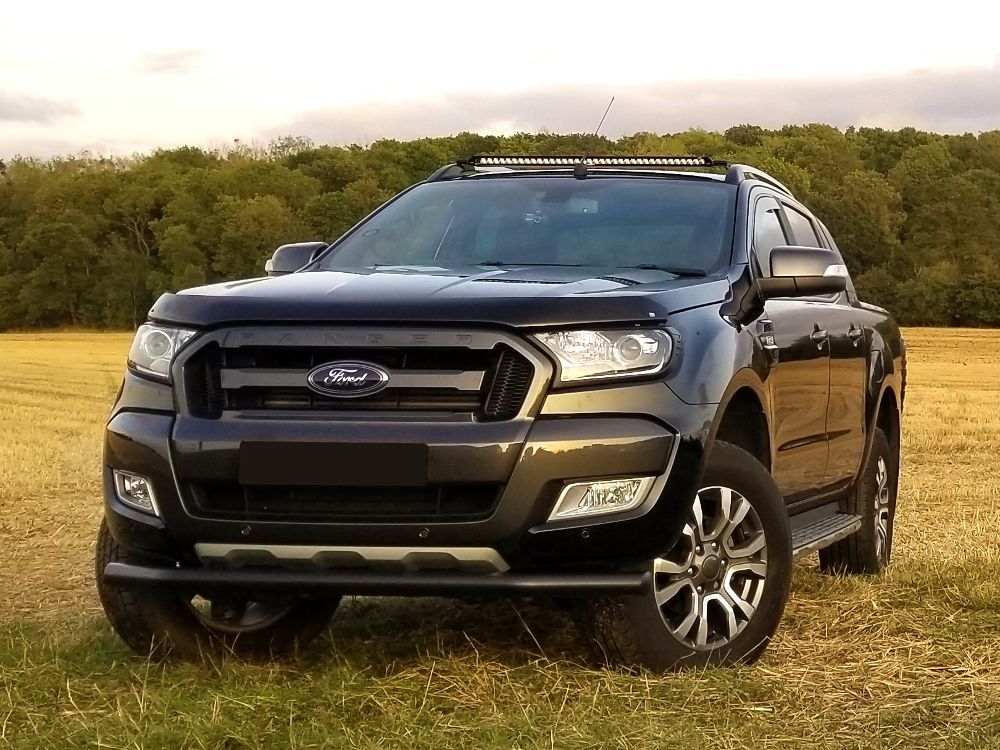

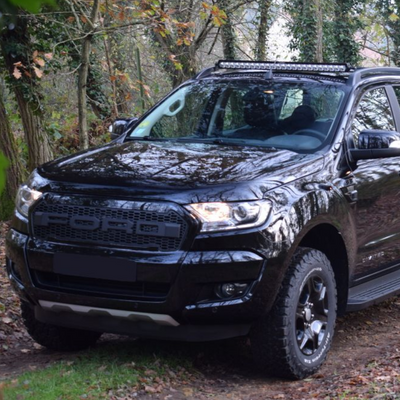

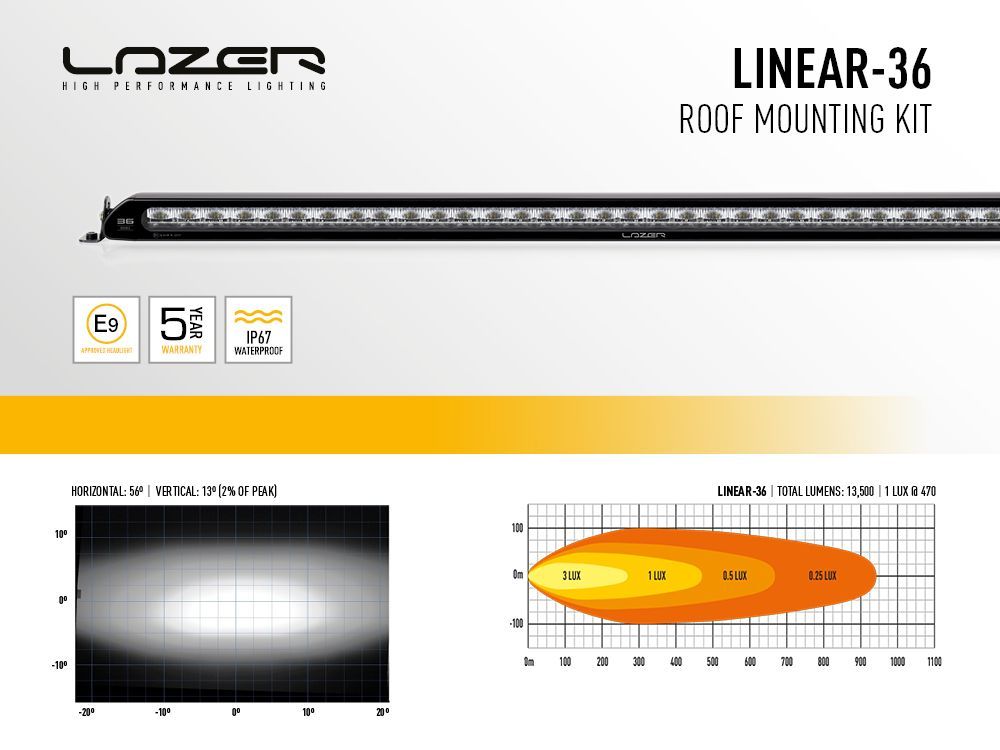

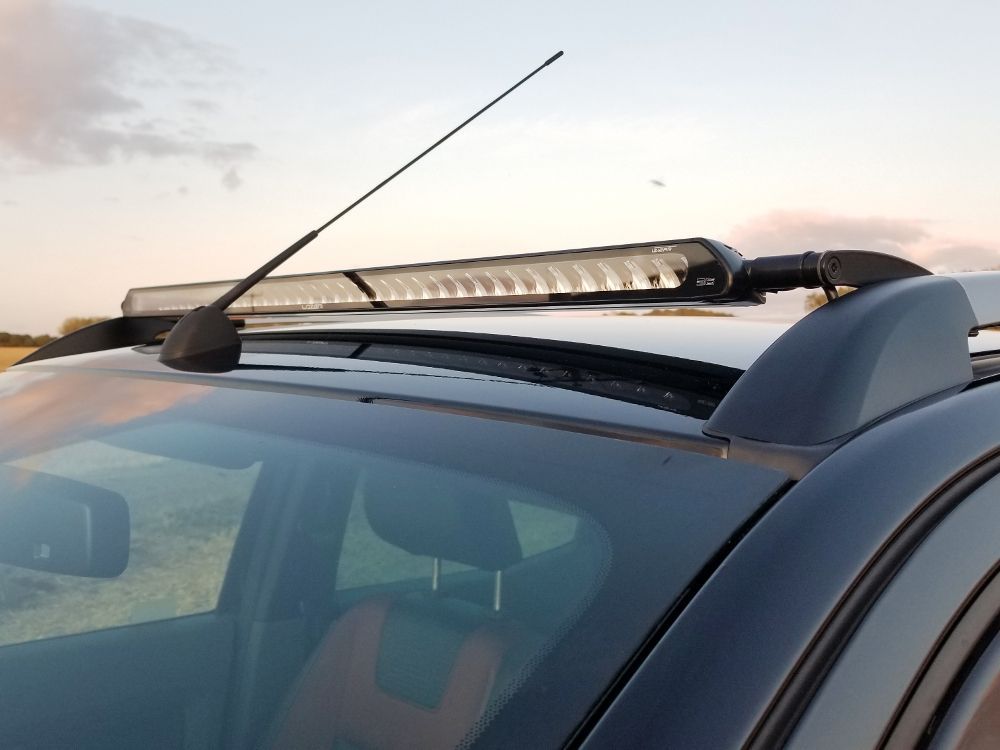

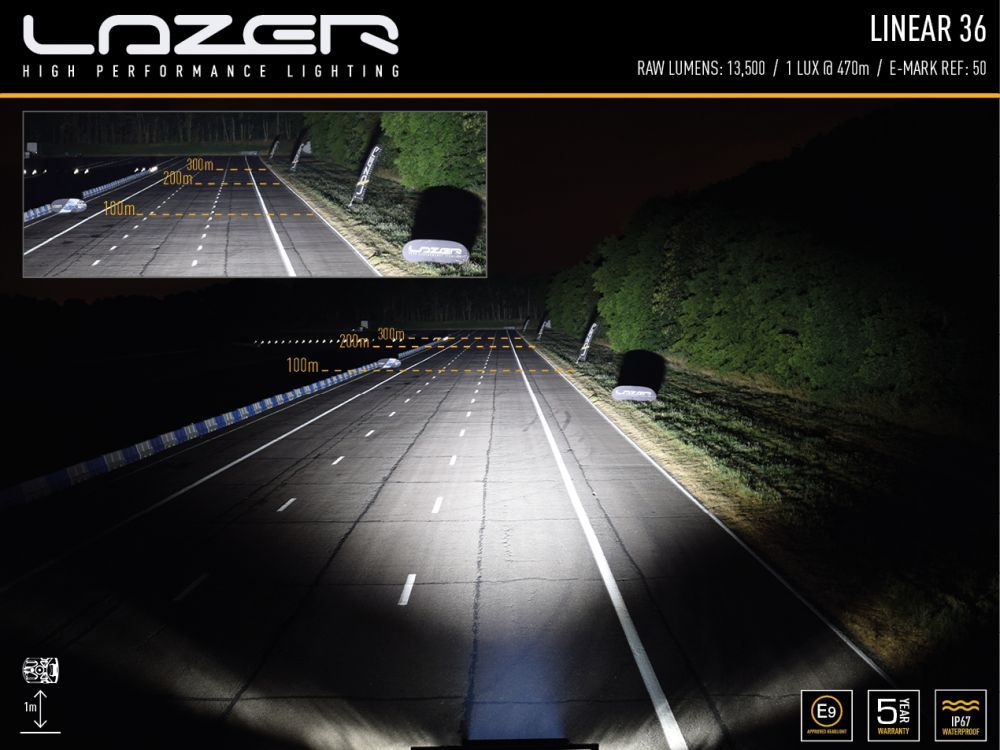

With its low-profile aerodynamic housing, smooth lines, and contemporary design features, the Linear-36 is an ECE-approved auxiliary LED spotlight that integrates effortlessly for an understated install, that boasts class-leading lighting performance. The Linear-36 delivers good distance illumination, and left/right spread, that leaves little to the imagination. The low-profile design also benefits from exceptional low wind noise, which can affect many roof light installations when driving at higher speeds. For customers looking to make more of a statement, the T24 Evolution is an off-road LED driving light producing nearly 25,000 lumen with a flood beam pattern for excellent all-round visibility. Both options are designed and engineered to the highest standards, and through our UK manufacturing nothing has been left to chance with the products’ build quality or reliability, backed up by our comprehensive 5 year warranty.

• Complete one-stop solution for roof-mounting on Ford Ranger with Roof Rails
• Two bracket variants optimised for either Linear-36 or T24
• Made from 3mm A2 stainless steel
• UV-stable, satin black powder coat
• Includes assortment of A2 stainless steel fixings with countersunk head
• Carbon spacers facilitate positioning of different length LED light bars
• M6 fasteners facilitate mounting brackets to underside of the roof rails
• 5 year warranty
• Manufactured in the UK
