Juluen SW830 12/24v Multi purpose Switch Panel w / Power Unit PN: SW830
Juluen SW830 Multi-purpose Switch / Control Panel w/ Power Module
(incl. VAT £112.25)£114.00 Save £1.75

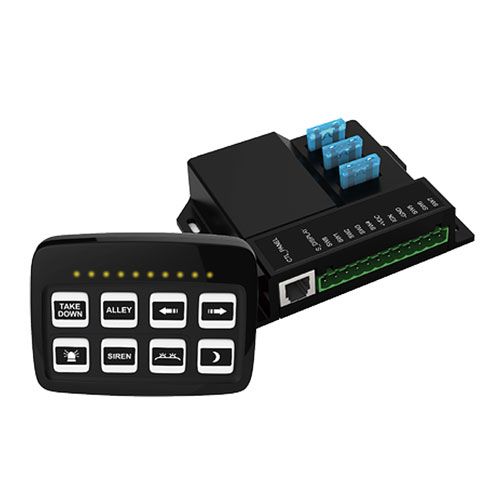

SW830 Multi-purpose Switch / Control Panel w/ Power Module
FEATURES
-
8 switches control panel with 3 x 10Amp and 5 x 0.2Amp
-
outputs for auxiliary device power or function activation.
-
All backlit rubber touch buttons.
-
Fully programable buttons in ON/OFF or momentary switch
-
mode.
-
European Siren Interlock compatible.
-
10 LED signal indicator for your lightbar or traffic director.
-
35 selectable icon stickers to clearly label your panel.
SPECIFICATIONS
-
Approval: ECE R10
-
Operating Voltage: 10~24VDC
-
Input Current: max 32A / min 0.01A
-
Output Votage: 10~24VDC
-
Output Current: max 0.2A x 5 ports /
-
max 10A x 3ports
-
Fuse Recommended: 35A @ Input
-
Storage Temperature: -40°C ~ 75°C
-
Operating Temperature: -30°C ~ 65°C
-
Control Panel Cable: 8 pin RJ45 Cable, 24AWG, 4m
PART NO.
■ A03-11130-00R (8 SWITCH W/ POWER MODULE, 4M CABLE, ECE R10)
■ A03-11030-00R (8 SWITCH W/ POWER MODULE, 4M CABLE)
