Brigade Electronics BS-7030 Fixed Backsense Radar System [3m x 2.5m Detection Range] PN: BS-7030
Brigade Electronics fixed Backsense 3m detection range (2.5m width) radar system. Ideal on machines where no calibration is required.
(incl. VAT £750.36)£839.99 Save £89.63
Brigade Electronics fixed Backsense 3m detection range (2.5m width) radar system. Ideal on machines where no calibration is required.

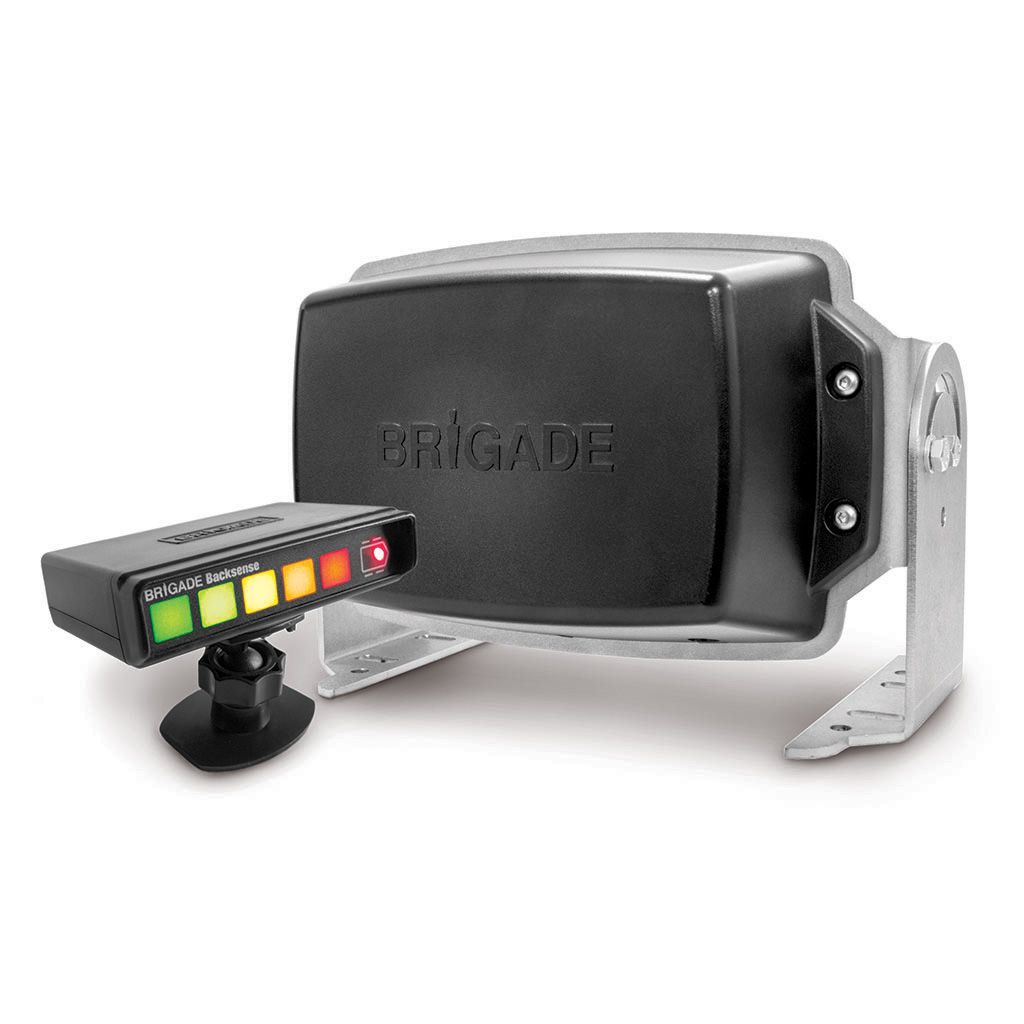

Kit includes:
- Sensor
- AV Display
- 9m Cable
- Key Specification:
- 12-24v
- Max detection range of 3m
- Rugged design for harsh environments
- Size (WxDxH) 217 x 129 x 50mm
- IP69K sensor
- 3 Years Warranty
- 3m (10ft) length x 2.5m (8ft) width detection area. 5 x 0.6m (2ft) detection zones.
Brigade’s Backsense radar sensor systems are designed to detect people and objects in blind spots, significantly reducing accidents. They detect stationary and moving objects, providing the driver with in-cab visual and audible warnings – alerting the operator whose attention can not be focused on all danger areas. Backsense works effectively in harsh environments and poor visibility, including darkness, smoke and fog.
Fixed detection length and width divided into five equal detection zones. Buzzer and trigger output activates in all zones on detection. Every Backsense has an in-cab audio alert and LED display to alert the operator to hazards and their proximity
Features
- Close detection zone combined with a targeted beam pattern.
- Controlled beam pattern to minimise false warnings.
- Excellent close-in detection.
- Frequency modulated continuous wave radar technology.
- Can trigger other vehicles safety devices such as camera monitor systems or reversing alarms.
- Eliminates the possibility of driver interference. The audible warning buzzer cannot be switched off, providing fleet operators with peace of mind.
- Clear, easy-to-read display and wide volume range of audible alert.
- Suitable for both on and off-road applications.
- Extremely rugged design for severe weather conditions and all terrains.
- Effective through non-metallic objects – can fit behind plastic or glass fibre bodywork.
- Self-diagnostics alert operator to system errors.
- Choice of detection ranges.
- 5 stage audible and visual display.
- Comprehensive certification.
