Brigade VBV-6712-000 Single Camera 7'' Monitor System for Rigid Vehicles PN: VBV-6712-000
Brigade Electronics

Brigade VBV-6712-000 Single Camera 7'' Monitor System for Rigid Vehicles PN: VBV-6712-000

VBV-6170-000
Driving a commercial vehicle is not without challenges. With large blind spots, manoeuvring and reversing can result in  collisions, causing damage to the vehicle, property and in worst cases, incidents with vulnerable road users. Our entry-level solution, the Essential camera monitor system aims to prevent collisions by providing a view of the blind spot on the in-cab monitor, allowing the driver to take evasive action where necessary.
excl. VAT £120.83
(incl. VAT £145.00)

Driving a commercial vehicle is not without challenges. With large blind spots, manoeuvring and reversing can result in collisions, causing damage to the vehicle, property and in worst cases, incidents with vulnerable road users. Our entry-level solution, the Essential camera monitor system aims to prevent collisions by providing a view of the blind spot on the in-cab monitor, allowing the driver to take evasive action where necessary.

  • 1 Year Warranty
  • IP69K Rating
  • Viewing Angle (H106 x V56 x D120°)

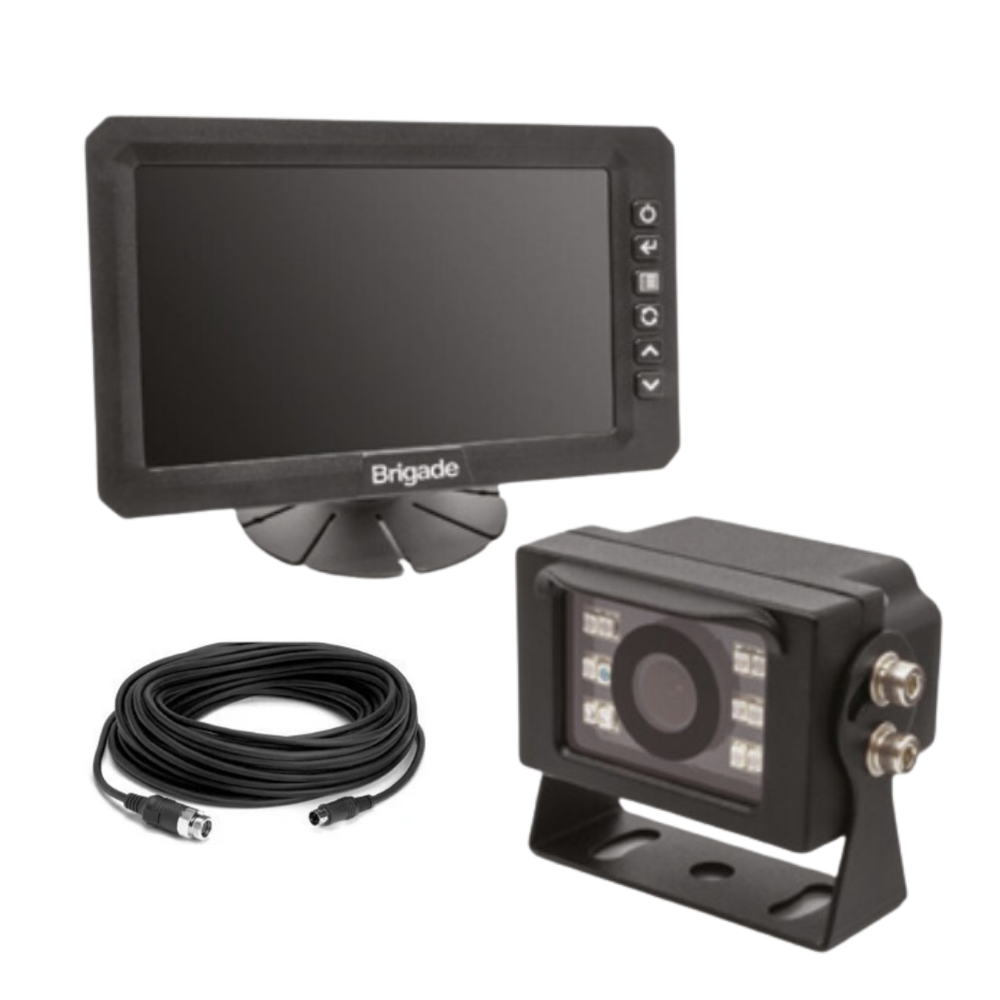

Contents

• 1 x VBV-6170M Monitor & Sunshield
• 1 x VBV-6132C Camera & Bracket
• 1 x VBV-L4120 20M Extension Cable
• 1 x VBV-670M BKT Monitor Bracket
• 1 x VBV-613XC FIX Camera Fitting Kit

Camera Features

• Normal view
• AHD 2.0 (1080P)
• NTSC & PAL

Monitor Features

• 2 camera inputs (CVBS, 720P &
1080P compatible)
• 1 auto trigger
• Sun shield
• Multi-lingual menus
• 16:9 display
• Normal/Mirror via OSD menu

Picture Quality

• Monitor resolution: 1024x600
• Camera Resolution: 1920x1080
• Contrast ratio: 500:1
• Brightness: 400 cd/m2
• Monitor viewing angles:
• Left 85° x Right 85° x Bottom 85°
x Top 85°


Power

• Power consumption:
(Monitor): 4.2W max. @ 12Vdc
(Camera): IR Off: 75mA(Max),
R On: 215mA(Max)
• Current Consumption:
350mA max. @ 12Vdc

Durability & Standards

• Vibration Resistance: 5.9G
• Mechanical vibration:
Camera: 8.5G
Monitor: 4G
• Operating temperature: -20° to +70°C
• CE marked
• FCC approved
• ICES Approved
