Brigade Direct Vision DVS 2024 Radar Predict Progressive Safe System Upgrade Kit PN: 7675
7675
The NEW Brigade Radar Predict Direct Vision DVS 2 upgrade kit is the latest innovation in side and front detection safety designed to meet the new DVS 2 requirements from TFL. This progressive safe system upgrade kit will ensure your vehicle meets the minimum requirements for the Direct Vision Standard. Suitable for Articulated and Rigid Vehicles with DVS 2020 equipment already fitted.
excl. VAT £1,350.00
(incl. VAT £1,620.00)
(incl. VAT £1,620.00)
The NEW Brigade Radar Predict Direct Vision DVS 2 upgrade kit is the latest innovation in side and front detection safety designed to meet the new DVS 2 requirements from TFL. This progressive safe system upgrade kit will ensure your vehicle meets the minimum requirements for the Direct Vision Standard. Suitable for Articulated and Rigid Vehicles with DVS 2020 equipment already fitted. Ideal for customers who currently already comply to DVS phase 1 (safe permit) but need to upgrade to the PSS (Progressive Safe System).
Specifically designed to protect VRU’s from collisions with HGVs. The advanced radar system uses AI technology to detect a potential collision by analysing data such as speed and direction of both the vehicle and VRU’s. By differentiating between static and moving objects, the Radar Predict algorithm alerts the driver when an impact with a VRU is likely.
HGVs pose a risk to both pedestrians and cyclists, with collisions involving a large vehicle far more likely to prove fatal than those involving a car. Many collisions between cyclists and HGVs occur because the driver has limited direct vision (the ability to see what is outside their cab without using indirect means of mirrors or cameras).
The single dual-radar unit is fitted on the nearside of the truck and gives complete coverage to the side of the vehicle, including the trailer unit. The trailer discovery mode detects whether the vehicle is fitted with a trailer and prevents articulation causing false alerts. The driver is alerted if a cyclist enters the detection zone and receives a second warning if a collision is predicted.
An MOIS advanced dual-radar collision prediction system with a 180° detection angle in front of the vehicle also alerts drivers through visual and audible signals. The driver is alerted if a cyclist enters the detection zone and receives a second warning if a collision is predicted.
Features:
Compatible with both rigid and articulated vehicles, offering versatility in application
180° VRUs detection active when vehicle speed is below 20 mph
Predicts cyclist collisions without reporting on static objects reducing false alerts for the driver
Quick and easy installation, no CAN connection to the vehicle

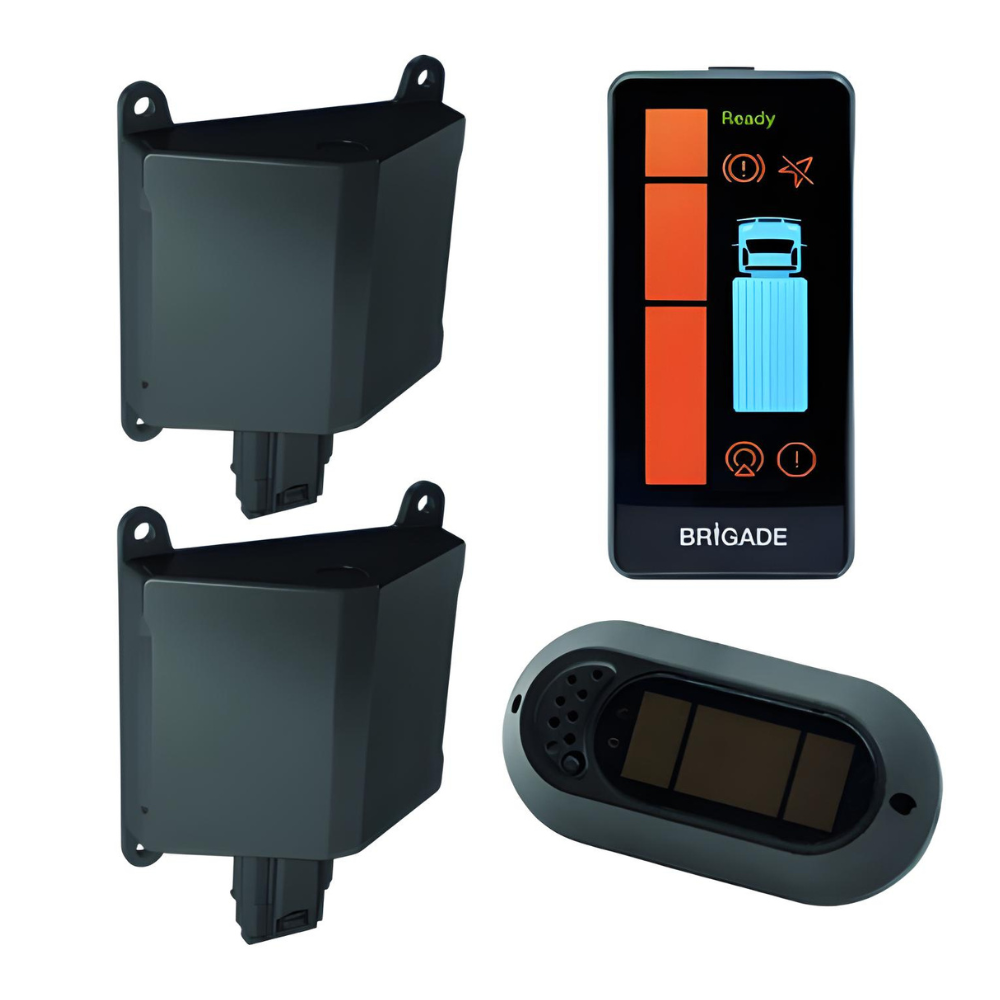

DVS Kit Includes:

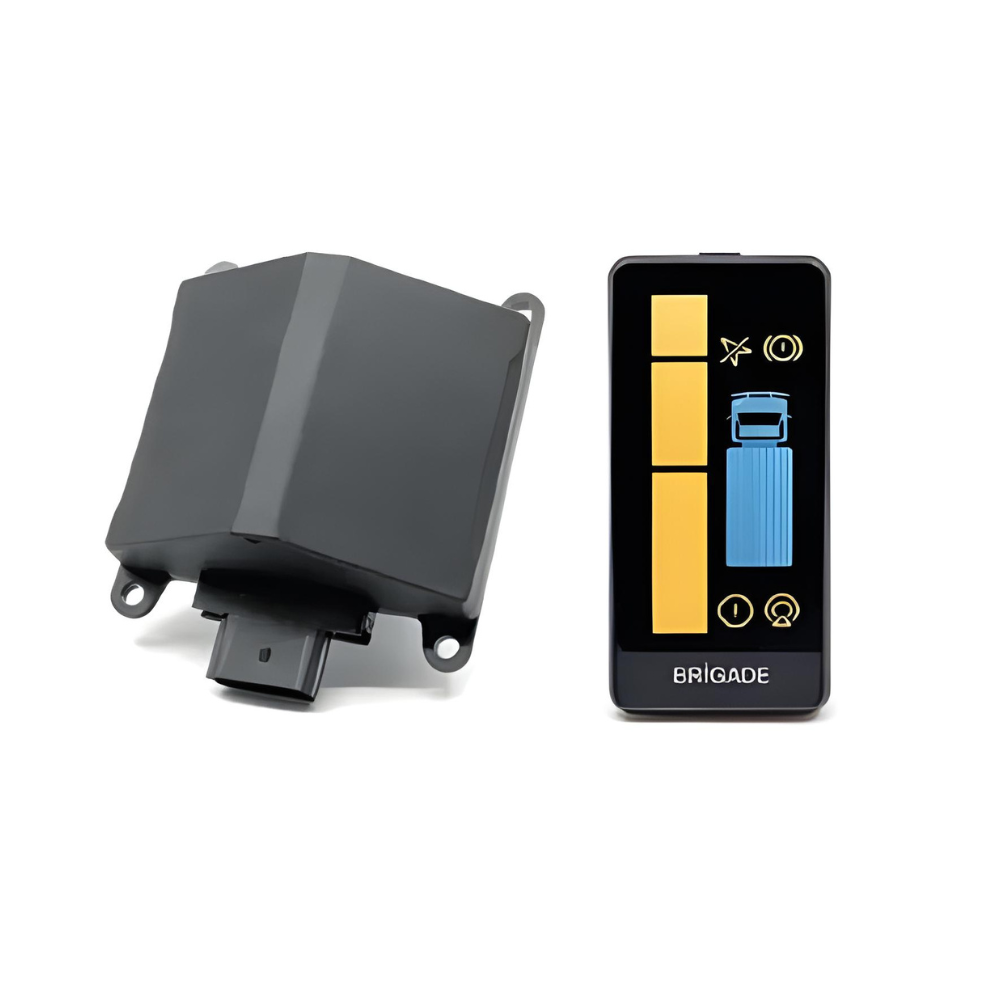

Side Radar (BSIS) Predict Kit (7500)

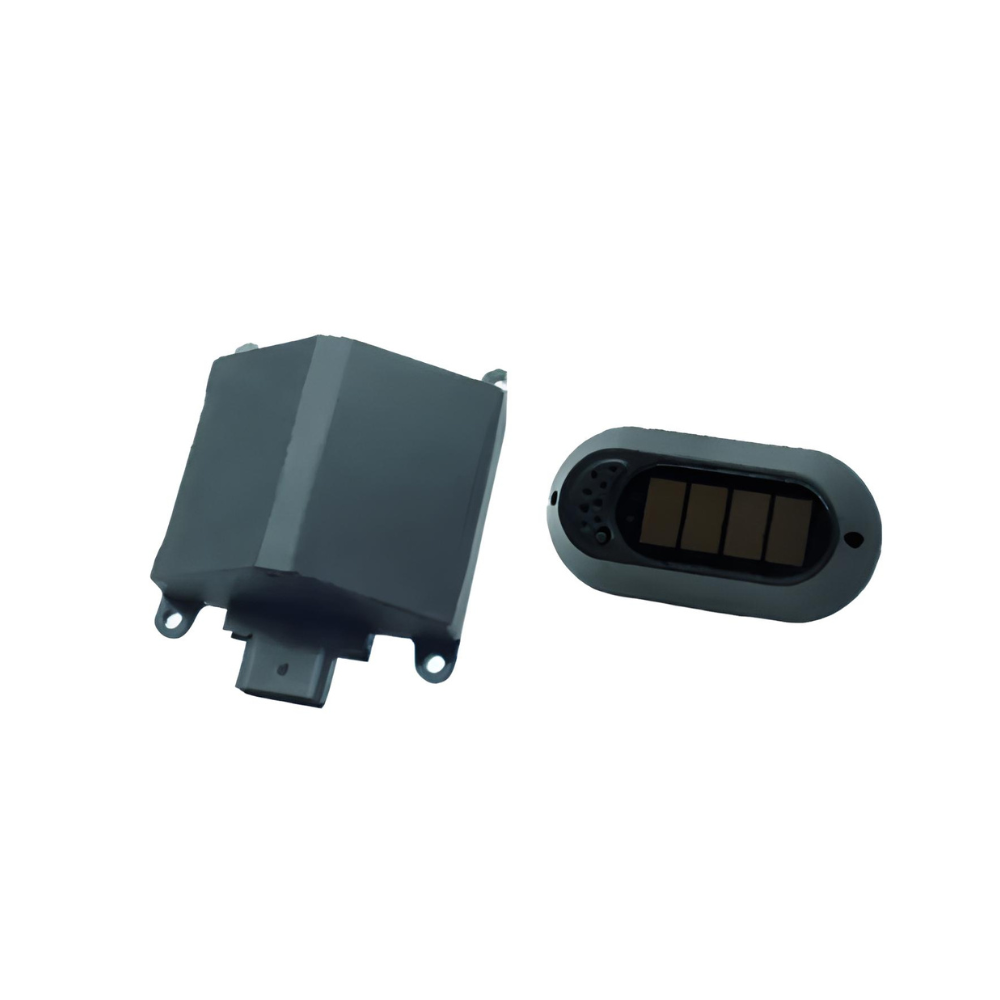

Front Radar (MOIS) Predict Kit (7673)
Side Radar (BSIS) Predict Benefits
180° VRUs side detection
Detection area of 4.5m x up to 37m
Quick and easy installation
Available for left and right-side applications
Meets UNECE Regulation 151 requirements
Complies with DVS PSS Requirements
3 Year Warranty
Front Radar (MOIS) Predict Benefits
180° VRUs front detection
Detection area of up to 3.6m x 2.5m
Quick and easy installation
Meets UNECE Regulation 151 requirements
Complies with DVS MOIS Requirements
3 Year Warranty
DVS Sensor Functionality Statement
Please note; a letter self-certifying that sensors have been fitted in accordance with the technical specifications AND are in working order, this statement must come from the fitter.
Specifically designed to protect VRU’s from collisions with HGVs. The advanced radar system uses AI technology to detect a potential collision by analysing data such as speed and direction of both the vehicle and VRU’s. By differentiating between static and moving objects, the Radar Predict algorithm alerts the driver when an impact with a VRU is likely.
HGVs pose a risk to both pedestrians and cyclists, with collisions involving a large vehicle far more likely to prove fatal than those involving a car. Many collisions between cyclists and HGVs occur because the driver has limited direct vision (the ability to see what is outside their cab without using indirect means of mirrors or cameras).
The single dual-radar unit is fitted on the nearside of the truck and gives complete coverage to the side of the vehicle, including the trailer unit. The trailer discovery mode detects whether the vehicle is fitted with a trailer and prevents articulation causing false alerts. The driver is alerted if a cyclist enters the detection zone and receives a second warning if a collision is predicted.
An MOIS advanced dual-radar collision prediction system with a 180° detection angle in front of the vehicle also alerts drivers through visual and audible signals. The driver is alerted if a cyclist enters the detection zone and receives a second warning if a collision is predicted.
Features:
Compatible with both rigid and articulated vehicles, offering versatility in application
180° VRUs detection active when vehicle speed is below 20 mph
Predicts cyclist collisions without reporting on static objects reducing false alerts for the driver
Quick and easy installation, no CAN connection to the vehicle
DVS Kit Includes:
Side Radar (BSIS) Predict Kit (7500)
Front Radar (MOIS) Predict Kit (7673)
Side Radar (BSIS) Predict Benefits
180° VRUs side detection
Detection area of 4.5m x up to 37m
Quick and easy installation
Available for left and right-side applications
Meets UNECE Regulation 151 requirements
Complies with DVS PSS Requirements
3 Year Warranty
Front Radar (MOIS) Predict Benefits
180° VRUs front detection
Detection area of up to 3.6m x 2.5m
Quick and easy installation
Meets UNECE Regulation 151 requirements
Complies with DVS MOIS Requirements
3 Year Warranty
DVS Sensor Functionality Statement
Please note; a letter self-certifying that sensors have been fitted in accordance with the technical specifications AND are in working order, this statement must come from the fitter.
